1 p63a busbar 12 sets of teeth red copper primary color 1.5*7 total length 220mm dz47 air open connection copper bar 1P63A汇流排12组牙齿 紫铜原色1.5*7 总长220mm DZ47空开连接铜排

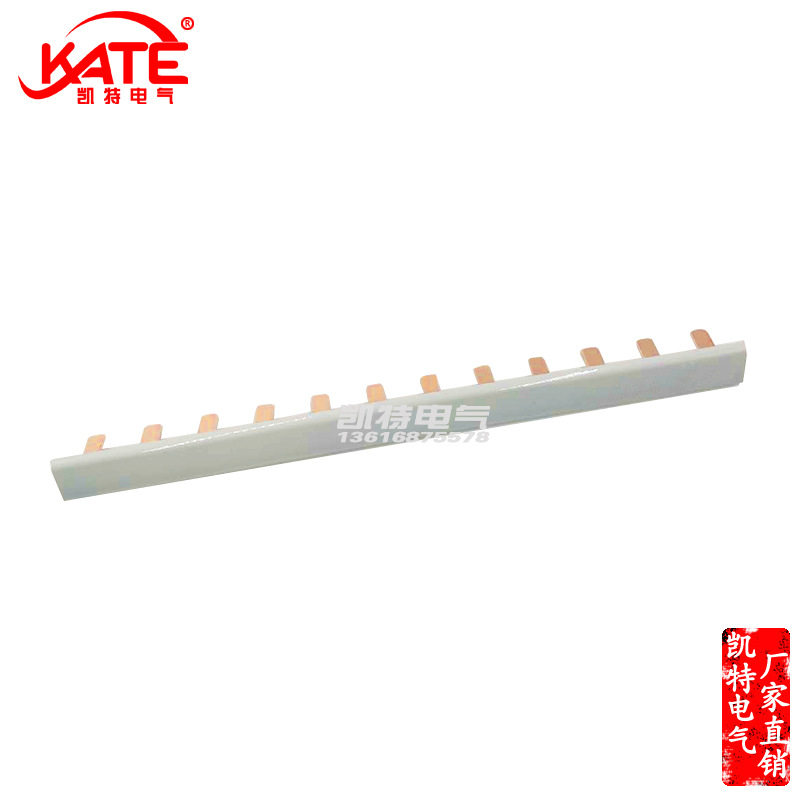

1. Product Name: 1P 63A Busbar with 12 Teeth

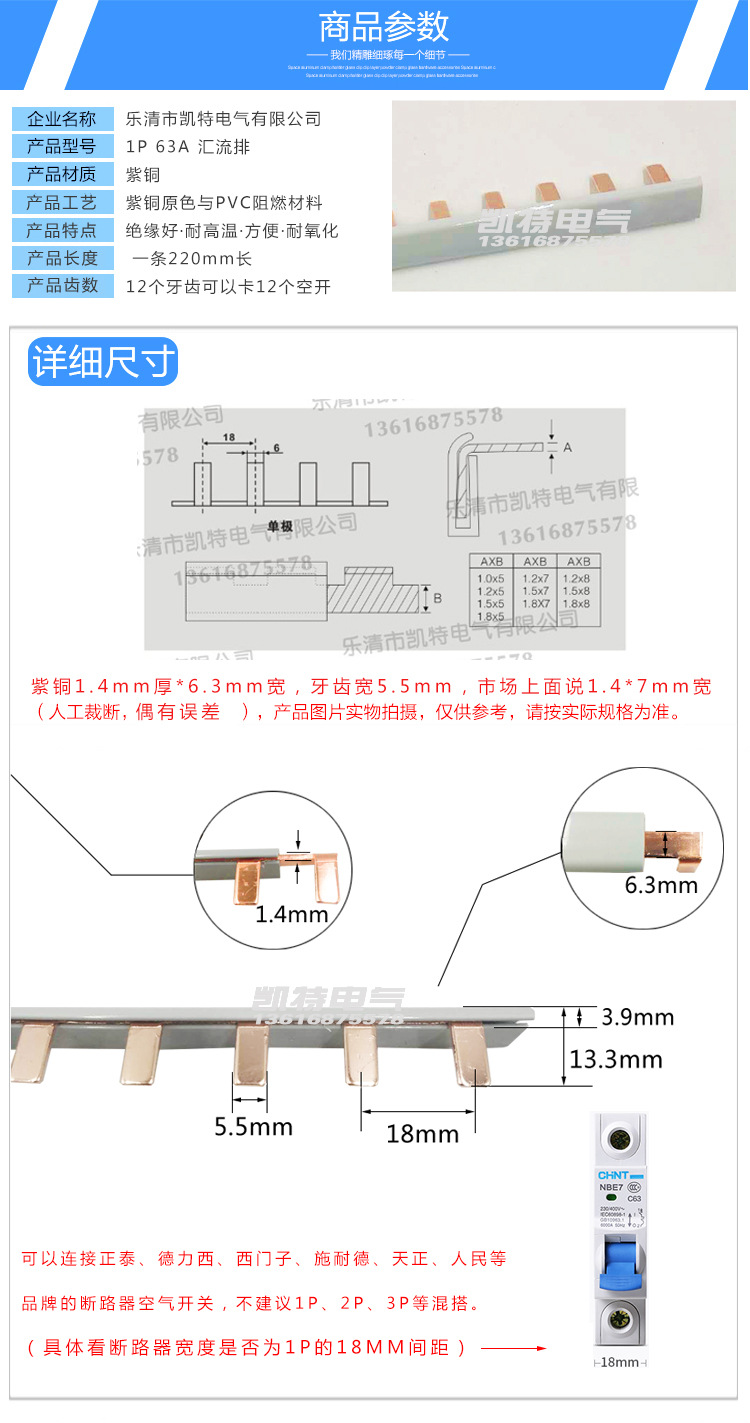

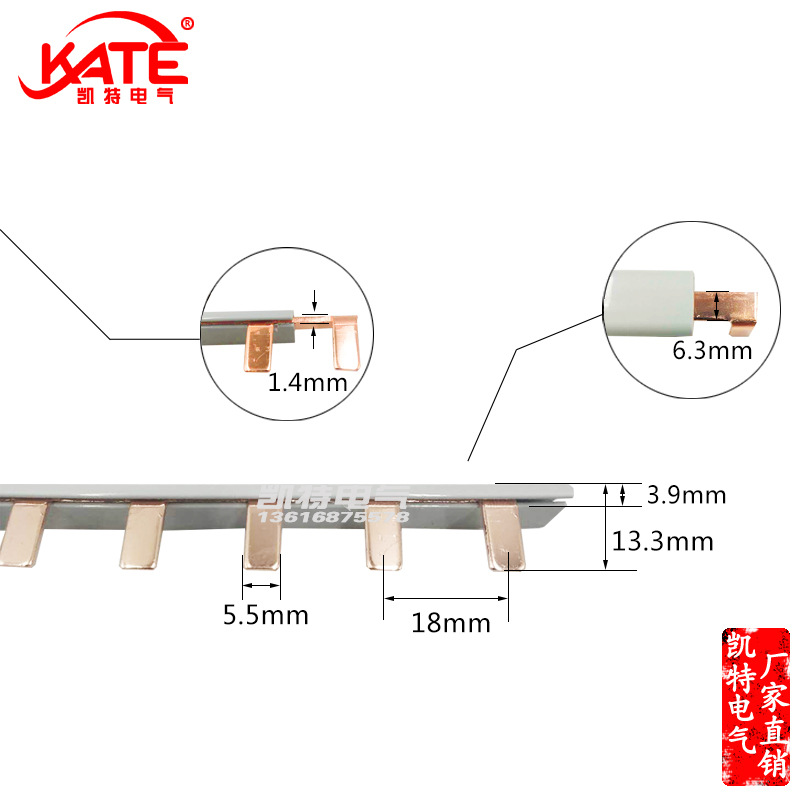

2. Thickness and width: The market says 1.5mm thick * 7mm wide.
3. Actual Specification: 1.4mm thick * 6.4mm wide (manually cut, width is ±0.2mm). Tooth width is 5.5mm.
4. Product Spacing: Phase A-Phase A spacing 18mm.
5. Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).
6. Product material: raw copper color.
7. Length packaging: total length 220mm, 12 teeth.
8. Product Insulation: PVC Flame-Retardant Plastic.
9. Application: Can be connected to C45, DZ47, IC65N, and other types of mini-circuit breakers, such as air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).

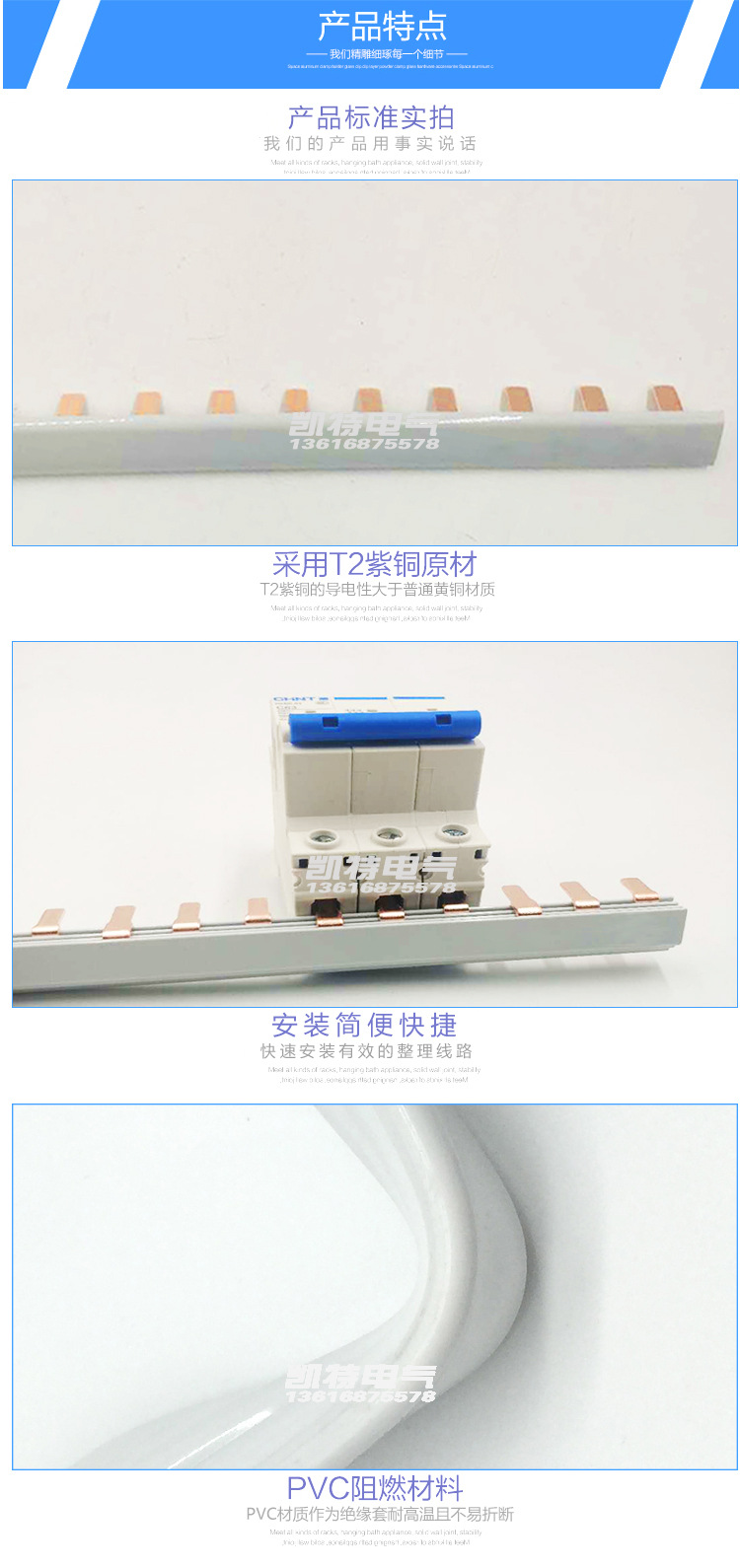

10. Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.
