brand: kate

application scope: -

product certification: ce

whether it is exclusively for foreign trade: no

product series: brass 2p40a-1.2*5

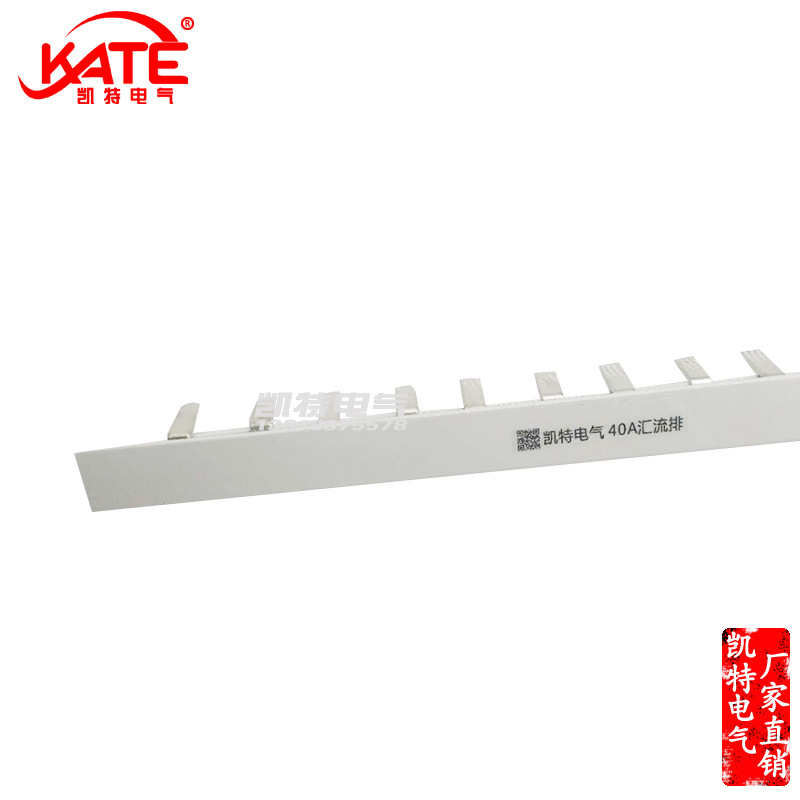

Product Name: 2P 40A Busbar - Brass

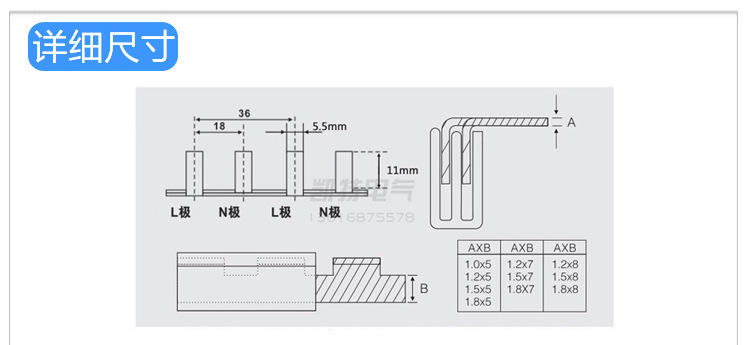

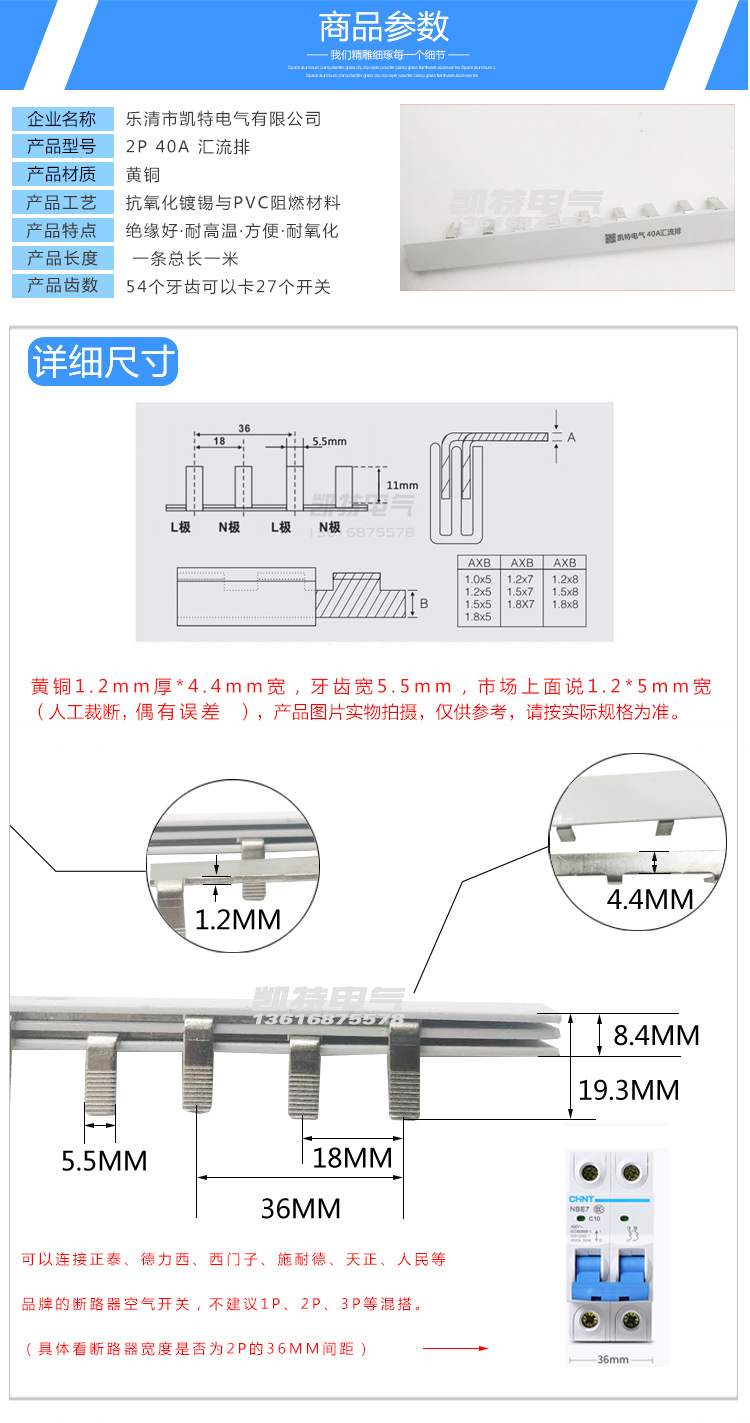

Thickness and width: The market says 1.2mm thick * 5mm wide.

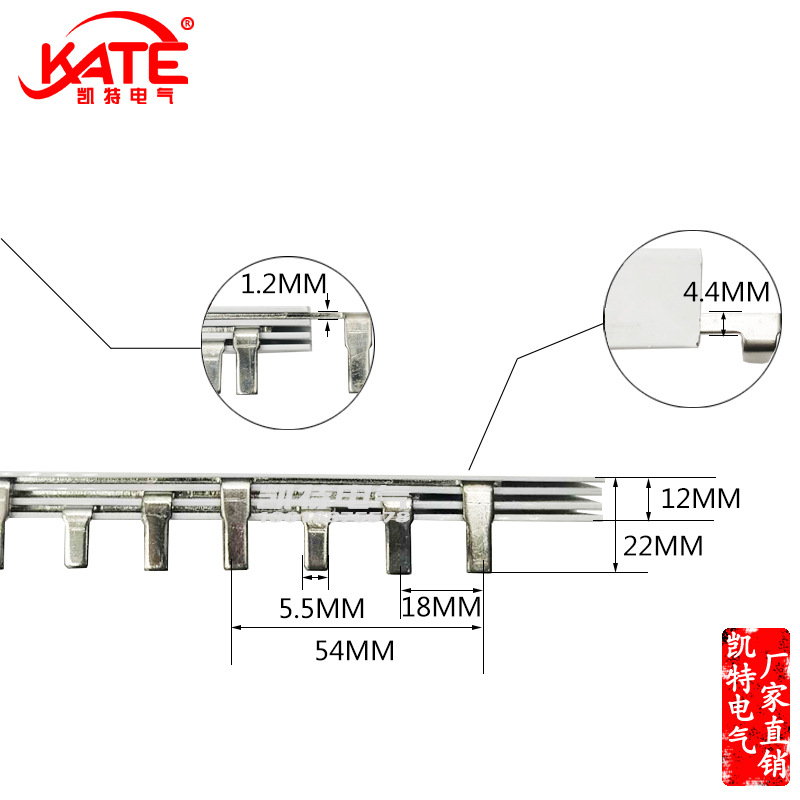

Actual Specification: 1.2mm thick * 4.4mm wide (manually cut, width is ±0.2mm), tooth width is 5.5mm.
Product spacing: A-phase to A-phase spacing is 36mm, and one meter can accommodate 27 switches.
Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).

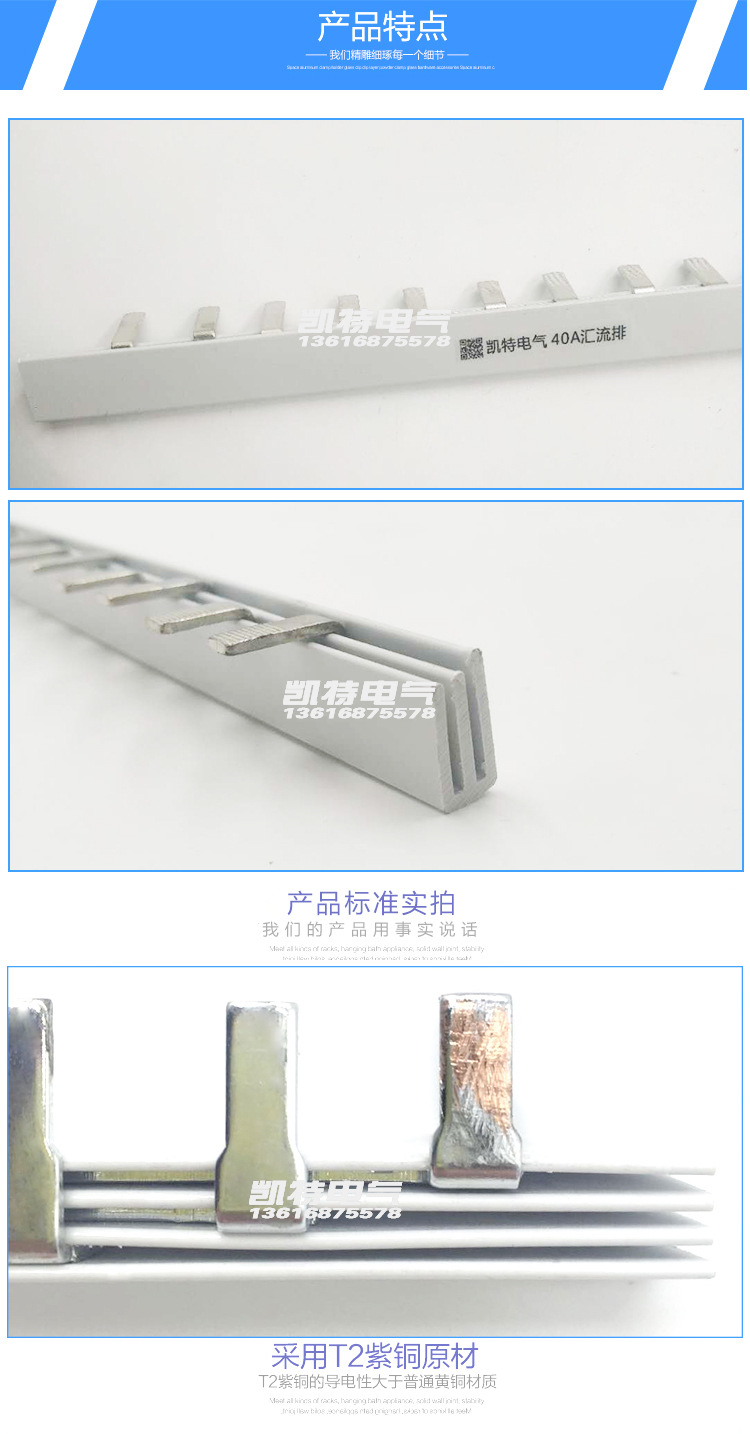

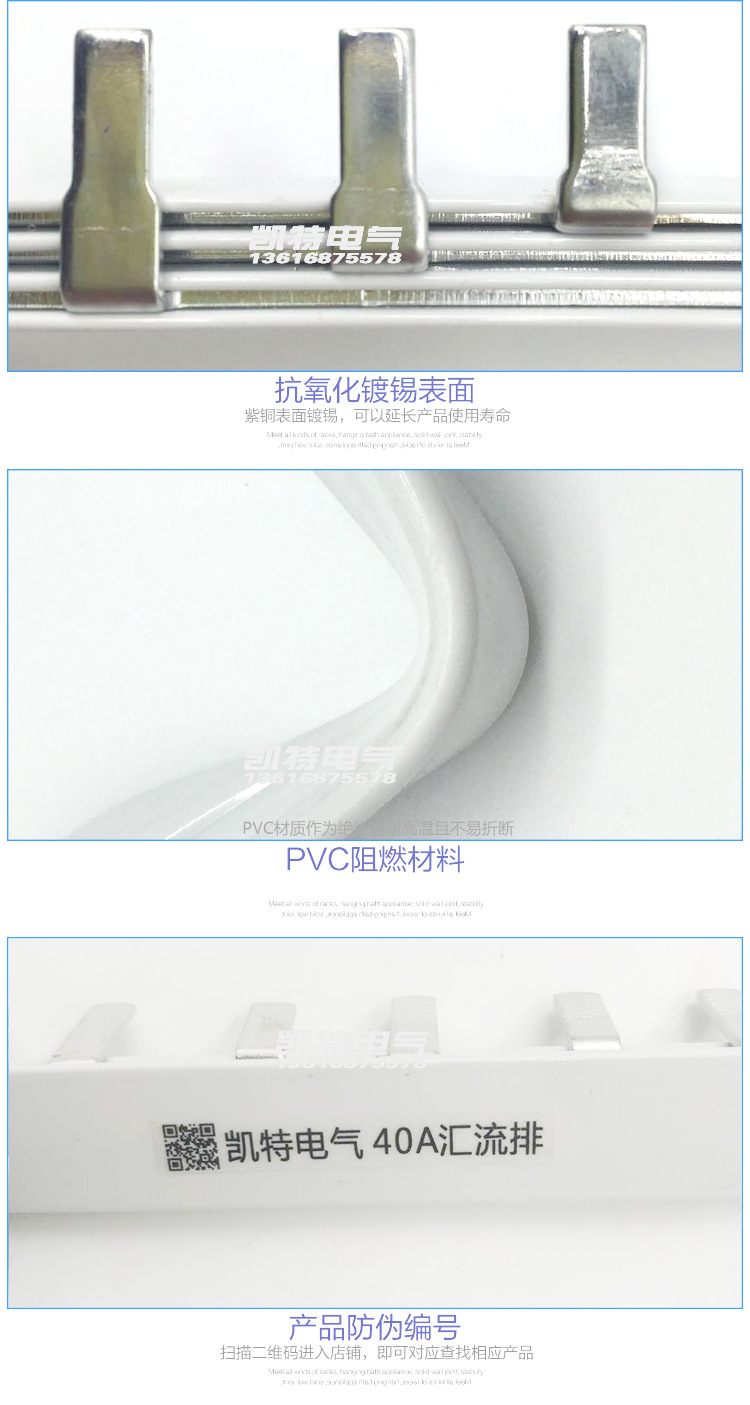

Product material: Brass, product surface anti-oxidation electroplating (can be scratched to see the original color of brass).
Length packaging: 1 meter per piece, 10 pieces per bundle.

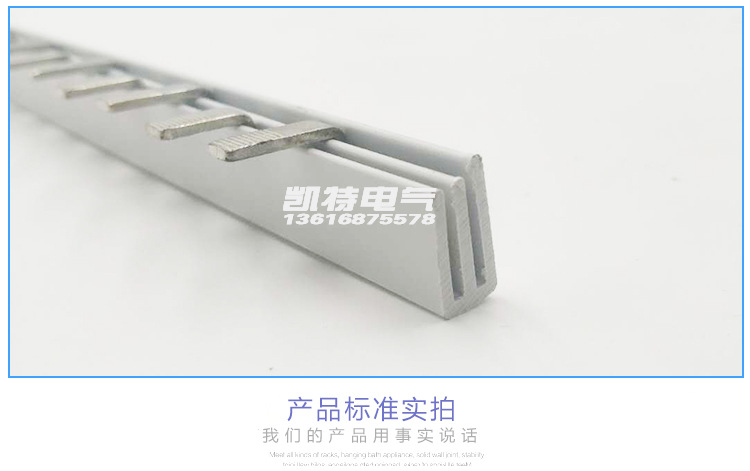

Product Insulation: PVC Flame-Retardant Plastic.

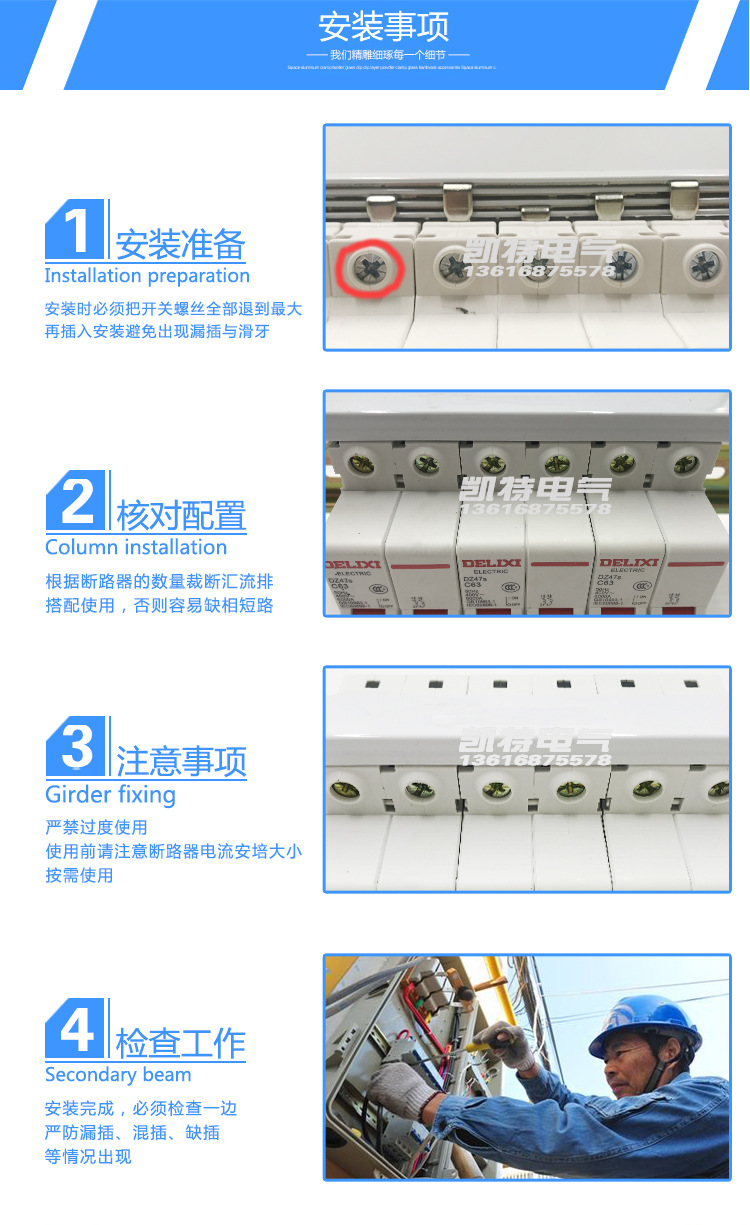

Application: Can be connected to C45-type, DZ47-type and other small circuit breakers and air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).
Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.
