2 p200a busbar 2*17 red copper primary color 36 spacing dz47 air open connection copper bar terminal block

Contacts zhenghuiying Chat

Mobile 13017998217

13017998217

WhatsApp 15215851770

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

brand: kate

application scope: conventional

product certification: -

whether it is exclusively for foreign trade: no

product series: 2p200a copper primary color 2*17

contact material: red copper

item no.: 2p200a copper primary color 2*17

insulator material: flame retardant plastic

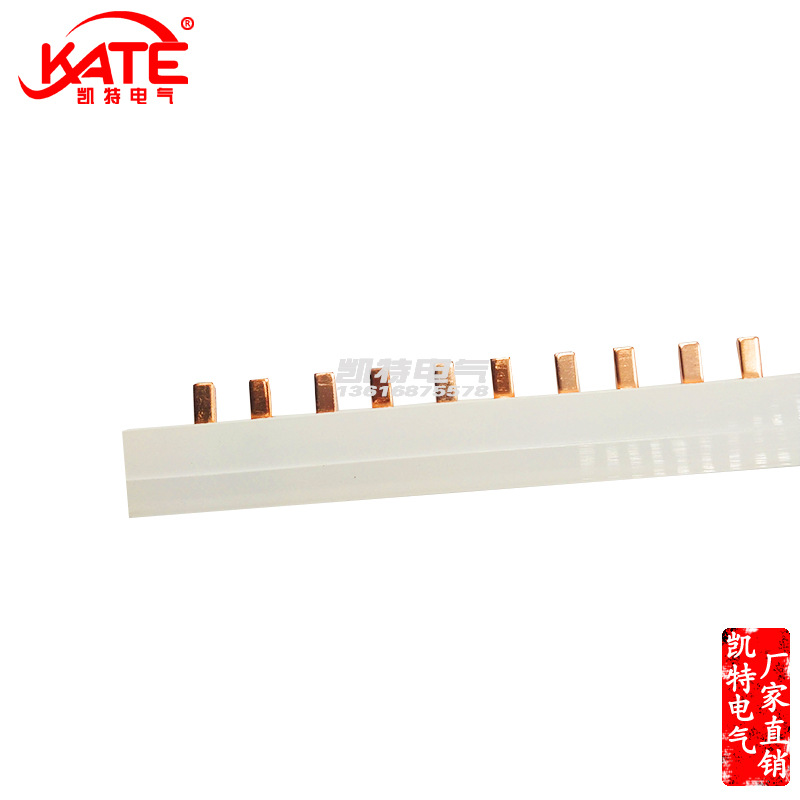

Product Name: 2P 200A Busbar, Z-shape, Pure Copper Color

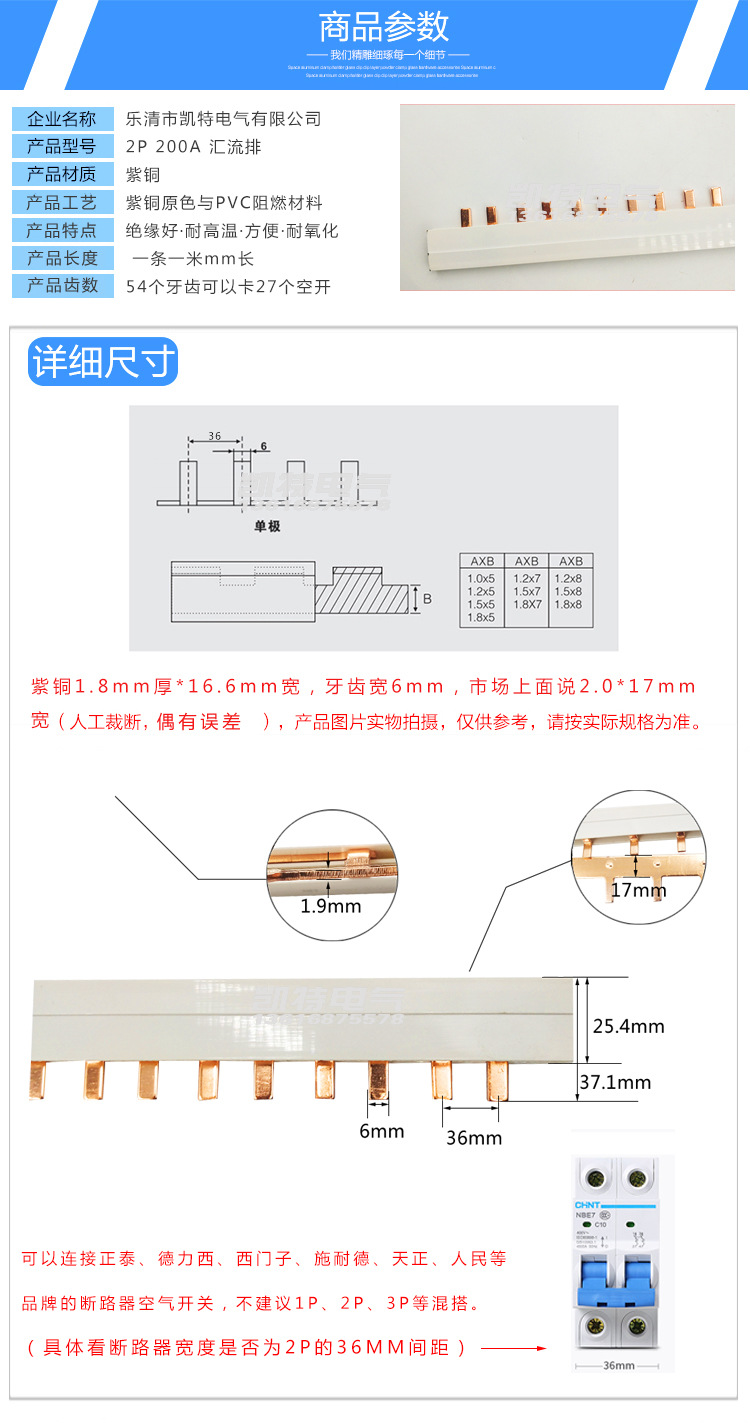

Thickness and width: The market says 2.0mm thick * 17mm wide.

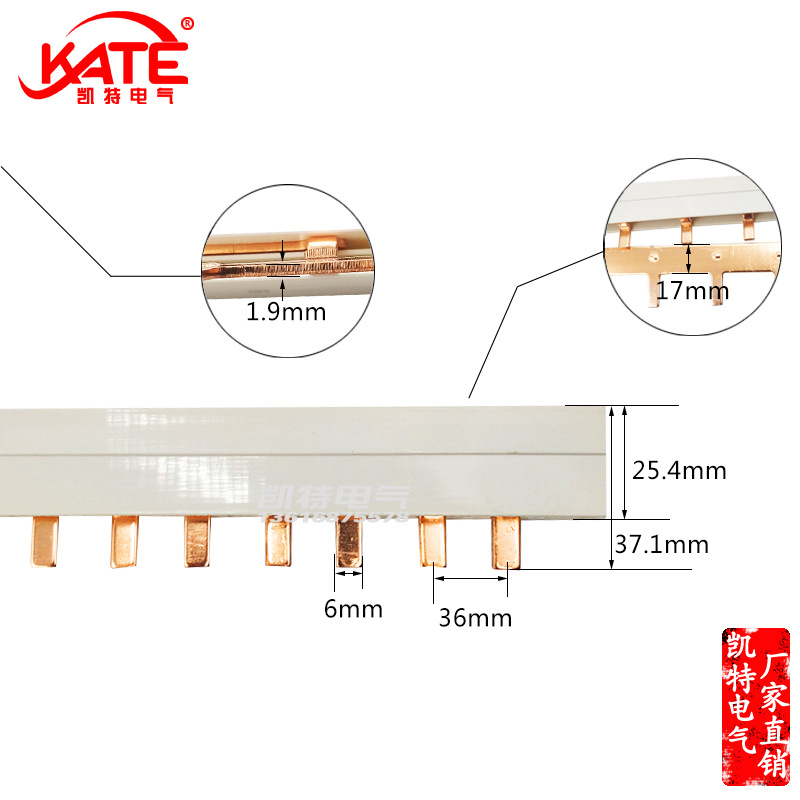

Actual Specification: 1.8mm thick * 16.6mm wide (manually cut, width is ±0.2mm). Tooth width is 6mm.

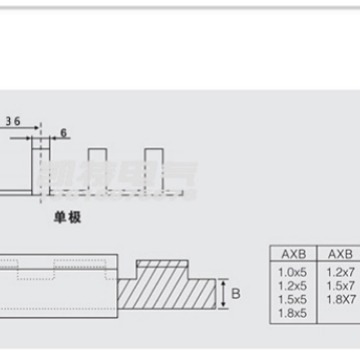

Product spacing: A-phase to A-phase spacing is 36mm, and one meter can accommodate 27 switches.
Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).
Product material: raw copper color.
Length packaging: 1 meter per piece, 10 pieces per bundle.
Product Insulation: PVC Flame-Retardant Plastic.

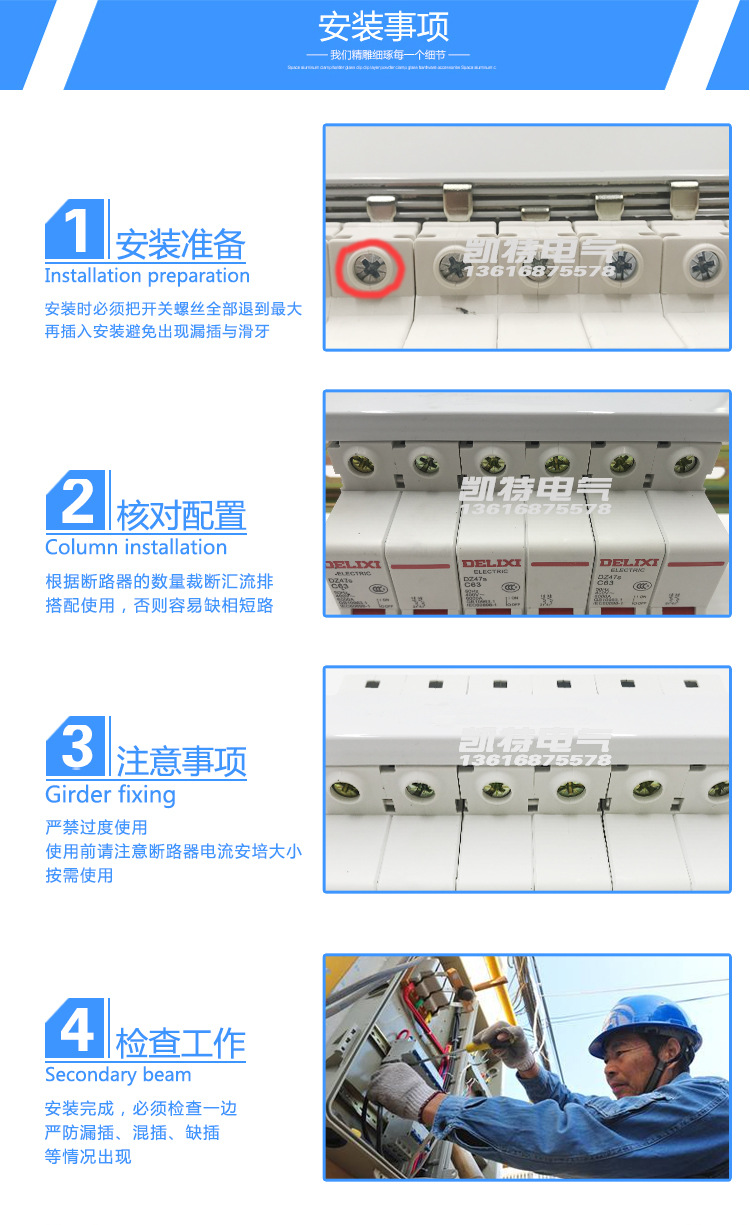

Application: Can be connected to C45, DZ47, IC65N, and other types of mini-circuit breakers, such as air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).

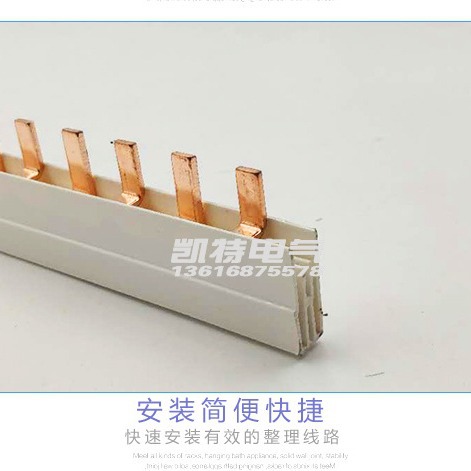

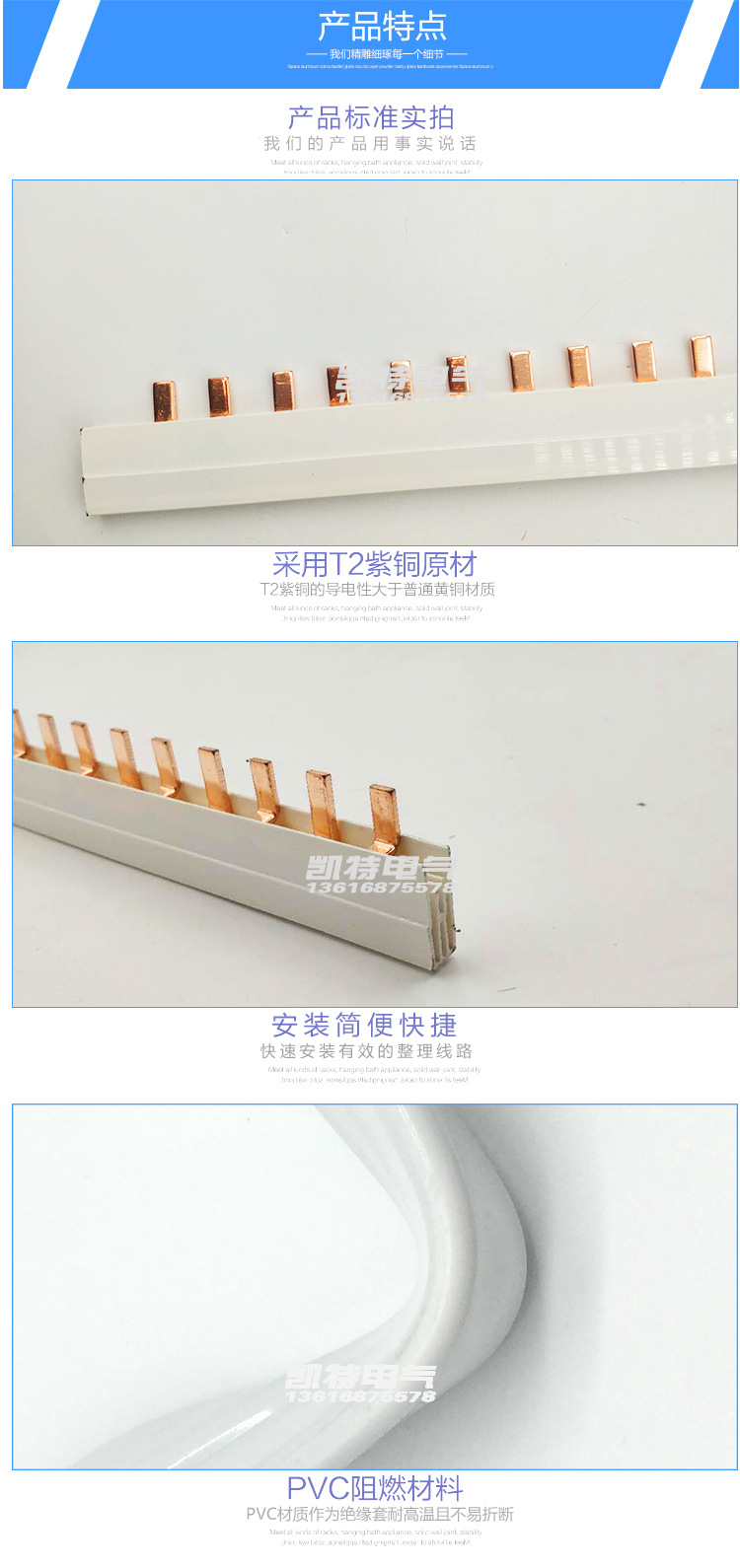

Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.



Update time：20260615144521

2 p200a busbar 2*17 red copper primary color 36 spacing dz47 air open connection copper bar terminal block 2P200A汇流排 2*17 紫铜原色 36间距DZ47空开连接铜排 接线排
