2p leakage 63a busbar 20 a- 70a red copper brass missing report connection row c45 circuit breaker terminal block kt008

  • EXW Price:
    CN¥ 12.12 ~ CN¥ 30.33
    Min. order: 1 m
  • 1 m
  • model
  • Specifications
    brass 2p leakage 20a-1.0*5 63mm CN¥ 12.12
    brass 2p leakage 40a-1.2*5 63mm CN¥ 13.76
    brass 2p leakage 60a-1.4*5 63mm CN¥ 15.89
    2p leakage 32a-1.0*5 red copper 63mm CN¥ 15.15
    2p leakage 40a-1.2*5 red copper 63mm CN¥ 17.54
    2p leakage 60a-1.4*5 red copper 63mm CN¥ 19.91
    2p leakage 60a widened 1.2*7 red copper 63mm CN¥ 22.88
    2p leakage 63a-1.2*8 red copper 63mm CN¥ 26.34
    2p leakage 63a-1.4*7 red copper 63mm CN¥ 26.12
    2p leakage 70a-1.4*8 red copper 63mm CN¥ 30.33
    2p leakage 60a-1.4*5 red copper 72mm CN¥ 22.89
    2p leakage 70a-1.4*8 red copper 72mm CN¥ 29.41
Send Inquiry Chat with supplier

zhengxi 1yr.

Contacts:zhenghuiying Chat

Mobile:86-13017998217

E-mail:443871826@qq.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email: yiwubuy@yiwugo.com

  • Description
brand: kate
brand: kate
application scope: -
application scope: -
product certification: ce
product certification: ce
whether it is exclusively for foreign trade: no
whether it is exclusively for foreign trade: no
product series: 2p leakage 63a-1.4*7 red copper 63mm
product series: 2p leakage 63a-1.4*7 red copper 63mm

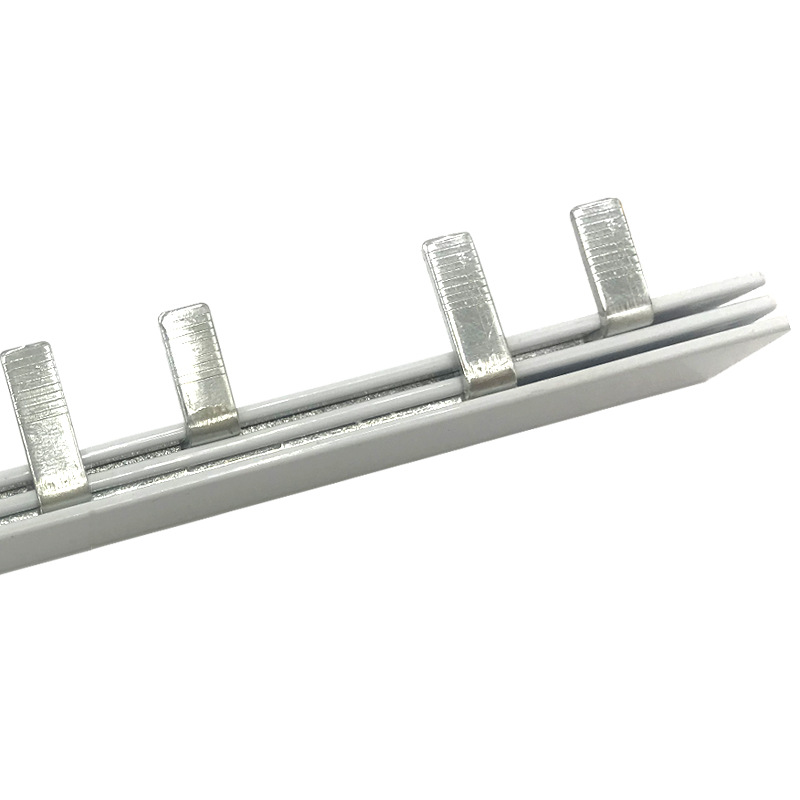

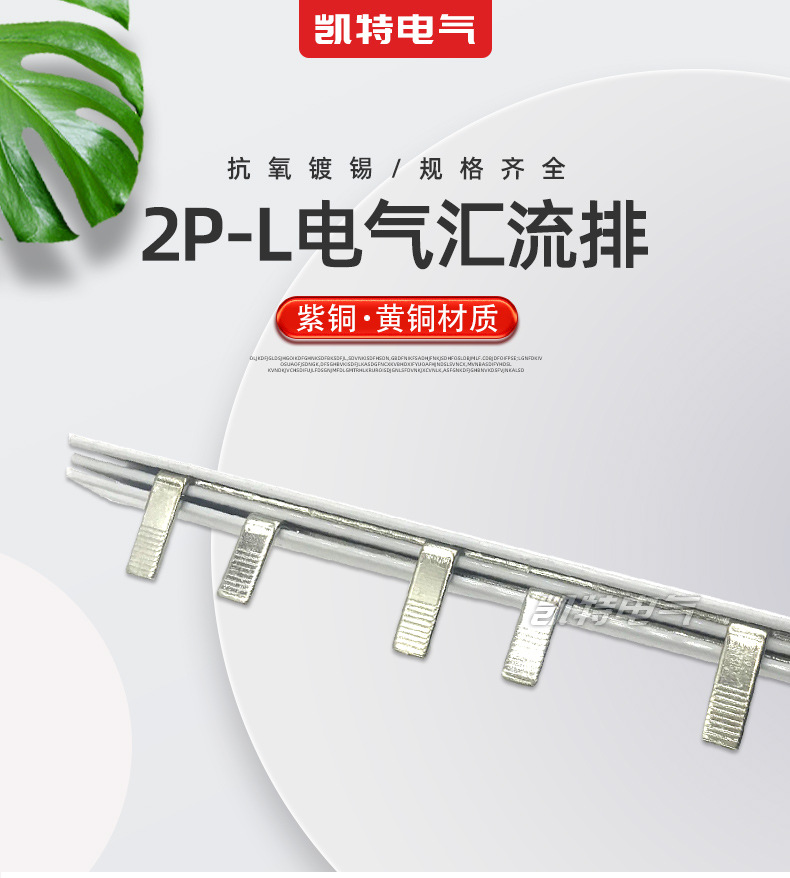

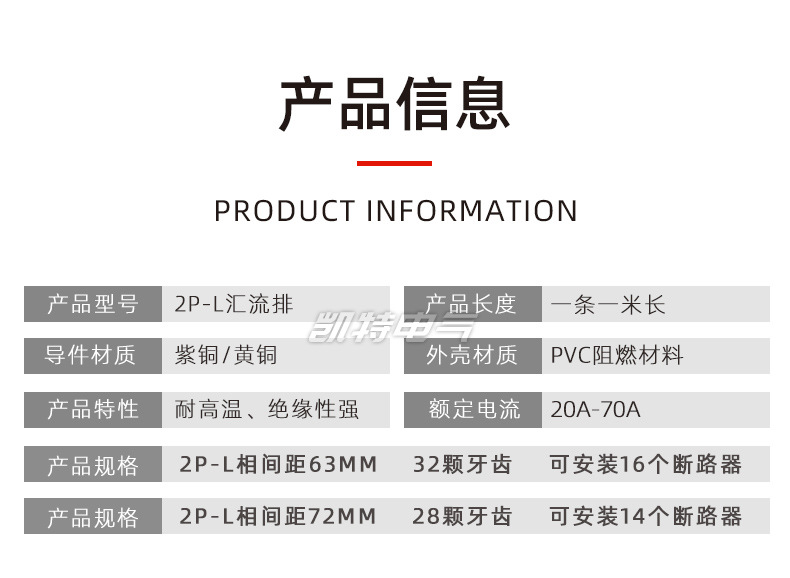

  1. Product Name: 2P Leakage Protection 63A Busbar

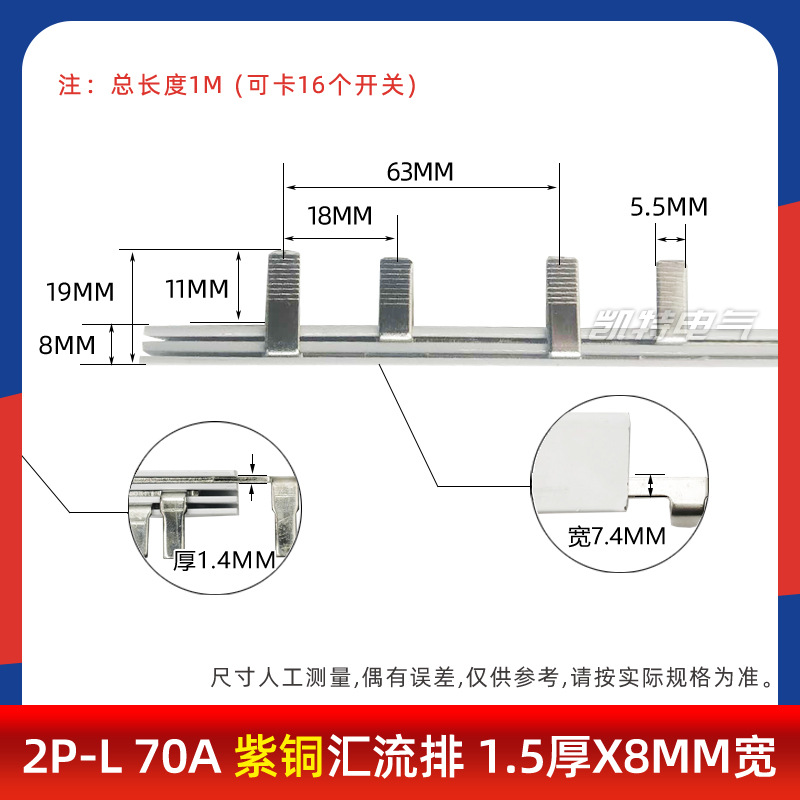

  2. Thickness and width: The market says 1.5mm thick * 7mm wide.
  3. Actual Specification: 1.4mm thick * 6.4mm wide (manually cut, width is ±0.2mm). Tooth width is 5.5mm.
  4. Product spacing: A-phase to A-phase spacing is 63mm, and one meter can accommodate 16 switches.
  5. Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).

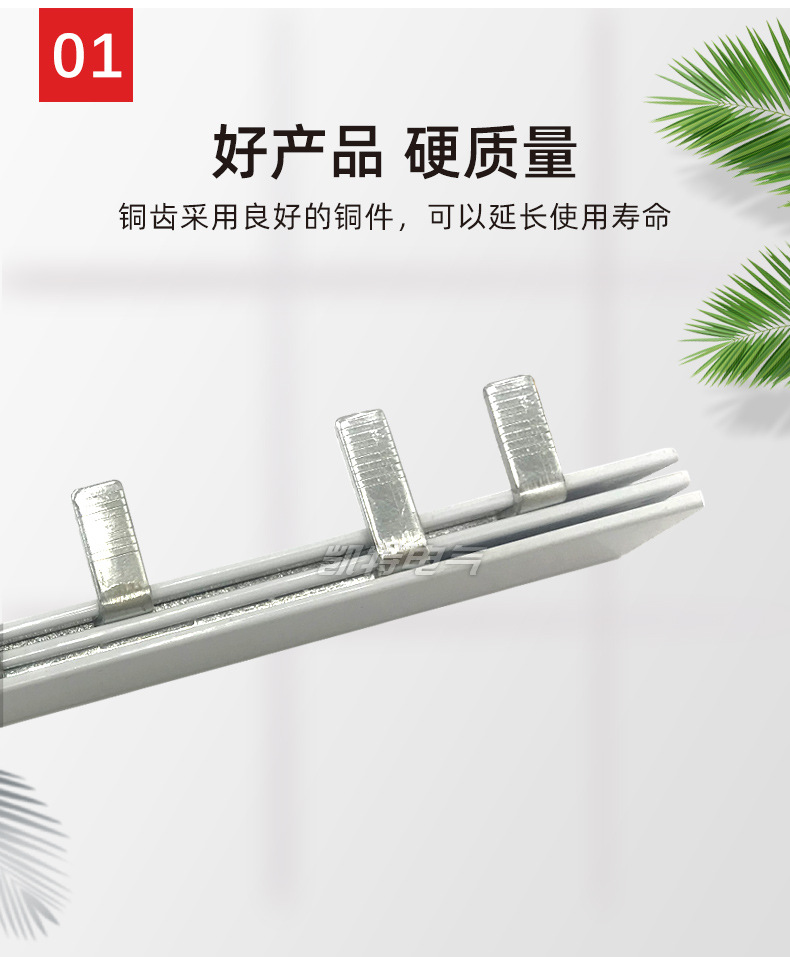

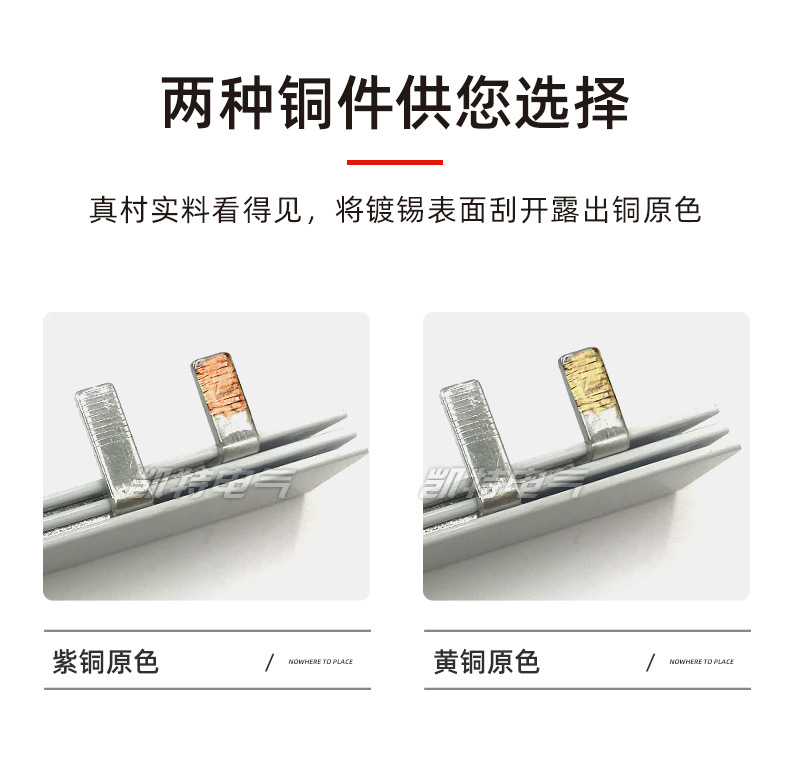

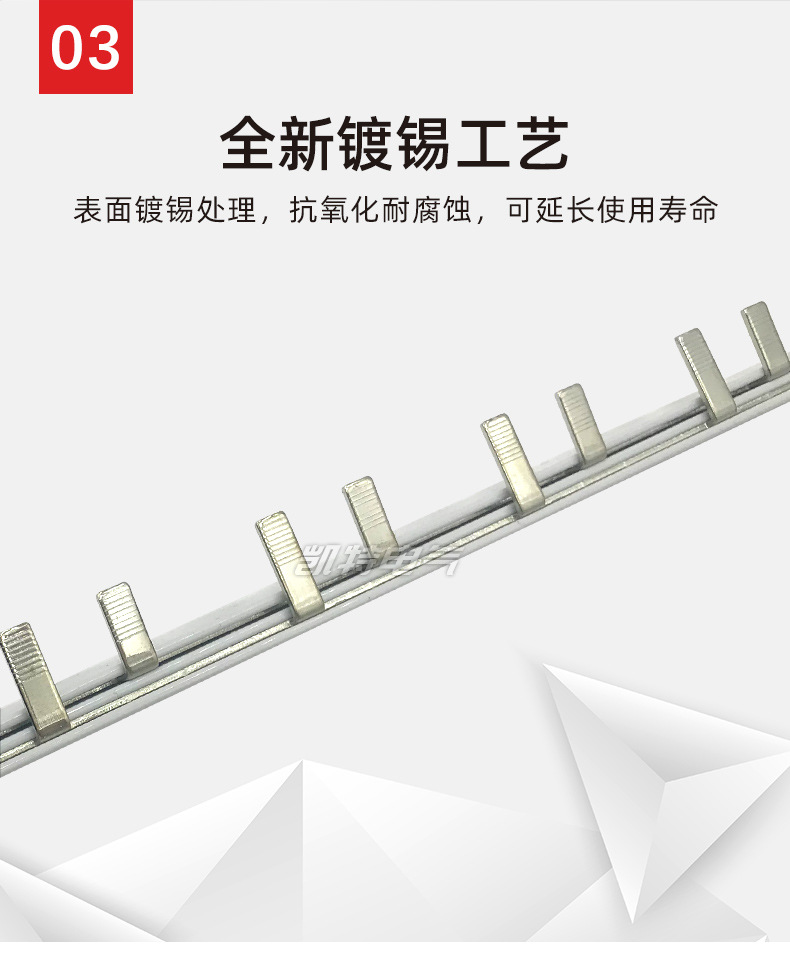

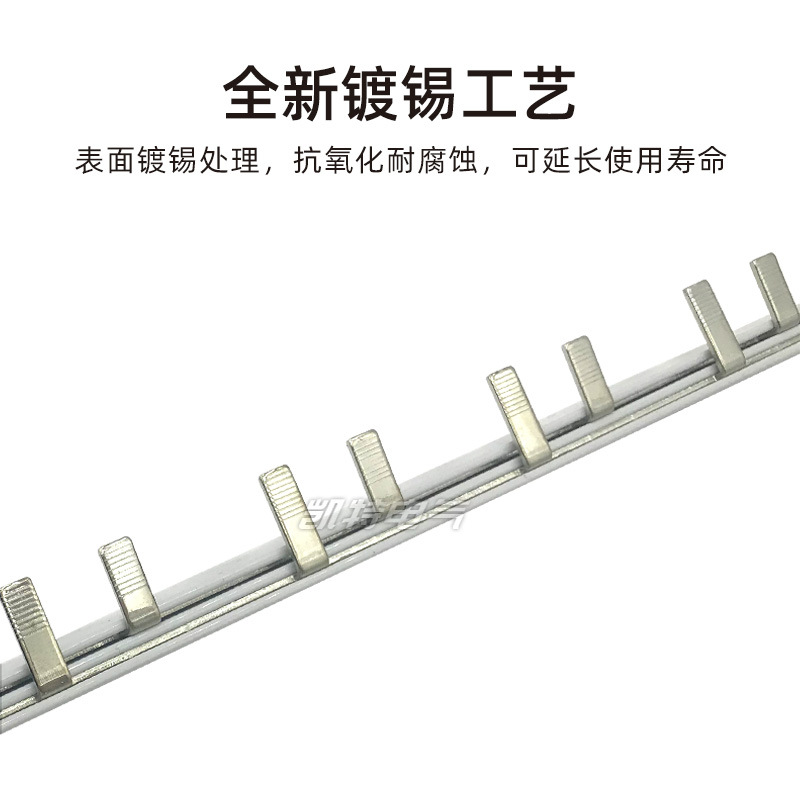

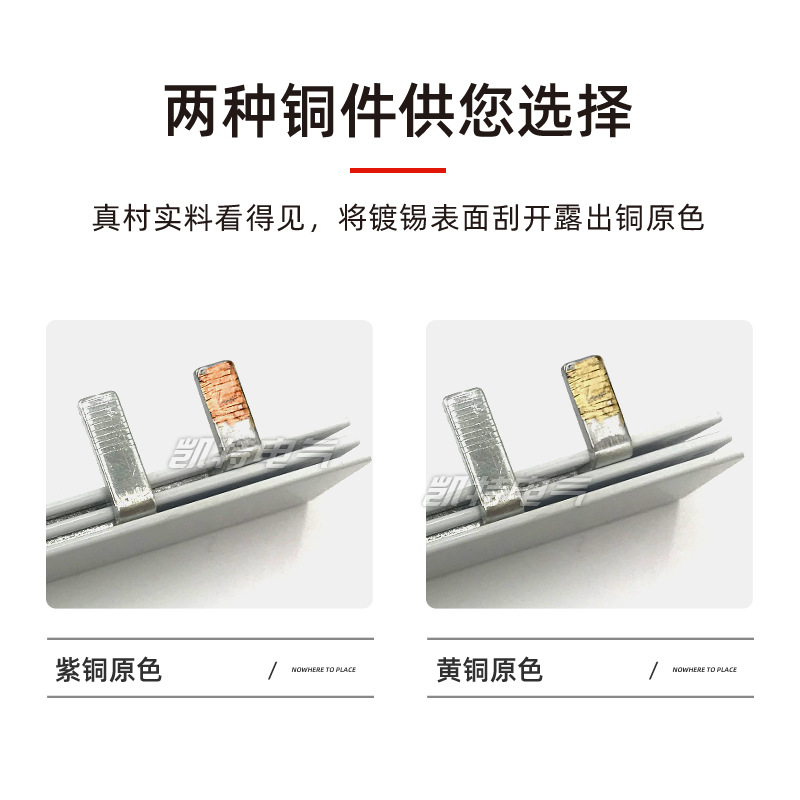

  6. Product material: Copper, product surface antioxidant electroplating (can be scratched to see the original color of copper).
  7. Length packaging: 1 meter per piece, 10 pieces per bundle.

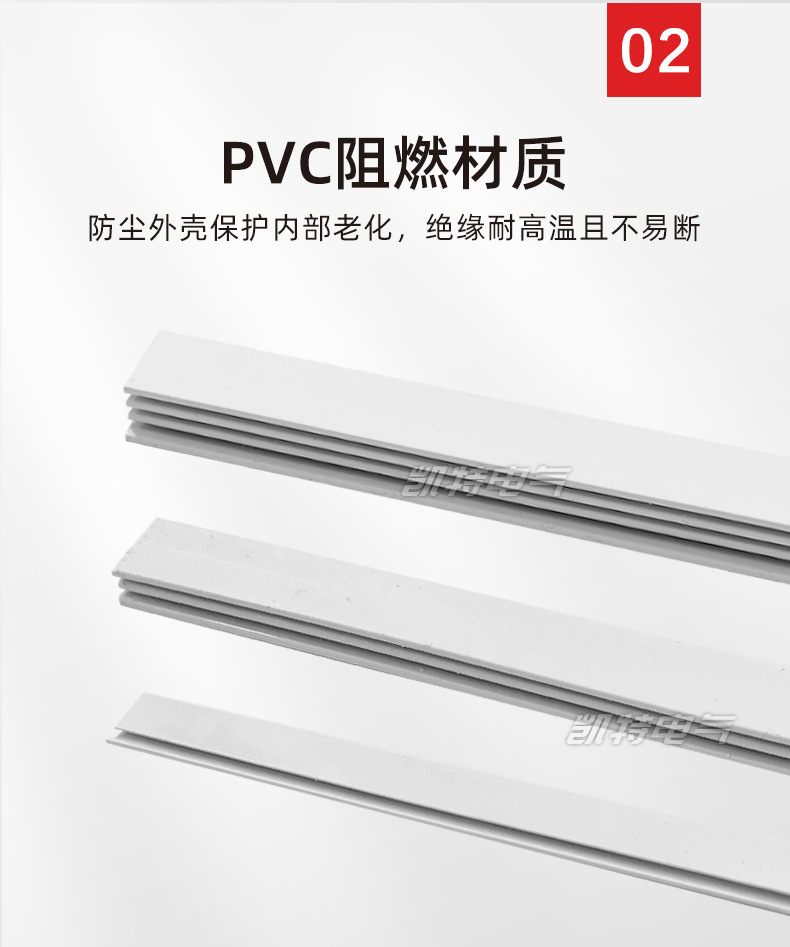

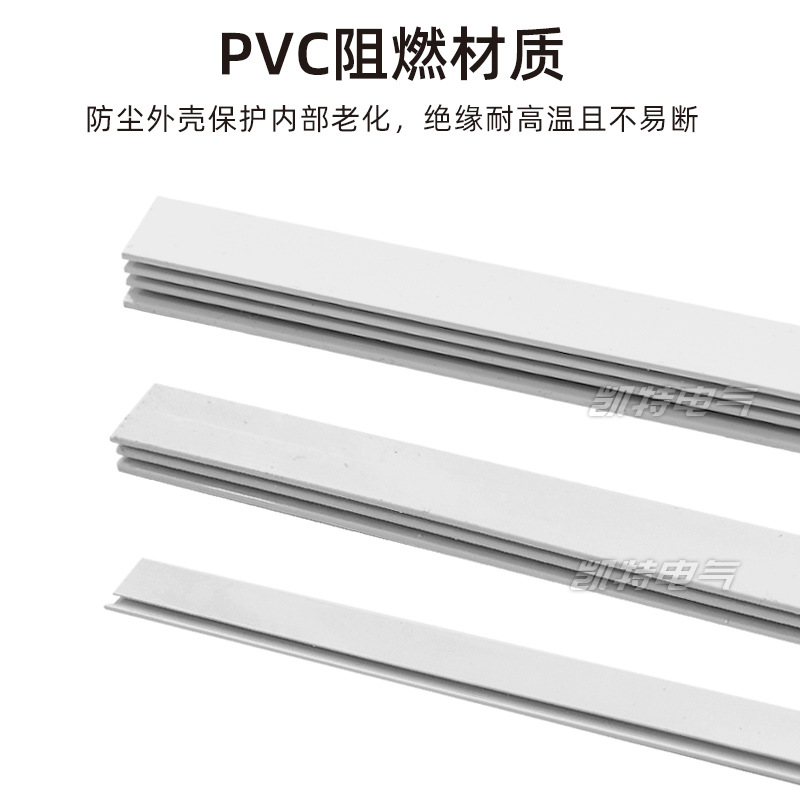

  8. Product Insulation: PVC Flame-Retardant Plastic.

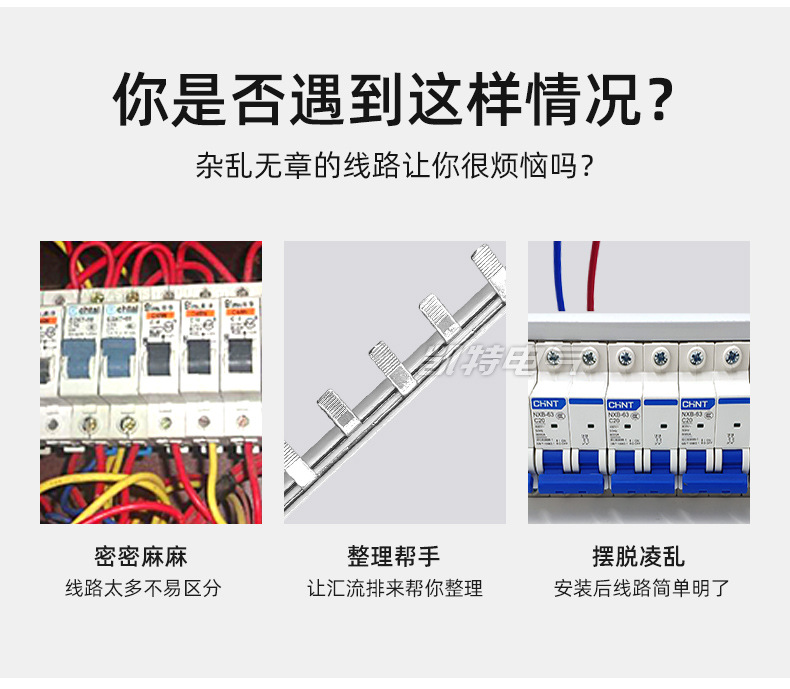

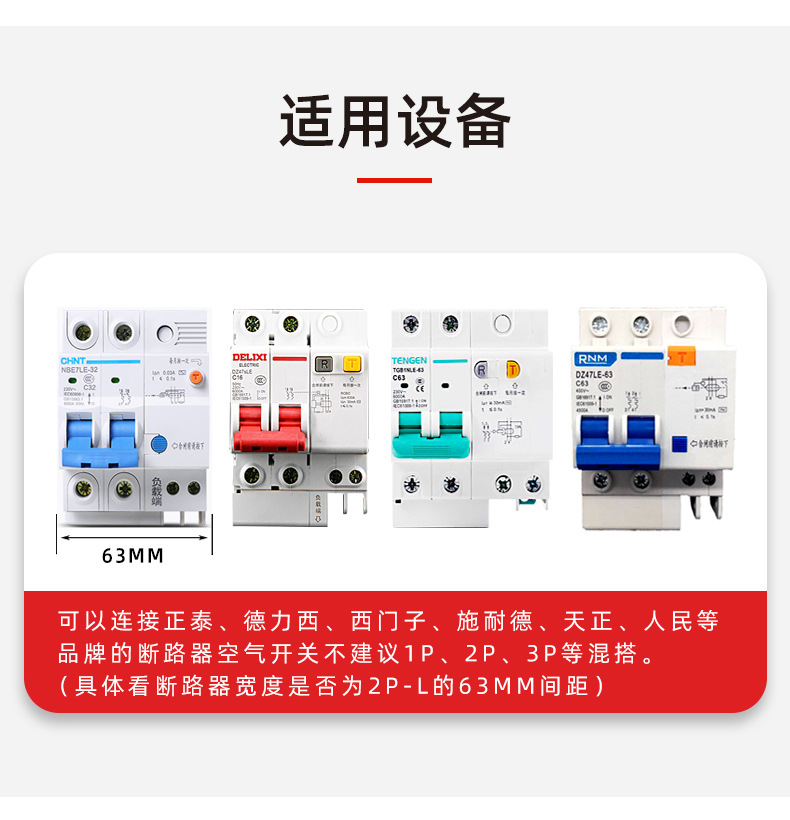

  9. Application: Can be connected to C45-type, DZ47-type and other small circuit breakers and air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).
  10. Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.详请_01.jpg
