2p leakage 60a busbar widened red copper 1.27 dz47 air open connection row circuit breaker terminal block kt008 2P漏电60A汇流排加宽紫铜1.27 DZ47空开连接排断路器接线排KT008

1 m

Specifications

2p leakage protection, 60a, widened, 1.2x7 pure copper, 63mm
2P漏电60A加宽1.2*7紫铜63mm

CN¥ 22.88

Send Inquiry Chat with supplier

Contacts zhenghuiying Chat

Mobile 86-13017998217

13017998217

WhatsApp 15215851770

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

brand: kate

application scope: -

product certification: ce

whether it is exclusively for foreign trade: no

product series: 2p leakage 60a widened 1.2*7 red copper 63mm

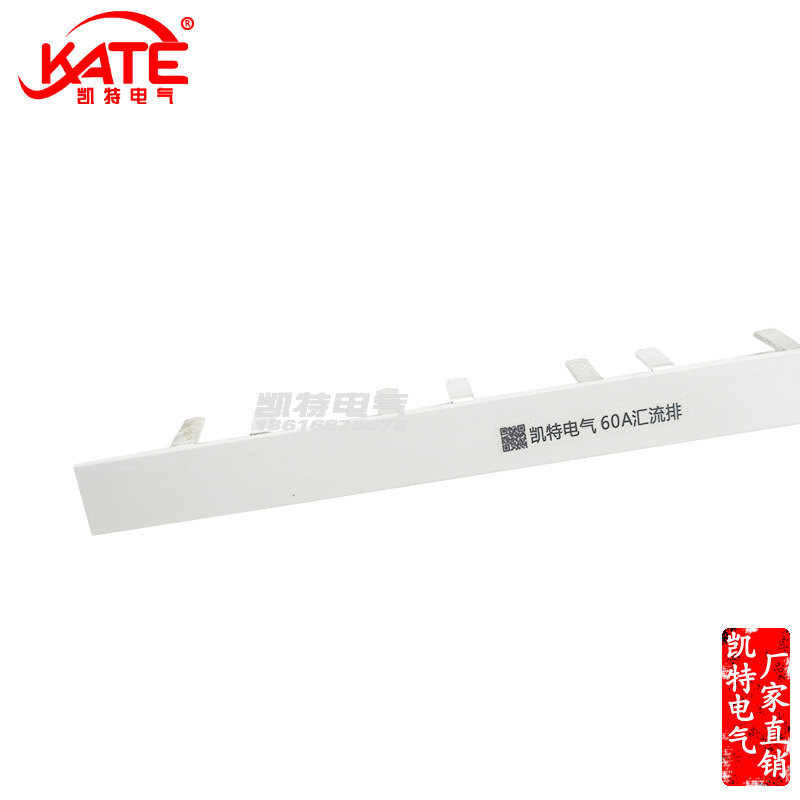

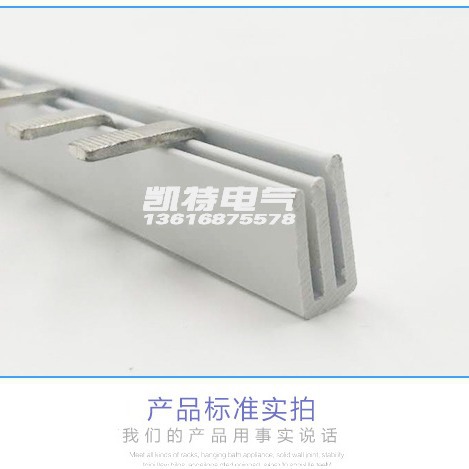

Product Name: 2P Leakage Protection 60A Busbar - Transverse Wide Row

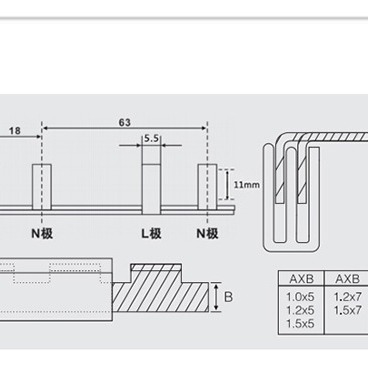

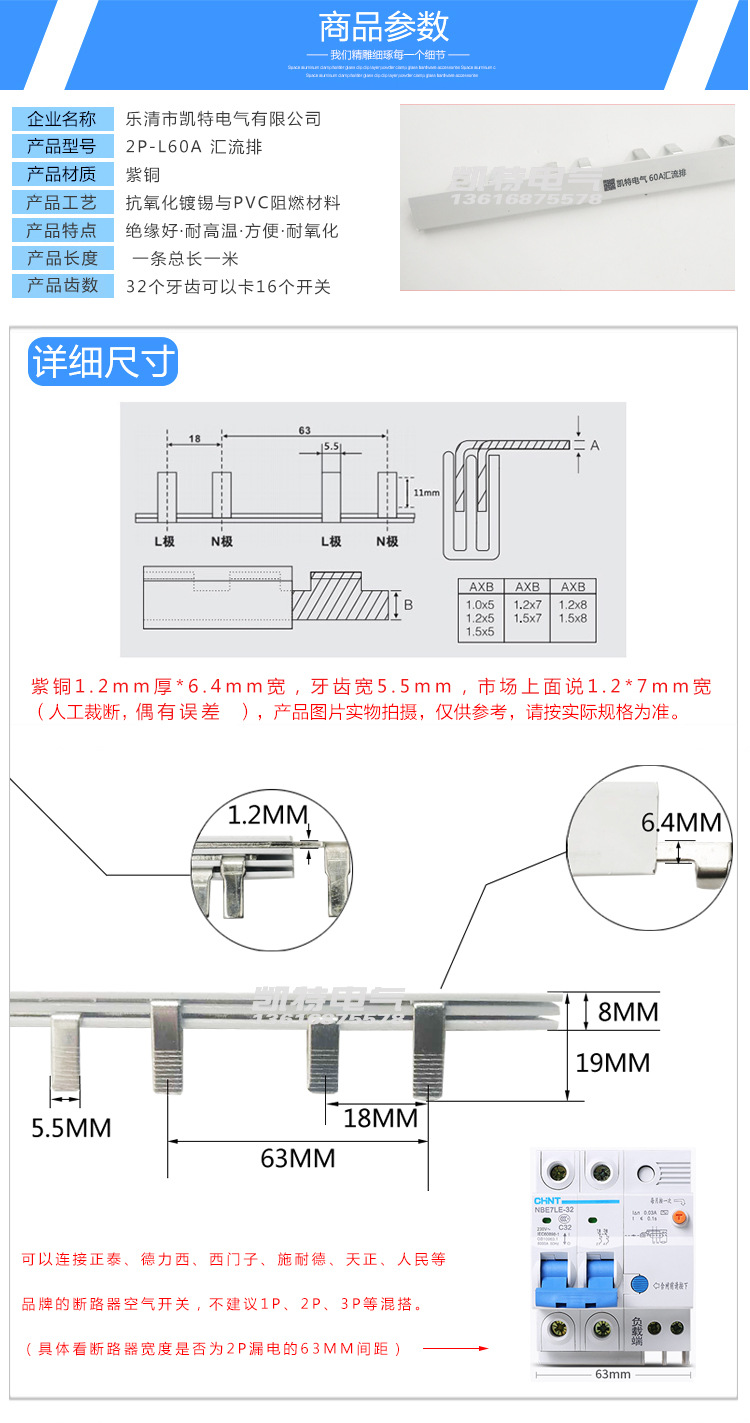

Thickness and width: The market says 1.2mm thick * 7mm wide.

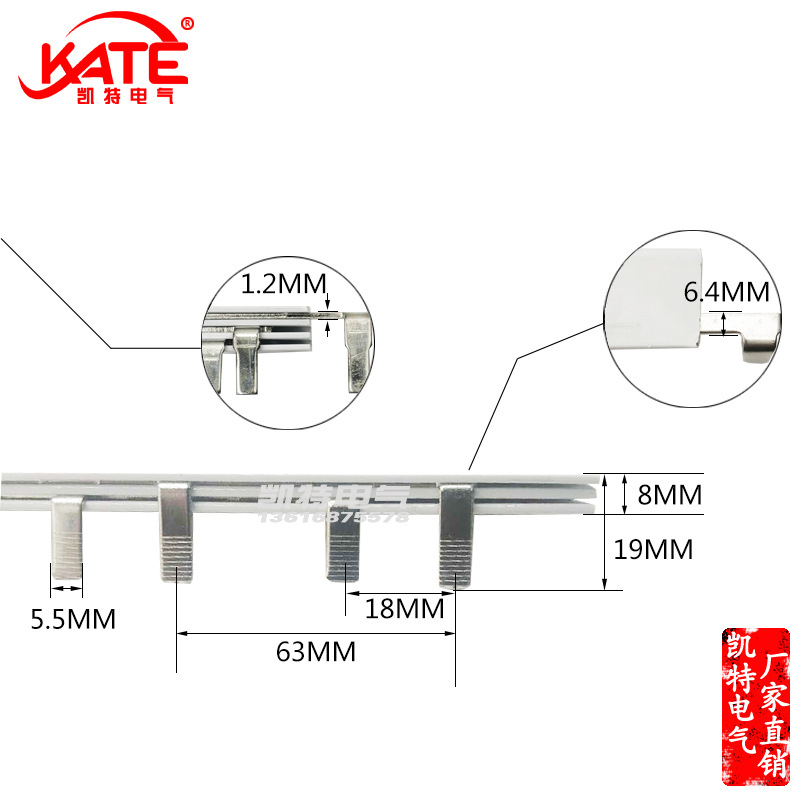

Actual Specification: 1.2mm thick * 6.4mm wide (manually cut, width is ±0.2mm). Tooth width is 5.5mm.
Product spacing: A-phase to A-phase spacing is 63mm, and one meter can accommodate 16 switches.
Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).

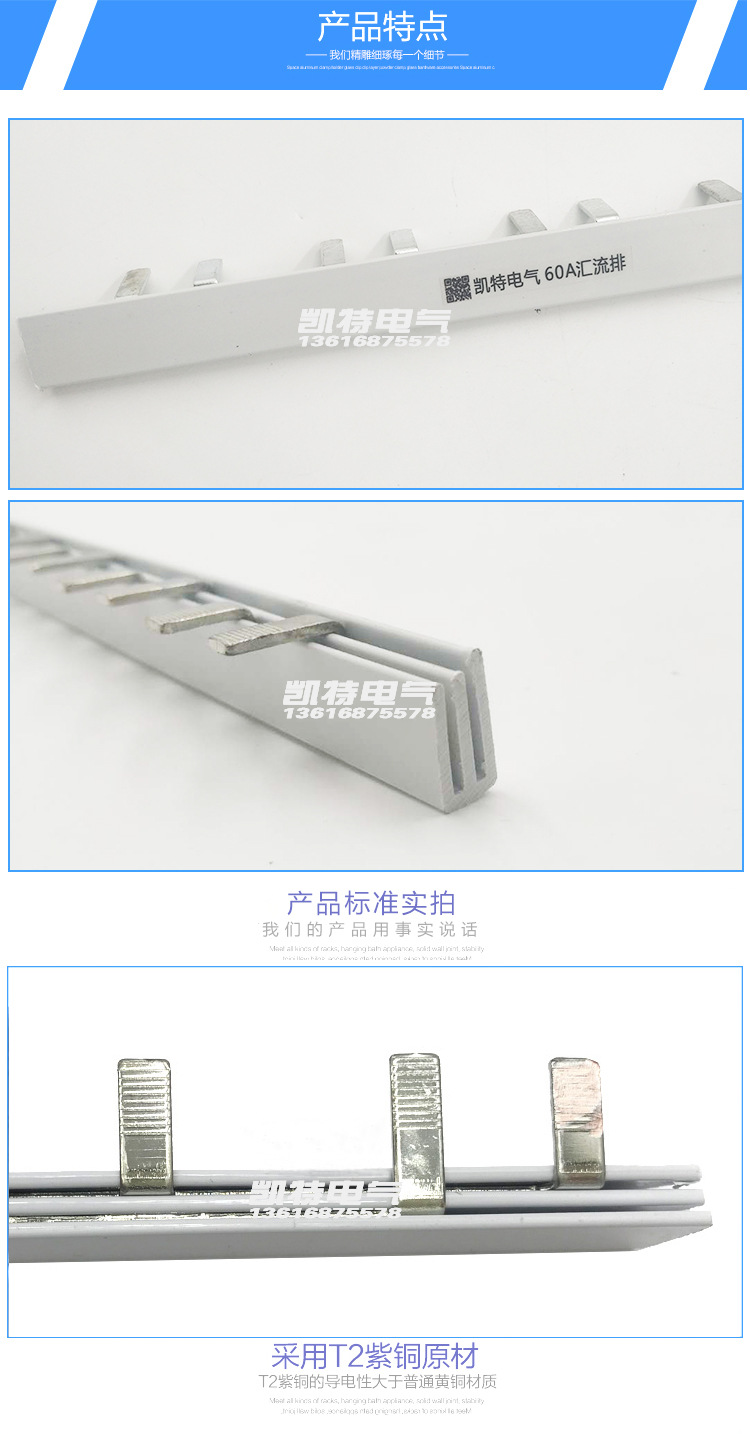

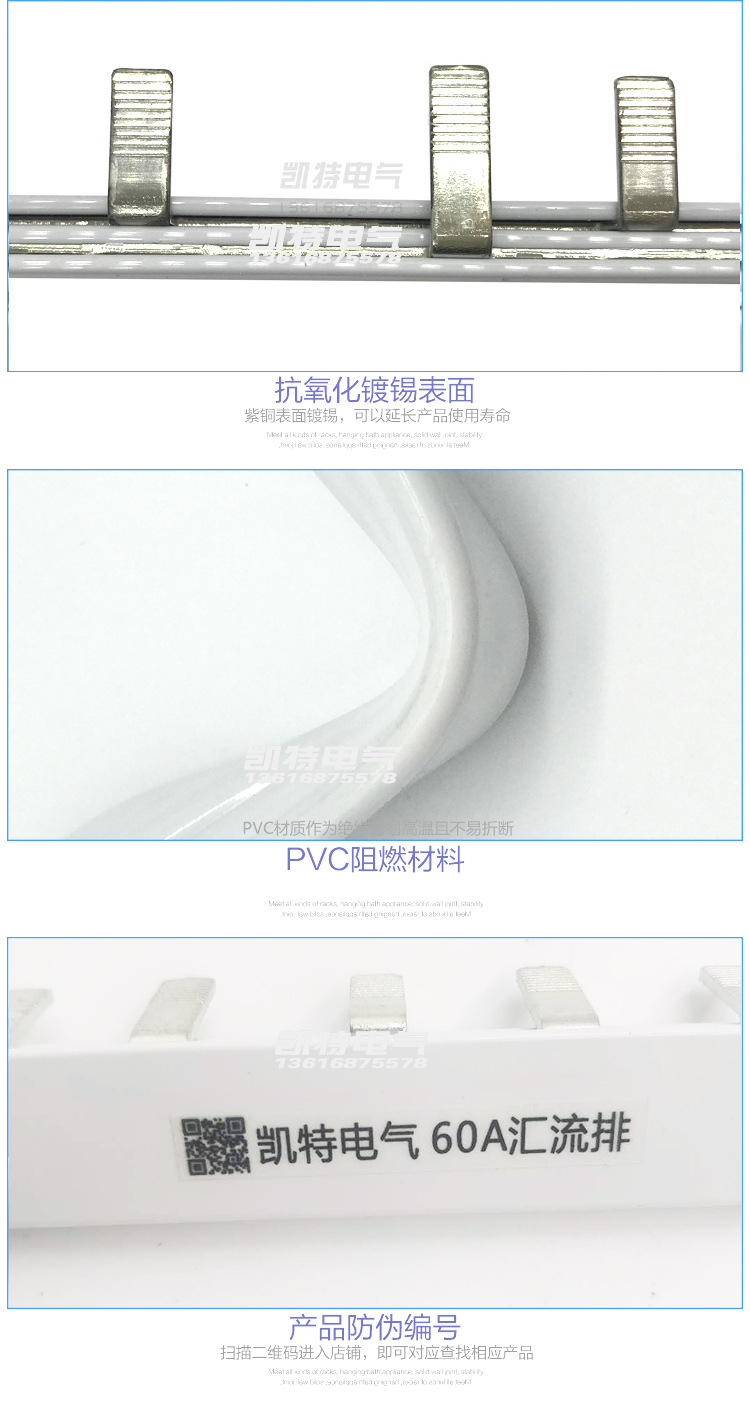

Product material: Copper, product surface antioxidant electroplating (can be scratched to see the original color of copper).
Length packaging: 1 meter per piece, 10 pieces per bundle.
Product Insulation: PVC Flame-Retardant Plastic.

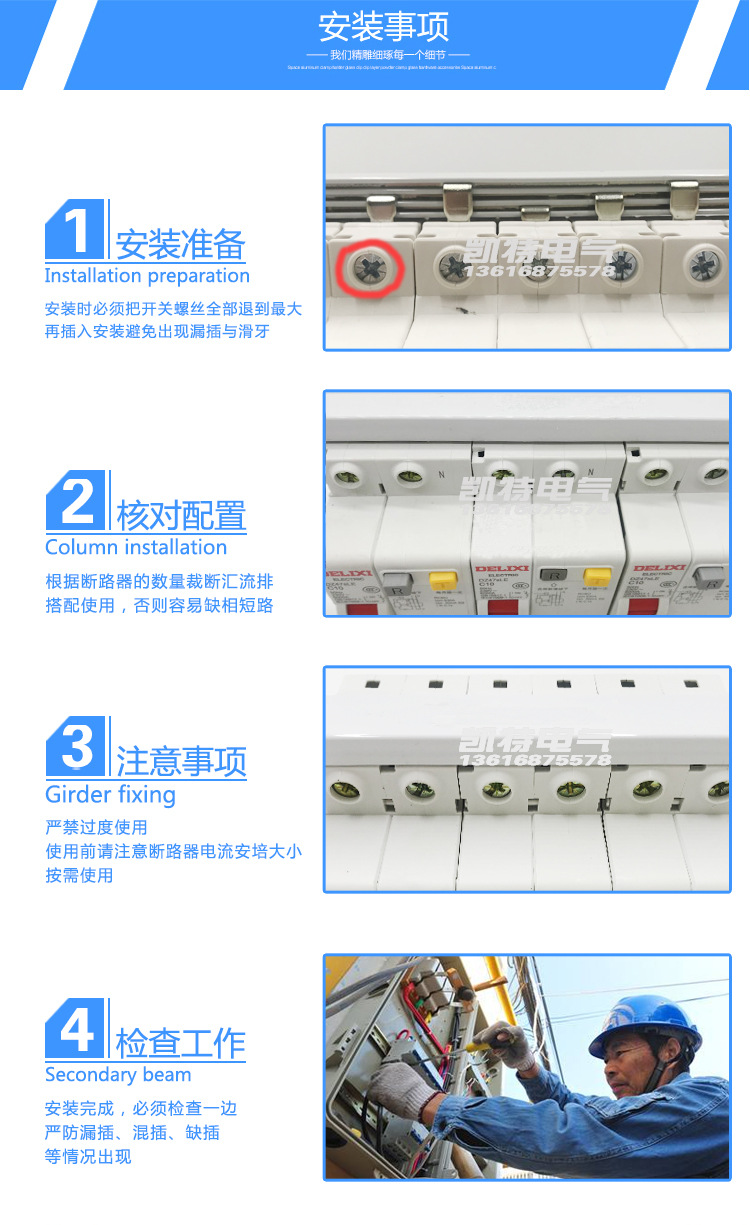

Application: Can be connected to C45-type, DZ47-type and other small circuit breakers and air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).
Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.



Update time：20260615144521

2p leakage 60a busbar widened red copper 1.2*7 dz47 air open connection row circuit breaker terminal block kt008 2P漏电60A汇流排加宽紫铜1.2*7 DZ47空开连接排断路器接线排KT008
