brand: kate

application scope: c45 switch connection

product certification: ce

whether it is exclusively for foreign trade: no

product series: three-phase four-wire 60a busbar (99 spacing)

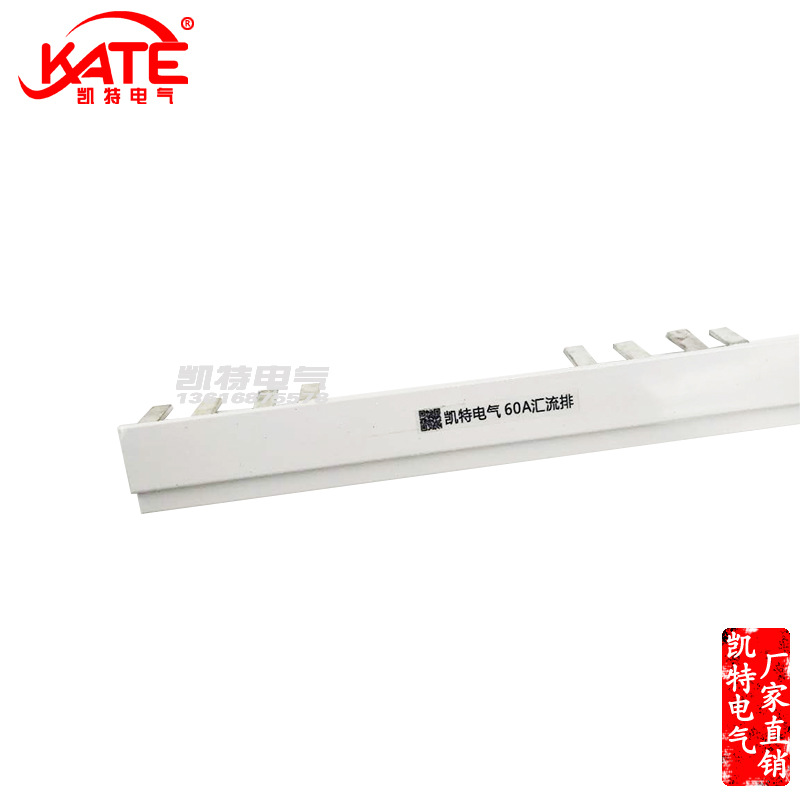

Product Name: 3P+N Three-Phase Four-Wire 60A Busbar - 99mm Spacing
Thickness and width: The market says 1.5mm thick * 5mm wide.

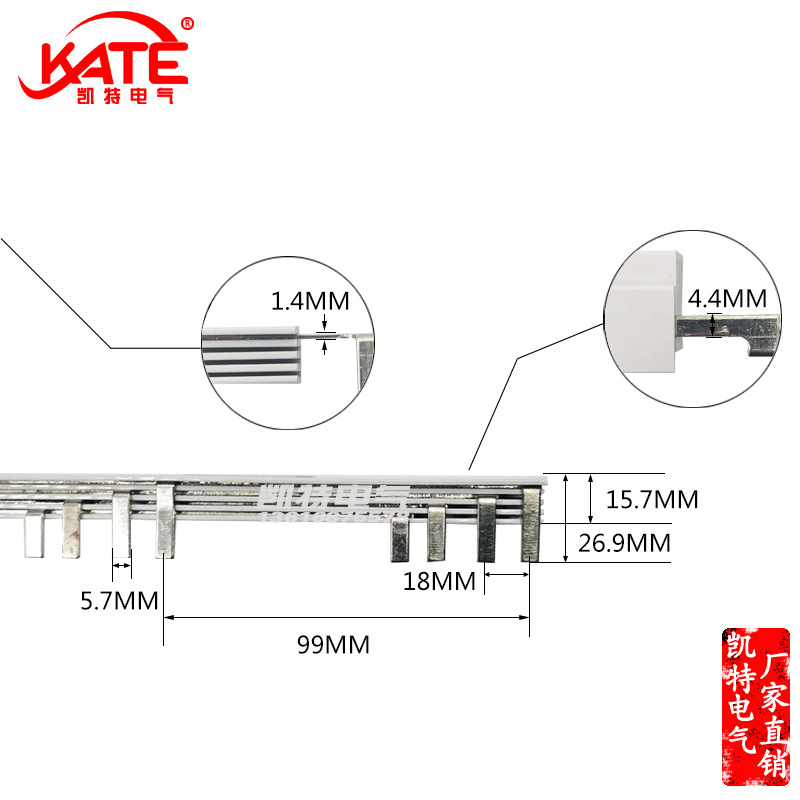

Actual Specification: 1.4mm thick * 4.4mm wide (manually cut, width is ±0.2mm). Tooth width is 5.5mm.

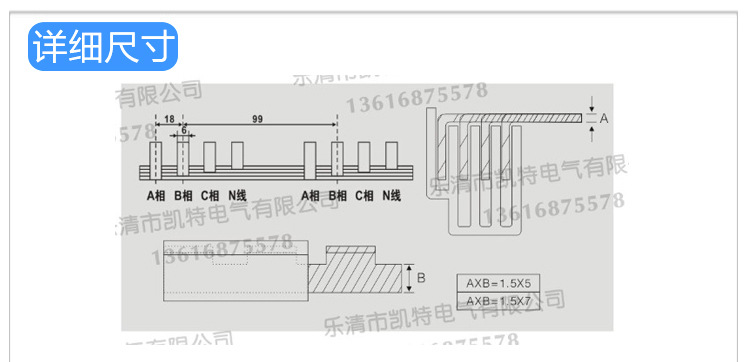

Product spacing: A-phase to A-phase spacing is 99mm, and one meter can accommodate 10 switches.
Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).

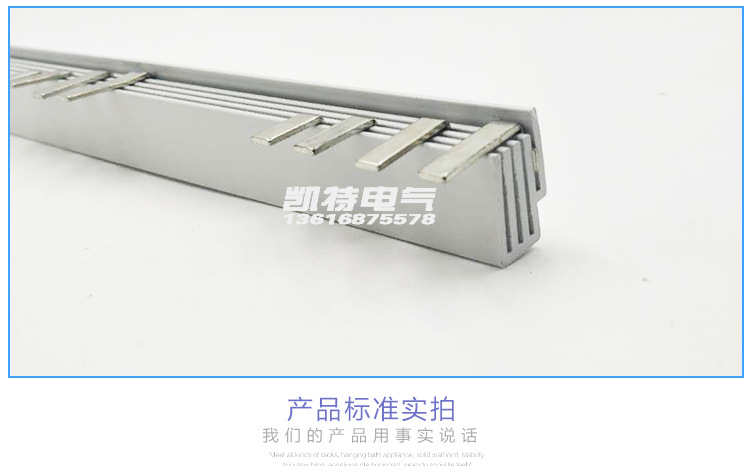

Product material: Copper, product surface antioxidant electroplating (can be scratched to see the original color of copper).
Length packaging: 1 meter per piece, 10 pieces per bundle.
Product Insulation: PVC Flame-Retardant Plastic.
Application: Can be connected to C45-type, DZ47-type and other small circuit breakers and air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).
Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.
