4p 40a busbar red copper 1.25 dz47 air open connection row c45 circuit breaker terminal block kt004 4P 40A汇流排紫铜1.25 DZ47空开连接排 C45断路器接线排KT004

1 m

Specifications

4p40a 1.25 red copper 4P40A 1.25紫铜	CN¥ 40.77
4p60a 1.45 red copper 4P60A 1.45紫铜	CN¥ 45.88
4p60a thickened 1.85 red copper 4P60A加厚 1.85紫铜	CN¥ 54.44
4p63a 1.47 red copper 4P63A 1.47紫铜	CN¥ 56.74
4p100a 1.88 red copper 4P100A 1.88紫铜	CN¥ 68.07
4p100a widened 1.810 red copper 4P100A加宽 1.810紫铜	CN¥ 86.52

Send Inquiry Chat with supplier

Contacts zhenghuiying Chat

Mobile 86-13017998217

13017998217

WhatsApp 15215851770

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

brand: kate electric

whether it is exclusively for foreign trade: no

product series: 4p40a-1.2*5 red copper

minimum number of packs: 1

contact material: red copper

insulator material: plastic

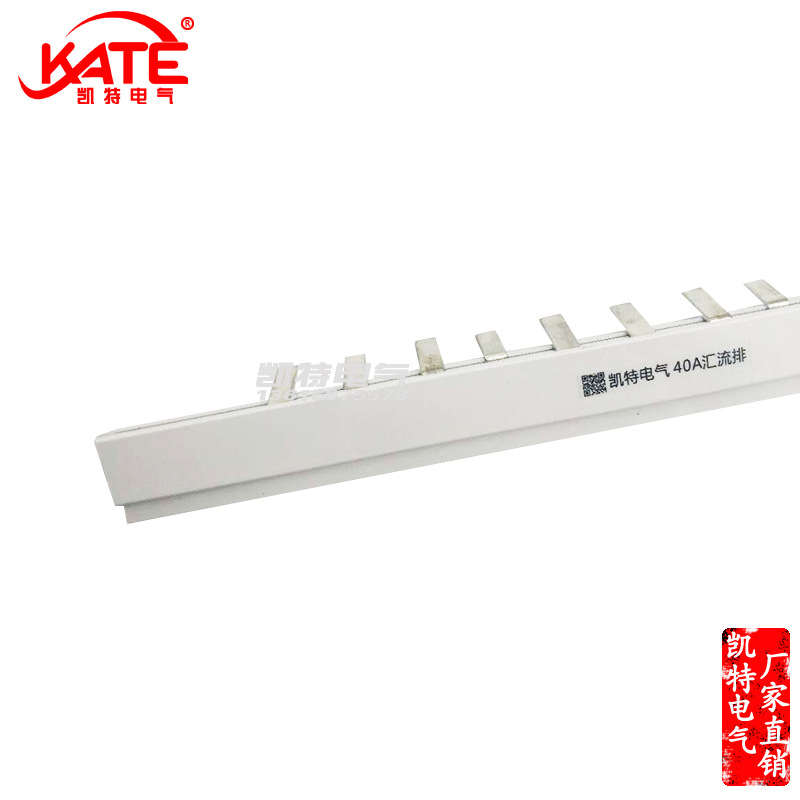

Product Name: 4P 40A Busbar

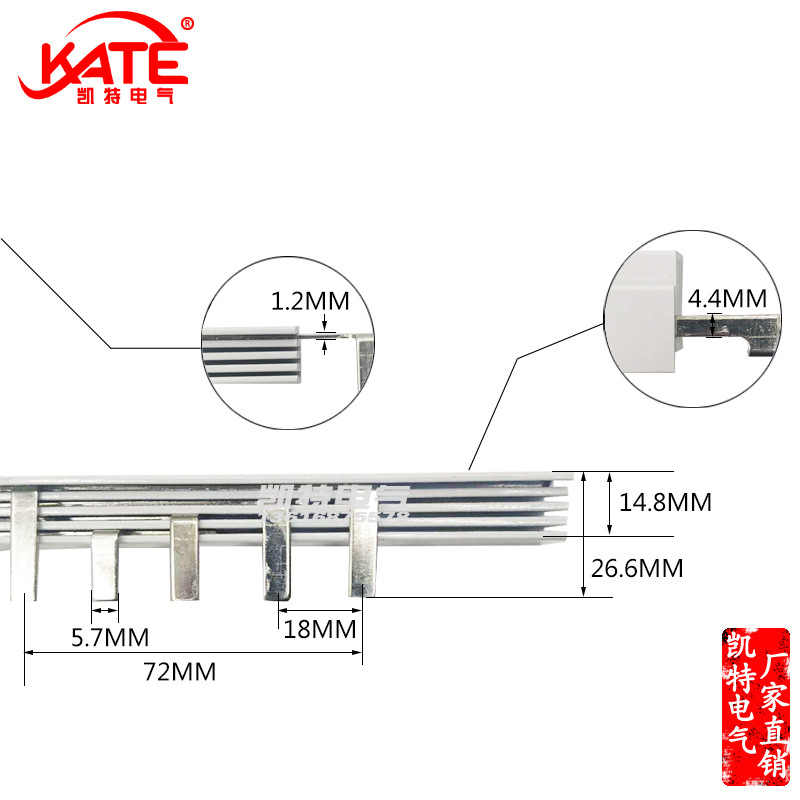

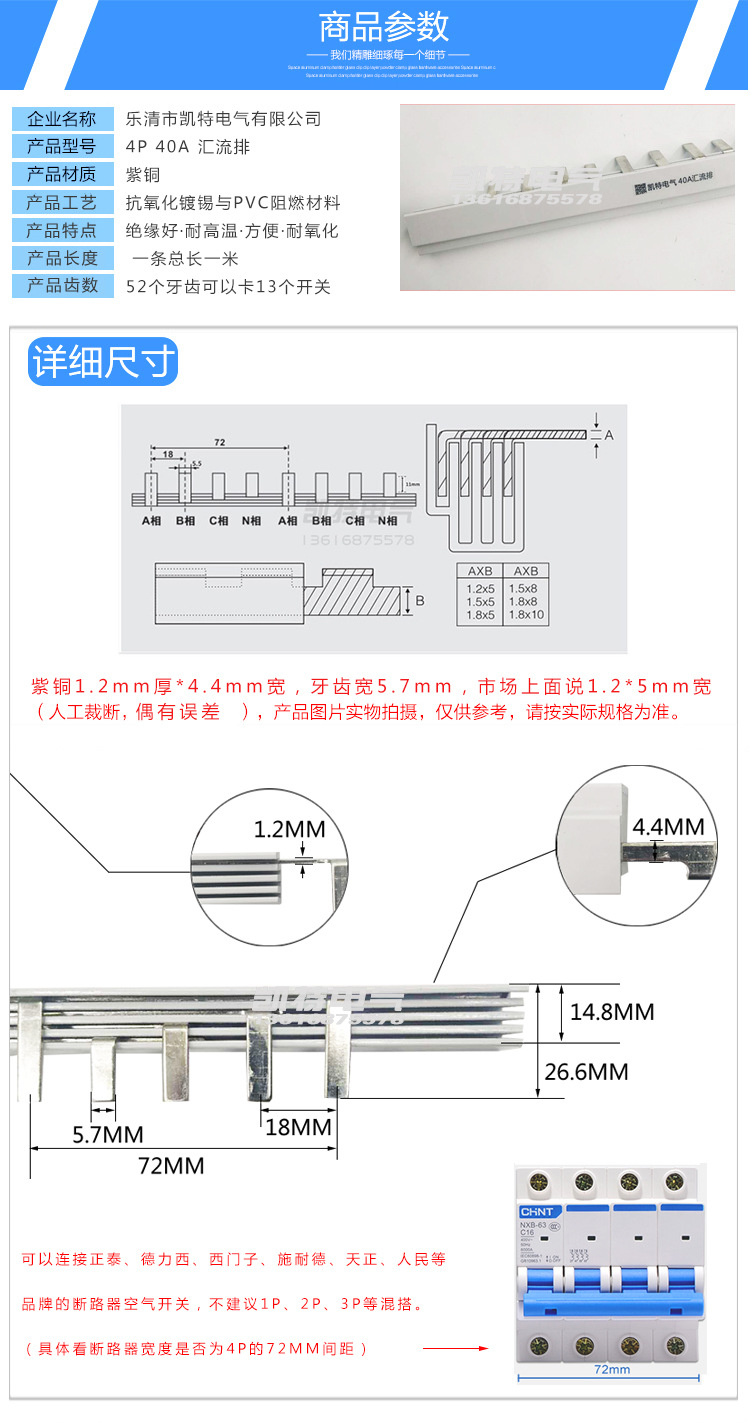

Thickness and width: The market says 1.2mm thick * 5mm wide.
Actual Specification: 1.2mm thick * 4.4mm wide (manually cut, width is ±0.2mm), tooth width is 5.5mm.

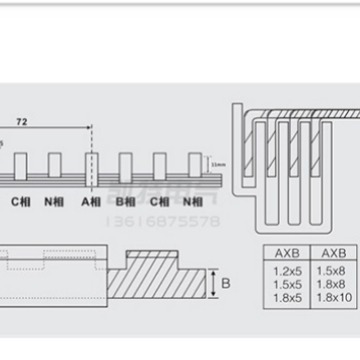

Product spacing: A-phase to A-phase spacing is 72mm, and one meter can accommodate 13 switches.
Product Specification: Thickness of Copper Components * Width of Horizontal Row (Width refers to the horizontal row width of the copper components, not the width of the teeth).

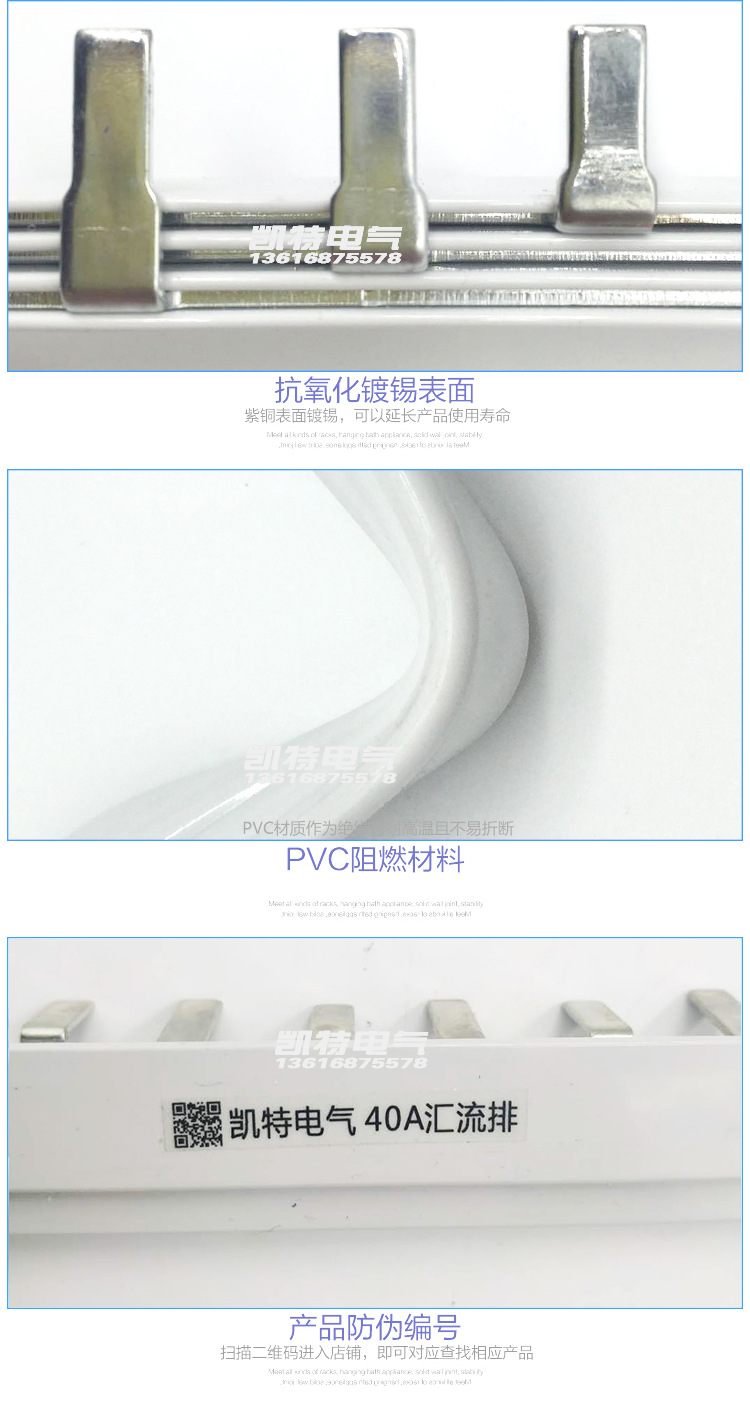

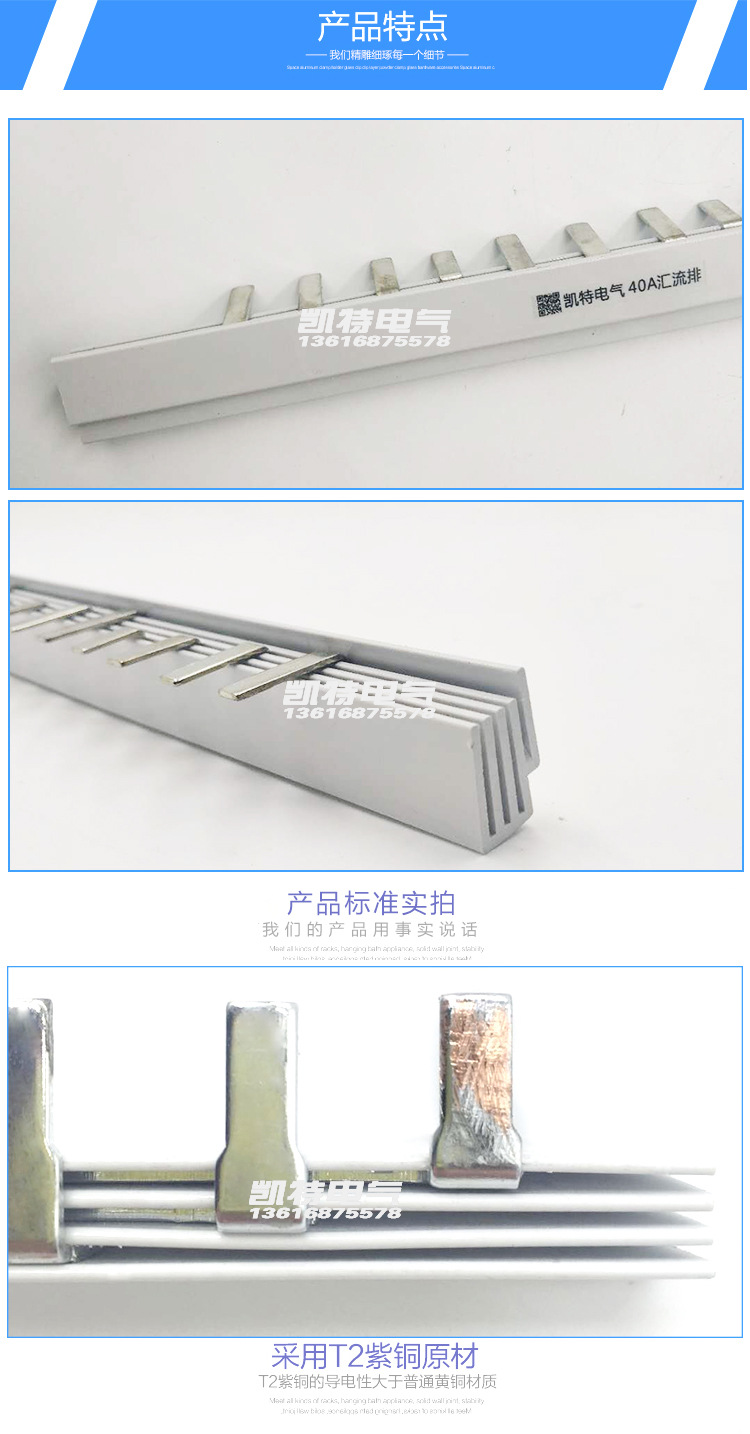

Product material: Copper, product surface antioxidant electroplating (can be scratched to see the original color of copper).
Length packaging: 1 meter per piece, 10 pieces per bundle.

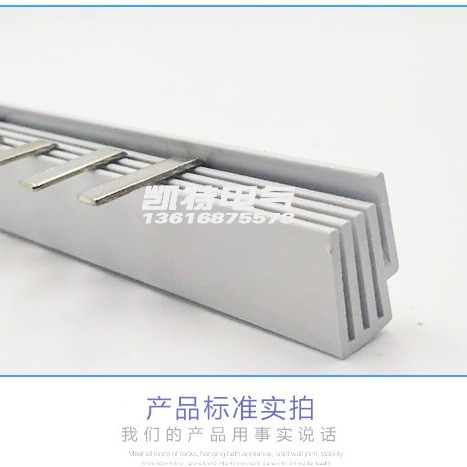

Product Insulation: PVC Flame-Retardant Plastic.
Application: Can be connected to C45-type, DZ47-type and other small circuit breakers and air switches (specifically depending on the phase spacing of the circuit breaker; it is not recommended to mix and match).
Product advantages: resistant to oxidation, high current-carrying capacity, safe and flame-retardant, good insulation, and convenient and quick installation.



Update time：20260615144521

4p 40a busbar red copper 1.2*5 dz47 air open connection row c45 circuit breaker terminal block kt004 4P 40A汇流排 紫铜1.2*5 DZ47空开连接排 C45断路器接线排KT004
