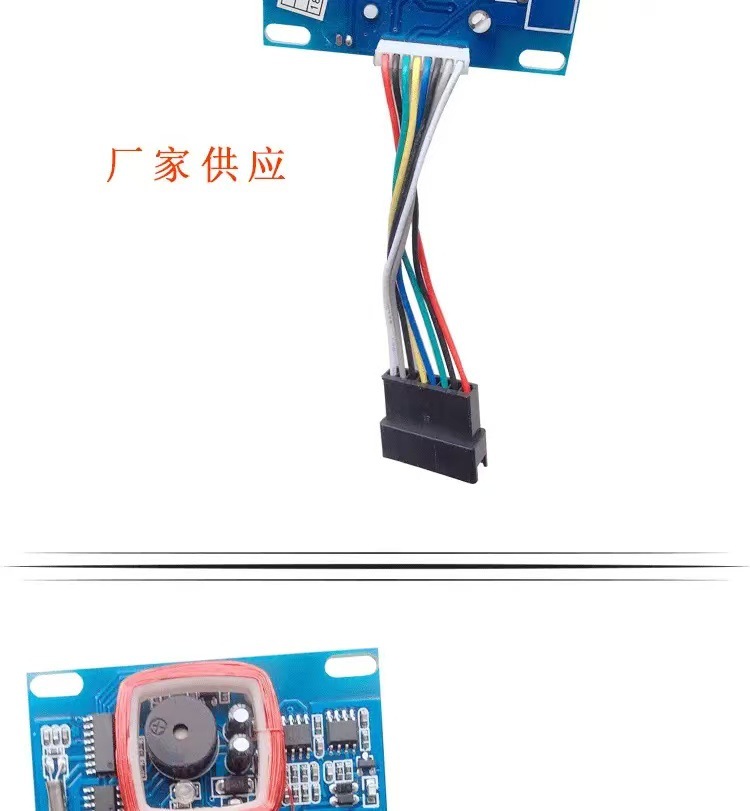

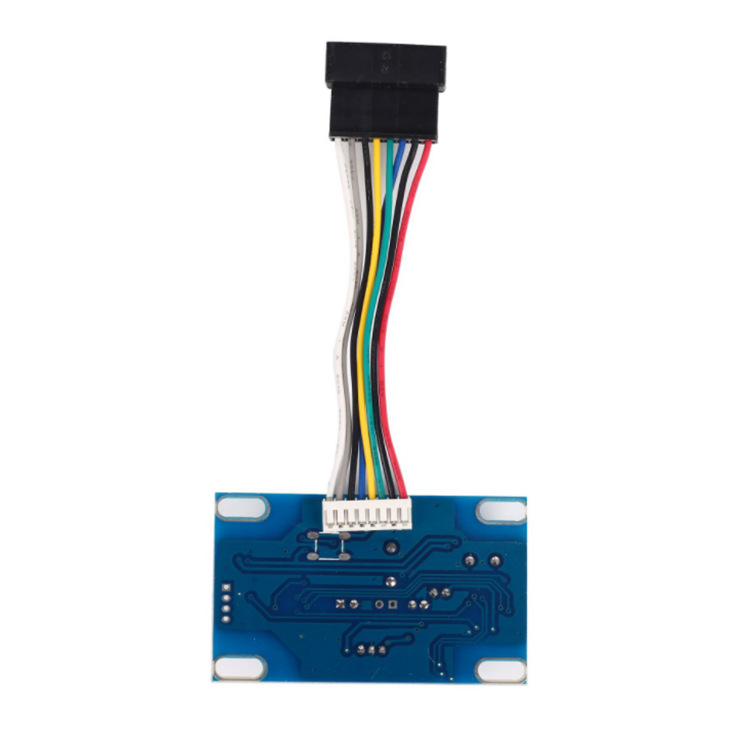

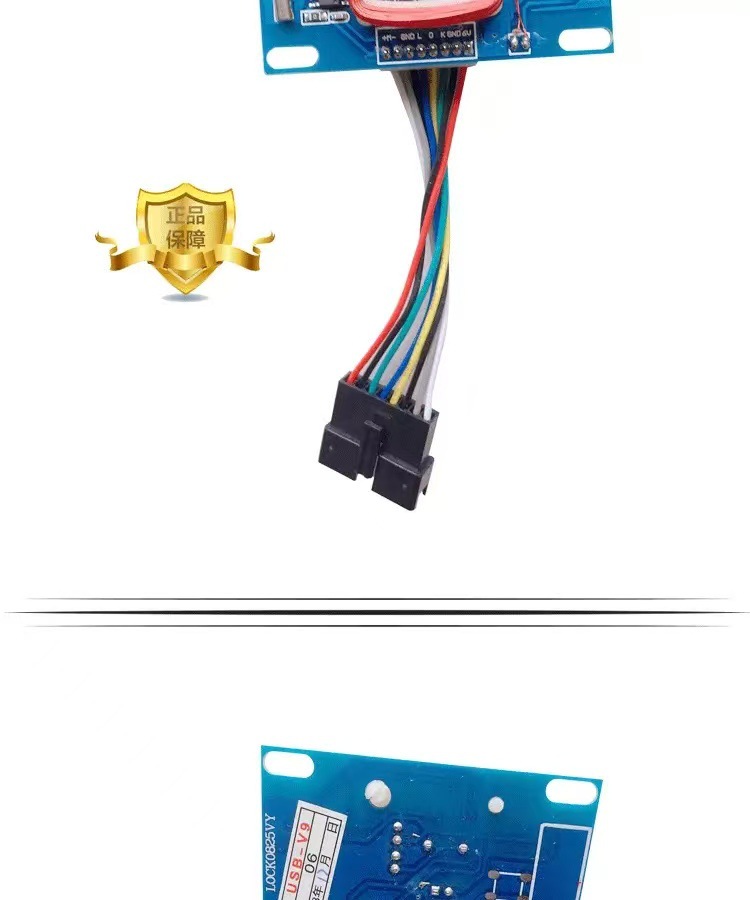

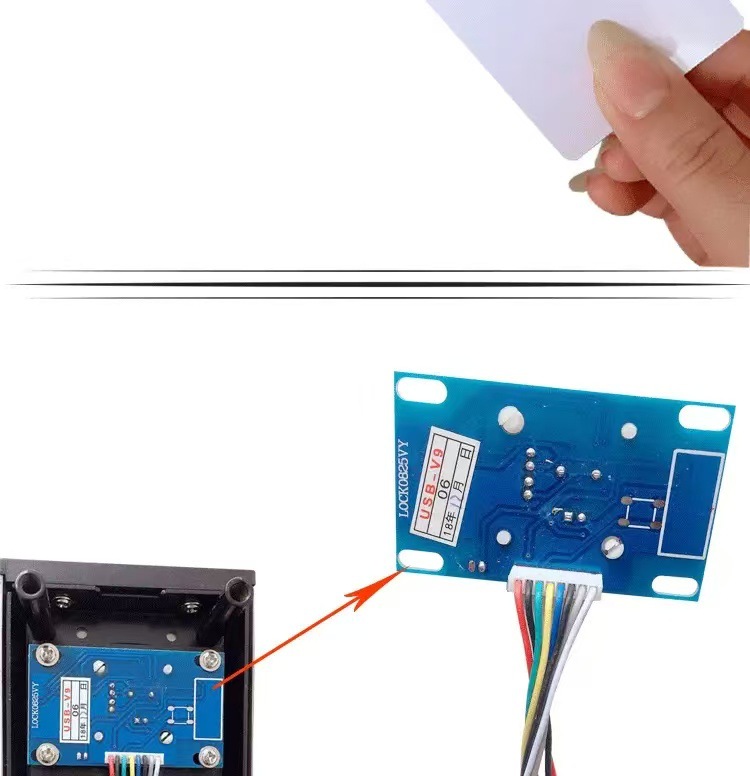

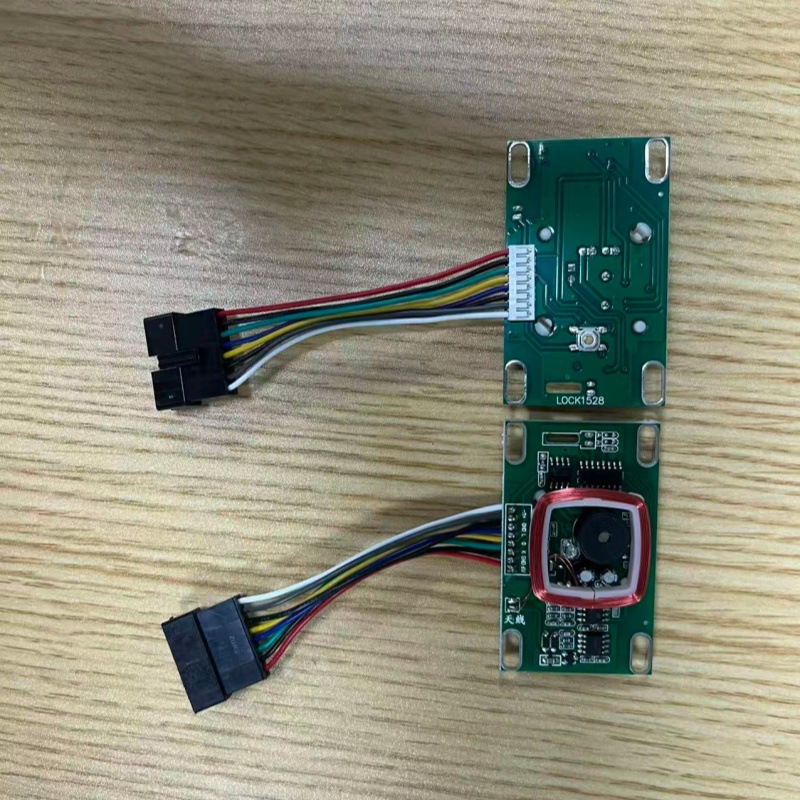

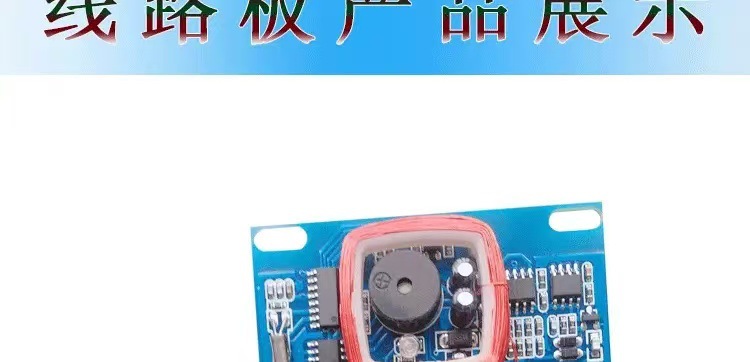

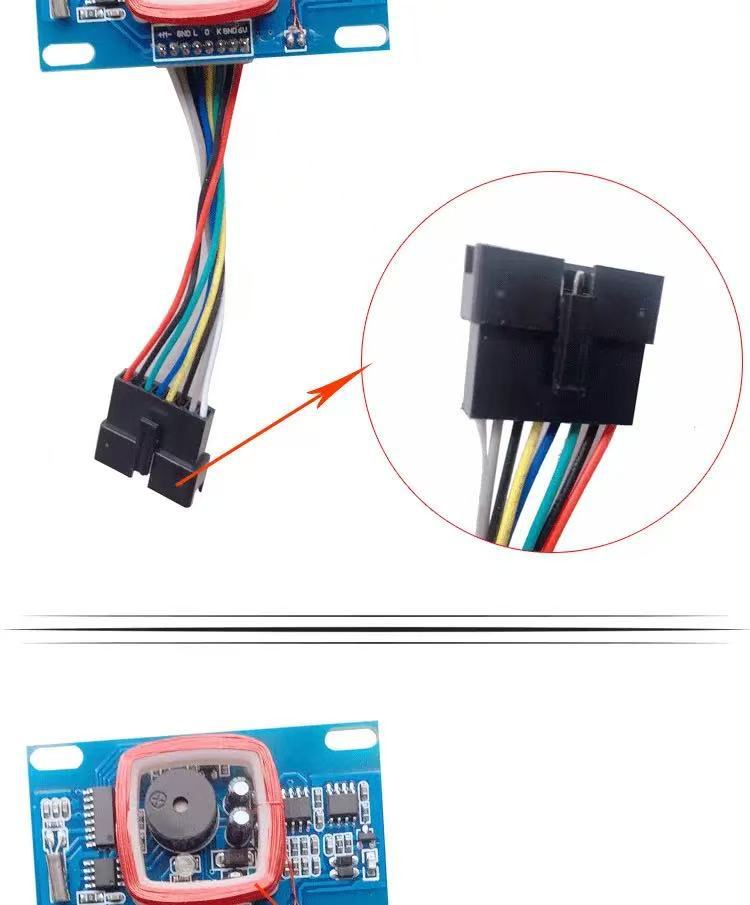

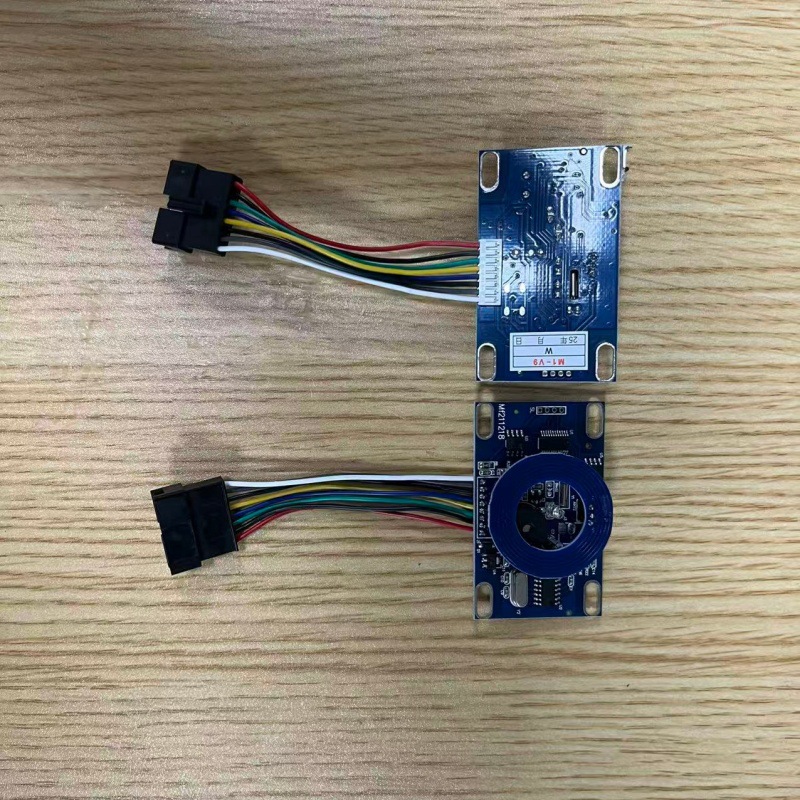

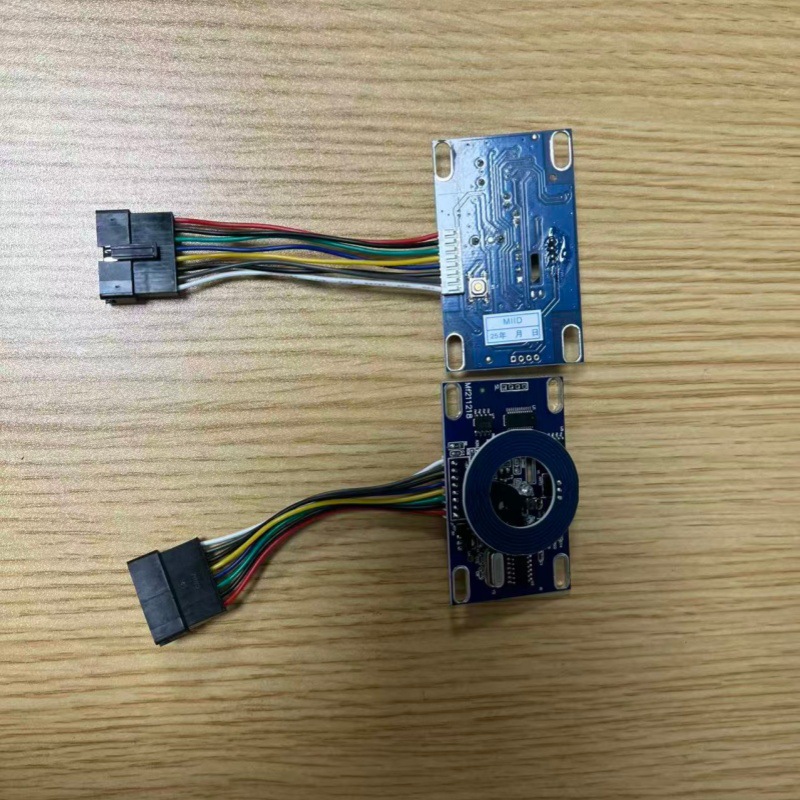

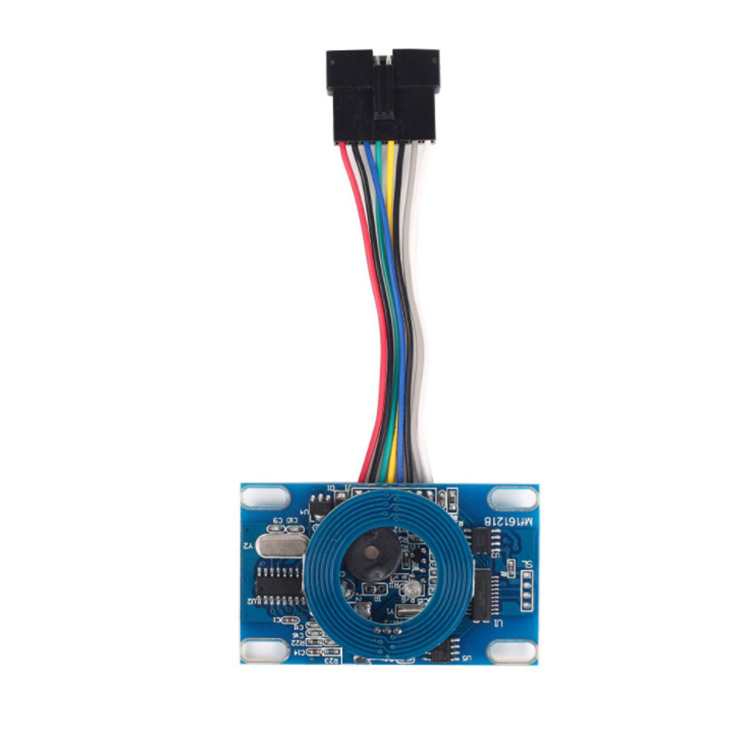

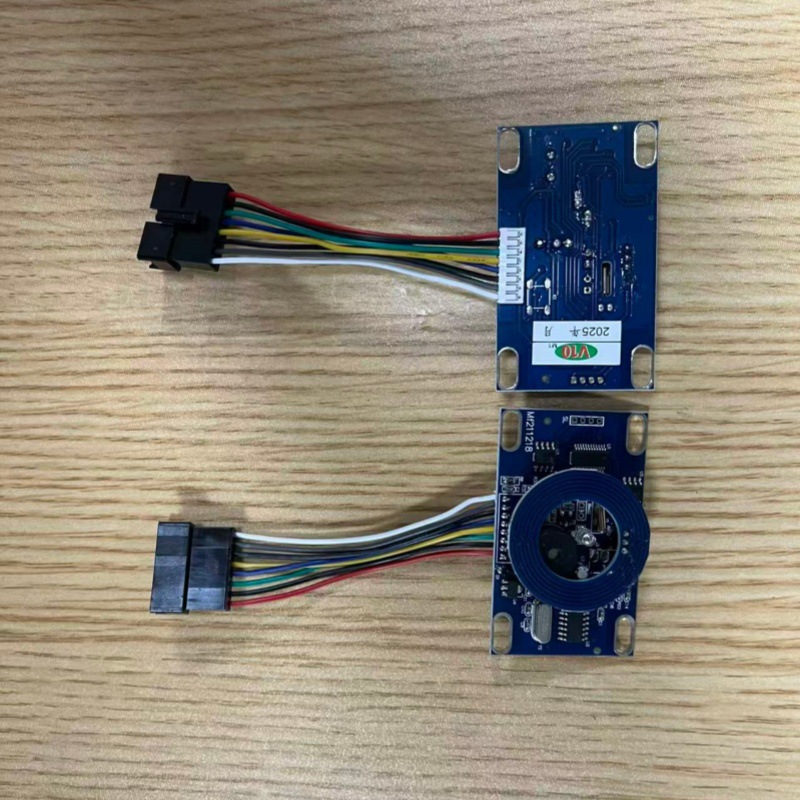

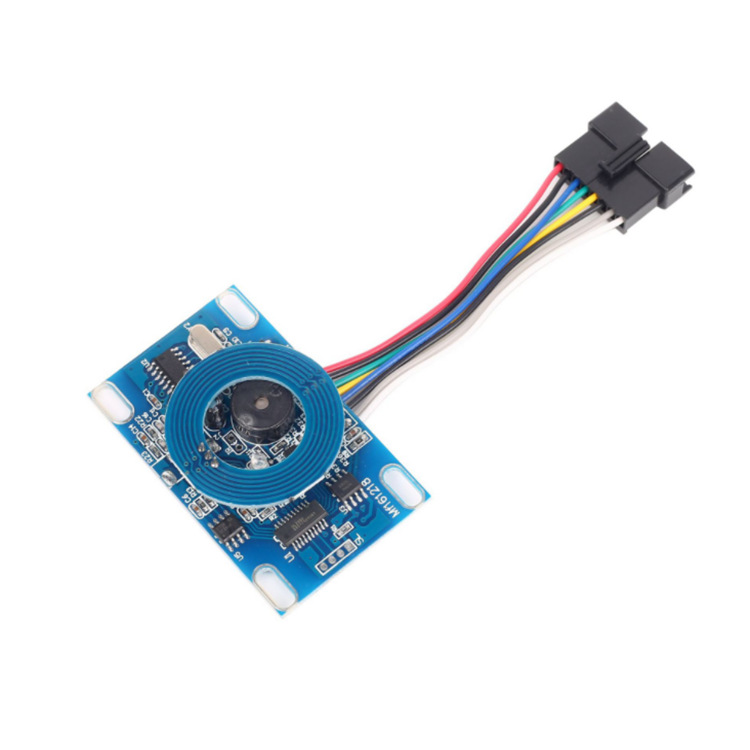

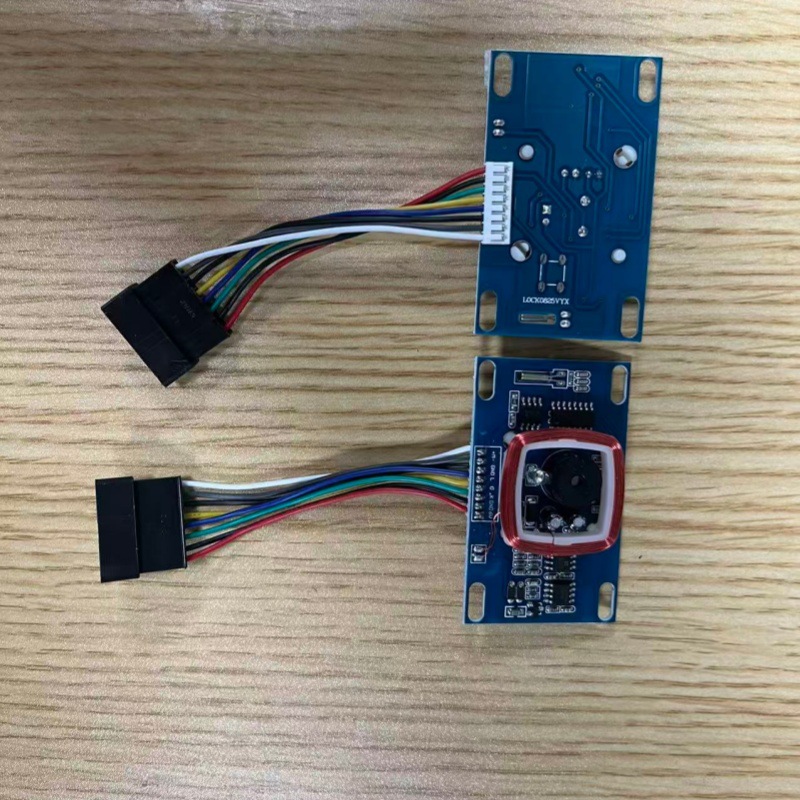

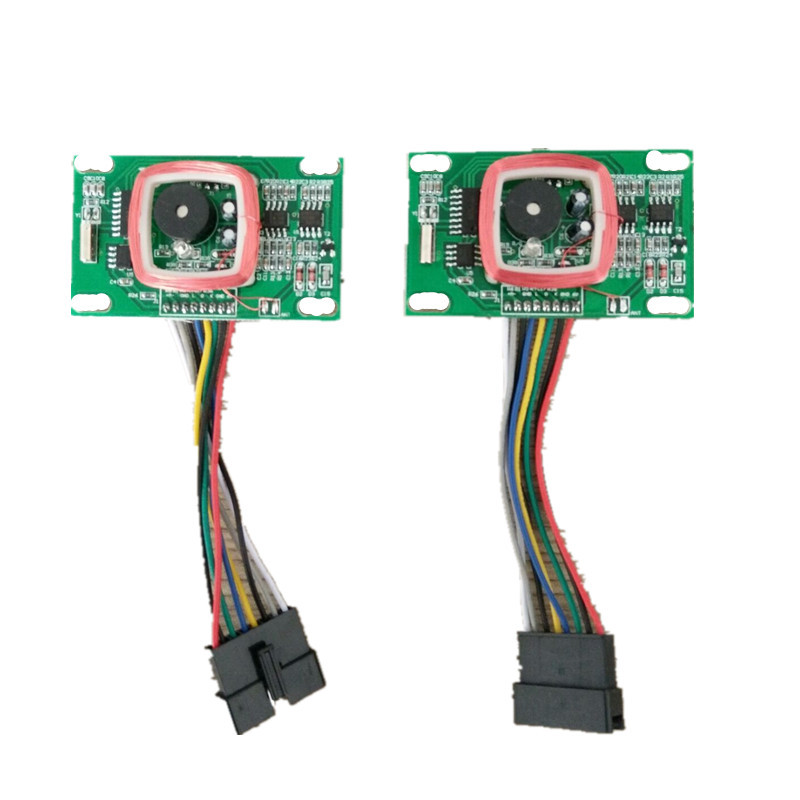

hotel card lock circuit board v9 smart lock t57 chip prander id accessories smart lock pass card board

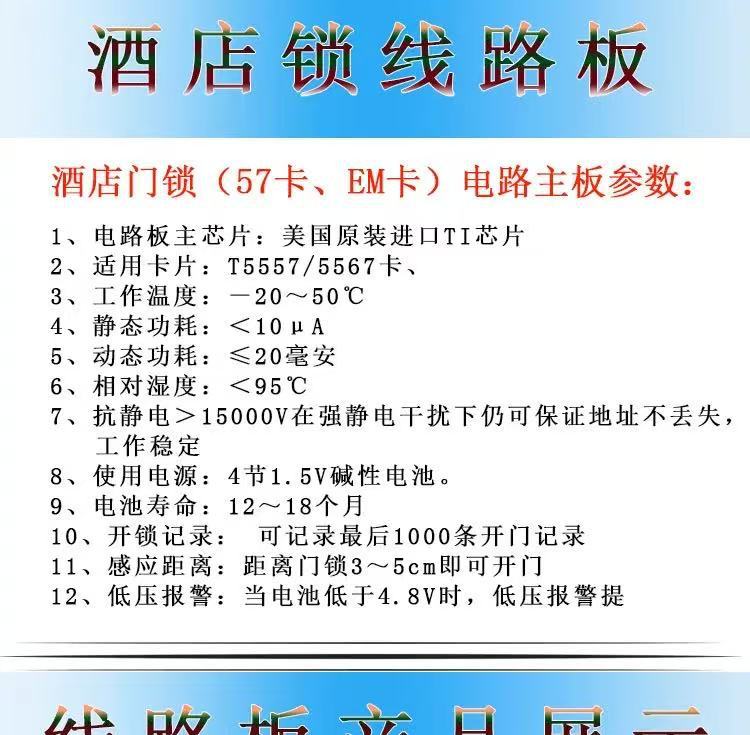

1. Hotel door lock (57 cards, EM cards) circuit mainboard parameters:

1. Main Chip of the Circuit Board: Original Import TI Chip from the United States

2. Applicable cards: T5557/5567 cards,

3、Working Temperature: -20～50℃

4. Static Power Consumption:

5. Dynamic Power Consumption: ≤20mA

6、Relative Humidity:

7. Anti-static > 15000V can still ensure address integrity under strong static interference, ensuring stable operation.

8. Power Source: 4 AA 1.5V alkaline batteries.

Battery life: 12-18 months

10. Locking Record: Can record the last 1000 opening records

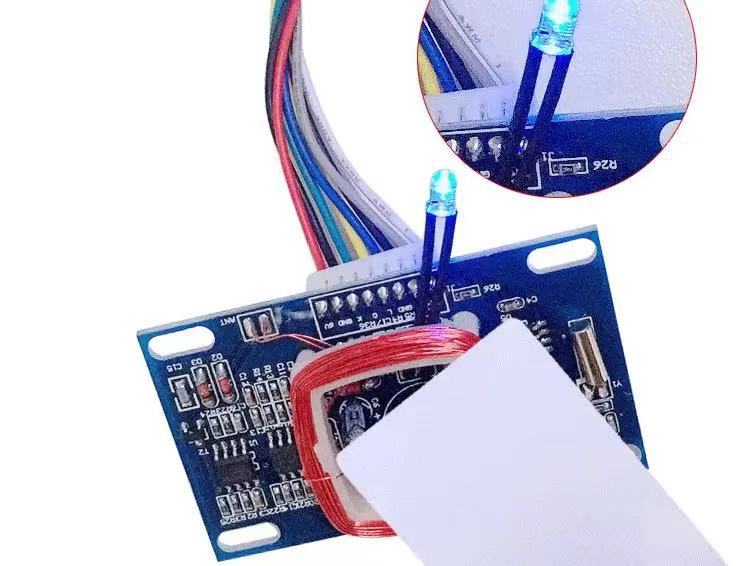

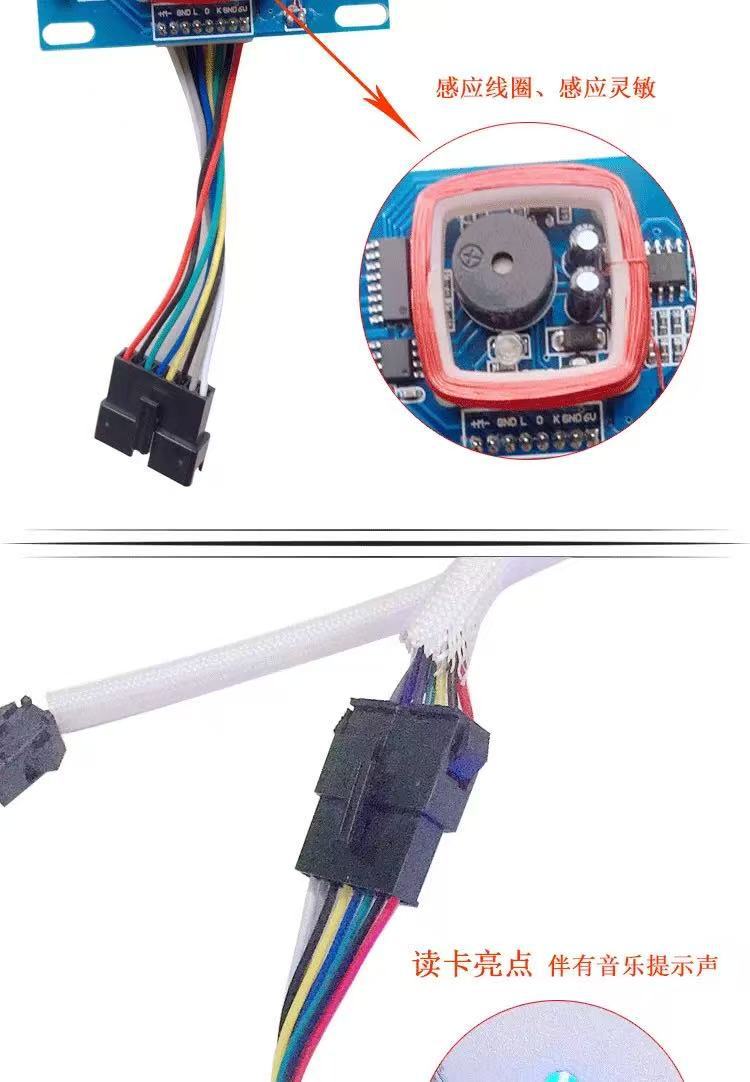

11、Sensitive Range: Open the door within 3-5cm from the door lock.

Low-voltage alarm: When the battery is below 4.8V, the low-voltage alarm will prompt.

II. Technical Parameters of the Apartment Door Lock Motherboard:

1. Card Type: EM4100 Card, Mifare 1 Card

2、Sensing Distance: 3MM–5MM

3. Working Power Supply: DC 6V, four alkaline batteries, can be used normally for more than one year.

4. Power Consumption: Static Current: ≤15 microamps (μA) Reading Current: ≤20 milliamps (mA) Unlocking Current: About 300 milliamps (mA) (continuous for 0.3 seconds)

5. Working Environment: Temperature: 0~+70°C, Humidity: ≤95% RH

6. Low Battery Indicator: When the battery voltage is ≤4.8V, the lock will make three beeps and the red light will turn on when unlocked. At this time, the lock can still be unlocked more than 50 times.

III. Technical Parameters of IC Card Door Lock Mainboard:

1. Card Type: SLE4442

2. Static Current: ≤ 10 microamps (μA)

3. Working Current: ≤10 mA

4、 Beeper :

5、 Motor Drive:

6、 感应距离:30mm-50 mm

Temperature range: -40℃ to 70℃

8、 Power Source: 6V

Battery life: 12-18 months

10、Low Voltage Indicator: When the battery voltage is ≤4.8V

Fourthly, the technical parameters of the M1 high-frequency Cardman lock motherboard:

1. Working Voltage: DC3.5-6.5V

Carrier Frequency: M13.56Hz

3. Card Type: MIFARE S50 Card

4. Static power consumption: less than 20 microamps Dynamic power consumption: less than 200 milliamps (motor current)

5、Working Temperature: -20°C to 70°C

6. Opening Record: 1000 entries

7. Detection Method: Microwave Detection

Battery life: 18 months or more.

Function:

1. Tight time limit function: The lock heart is equipped with a built-in clock. By setting a strict time, the room card will automatically become invalid when the guest's stay expires, effectively preventing the guest from delaying the payment of rent.
2. Multi-level keycards, clear responsibilities: The hotel can set up master cards, building cards, floor cards, cleaning cards, and guest cards according to its management needs.
3. The "Do Not Disturb" function enhances the hotel's friendly image: after guests enter the room and lock it from the inside, the attendant cannot enter to disturb them (except in emergency situations where the emergency card is used).
4. Locker card loss function, terminates the flexibility of the locker card: After the locker card is lost, a simple setting in the front desk management system will render the lost locker card inactive, allowing guests to rest assured without concern.
5. Door opening record query function, adding an extra layer of security: The door lock is equipped with a 'black box' that records the historical door opening records (when and by whom, and how the door was opened), enabling you to check the records;
6. Additional Features: Based on the hotel's needs, additional functions such as smart card safe, smart card power, smart card elevator, and smart card payment settlement can be implemented to achieve multi-purpose use with one card, which is more helpful in improving the level of the hotel and reducing the hotel's resources and manpower.
