wanji motorcycle electric heating cushion five-speed temperature control heating thermal pedal seat cover waterproof and sun protection thickened cushion

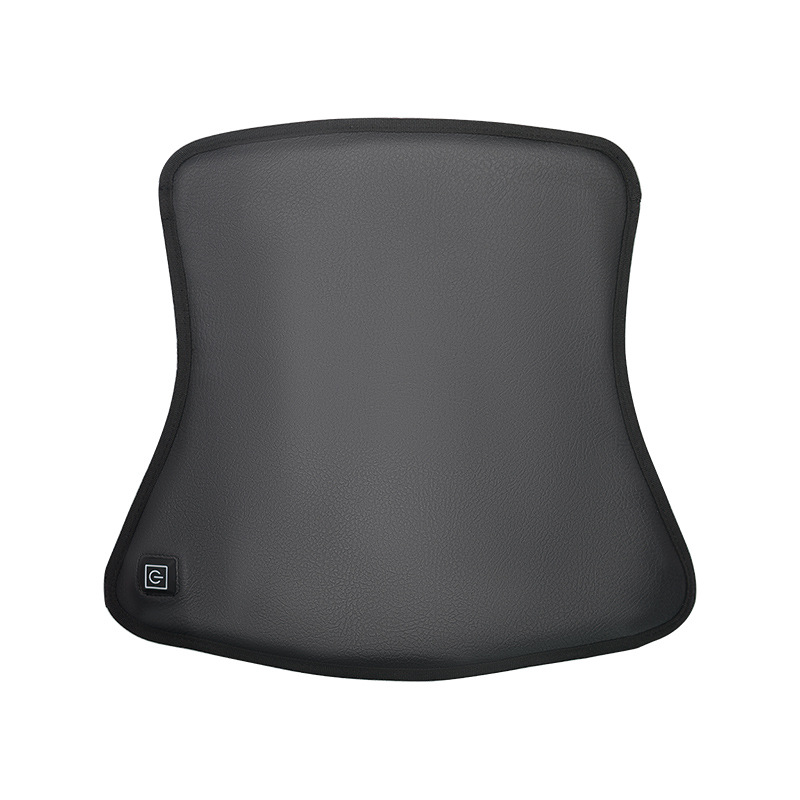

【Product Name】: 12V Electric Vehicle/Motorcycle PVC Heated Seat Cushion + Five-Level Intelligent Temperature Control Waterproof Switch

【Product Model】: CSHZ-0025C1

【Product Net Weight】: 316g

【Product Gross Weight】: 660g

【Packing Method】: Color Box Packing

【Packing Size】: 40.2x36.2x4.1cm

【Product Material】: The upper layer of the heating cushion is made of PVC leather, and the bottom is composed of a composite fabric of ultra-leather, TPU, sponge, and backing fabric.

【Input Voltage】: DC12V

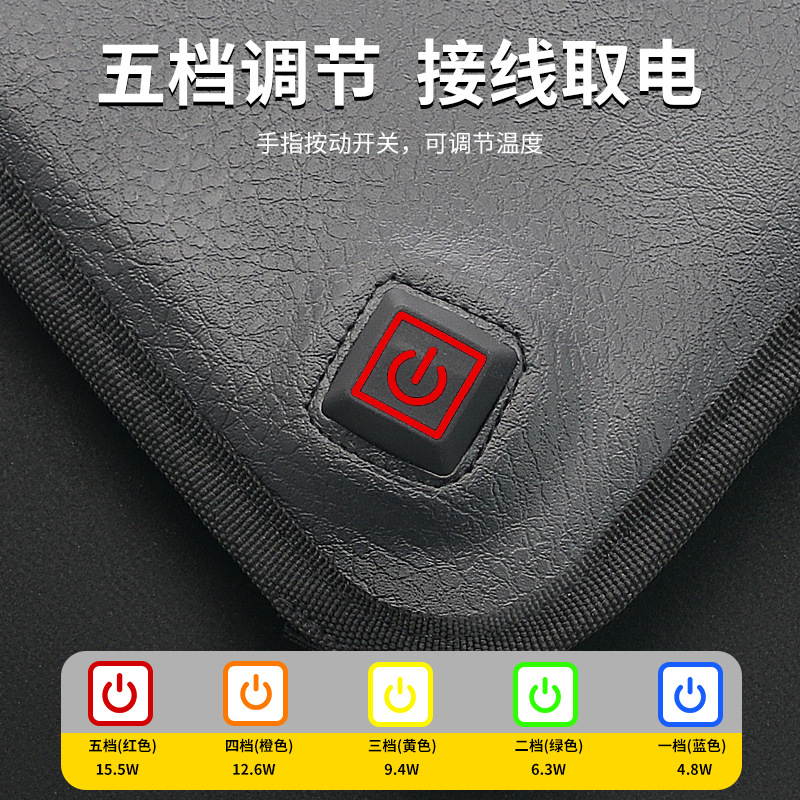

【Product Power】: Five-level (red): [15.5W]; Four-level (orange): [12.6W]; Three-level (yellow): [9.4W]; Two-level (green): [6.3W]; One-level (blue): [4.8W]; Neutral (white): [0W] (The above data are obtained through experiments, and the specific values may slightly fluctuate due to factors such as voltage and environment, for reference only).

"Product line length": 121cm

【Product Content】: Heating Mat, Power Cable, Fuse, Instruction Manual, Tie Wraps * 3

【Product Usage Scope】: Can be installed on motorcycles and 12V electric vehicles.

【Wiring Instructions】: The red plug on the product line connects to the positive terminal of the battery, and the black plug on the product line connects to the negative terminal of the battery (if connected incorrectly, the light will not light up, only heat will be generated).

【Usage Instructions】
【1】Initial startup defaults to electric vehicle mode (automatically enters motorcycle mode when the voltage exceeds 13.5V in electric vehicle mode)

1. Motorcycle mode (13.5V ≤ working voltage ≤ 17V) after power-on, 5 lights are lit in sequence: 1. Blue - 2. Green - 3. Yellow - 4. Orange - 5. Red. Each level is illuminated for 0.1 seconds from low to high.
2. Electric vehicle mode (normal operation at 12V) after power-on, 5 lights all light up for 1 second

Power on/off:
Turn on the power: 1. Press and hold for 3 seconds to turn on the power in a shut-off state, enter the first gear (blue). 2. When powered off (not including pressing and holding for 3 seconds to turn off manually), power on to remember the gear position.

Turn off the power: Press and hold for 3 seconds to turn off the power and the white light will flash 3 times and then turn off, and remember the gear level.

【3】When the device is on standby and power is applied, it will turn on immediately. It operates with the memory level (the level before it was turned off), and it will quickly heat up when it starts working.

【4】5-speed output power and button sequence definition: ①20%-②40%-③60%-④80%-⑤100%; LED indicator colors for different gears: ①20% blue, ②40% green, ③60% yellow, ④80% orange, ⑤100% red

The red line is the positive pole, and the black line is the negative pole. Please do not connect incorrectly, or it may easily cause damage to the product.

【7】With surge protection, reverse polarity protection, and high/low voltage protection, when the input voltage is ≥17V, all five lights remain in their original color and flash three times to enter standby mode. In the motorcycle mode, when the voltage is

【8】If you need to change the use mode
Electric Vehicle Mode:
Shutdown state: Press and hold the switch for 10 seconds, the third second shows the blue light (this is when the machine is turned on) - the fifth second flashes five times with the white light (this is when the motorcycle mode has been entered) - the blue light remains on continuously.

Power-on state: Press and hold the switch for 10 seconds, the level indicator will go out at the third second, and flash 3 times with a white light (indicating the device is now turned off) - after 10 seconds, the device will flash 5 times with a white light (indicating that the device has now entered the motorcycle mode) - after turning off, there will be no display.

Motorcycle Mode:
Shutdown state: Press and hold the switch for 10 seconds, the third second shows the blue light (this is when the device is turned on) - the fifth second flashes five times with the white light (this is when the device has entered the electric vehicle mode) - the blue light remains on continuously.

Power-on state: Press and hold the switch for 10 seconds, the level indicator will go out at the third second, and flash 3 times with a white light (indicating the device is now off) - after 10 seconds, the device will flash 5 times with a white light (indicating that the device has entered the electric vehicle mode) - no display when the device is off.

Product Advantages:
1: The heating efficiency is upgraded based on the previous foundation, and it saves more than 20% of energy consumption under the same current environment.

2: Five-level temperature adjustment for intelligent heating, using intelligent heating elements, fast heating and temperature rise, wide power supply, temperature controllable, finger press switch, adjustable temperature

3: Anti-skid and wear-resistant stability, cross-band design, increases anti-skid performance, reduces product wear, and fixes more firmly.

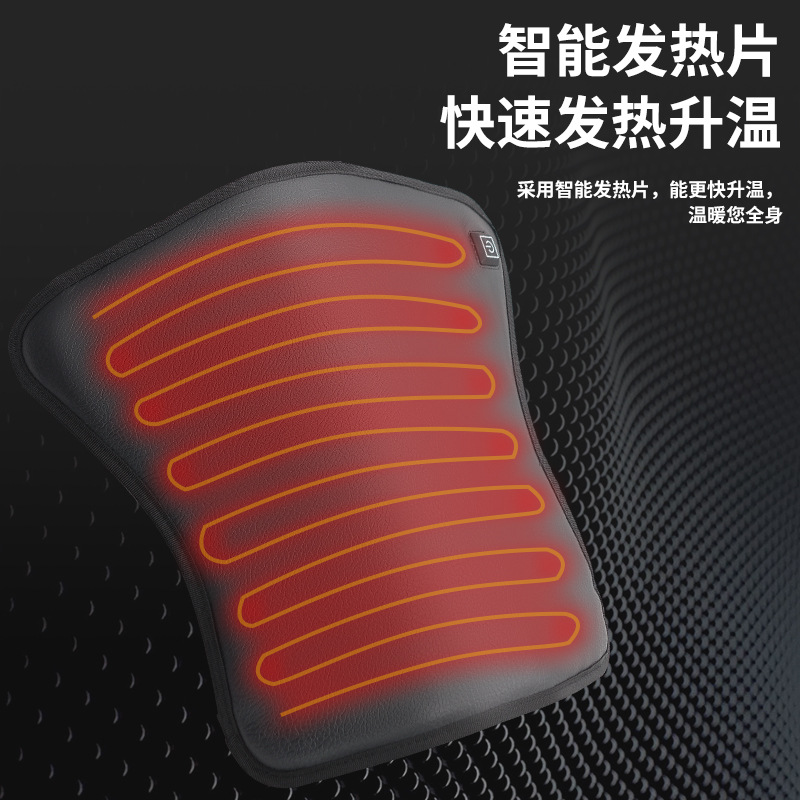

4: Composite fiber heating element, using large-area instant-heating material, intelligent temperature control design; Thickened insulation, anti-cold in sub-zero temperatures, double fabric + heating fiber lock in temperature, not afraid of cold

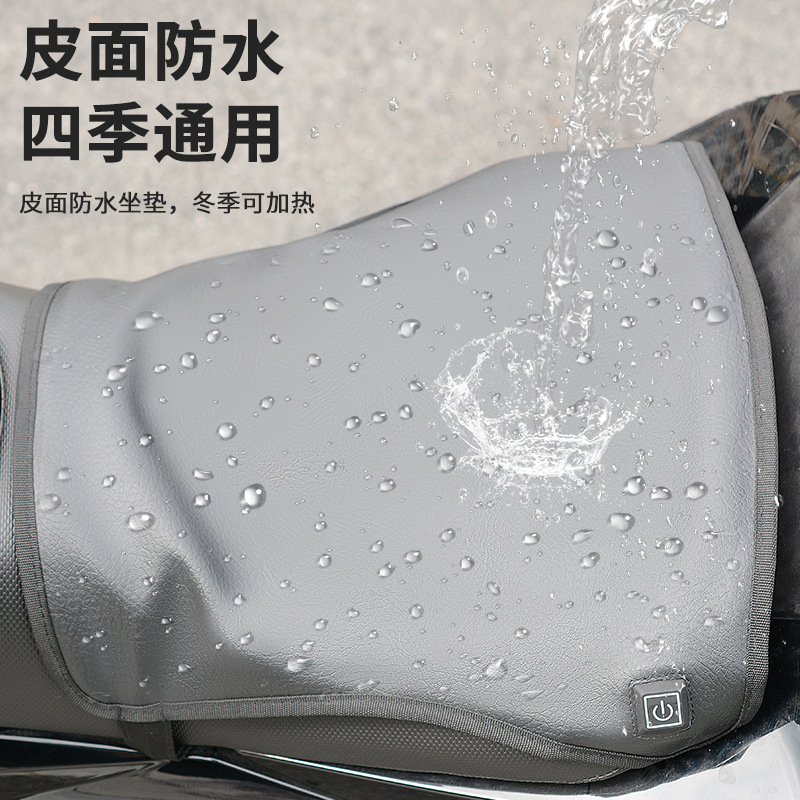

5: PVC leather surface waterproof and season-friendly, leather seat cushion can be heated in winter.
