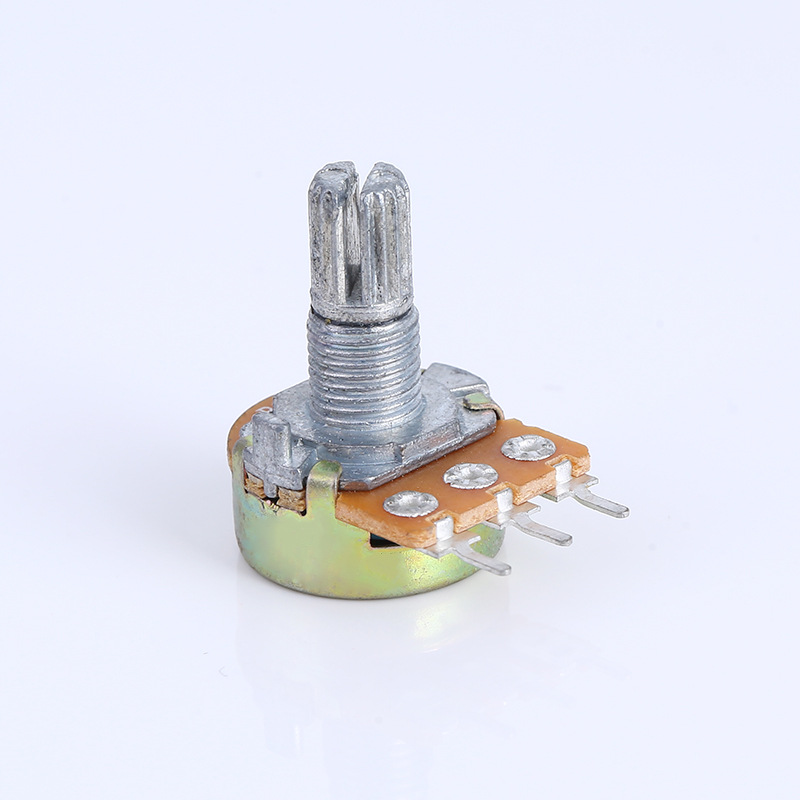

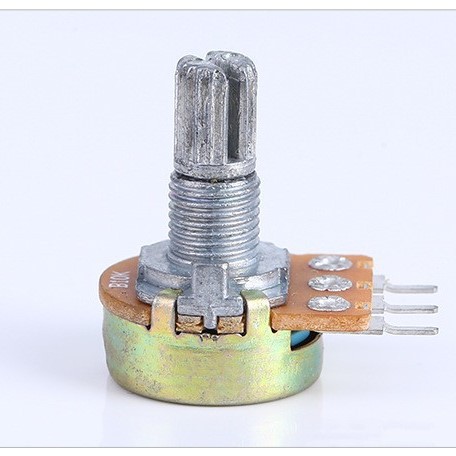

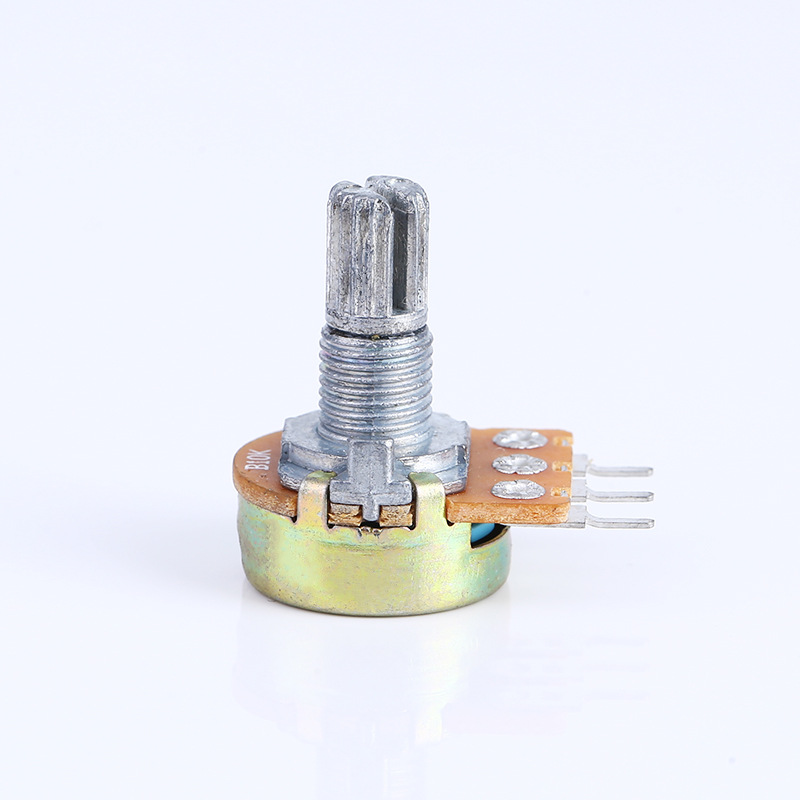

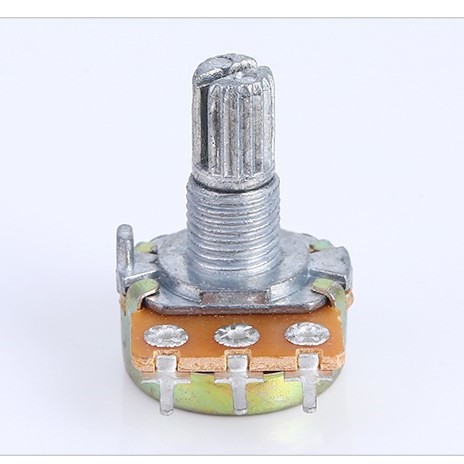

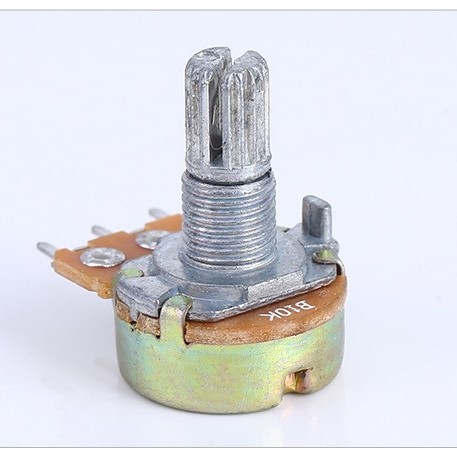

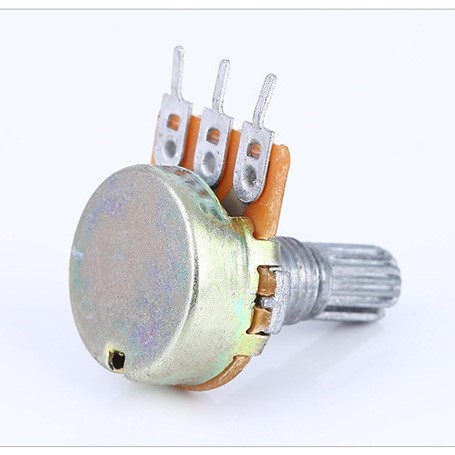

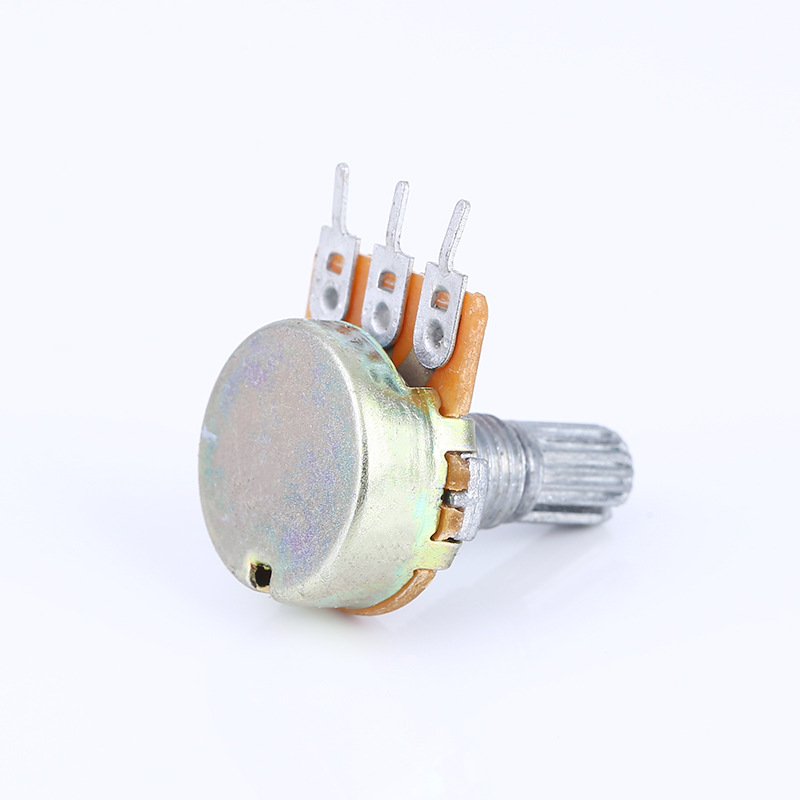

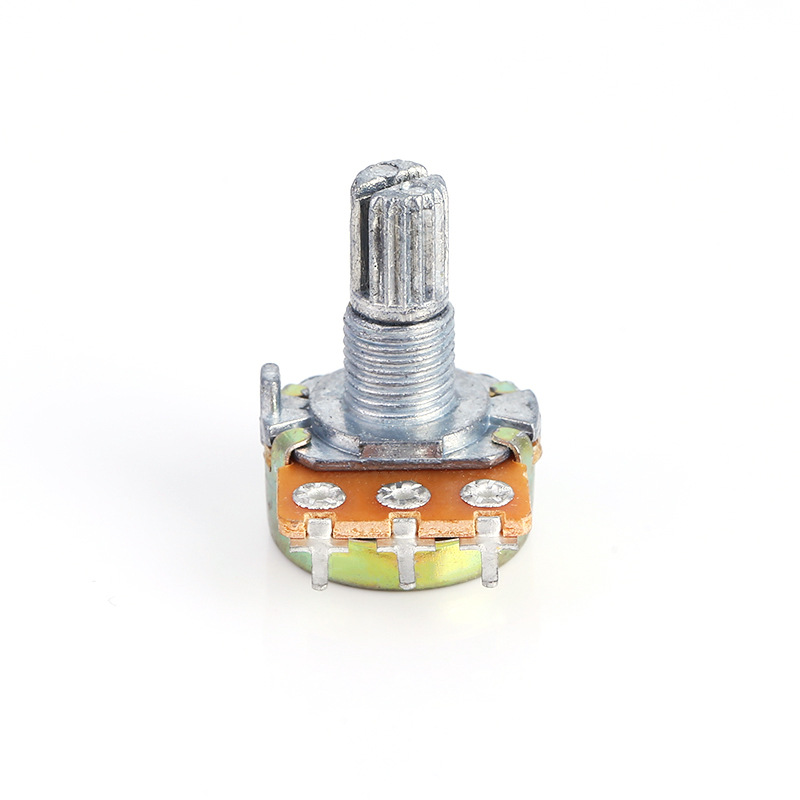

single connection 148 potentiometer 15 latte art shaft with nut gasket detection adjustable resistor audio equipment volume

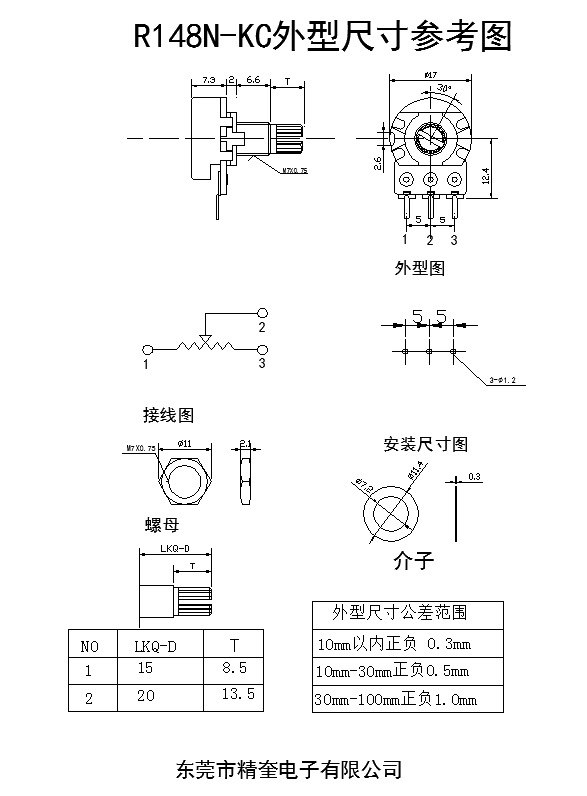

Potentiometer Performance

-Full impedance value:B K+_20%

-Impedance Variation Characteristics:0B

-Working temperature:Standard Model -10°C to 80°C (Low-Temperature Resistance Model -30°C to 80°C)

-Resistance Variation with Temperature:20°C~75°C ΔR/R

-Full impedance tolerance: ±30%

-Insulation Resistance:At 500 V DC, more than 100 MΩ

-Rated Power:Standard model 0.25 W (high-power model 0.5W)

-Maximum Operating Voltage: Alternating Current 220 Volts

-动杂音：Below 47 mV (at 20V DC)

Mechanical properties

-Shaft Locking Strength:5 kilograms per square centimeter

-Full rotation angle:300±5°

-Rotational Stiffness:3 kgf.cm/min

-Torque: 30 to 200 gf.cm

-Tensile and Compressive Strength of Shafts:"6 kgf.cm Max.

-Solder Thermal Resistance: Hand soldering only, below 260°C for less than 3 seconds.

-Carbon film full rotation angle270°

Durable performance

-Revolution life:501,000+

Packing Size

-Bag:200PCS

-小箱:21*17.1*22.5CM (500PCS)

-Large Box Size:42*34.2*22.5CM (1000PCS)

Special Customized Project

-Terminal:Weld-type, PC PINS-style, terminal styles, lengths, and styles can be specially customized

-Shaft Sleeve Specifications:Customized for special types with different lengths

-Shaft Length Specification:1516, 18, 20, 25, Special Customization Available (mm)

-Carbon Sheet Specifications:Thread A, B, can be specially customized.

-Resistance Specification:100 ohms to 1 megohmSpecialty Customizable

Adjustable Potentiometer Usage Notes

1. Use chemicals with caution.

The potentiometer, made of synthetic resins such as polycarbonate, should be avoided from being exposed to strong chemical atmospheres containing ammonia, amines, alkaline solutions, aromatic hydrocarbons, ketones, esters, halocarbons, and other chemicals.

1. Use solder pastes with caution.

When soldering, avoid using water-soluble solder pastes, as they may have adverse effects on the metal of potentiometers and other materials.

1. Solder

Wiring design and soldering methods should avoid causing the situation shown in Figure 1, where the solder melts and flows onto the flat surface of the PC board, which can lead to poor contact.

1. Recommended Circuit Wiring

When using a potentiometer as a variable resistor, it is recommended to use it as a voltage divider for adjustment. At the same time, the load resistance Rl of the potentiometer should not be less than 10 times the nominal resistance Rt of the potentiometer.

In a DC circuit, when an electric potentiometer is used to regulate current, current will flow through the movable arm of the potentiometer. In this case, the resistance value may increase abnormally due to anodic oxidation. In such a situation, it is recommended to connect the terminal for the resistance value to the negative terminal, and the movable arm to the positive terminal.

1. Residual resistance

Although the resistance body of the potentiometer is a printed silver layer, in order to improve the reliability against sulfation, it is usually covered with a carbon film on the second level. If you wish to achieve low residual resistance, please contact our company.

1. condensation

In the process of using potentiometers, the surface of the resistance body should be avoided from condensation or water drops, otherwise, it will lead to a deterioration of the insulating resistance or a short circuit.

1. Stress applied to the terminal

When handling terminals, it is particularly important to avoid excessive force, and the correct soldering conditions should be designed.

1. Radial sway of the shaft

When using a shaft with an excessively long length, its radial swaying will be proportional to the shaft length, and the shaft length should be selected according to actual needs.

1. Panel Installation

When the potentiometer is installed on the panel with a nut, if it is too tight, it will make the rotary touch function fail or the thread slip, and it should be very careful when locking the nut.

1. Low-temperature operation

When the product is used in a low-temperature environment, such as a car radio or car audio used in cold regions, our company provides comfortable-to-touch products according to customer requirements. Please specify when placing an order.

1. Slide handle length

The shorter the length of the handle, the better the feel, provided that the width A of the handle remains constant. Additionally, the shorter the handle, the higher the force point, which results in a worse feel.

1. Drive Arm

Do not allow the operation point to be too far away from the center line of the handle, and for the same reason, it is best for the distance B to be as short as possible.
