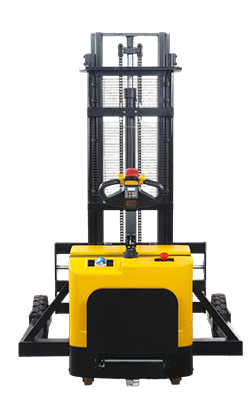

Electric Off-road Stacker
 |
Electric off-road stacker trucks feature powerful motors and come equipped with off-road driving configurations, ensuring strong road surface adaptability. They can navigate smoothly over gravel, potholes, and other outdoor terrain. The entire machine is structurally reinforced for stability, with a sturdy load-bearing capacity and lightweight and flexible operation. It is equipped with comprehensive safety features for durability and ease of control. These trucks are widely used in outdoor construction sites, factory fields, and complex road conditions for the stacking and transportation of goods.
This electric rough terrain stacker features strong power and excellent off-road performance. It adapts well to rough roads, gravel, and uneven ground. With a reinforced structure, it offers stable load-bearing and flexible operation. It is equipped with comprehensive safety protection. It is durable and easy to control.It is widely used for cargo stacking and transportation in construction sites, outdoor factories, and complex working conditions.
|
experienced |
source factory |
Support Customization |
Shipping is fast |
Eexperienced |
SSource FFactory |
Customization |
Fast delivery |
| Drive form | Electric | Tire | Solid rubber wheel |
| Driving Style | standing driving | Drive Wheel Size | 300*85mm |
| Rated Load | 2000kg | Wheel Size | 380*100mm |
| Load center | 600mm | Total height | 2150mm |
| self-respect | 720kg | Lifting height | 3000mm |
| Forklift's height from the ground | 55mm | Fork Adjustment Range | 240-1200mm |
| Operating handle height from the ground | 1400mm | Curb to Gauge Clearance | 800mm |
| Commander-in-Chief | 1980mm | Leg inner width | 1260mm |
| Total Width | 1580mm | Turning radius | 1500mm |
| Fork length | 1070mm | Braking Method | 3.5/4.5 km/h |
| Increase full/empty load | 13/25mm/s | Full load/empty speed | Electromagnetic Braking |
| Drive Motor Power | AC1.5kW | Battery Voltage/Capacity | 24/240v/Ah |
| Increase motor power | 2.2 kilowatts | Charging machine | 24/18v/A |
| Maximum Gradient Ability, Loaded/Unloaded | 8/10% |
|
|
Note: The above dimensions are measured by hand and there may be errors. Please refer to the actual goods received!
 |
1、Thickened Fork Leg Forged ForkThickened fork legs & forged forks |
 |

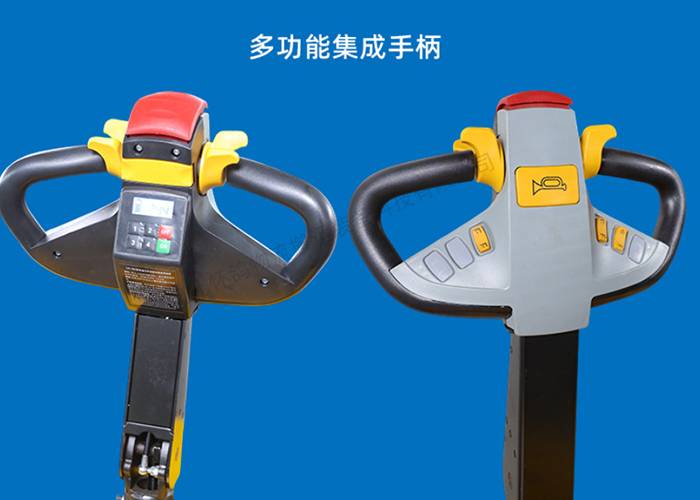

2、Multi-functional Integrated HandleMultifunctional integrated handle |
 |
3、Front Tire Rubber Solid TireSolid rubber front wheels |

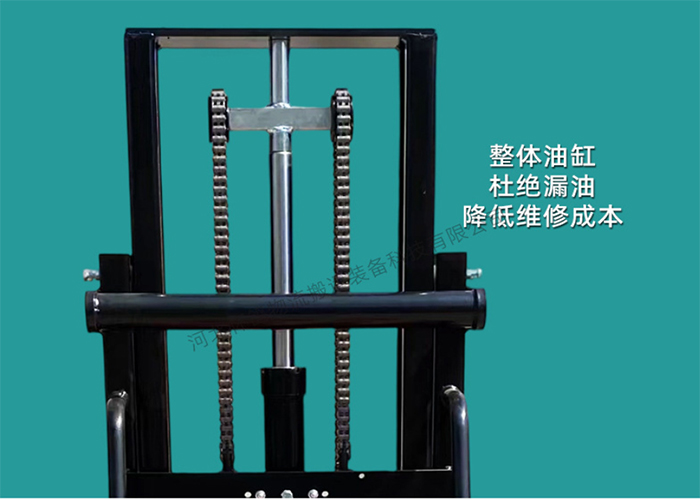

4. Overall oil cylinder to eliminate oil leakage and reduce maintenance costs
Integral oil cylinder prevents oil leakage and reduces maintenance costs.
|
Robust off-road power, easy passage through complex terrain. Thickened forging forklift fork, durable and stable for heavy-duty applications. Sealed to prevent oil leakage, lift and lower with controllable cushioning, smooth and durable operation. Integrated control handle, simple operation and labor-saving. Turns easily, navigates narrow spaces with ease, and is adaptable to a wide range of cargo. |
强大的越野性能，轻松应对复杂路况 Thickened forged forks, stable load-bearing and durable Adopts leak-proof sealing design with buffered and controllable lifting and lowering for smooth operation. Integrated control handle, simple and labor-saving operation. Features flexible steering, easy movement in narrow spaces and strong cargo compatibility. |
