Pedestrian stacker
 |
The walking stacker is operated with full electric walking control, which is simple to operate. The compact and lightweight body has a small turning radius, making it flexible for operation in narrow alleys and small warehouses; the high-strength door frame lifts smoothly and the load is stable, meeting the needs of daily pallet stacking and transportation; equipped with durable batteries, it has long endurance and convenient charging, supporting high-frequency continuous work; the whole machine is equipped with emergency stop, overloading protection and gradual rise and fall safety configuration, which ensures stable operation with low failure rate and simple maintenance.
The pedestrian stacker is equipped with a fully electric walk-behind control system for simple operation. It has a compact and lightweight design with a small turning radius, making it flexible for use in narrow aisles and small warehouses. The high-strength mast ensures stable lifting and load capacity, meeting the needs of daily pallet stacking and transportation.Equipped with a durable battery, it offers long endurance and convenient charging for high-frequency continuous work. The machine is fitted with emergency stop, overload protection, soft start, and soft drop functions, featuring stable operation, low failure rate, and easy maintenance.
|
experienced |
source factory |
Support Customization |
Shipping is fast |
Eexperienced |
SSource FFactory |
Customization |
Fast delivery |
| Specification | 1.5T 1.6M |
| payload capacity | "1.5T" 可以翻译为 "1.5-liter turbo"。 |
| 自重weight | 410kg |
| Total length | 193cm |
| Total height | 205cm |
| Total width | 80cm |
| The minimum fork height | 9cm |
| 货叉长度 Fork length | 115cm |
| Wide outside of fork legs | 67cm |
| Adjustable fork width | 72cm |
| Single fork width | 16cm |
| Front load wheel | 70*80mm |
| 后载重轮Rear load wheel | 70*210mm |
| Turn radius | 140cm |
| Wheelbase | 120cm |
| Lifting speed | 120mm/S Full load120mm/S |
| Decline speed | Fully loaded with 120mm/SFull load120mm/S |
| Increase the motor's power | 2.2 kilowatts |
| Battery capacity and voltage | 65AHX2/24V |
| Drive form | 全电动 All electric |
| Driving style | 步行式 walking style |
| Driving motor power | 0.75kw |
| Package size/weight | 193*80*220cm/435kg |
Note: The above dimensions are measured by hand and there may be errors. Please refer to the actual goods received!
 |

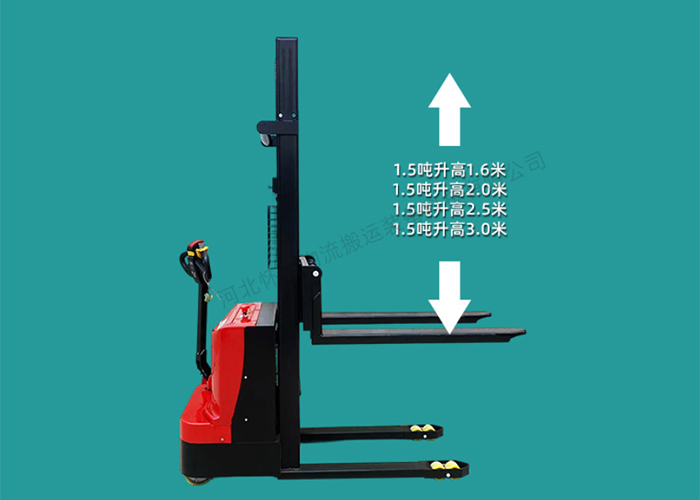

"1、1.5Ton升高1.6m/2m/2.5m/3m" Translation: 1.5 Ton lift height: 1.6m/2m/2.5m/3mcapacity:1.5Ton lifting height:1.6m/2m/2.5m/3m |
 |
2、Thickened forks are less likely to deform or break, and they have strong bearing capacity.Thickened fork, not easy to deform or break, with strong bearing capacity. |
|
3. Nylon wheels are not easily corroded and are suitable for different road conditions.Nylon wheels, corrosion and damage resistant, suitable for various ground conditions. |
4. Integrated hydraulic cylinder - Prevent oil leakage and reduce maintenance costs
Integral oil cylinder, oil leakage prevention, lower maintenance costs.
|
|
|
