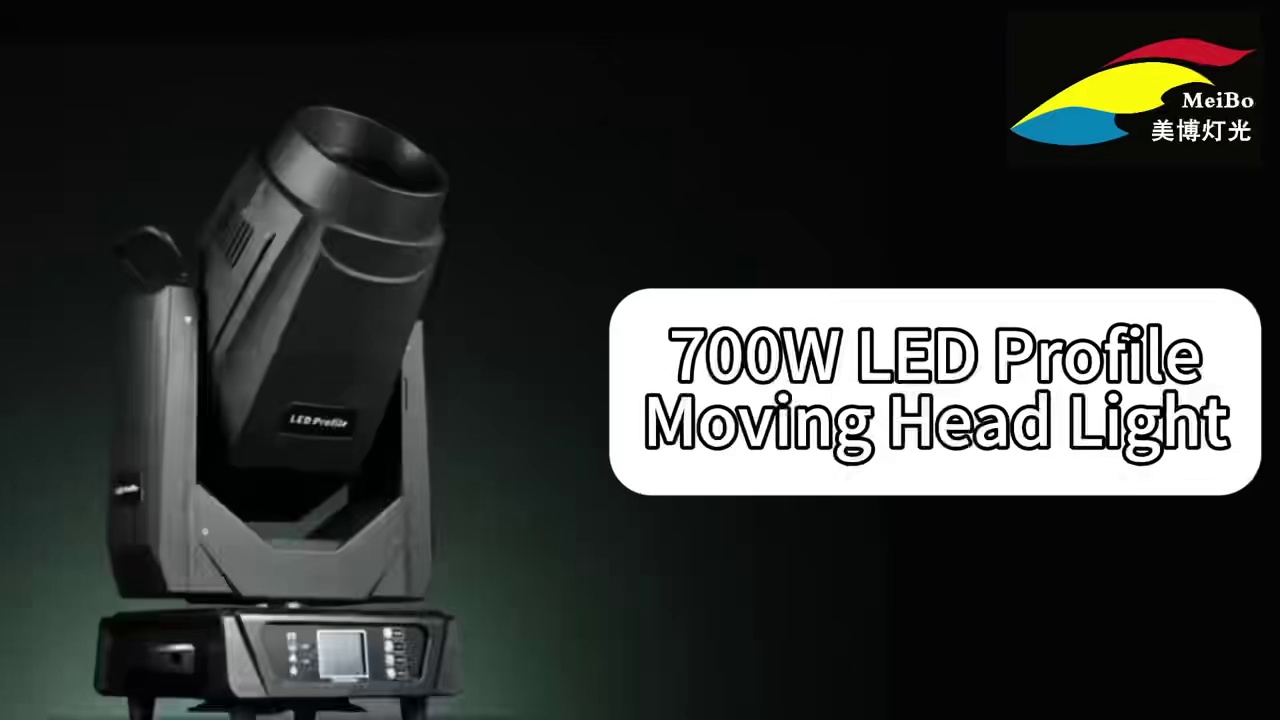

MB-820
LED 700W Pan/Tilt Cutting Light
LED 700W Moving Head Cutting Light
Voltage: AC100~240V, 50/60Hz
Luminous source: high-power 700W white LED, 6500K
CRI: ≥74 / ≥90
Horizontal Scan: 540° or 630° (16-bit precision scan)
Vertical Scan: 270° (16-bit precision scan)
Advanced scanning systems are faster, more stable, quieter, and feature an automatic error-correction reset function, with a smooth and even CMY+CTO color output.
Mixed Color System
1-color disc: 6 fixed color discs + white light, semi-color effect, color discs can be positioned arbitrarily, with a rainbow effect that rotates in both directions
1-piece rotating pattern disc: 6 removable rotating pattern pieces + white circle, with pattern trembling and pattern arbitrary positioning function
1 fixed pattern disc: 7 removable fixed pattern discs + white circle, with pattern shaking function
Channel: 42 International Standard DMX512 Channels
Prism Disc: Rotate the 4+6 prism in both directions, can stack prisms, and has a prism positioning function.
Focusing: Electronic focusing, ultra-smooth adjustment of focal length
Aperture: Smoothly Adjustable from 5% to 100%
Pulsing: The frequency can reach up to 25Hz, and it is also available to choose random pulsing and pulse pulsing.
Amplification: 5° to 50° Linear Amplification
Cutting disk: A set of four cutting edge pieces that form a controllable spot cutting angle system, the entire cutting angle system can rotate 90°. By precisely controlling the cutting light sheet, it can create light spots of any direction, such as triangles, rhombuses, rectangles, etc.
Effect disc: Ultra-cool simulation of dynamic, vibrating flames, gurgling streams, and other dynamic effects.
Voltage: AC100~240V, 50/60Hz
Light source: high-power 700W white light LED, 6500K
CRI: ≥74 / ≥90
Horizontal scan: 540° or 630° (16 bit precision scan)
Vertical scan: 270° (16-bit precision scan)
The advanced scanning system is faster, stable and quieter, with automatic error correction reset function, uniform and smooth CMY+CTO
Color mixing system
1 color plate: 6 fixed color plates + white light, half-color effect, color plates can be positioned arbitrarily, with rainbow effect of bidirectional rotation
1 rotating gobo plate: 6 plug-in rotating gobos + white circle, with pattern jitter and pattern arbitrary positioning function
1 fixed pattern plate: 7 plug-in fixed pattern pieces + white circle, with pattern jitter function
Channel: 42 international standard DMX512 channels
Prism disk: Rotating 4+6 prisms, can be rotated in front and back directions, prisms can be superimposed, and have prism positioning
Focusing: electronic focusing, ultra-smooth focus adjustment
Aperture: 5% to 100% smooth adjustment
Strobe: the frequency can reach up to 25Hz, and random strobe and pulse strobe can be selected
Zoom: 5°~50° linear zoom
Cutting disc: a set of controllable light spot cutting angle system composed of 4 corner cutting pieces. The whole cutting angle system can be rotated by 90°. Through precise control of the light cutting piece, it can create triangles, rhombuses and rectangles in any direction. Equal shape spot
Effect panel: super dazzling simulation of dynamic flames, gurgling water and other dynamic effects
