pac dosing pump, 316 stainless steel corrosion resisting centrifugal pump, threaded-type small pump, chemical corrosion‑resistant pump, factory direct sales

Product Name:Price of the dosing pump, 316 stainless steel corrosion-resistant centrifugal pump, small electric pump, acid-alkali resistant dosing pump manufacturer
【Product Usage】

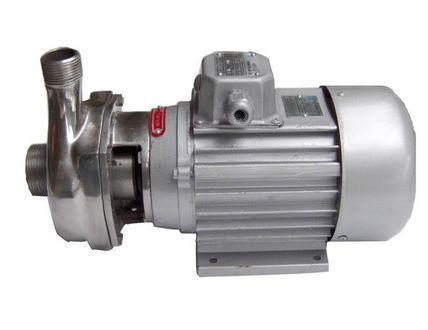

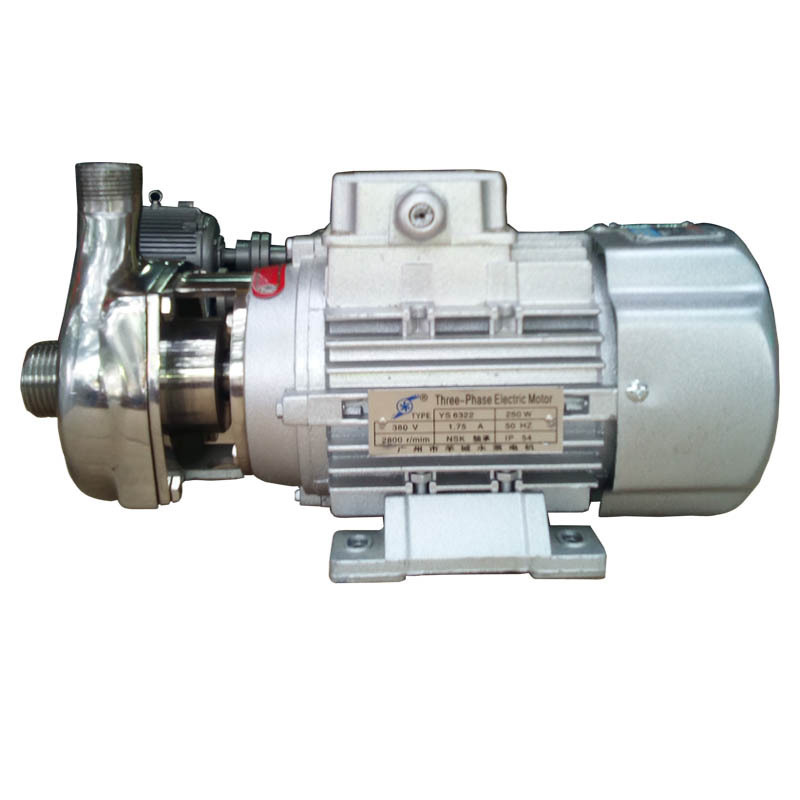

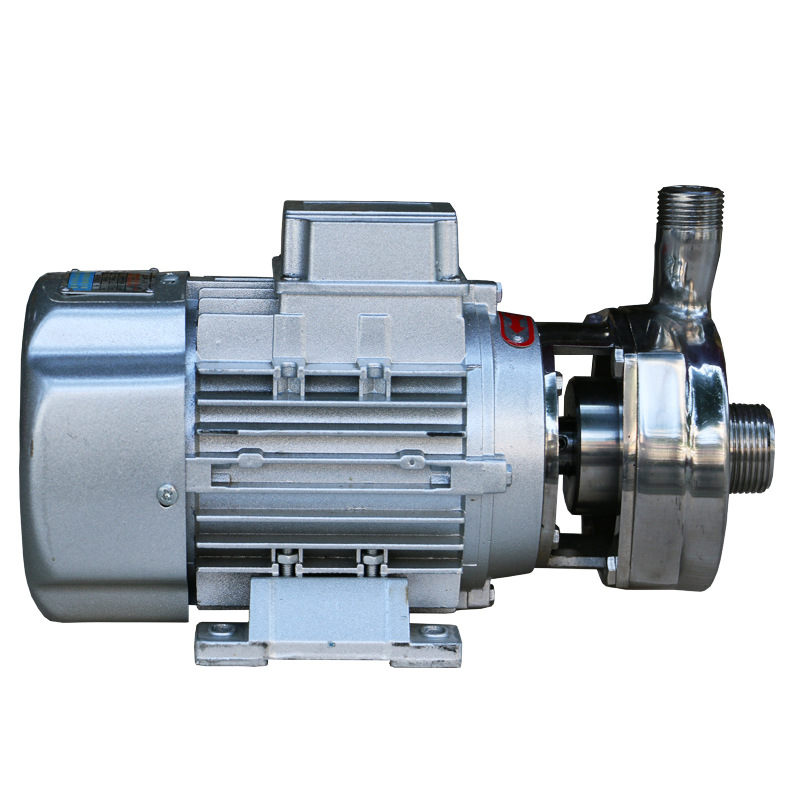

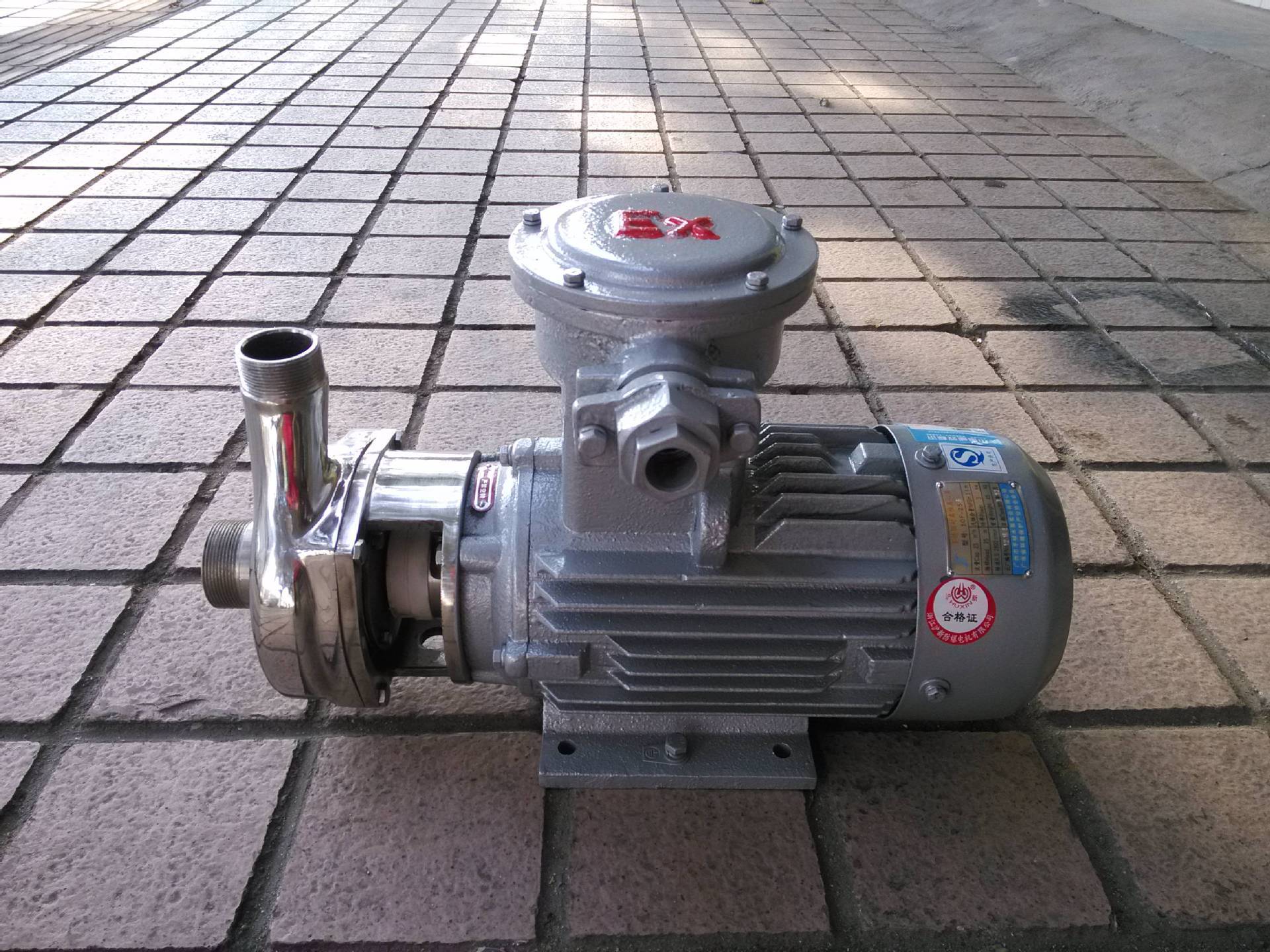

304316 stainless steel corrosion-resistant centrifugal pumpWidely applicable for the transportation of corrosive liquids, it can be used asMedication PumpCleaning systems, food processing, medical and health, wastewater treatment, electroplating and dyeing, fine chemical engineering, and environmental protection engineering, or other equipment for complementary use.

【Performance Advantages】
1. Adopt high-qualityStainless steelCast and used for needsCorrosion-resistant, acid and alkali-resistantworking condition
2. The structure is compact, without vibration, low noise, and the operation is reliable and smooth.
3. High-quality mechanical seals are used, ensuring no leakage and long service life.
4. Open-type impellers can handle sewage and contain microscopic impurities and liquids, with strong transport capabilities.
5. The bearings are imported from Japan using NSK main shafts.
6、Stainless steelMaterial available in 304.316316L and other materials can be customized according to the degree of corrosion of the client's transport medium,

Operating Principle:
It is through the rotation of the motor that drives the rotation of the water blades, and the liquid is sucked into the pump body from the inlet of the pump body, and in the flow channel of the pump body, the liquid in the pump flow channel continues to increase and is squeezed out of the outlet of the pump body.

The seal configuration parameters for the F stainless steel direct-coupled semi-open impeller pump are as follows: for the 25F-8 model, use a 20 seal, and for the 40F-13 model, use a 25 seal. For the 50F-15, 50F-18, 50F-22, and 50F-25 models, use a 35 seal. The 40F-13 and 25F-8 models can only be equipped with internal seals. For the rest, both internal and external seals can be installed.

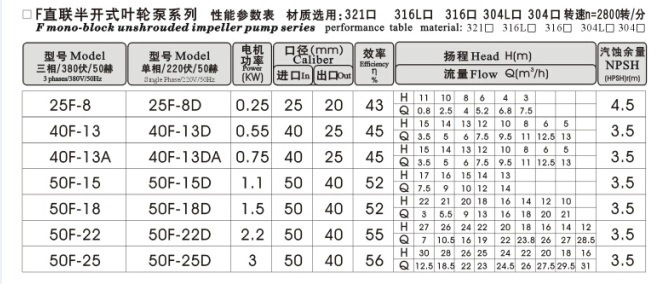

F Series 304316 stainless steel corrosion-resistant centrifugal pump, small electric pump, acid-alkali resistant dosing pumpPerformance Parameters Table:

Technical parameters:
Model: 50F-18
Imports: 50mm
Outlet: 40mm
Flow: 13 m3/h
Head: 18m
Power: 1.5kw
Efficiency: 52%
Cavitation Headroom: 3.5

Commonly used gaskets and gasket materials:
The sealings of our factory are divided into four types: external mechanical seals (WB2) and internal mechanical seals (WB1), skeleton oil seals, and packing seals (butter rope seals). External mechanical seals are further divided into graphite and ceramic due to different materials, but the sealing material is all plastic wax. Internal mechanical seals are further divided into ethylene propylene fluorocarbon rubber and plastic wax due to different sealing materials. At the same time, internal mechanical seals with different friction surfaces are further divided into graphite, silicon carbide, and alloy.

Machine seal material adaptation common sense:
109 Fluorocarbon Rubber (Silicon to Silicon)
Suitable for: Temperature: 10-180°C, weak acids and bases, and medium with particle properties.
Unsuitable: The medium contains linear or prickly substances and those prone to crystallization.

109 ethylpropyl (silicon to silicon)
Suitable for: Temperature between 10-120 degrees, weak acid, strong base, and particle medium.
Unsuitable: The medium contains linear or prickly substances and those prone to crystallization.

120 (Alloy)
Suitable for: Temperature between 10-108 degrees, strong acids and alkalis, and particles.
Unsuitable: The medium contains linear or prickly substances and those prone to crystallization.

WB2 (Silicon to Silicon) Sealing Adhesive is Plastic King
Suitable for: temperatures between 10-180 degrees, strong acids and alkalis, and volatile media with particles and filaments.
Unsuitable: Medium with adhesive properties and prone to crystallization.

The sealant for WB2 (ceramic to ceramic) is plastic king.
Suitable for: temperatures between 10-120 degrees, strong acids and alkalis, and media with particles, filaments, and viscosity.
Unsuitable: Volatile media.

The above is the F series produced by our factory.316 stainless steel corrosion-resistant centrifugal pump, small electric pumpMedication PumpPlease provide the specific parameters such as model, head, flow rate, power, etc., to findAcid and alkali resistant dosing pump manufacturerPlease choose Dongguan Guanxing Water Pump,We have been specialized in research and development of industrial pumps for nearly 20 years. We provide our customers with excellent quality and high-quality service. If you need to know other parameters, please contact us.Stainless Steel Corrosion-Resistant Dosing PumpOr other pump series, pleaseContact us
