agricultural dc submersible pump 12v/24v/48v/60v marine-inch electric vehicle battery booster pump stainless

Suggest buying 2 inches.

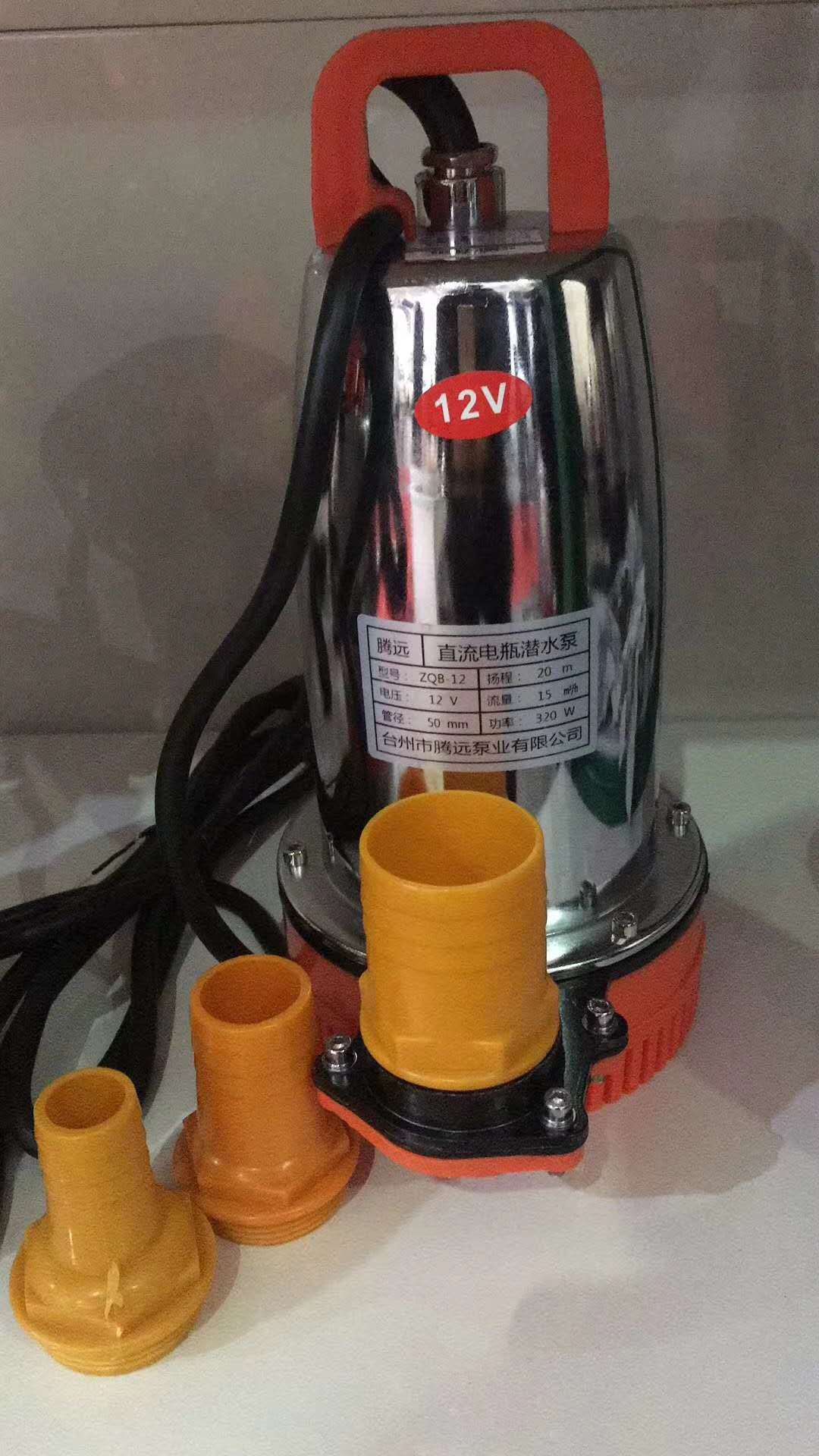

 A 2-inch outlet can be replaced with a 1-inch one for single use, and the lift height is the same as a 1-inch outlet. When you need more water, you can replace it with a 2-inch outlet, which has a larger flow rate. This makes it more versatile.

 On the contrary, a 1-inch head cannot be replaced with a 2-inch head.

About the plug:

 The 12v and 24v models do not have plugs, and they are usually directly connected to the battery. If you needplugYou can also take our dedicated connector.

 48v and 60v are triangle plugs, used to plug into the charging ports of electric vehicles.

About the style:

         Stretch style and high stretch styleThe difference lies in the shell, but the interior is the same.

 Due to production adjustments, all high-tensile models except for the superior series 12V need to be ordered, with a minimum of 30 pieces (120 units).

 Among them, the 48v/60v universal model is generally recommended to use 60v voltage. The 48v voltage can be used, but the speed will be lower, and the lift and flow rate will be smaller. If you really want to use dual voltage without any obstacles, you still need to use a brushless pump.

"About the lift":

       1 inch small yellow pump headlift is about 3-4 meters.

       The superior series and the ordinary series in 1-inch pumps have different wire data and enameled wires. The lift of the superior series is between 12-14 meters, while the lift of the ordinary series is between 10-12 meters. Even for the ordinary series, compared with the market lift of 8-10 meters, or even 6-8 meters, it still has an advantage.

 All 2-inch models are from the superior series, and there is no additional marking. For the lift, it is 6-8 meters.

         A 2-inch haircut can be replaced with a 1-inch haircut, with the same lift as a 1-inch haircut, but a 1-inch haircut cannot be replaced with a 2-inch haircut, so more 2-inch haircuts are currently being shipped.

 About the motor:

 There are brushes, and what they say about brushless is a lie, the cost is there.

       All copper-coated wire, our coils are made of copper wire, which is generally referred to as pure copper motors.

关于线长:

    DC pump voltage low, current highThe line loss is much larger than 220V, so the wire should not be too long. We generally use 2 square copper cable for 12/24V DC pumps when we ship them.The standard length is as follows:

 12v Yellow Pump Standard: 1.4 meters

 12v Standard: 3 meters

 24vStandard:3 meters available: 7 meters

 48vStandard:5 metersOptional:7 meters, 10 meters, 13 meters, 16 meters

         60vStandard:5 metersOptional:7 meters, 10 meters, 13 meters, 16 meters

 48/60 UniversalStandard:7 metersOptional:16 meters

In addition to the above length, an additional 2.5 yuan is added for every additional 1 meter of cable length, with a minimum order quantity of 100 pieces.If you have any other length requirements, please feel free to consult for customizations.

High-temperature pure copper enameled wire
