cob full color led display indoor conference stage electronic large screen p1.25 hd new

lanke photoelectric (yiwu) led display factory store 1yr.

Contacts Jason Chat

Mobile 86-19550518598

E-mail 501342336@qq.com

19550518598

WhatsApp 13660428669

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

pixel pitch: 1.25mm

brightness: 500-1000cd/㎡

refresh rate: ≥ 3840hz, shooting without stroboscope and waterless ripples

gray shade scale: level 16384, dark field details are pure

P1.25 Technical Parameters of Indoor Small Spacing LED Displays

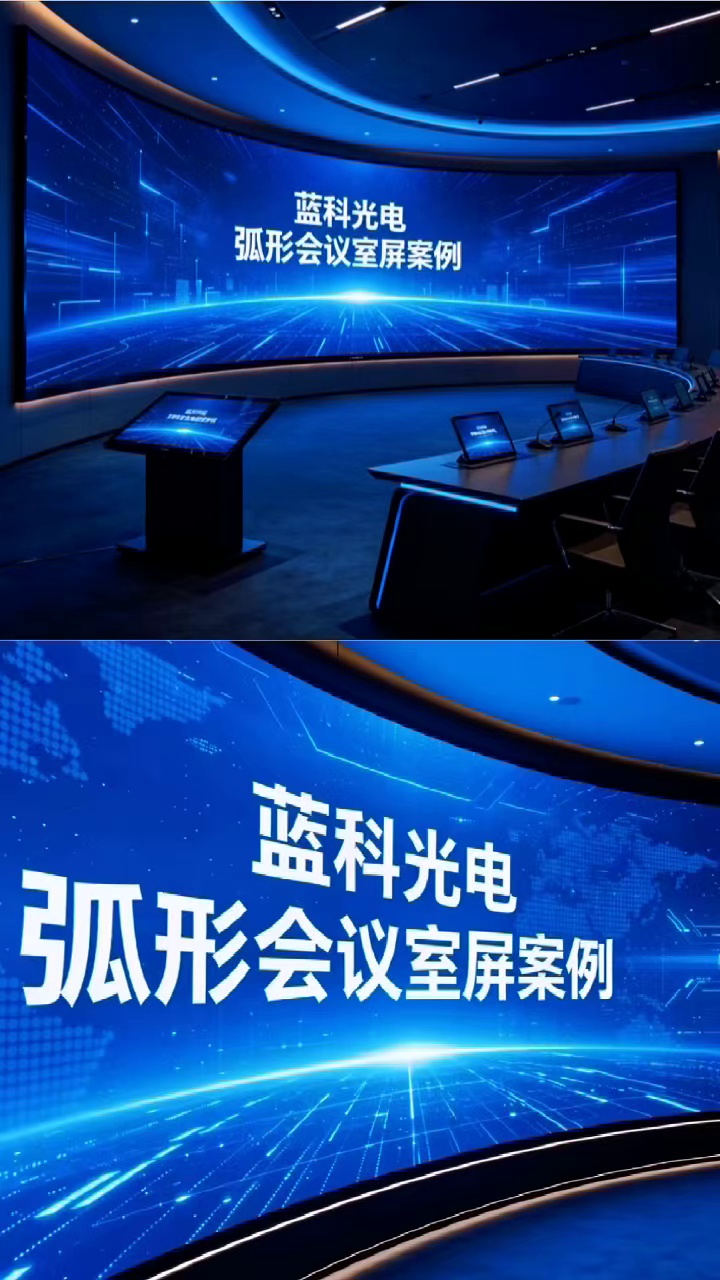

Applicable Scenarios: High-end conference rooms, boardrooms, multi-functional presentation halls, exhibition halls, command centers (indoor high-definition display at close range, no strobe lighting for meeting recordings)

1. Basic Core Parameters

Pixel spacing	1.25 mm
Pixel density	64000 points per square meter
Pixel configuration	1R1G1B Full-color Three-in-One

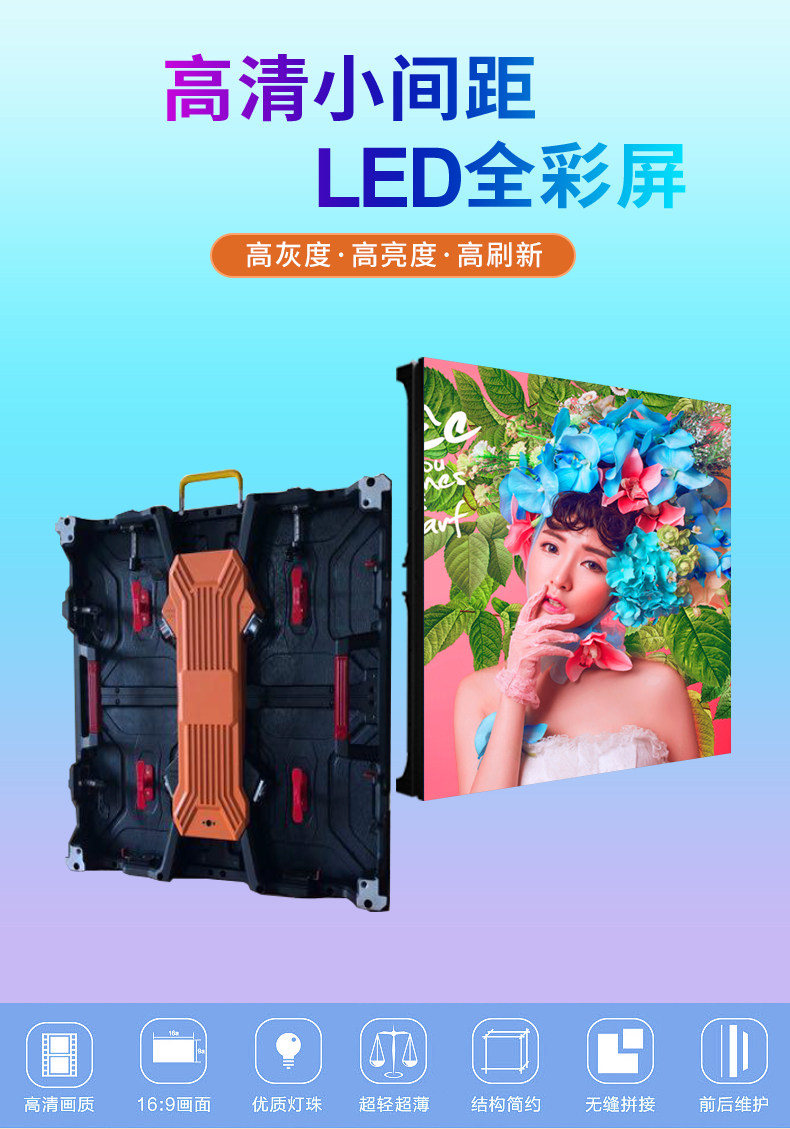

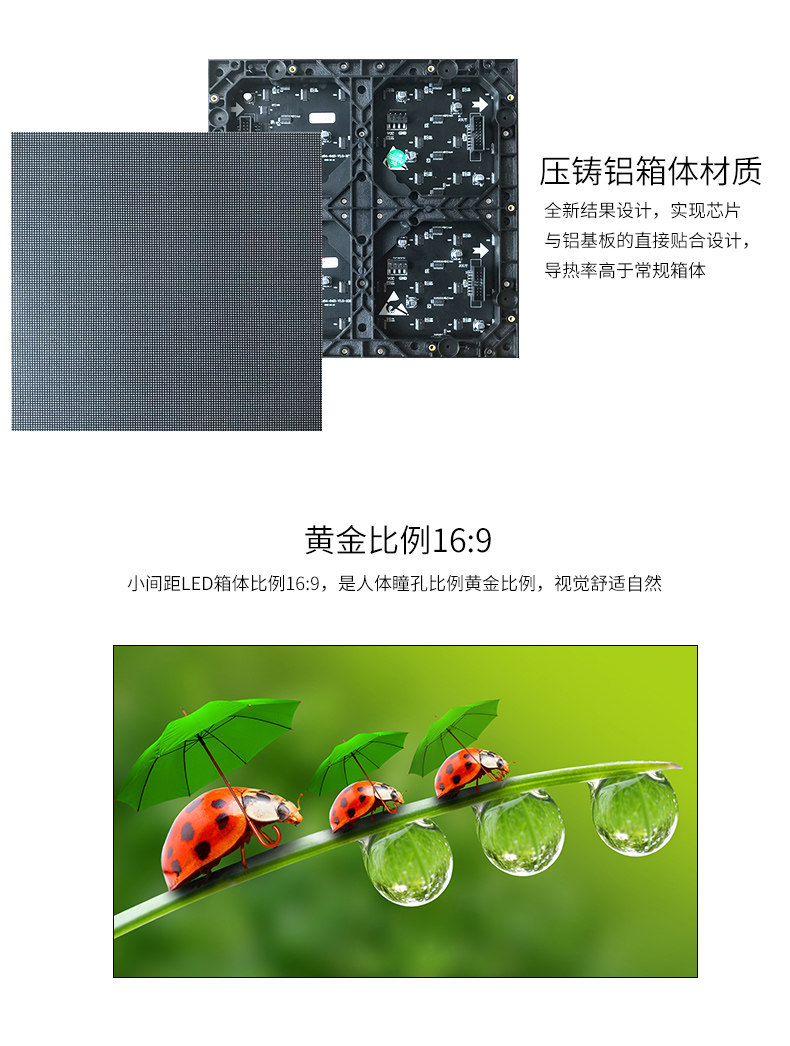

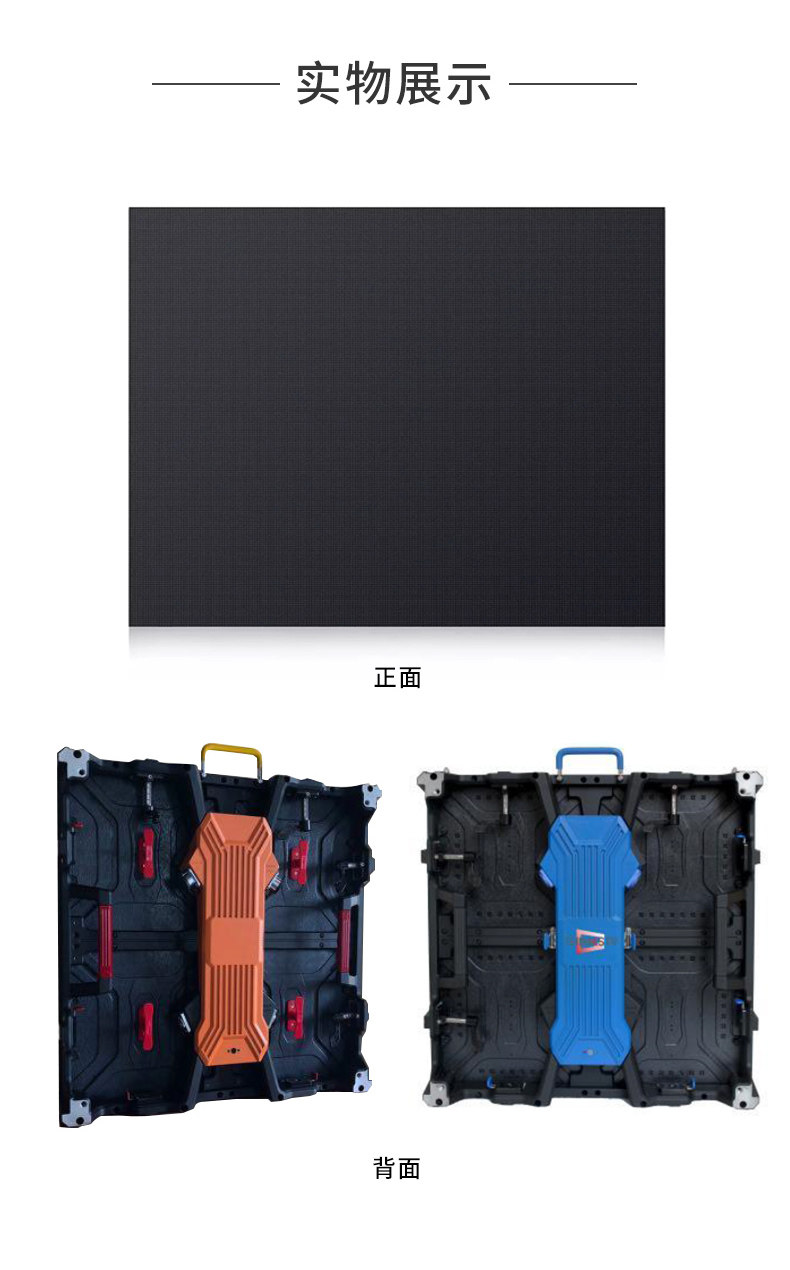

Standard case dimensions	400×300mm High-precision die-cast aluminum case
Seam alignment	≤0.1mm, seamless splicing
Installation thickness	3–5cm ultra-thin wall-mounted structure
Maintenance Method	Full front maintenance; no rear access channel required
IP Rating	Front IP30 / Back IP20

II. Optoelectronic display parameters (high-definition meeting standards)

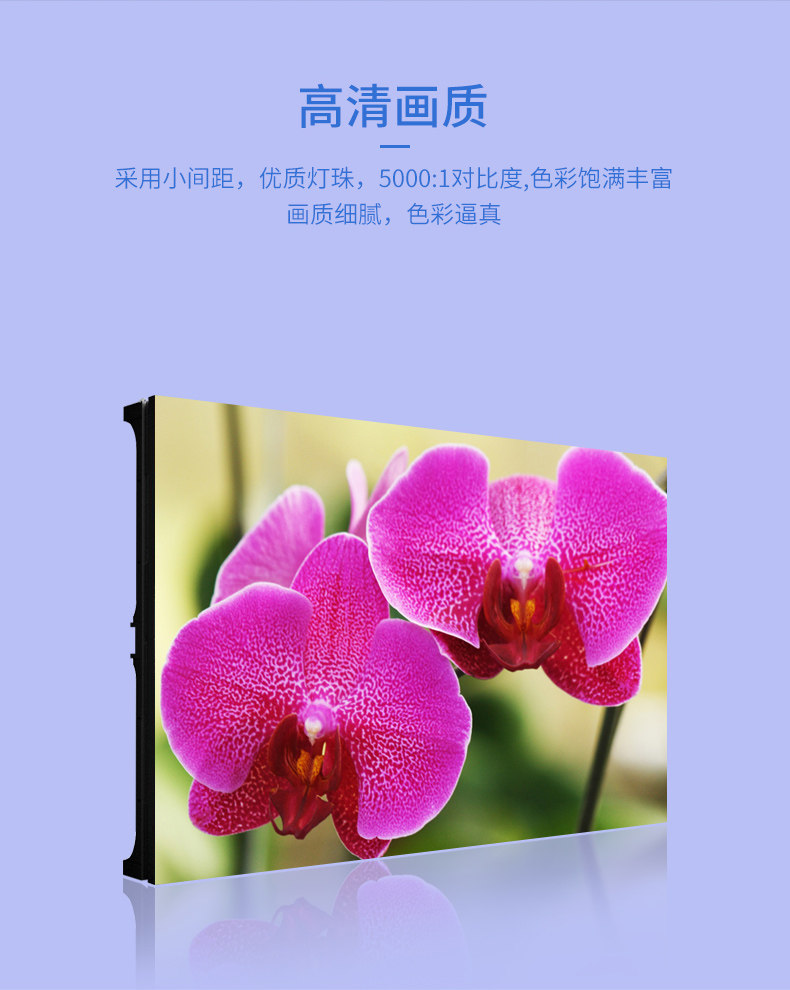

White balance brightness	500–1000 cd/㎡ (standard indoor value of 600 cd/㎡, adjustable and non-reflective)
Static Contrast	5000:1 (High-End COB Version 10000:1)

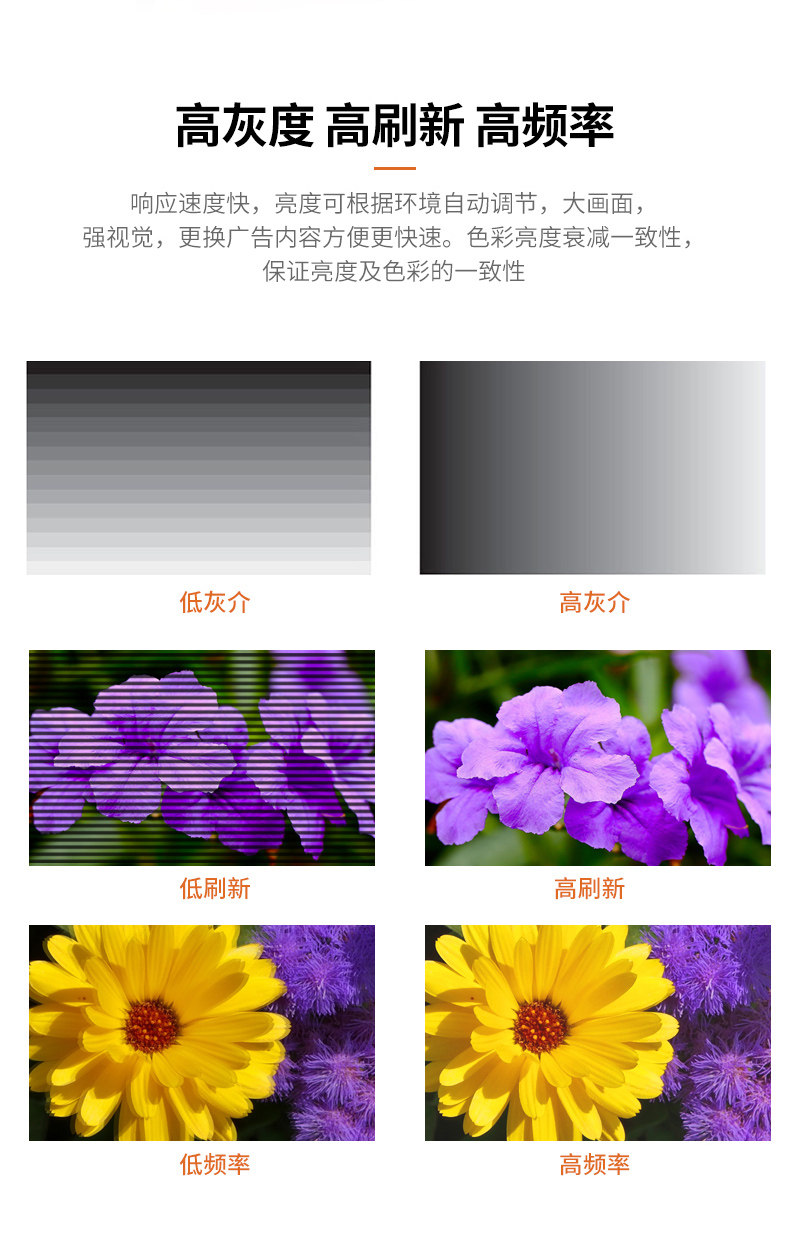

Grayscale levels	Level 16384, pristine dark field details
Refresh rate	≥3840Hz, no stroboscopic effects or water ripples during recording
Frame replacement frequency	60fps, smooth motion with no blur or lag

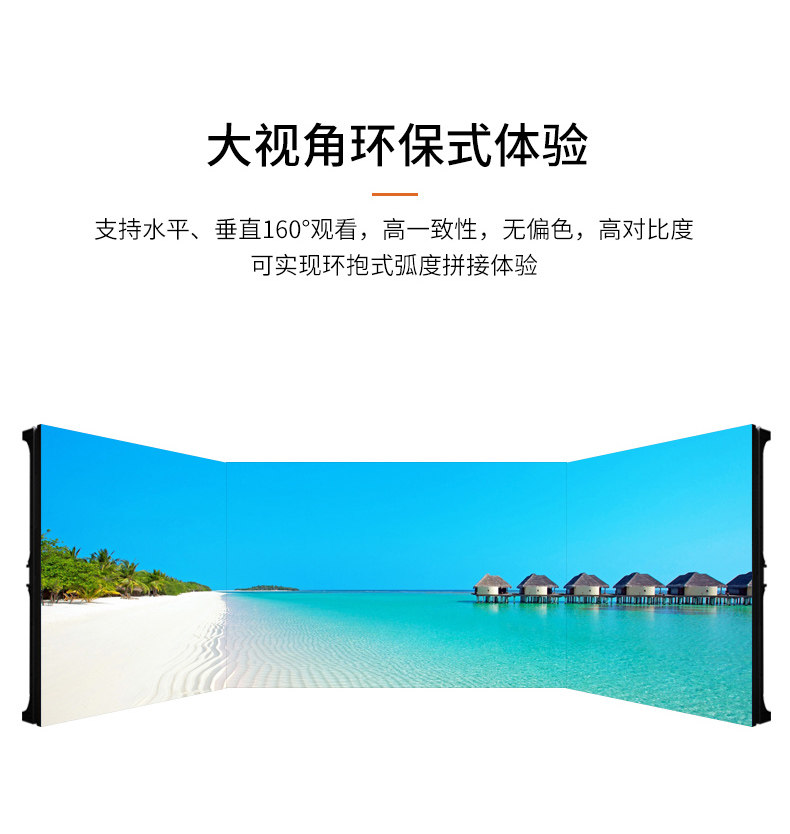

Viewing angle	Horizontal/vertical angle of 160°, wide viewing angle, no color distortion or dark corners

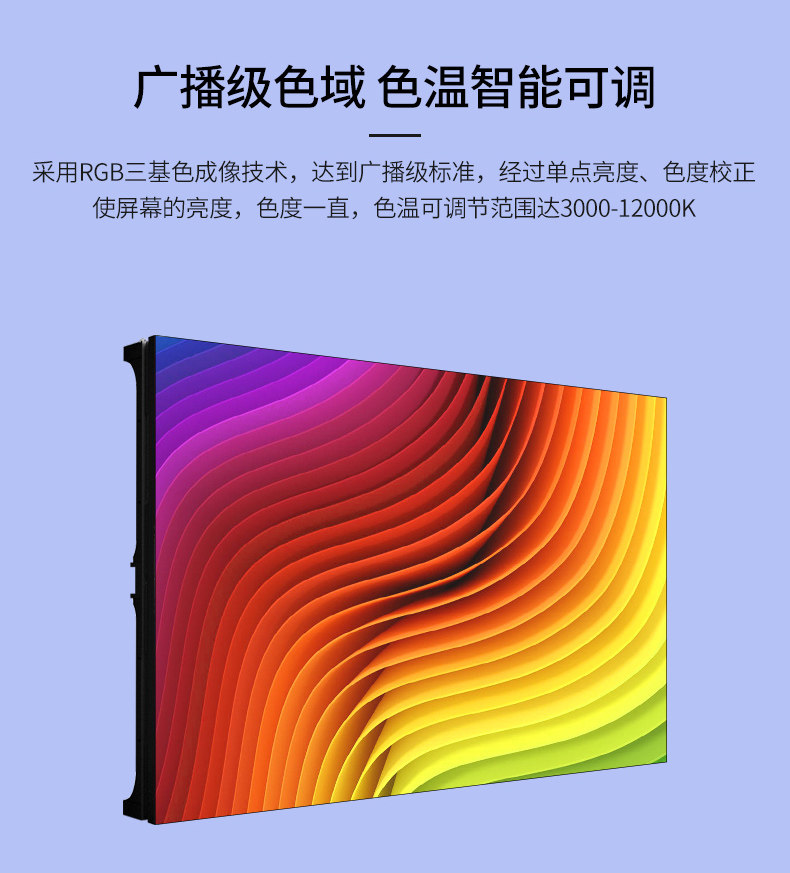

Color gamut coverage	≥98% sRGB, accurate color reproduction

III. Electrical Performance Parameters

Working Voltage	AC100–240V Wide Voltage Compatibility
Maximum Power	≤800W/m²
Average power consumption	≤280W/m², energy-efficient and low-consumption
Power supply characteristics	Stable voltage, silent operation with power supply; no screen flickering, no voltage fluctuations

4. Environmental and Reliability Parameters

Working Temperature	0℃～55℃
Storage Temperature	-20℃～60℃
Work Humidity	10%–85% RH (no condensation)
Theoretical lifespan	≥10000 hours
Mean Time Between Failures	≥5000 hours

5. Core Highlights

Close-up Ultra High Definition64 thousand points per square meter; high density. No particles when viewed up close, with sharp and clear text and charts.
Meeting filming is friendly<t_8340Hz high refresh rate>, no stroboscopic ripples for recording, live streaming, and video conferencing

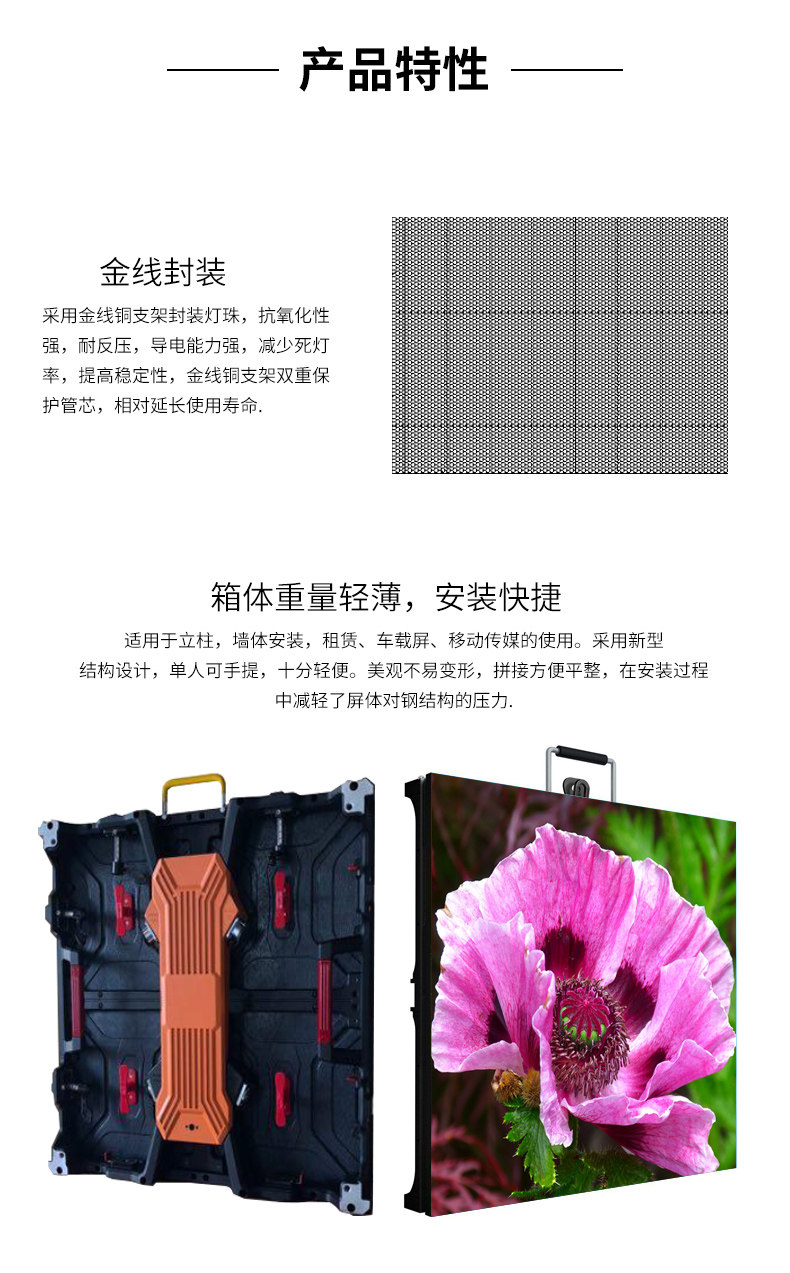

High-end minimalist installation: Ultra-thin die-cast aluminum case, front maintenance design, suitable for high-end business spaces
Stable and balanced image quality: High grayscale level, high color gamut, uniform full-screen brightness, no color difference, no gray fog
Low energy consumption and easy maintenance: Energy-efficient and power-saving; the module can be disassembled and replaced individually, resulting in low maintenance costs later on.

Update time：20260708183810

p1.25	CN¥ 7500.0
p1.53	CN¥ 4500.0
p1.66	CN¥ 5000.0
p1.87	CN¥ 2750.0
p2	CN¥ 2600.0
p2.5	CN¥ 1800.0
p3	CN¥ 1700.0
p4	CN¥ 1600.0
led large screen customization [consult customer service quotation]]	CN¥ 1000.0
