Description

origin: german knicks qnix4500 coating thickness gauge

import or not: no

order number: qnix4500

customized processing: no

item no.: qnix4500

brand: knicks, germany

model: qnix4500

measuring range: 0-3000 m

measuring object: coating of non-magnetic metal surfaces such as aluminum, copper and stainless steel,

measurement accuracy: ± (2cm + 3%)

resolution: 0.1

power supply: 2 × 1.5v aa battery

size: 116

weight: 0.105

whether cross-border export is exclusively available: no

specifications: knicks qnix 225000.00g

Nix QNix4500 Coating Thickness Meter / Fischler MPO Oxide Film Thickness Meter QNix4200 Film Thickness Meter

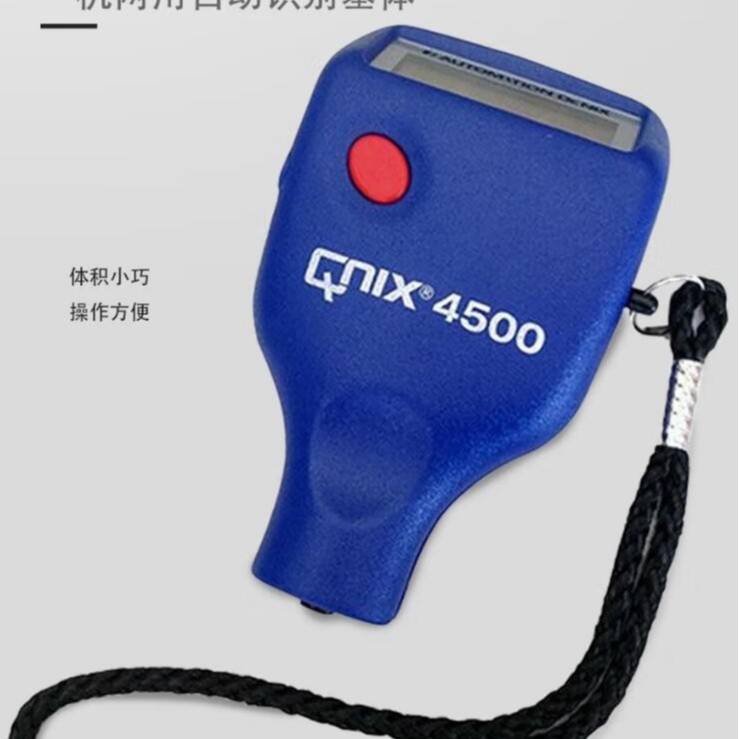

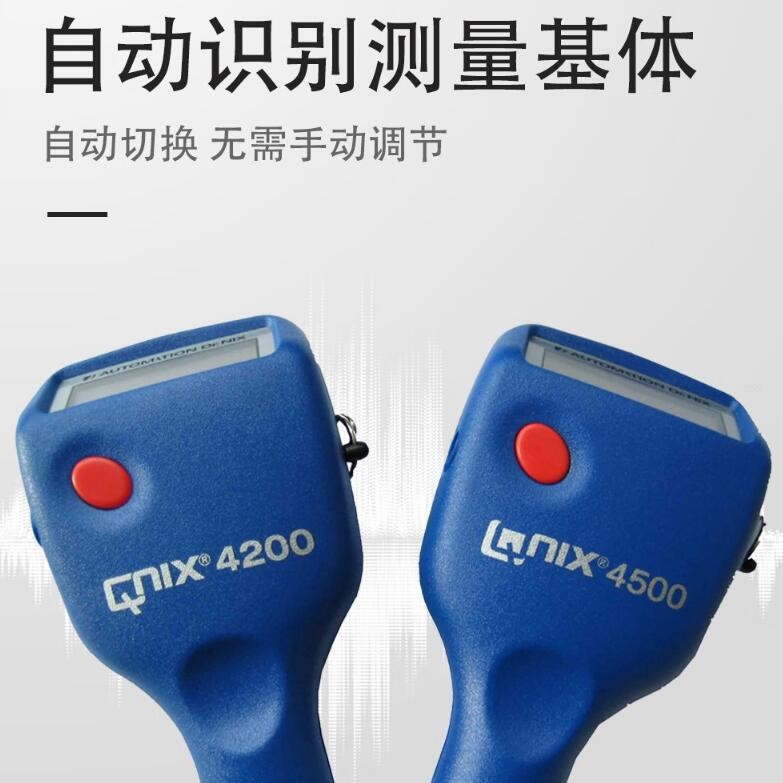

QNix 4500 Coating Thickness MeterIntegrated design, just zero adjustment, no need for calibration, extremely simple to use.QNix4500For magnetic thickness gauges, they can be used to measure coatings and plating layers on magnetic substrates such as steel and iron. The QNix4500 is a dual-purpose magnetic and eddy current thickness gauge that can not only be used to measure coatings on magnetic substrates such as steel and iron, but also to measure coatings, oxide films, and phosphate films on non-magnetic metals such as aluminum, copper, and stainless steel. Both models are easy to operate, portable, and have high precision, which is beloved by a wide range of users.

QNIX4200

QNIX4200-1

QNIX4500-2

QNIX4200-4

QNIX4200-8

QNIX4200-7

QNIX4200-5

QNIX4200-6

QNix 4500 Coating Thickness MeterProduct Advantages:

Just zero adjustment, no calibration required, compact size, easy operation, dual-purpose machine, automatically identifies the substrate, high precision, affordable price.

QNix4500 Coating Thickness Meter Technical Specifications

Magnetic Substrate(Fepattern")	QNix4200/4500They all have this function.
Non-magnetic substrate(NFepattern")	QNix4500This feature is available.
Measurement Range	Fe:0-3000um/NFe:0-2000um
Display precision	0.1 micrometers
Precision	0-50um: ≤ ±1um 50-1000um: ≤ ±1.5%reading "1000-3000um ≤ ±3%reading
Minimum Contact Surface	10×10mm
Minimum Curvature Radius	Convex surface3mm Convex: 25mm
Minimum Base Thickness	Fe:0.2mm/NFe:0.05mm
Temperature Compensation Range	0-60℃
Display	LCDLiquid Crystal(With backlight")
probe	Ruby Fixed
Power supply	2×1.5V干电池
Size	100×60×27mm
QNix4500Weight	110g
