dh-102 cross-border 220v0.5a button switch normally closed-type switch freezer display cabinet door control switch

Contacts Leah Chat

Mobile 86-13872165760

13872165760

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

protection function: flame retardant insulation

electrical life: 10000 times

application scope: household appliances, electrical products, industrial equipment

operating temperature: -20-55°c

shell material: nylon

contact material: copper

wiring mode: quick terminal

whether it is exclusively for foreign trade: no

mechanical life: 10000 times

3c rated voltage range: below 220v

warranty: january

protection level: ip20

按钮开关

===============================================

KCD3-212门灯开关用于家用电器、器具和设备的电源通断通断状态为 ON-OFF

端子:插片式 4.8х0.5 工作参数：0.25A 250VAC

接触电阻≤50mΩ

绝缘电阻 ≥100MΩ

介电强度 1500VAC/1min

工作温度-5℃～+55℃

电气寿命>10000 次

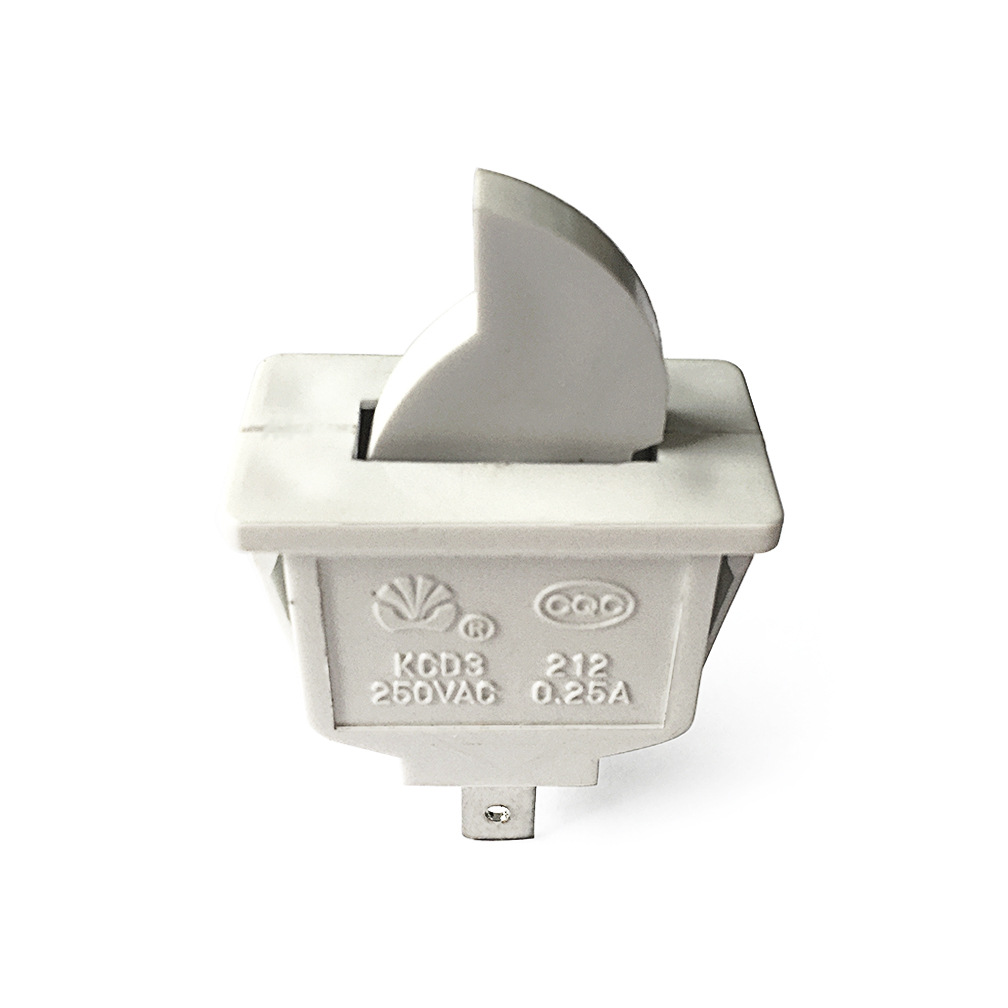

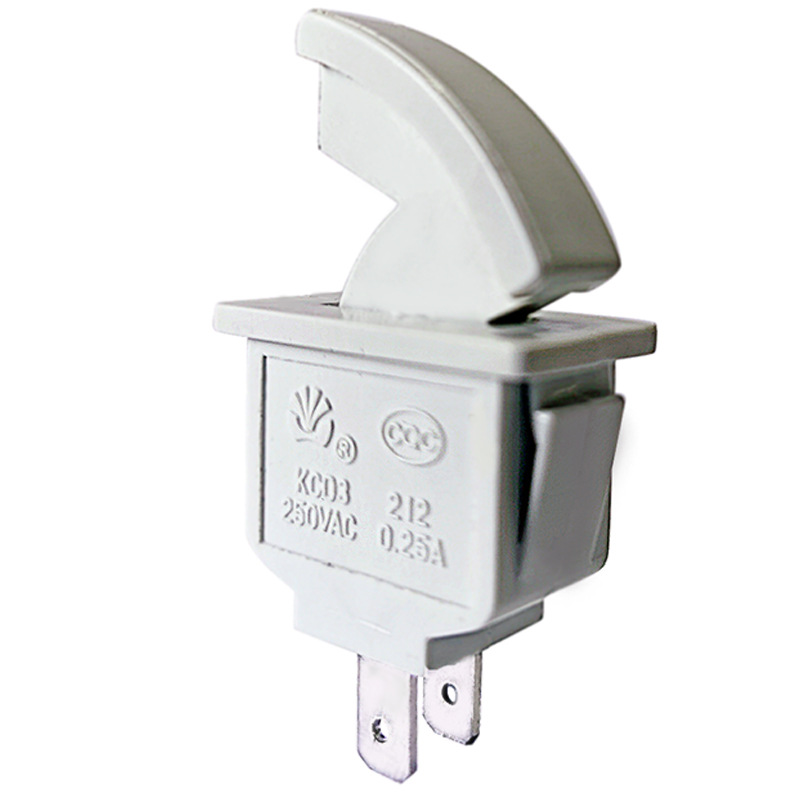

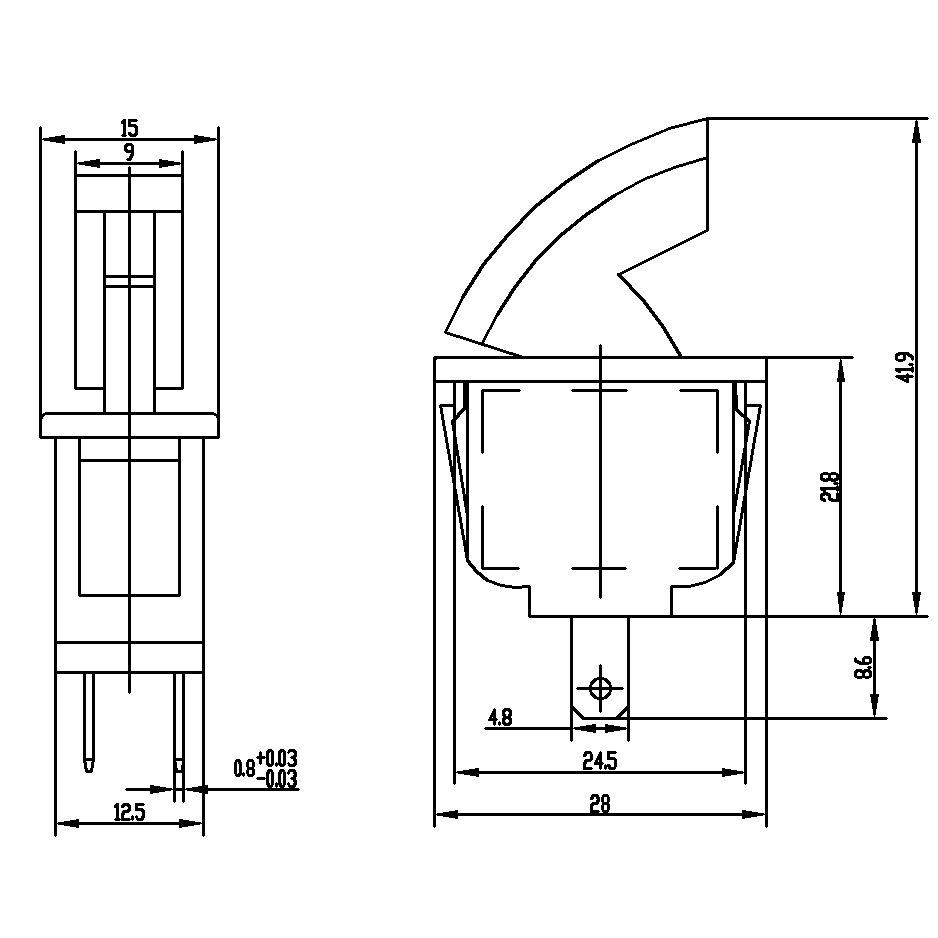

KCD3-212 Door Switch

For household appliances, utensils and equipment State:ON-OFF

Terminal: Blade4.8х0.5

Operating parameters: 0.25A 250VAC Contact Resistance: ≤ 50mΩ

Insulation resistance: ≥ 100MΩ Dielectric strength :1500VAC/1min Operating temperature: -5 ℃ ~ +55 ℃

Electrical life of> 10000 times

================================================

按钮开关
