circuit board with lead button switch high flame retardant door light switch freezer normally closed-type door control switch foreign trade manufacturer

Contacts Leah Chat

Mobile 13872165760

13872165760

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

reset force: 1.5n

protection function: direct lead

electrical life: 100000min.

application scope: electrical & electronics mechanical equipment

operating temperature: -20~55°c

repeat error: ≤ 0.1mm

shell material: paa6 flame retardant

wiring mode: terminal wiring

product certification: rohs

mechanical life: 10000 times

warranty: 1 month

protection level: ip20

contact material: copper

whether it is exclusively for foreign trade: no

product series: door control switch

3c rated voltage range: below 250vac

3c certificate number: 0000,000000

DSCN19011

800

3ab0de3eccdc753a6fc51299fff676

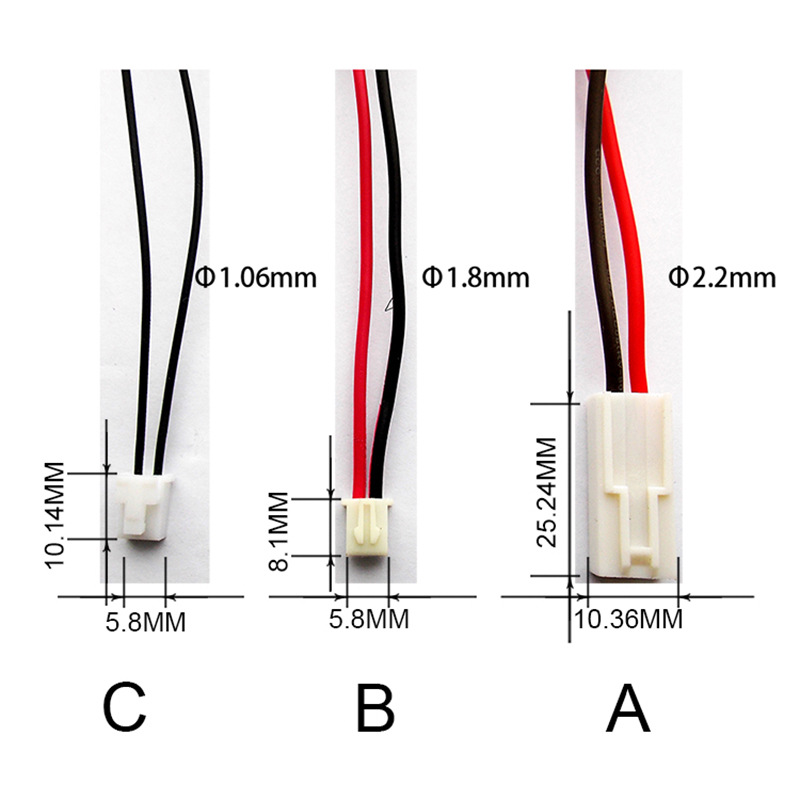

218

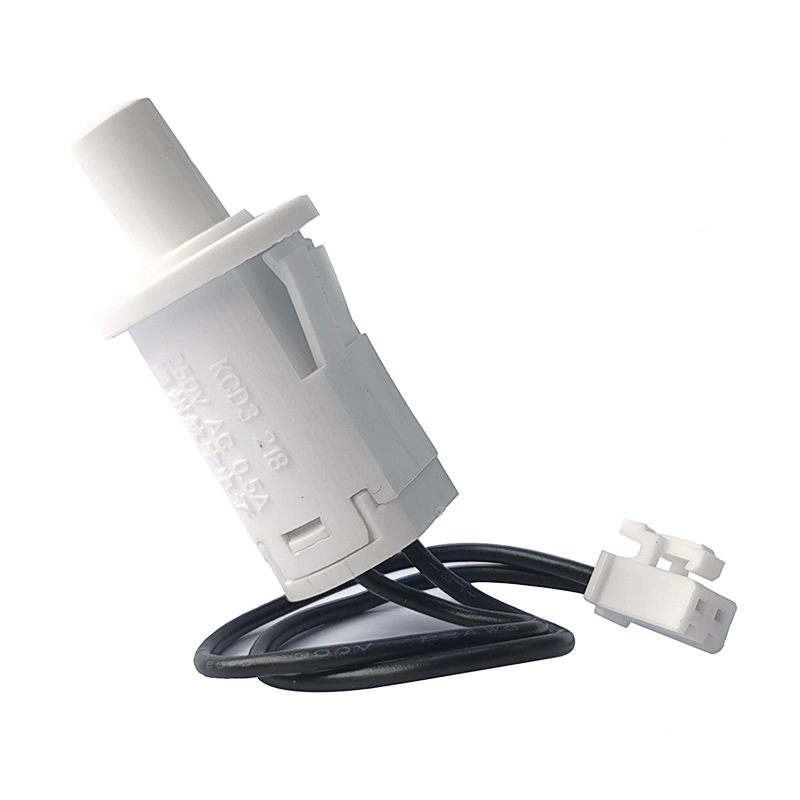

KCD3-218Gate control switch

Working parameters: 250VAC 0.5A

Normal dielectric strength: AC1500V/1 minute

Contact resistance: ≤35mΩ

Electrical lifespan: >1,000,000 cycles

Insulation resistance: >5MΩ

Environmental temperature: -10~55℃

KCD3-218 DoorSwitch

Operating parameters: 250VAC 0.5A

Normal dielectric strength: AC1500V/1 minute

Contact resistance: ≤ 35mΩ

Electrical Life :> 1000

Insulation resistance: > 5MΩ

Ambient temperature: -10 ~ 55℃

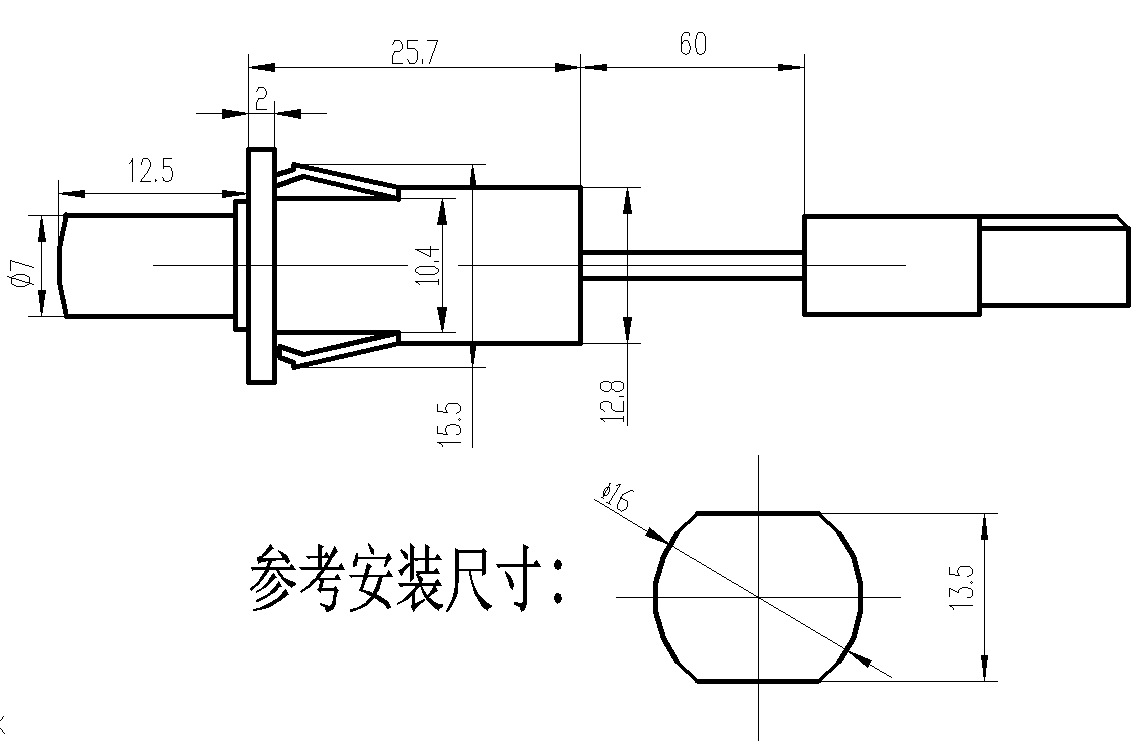

KCD3-218 新

kcd3-212B

1.Q

Update time：20261015092059

circuit board with lead button switch high flame retardant door light switch freezer normally closed-type door control switch foreign trade manufacturer 电路板带引线按钮开关高阻燃门灯开关冰柜常闭型门控开关外贸厂家
