Description

origin: zhejiang

import or not: no

order number: -

brand: other

item no.: -

model: tkg56

core insulation material: pvc

core conductor material: cu/ccc

number of cores: single core

single line nominal diameter: 0.81-1.2

maximum outer diameter of wire: 6.9

sheath thickness: 0.6

product certification: iso9001-2000

customized processing: yes

scope of application: coaxial cable

resistance: -

applicable conductor: -

purpose: coaxial cable

nominal section: 0.5 mm2-16mm2

whether it is exclusively for foreign trade: yes (this product is only for foreign trade purposes and may not conform to domestic products.

Note: Please request a quote before taking the photo.

Due to frequent changes in copper material prices, the price of this product is for reference only. For specific pricing, please contact Wangwang customer service or call us.

Dear customer, please consult with customer service before placing your order and making payment to check if the items are in stock. Due to many different specifications, it is difficult to keep inventory on hand. We hope this helps avoid any inconvenience if the items are not available after you place the order. Thank you for your understanding.

Instructions:

Due to the numerous cable models in the company’s production line, the following is information regarding the order for cables used in cable TV monitoring systems. If needed, please contact us.

Product Name

Model Specifications

Conductor/mm

Insulation/mm

Shield

Packaging Specifications

Blocking Structure

Unit price (Yuan/meter))

75Ω RF coaxial cable

T96 Code

0.5BC

2.95

PVC

305 meters

woven 96/0.1 TC

1.96

Cold-resistant and waterproof video cable (for outdoor use)

TKG128

0.75BC

4.8

rubber

3.05 million

Aluminum foil + woven 1 2 8/0.1BC

3.81

75Ω RF coaxial cable (CCA)

TKG165

0.75C

4.8

PVC

3.05 million

Aluminum foil + woven 96/0.12CCA

2.28

undefined

1. Conductor: BC (copper), CCS (copper-coated steel). Conductivity: 1.2 mm². 2. Physical foam (Foam PE): Reduces material usage and lowers dielectric loss while maintaining the outer diameter. It is made by blending high-density polyethylene (HDPE) and low-density polyethylene (LDPE) in proportion. HDPE produces larger pores with better stiffness during foaming, but it is difficult to shape, which affects insulation consistency. Therefore, a combination of HDPE and LDPE should be used to ensure uniform and fine bubbles—the typical softness and hardness of foam. Functionally, it enhances the cable’s electrical performance and moisture-proof sealing capabilities. (4.7 mm²) 3. Aluminum foil (AL-FOIL): Plays an important shielding role within coaxial cables, preventing external open circuits and leakage of limited TV signals. The thicker and more glossy the foil, the better the shielding effect. Available in thicknesses of 0.7 kg/m and 0.9 kg/m. 4. Braid: Also serves as a shield within coaxial cables, blocking external electromagnetic interference and improving communication quality. The larger the wire diameter, the denser the braid, resulting in better interference prevention and shielding performance. The smaller the spacing between strands, the better. 5. Jacket: PVC, primarily for protection. Light-colored for indoor use, dark-colored for outdoor use (UV-resistant and does not absorb light wavelengths). (6.9 mm)

undefined

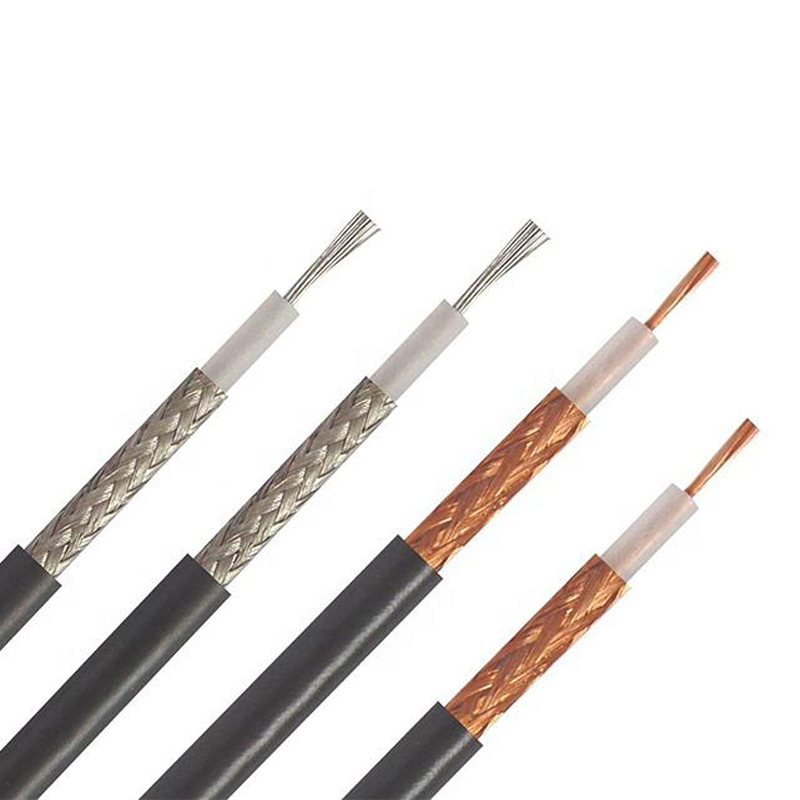

coaxial cable 11

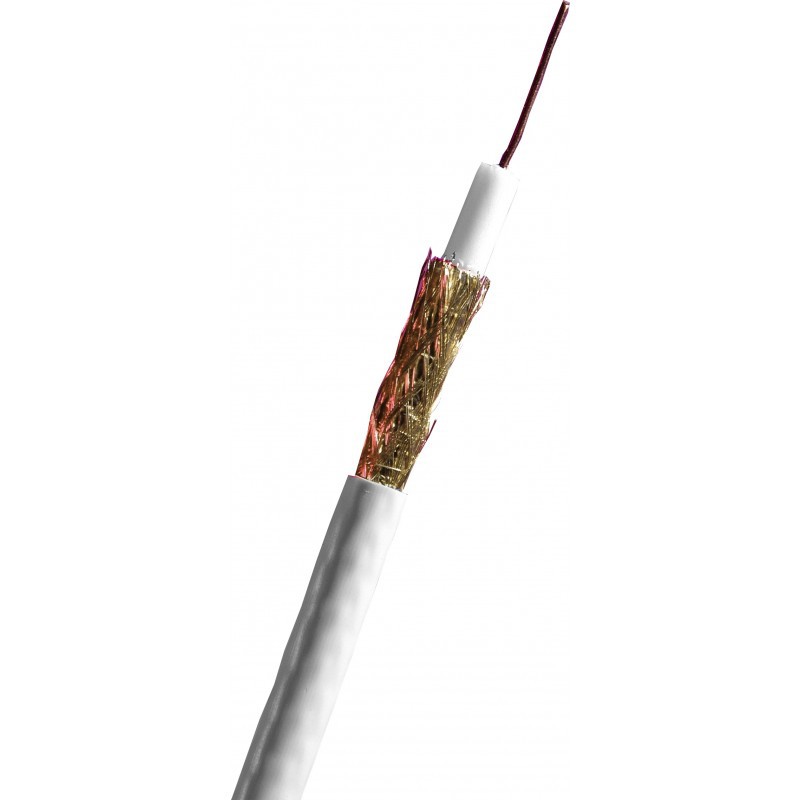

coaxial cable 15

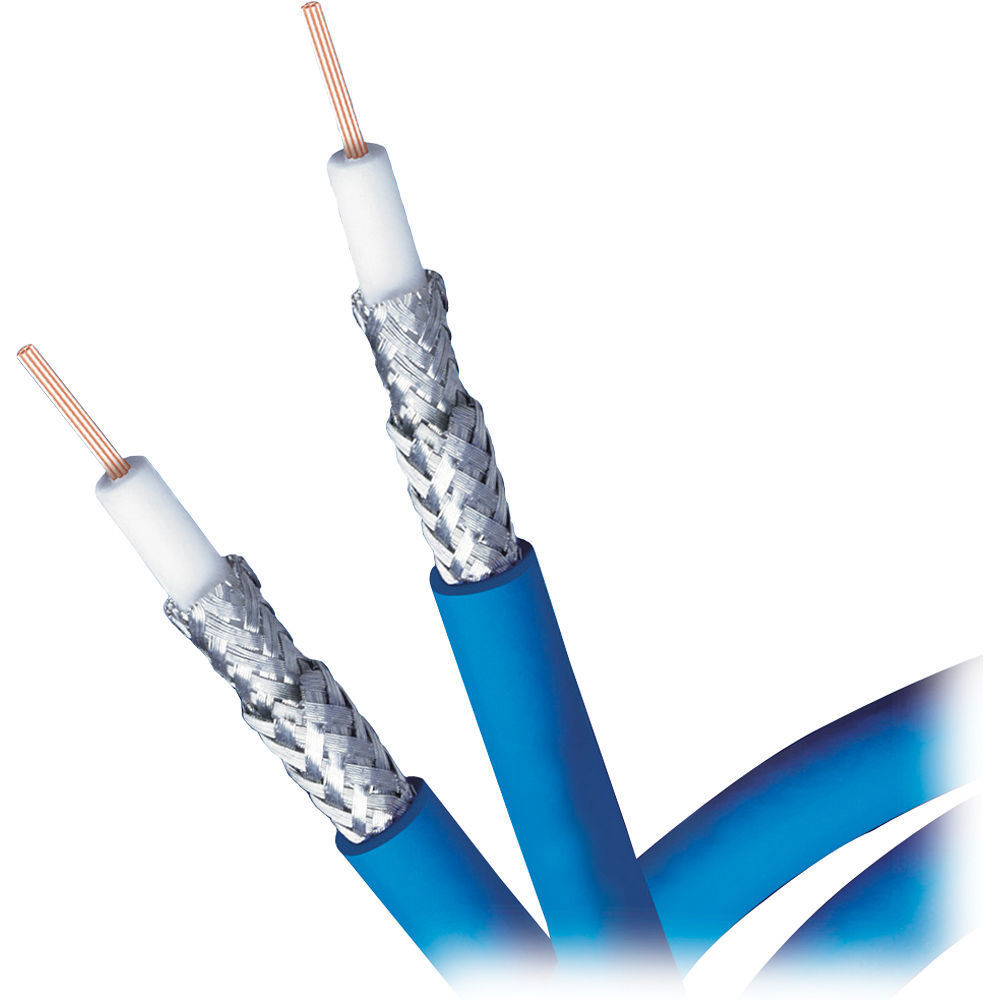

coaxial cable 08
