Note: Please request a quote before taking the photo.
Due to frequent changes in copper material prices, the price of this product is for reference only. For specific pricing, please contact Wangwang customer service or call us.
Dear customer, please consult with customer service before placing your order and making payment to check if the items are in stock. Due to many different specifications, it is difficult to keep inventory on hand. We hope this helps avoid any inconvenience if the items are not available after you place the order. Thank you for your understanding.
Instructions:
Due to the numerous cable models on the company’s production line, the following is information regarding the order for cables used in cable TV monitoring systems. If needed, please contact us.
| Product Name | Model Specifications | Conductor/mm | Insulation/mm |
Shell | Packaging Specifications | Blocking Structure | Unit price (Yuan/meter)) | |
| 75Ω RF coaxial cable | T96 Code | 0.5BC | 2.95 | PVC | 305 meters | woven 96/0.1 TC | 1.96 | |
| Cold-resistant and waterproof video cable (for outdoor use) | TKG128 | 0.75BC | 4.8 | rubber | 3.05 million | Aluminum foil + woven 1 2 8/0.1BC | 3.81 | |
| 75Ω RF coaxial cable (CCA) | TKG165 | 0.75C | 4.8 | PVC | 3.05 million |
|
2.28 |

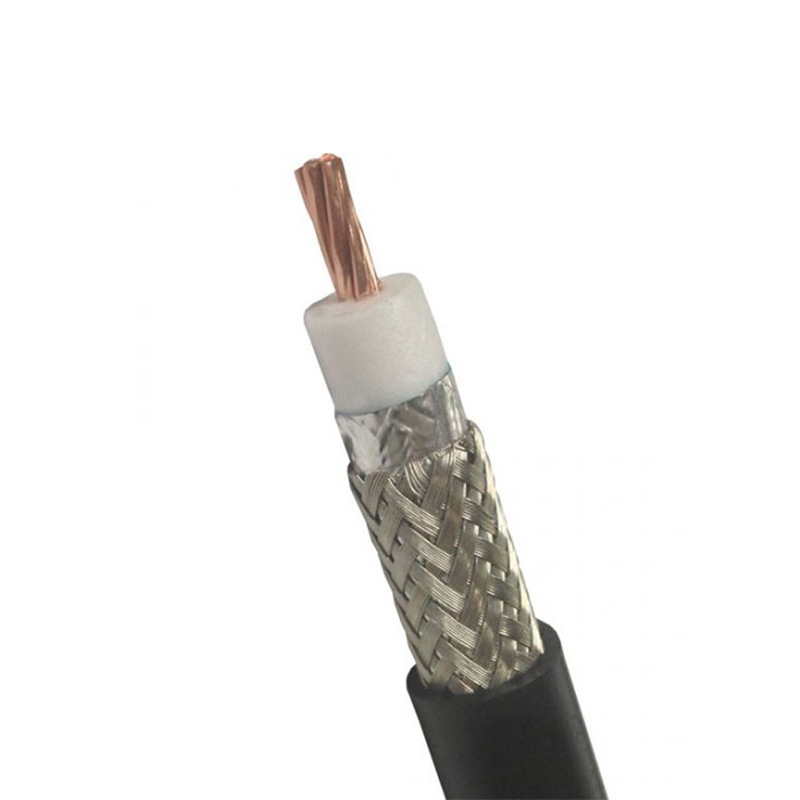

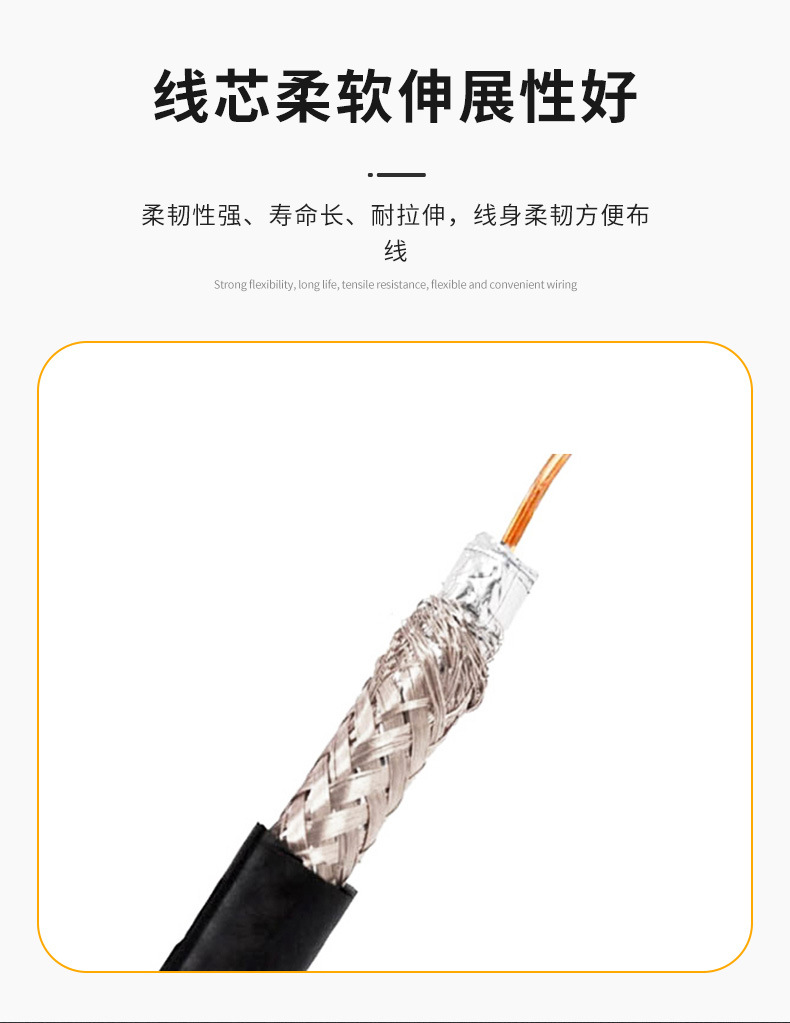

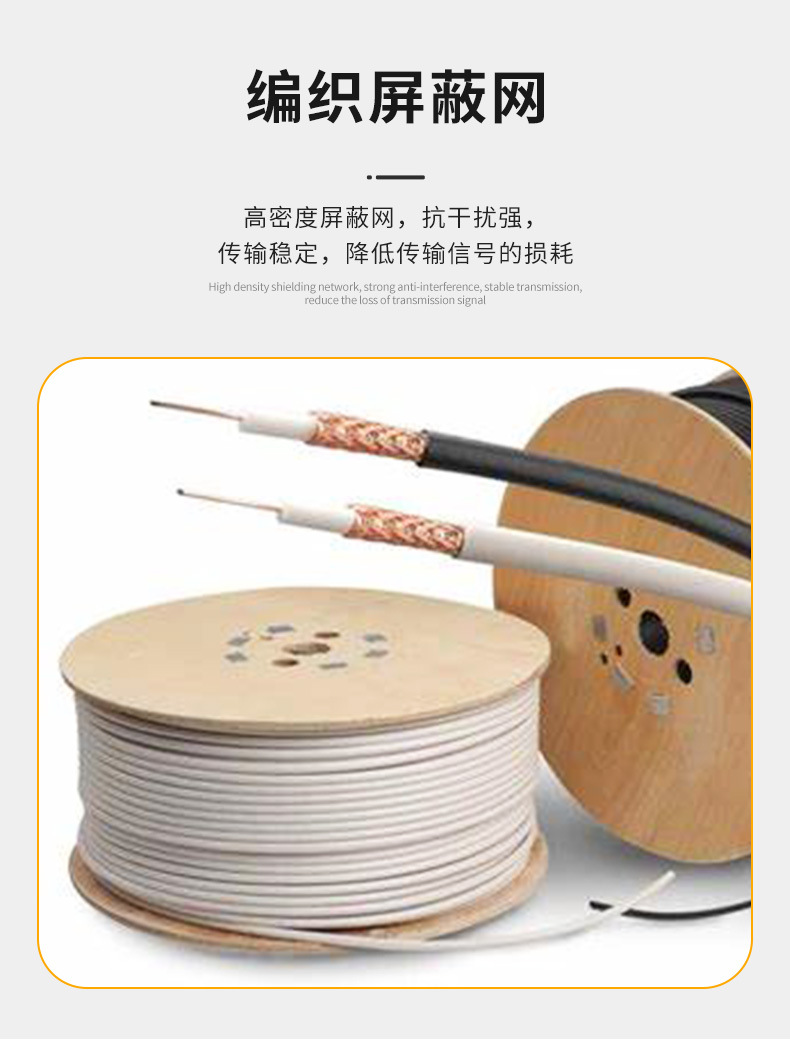

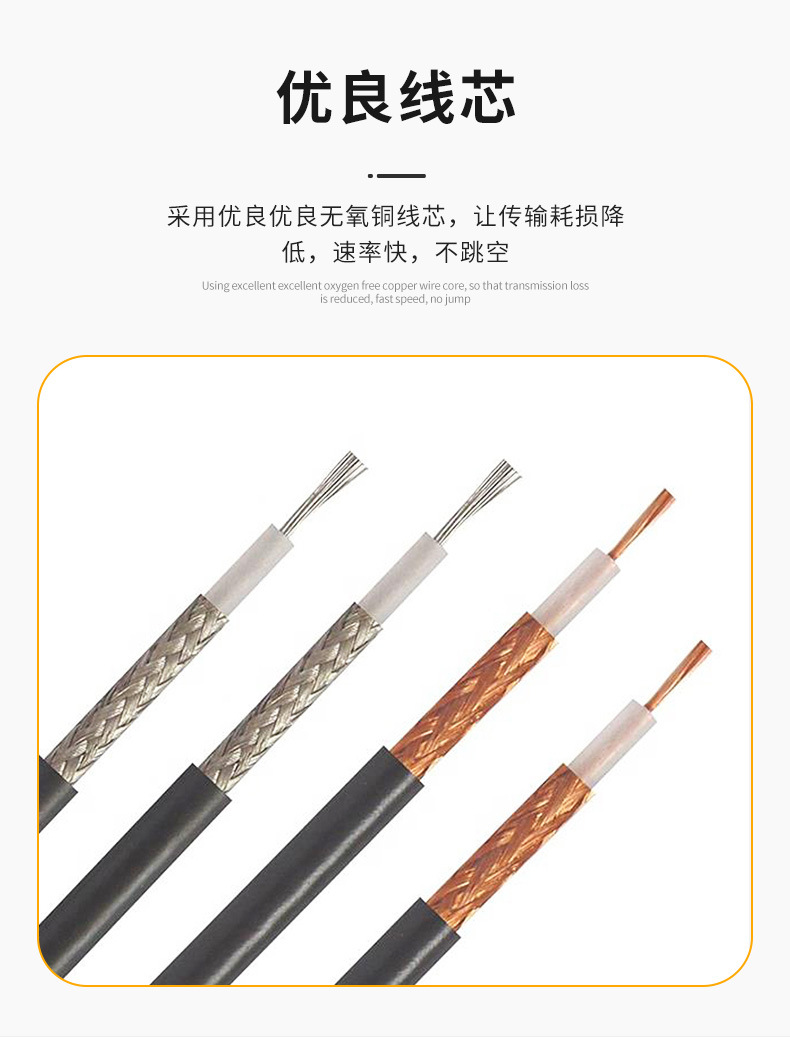

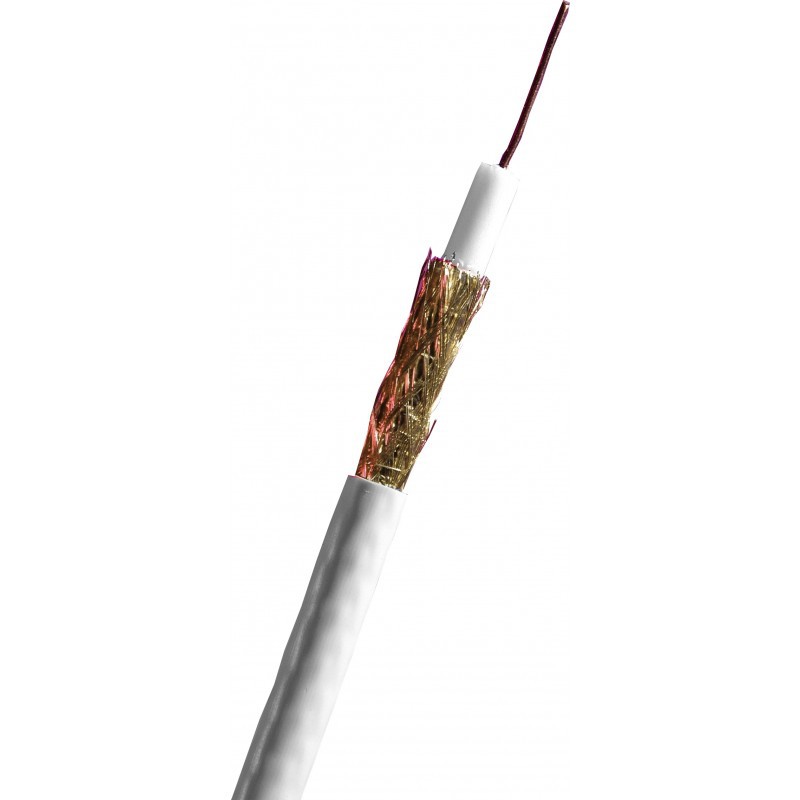

1. Conductor: BC (copper), CCS (copper-coated steel). Conductivity: 1.2 mm². 2. Physical foam (Foam PE): Reduces material usage and lowers dielectric loss while maintaining the outer diameter. It is made by blending high-density polyethylene (HDPE) and low-density polyethylene (LDPE) in proportion. HDPE produces larger pores and better stiffness during foaming, but it is difficult to shape, which affects insulation consistency. Therefore, a combination of HDPE and LDPE should be used to ensure uniform and fine bubbles—the typical softness and hardness of foam. Functionally, it enhances the cable’s excellent electrical performance and moisture-proof sealing properties. (4.7 mm²) 3. Aluminum foil (AL-FOIL): Plays an important shielding role within coaxial cables, preventing external open circuits and leakage of limited TV signals. The thicker and more glossy the foil, the better the shielding effect. Available in thicknesses of 0.7 kg/m and 0.9 kg/m. 4. Braid: Also serves as a shield within coaxial cables, blocking external electromagnetic interference and improving communication quality. The larger the wire diameter, the denser the braid, resulting in better interference prevention and shielding performance. The smaller the spacing between strands, the better. 5. Jacket: PVC, primarily for protection. Light-colored for indoor use, dark-colored for outdoor use (UV-resistant and does not absorb light wavelengths). (6.9 mm)
