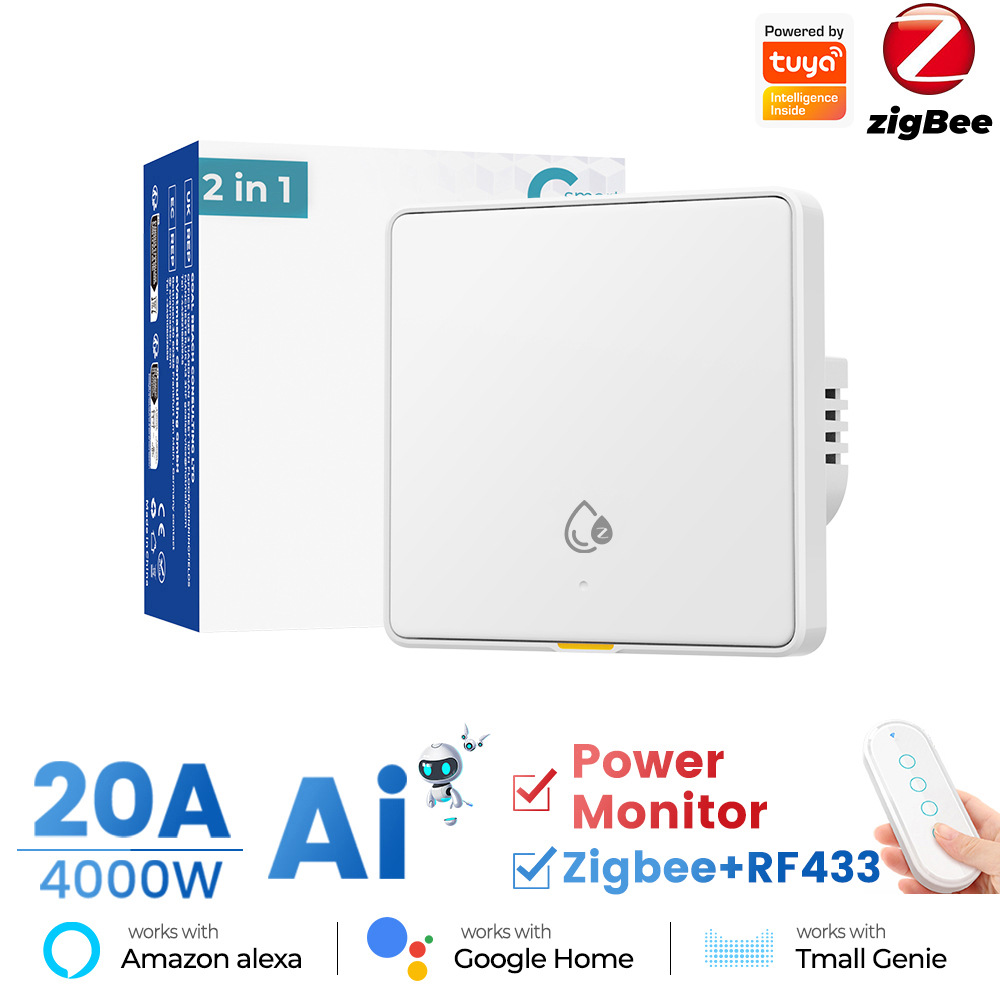

graffiti zigbee air conditioning water heater intelligent switch timing voice control eu button wall switch

--注意事项：

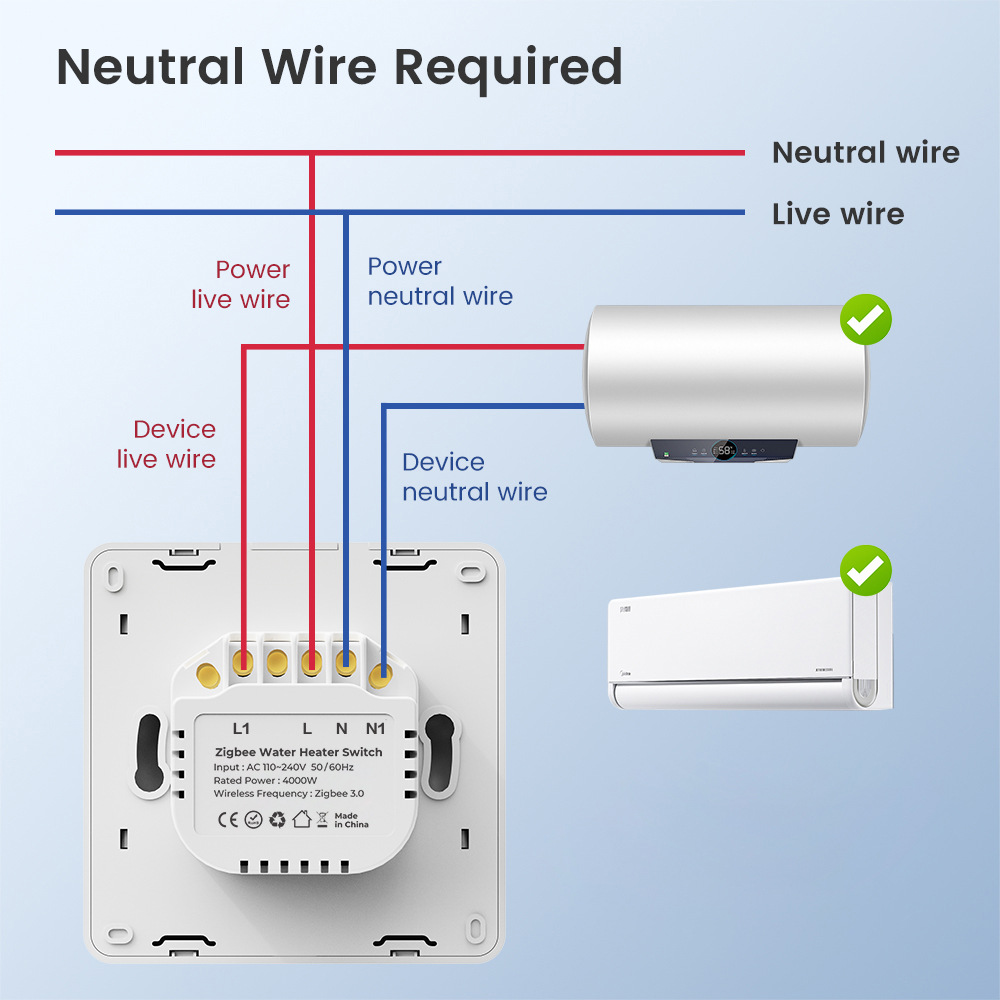

1. Switch installation requires a neutral wire.

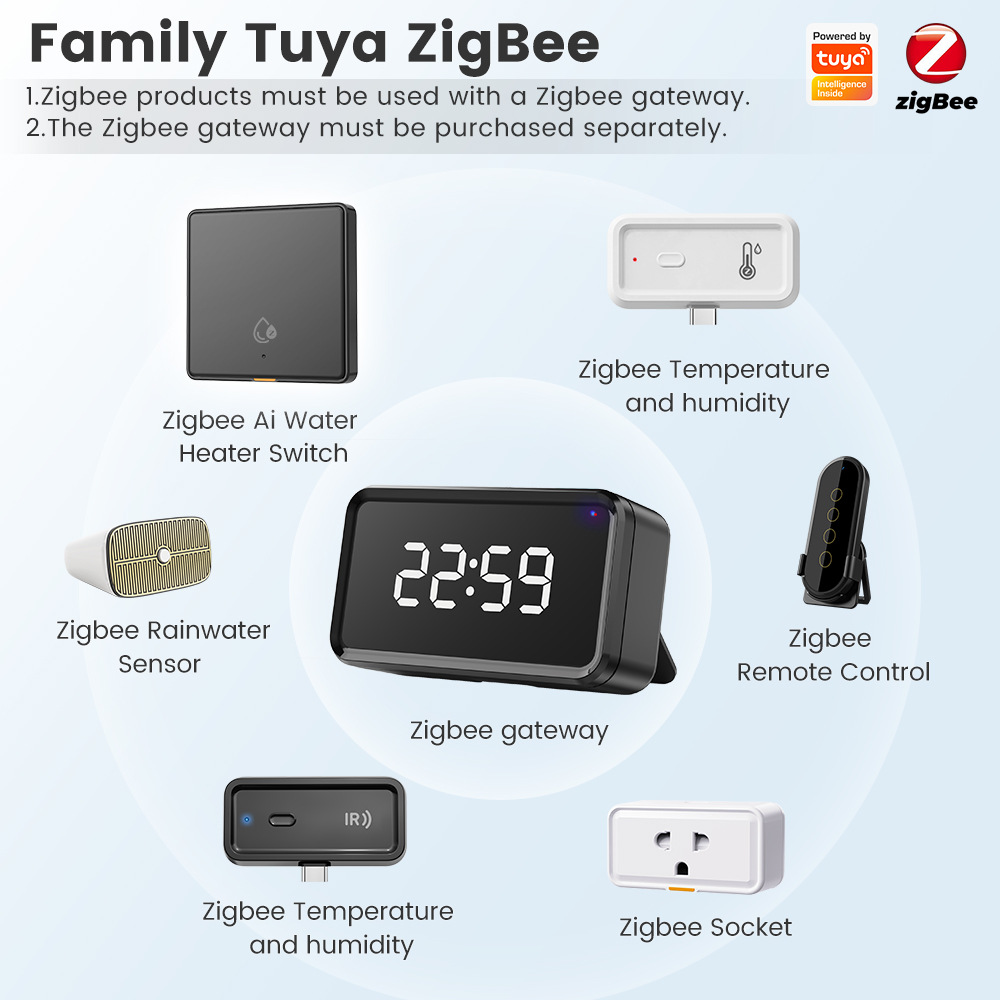

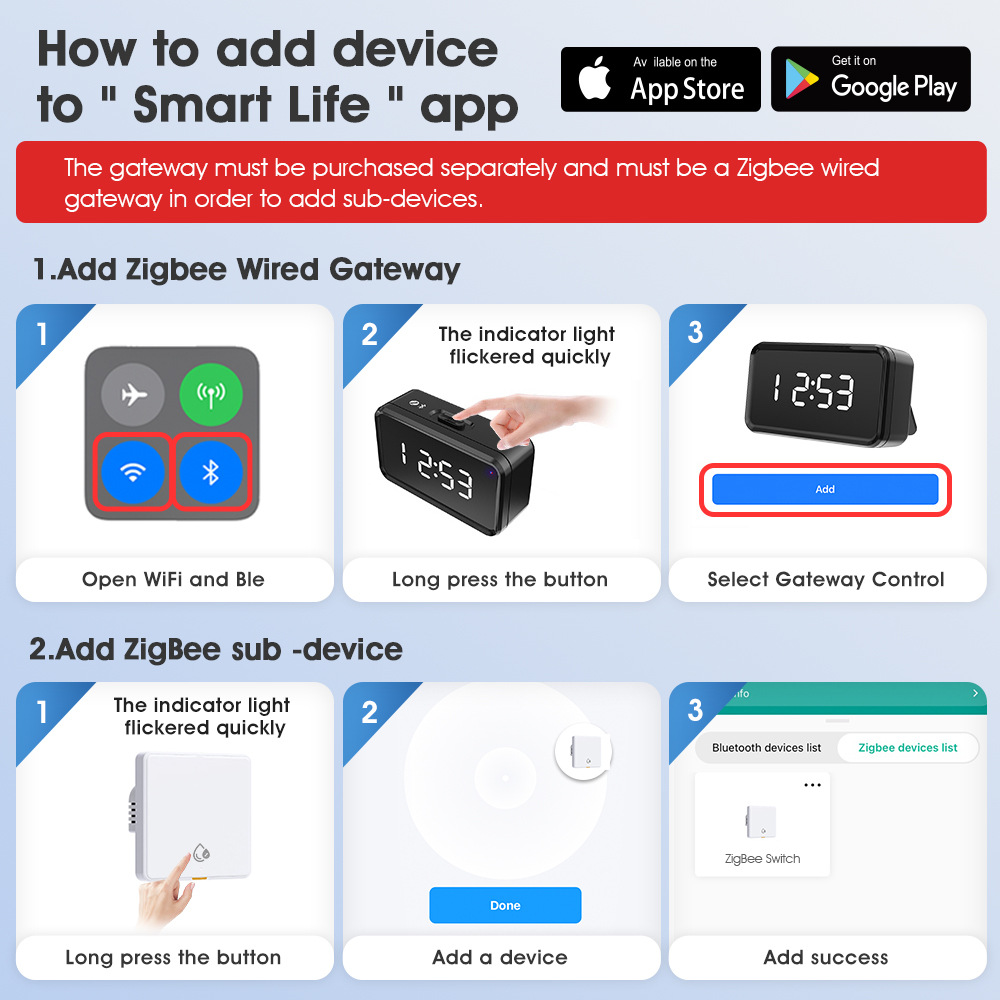

2. This switch must be used together with the Tuya Zigbee gateway (the gateway is available for sale in our store, or you can contact our customer service for more information). The Zigbee protocol: devices are more energy-efficient, have lower heat generation, and are more durable; the connection is more stable, making it more suitable for smart home applications throughout the house.

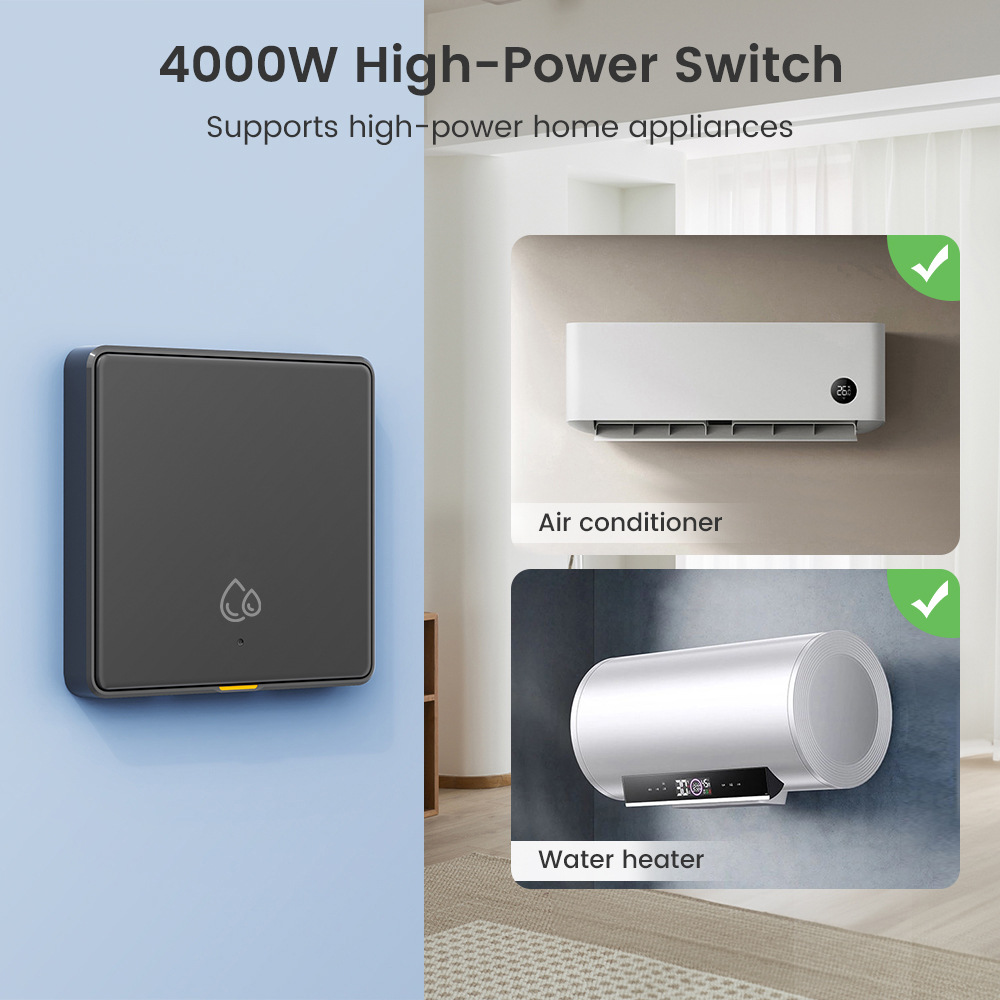

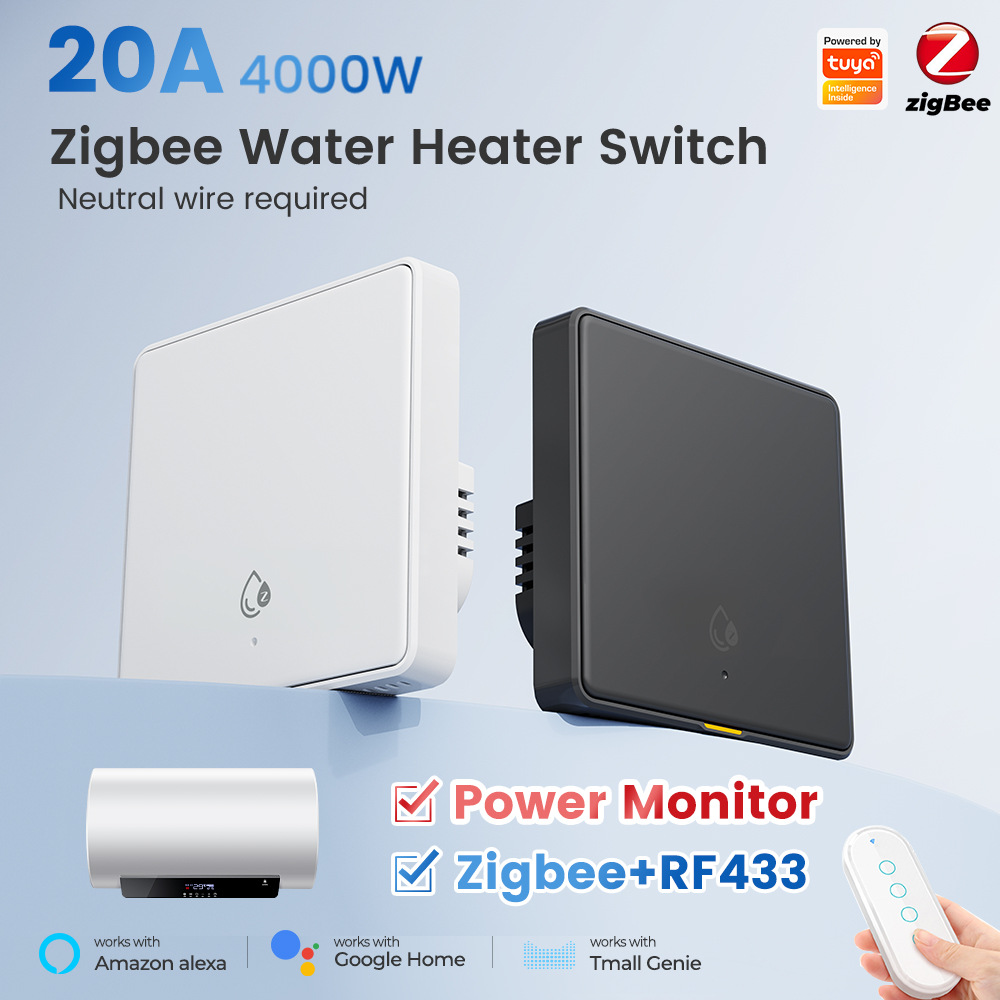

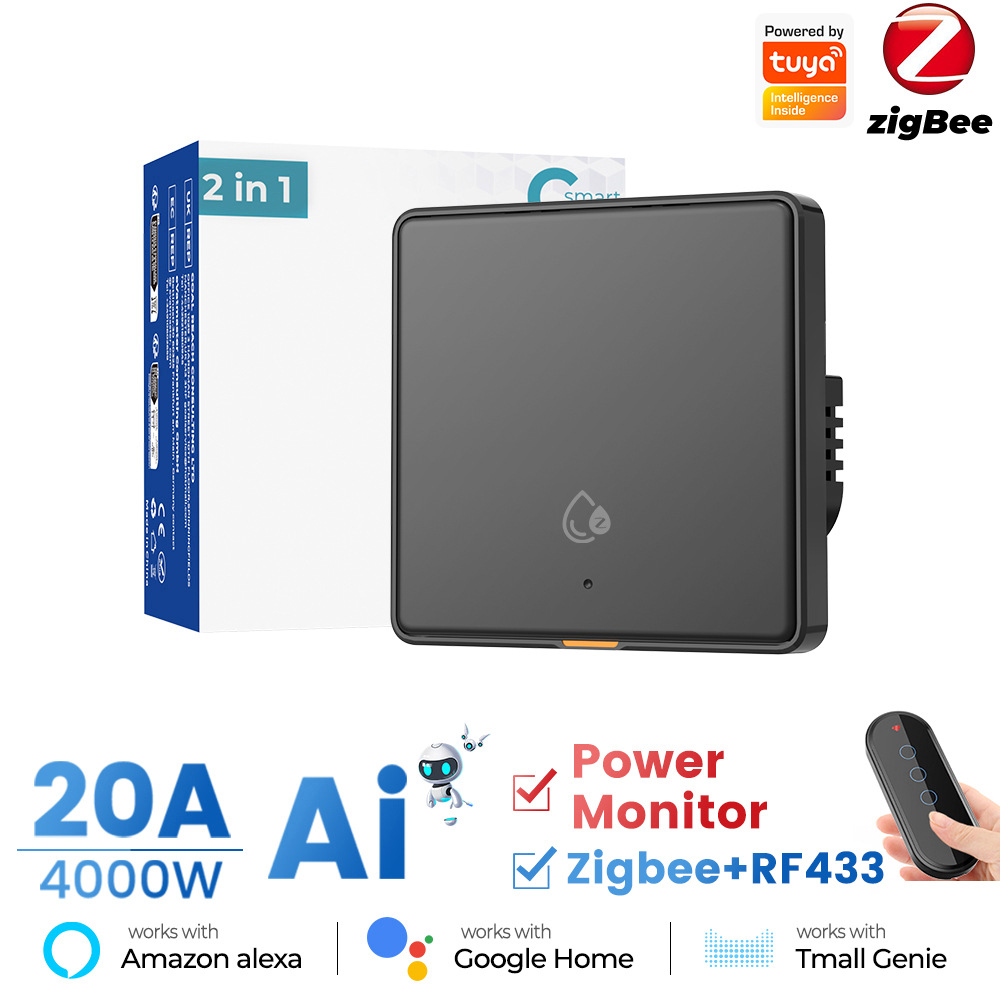

--【4000W High-Power】

20A high-current 4000W high-power switch, suitable for large-power household appliances such as air conditioners, water heaters, and pumps.

--【Voice Control and Remote Control via Mobile APP】

Remote control of the switch via a mobile APP (this model requires a Zigbee gateway for use). Supports multiple voice command controls, and can be controlled by smart speakers such as Amazon Alexa, Google Assistant, Tmall Genie, YandexAlice, and SmartThings.

--【Electricity Statistics】

Real-time monitoring of electricity consumption can be achieved through mobile APP, enabling users to query and statistic their electricity usage. This is beneficial for controlling electricity usage and achieving energy conservation and environmental protection. It also helps users better manage their electricity consumption.

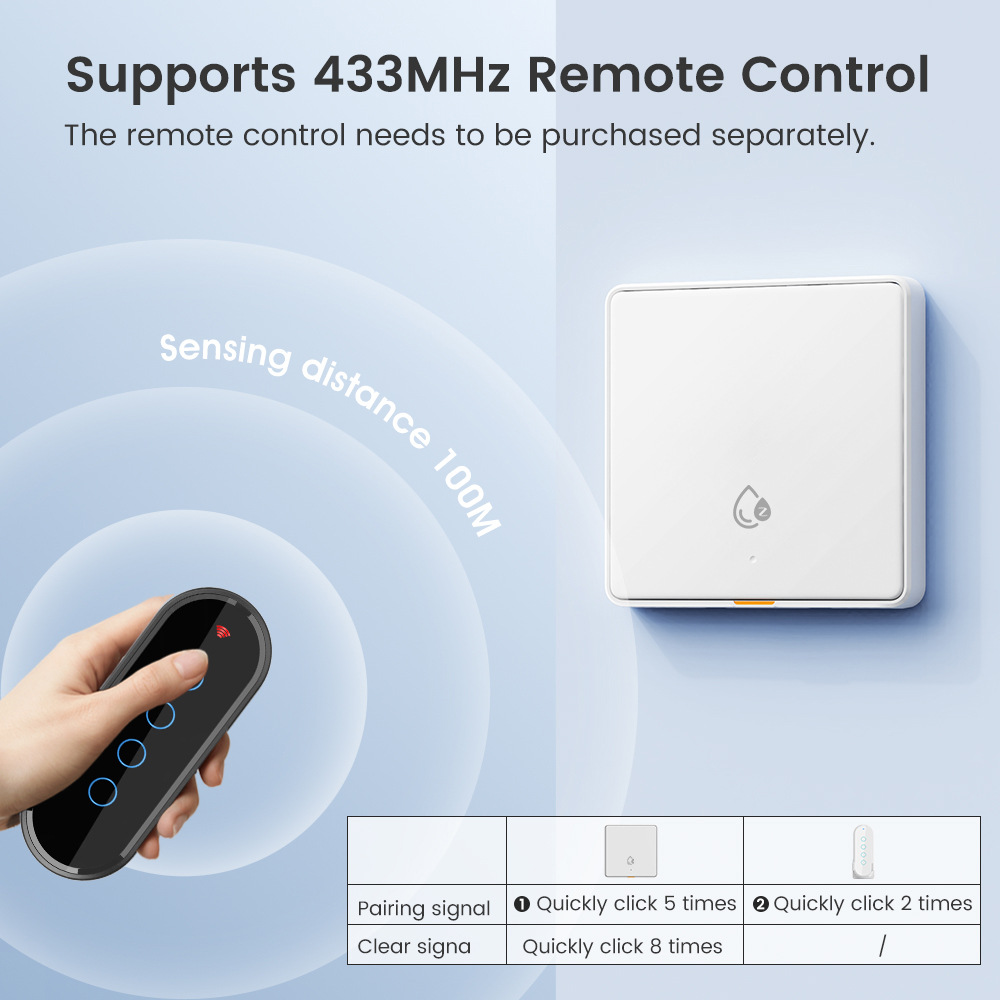

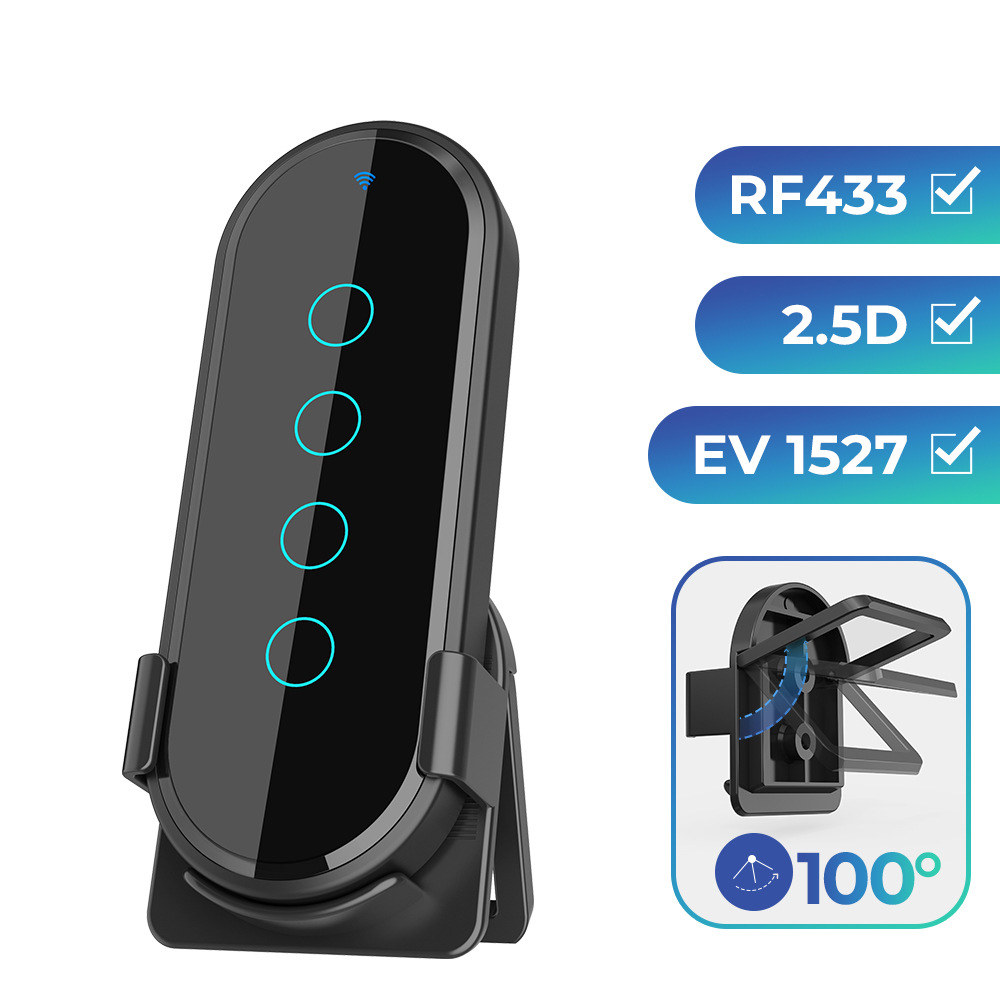

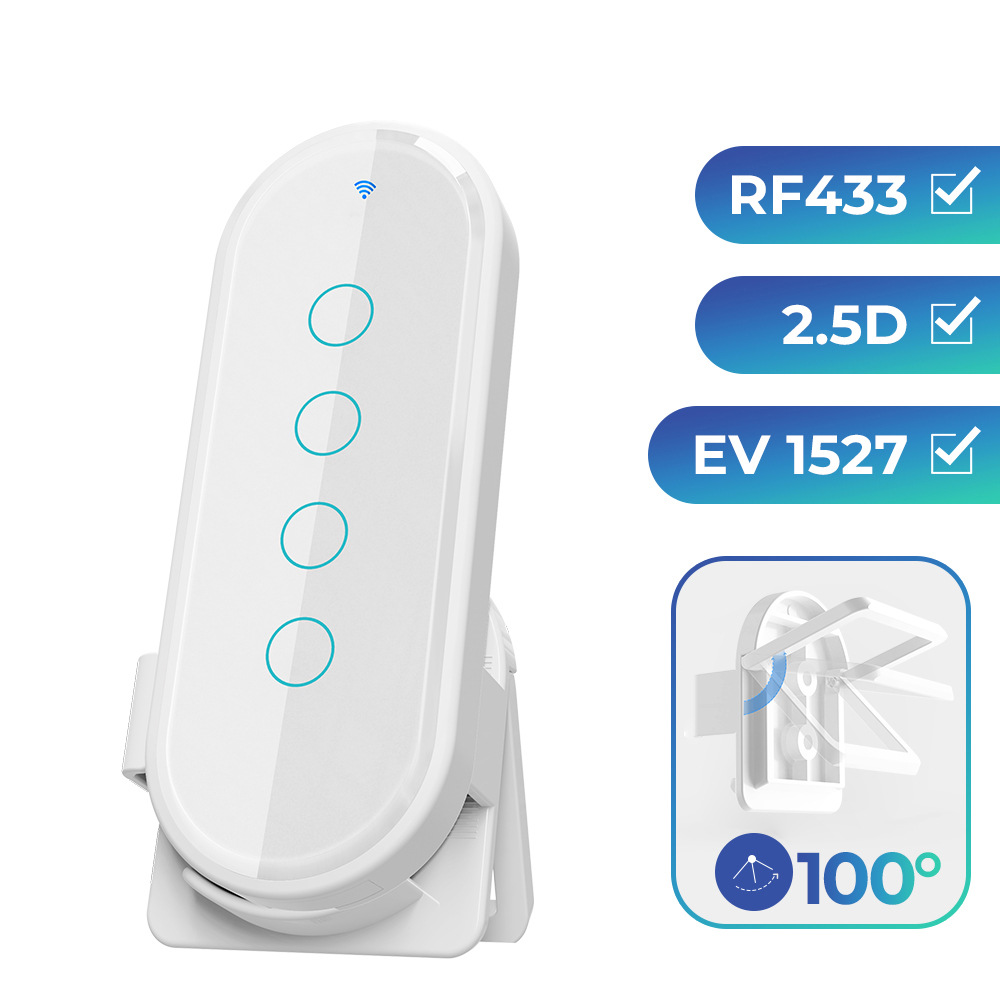

-- Supports RF433 Remote Wireless Control

The switch supports RF433 remote control with an effective sensing distance of 100 meters (RF433 remote controller is sold separately).

Match Signal: Press the switch button 5 times quickly, then press the remote match button 2 times quickly.

Clear signal: Press the switch button 8 times quickly.

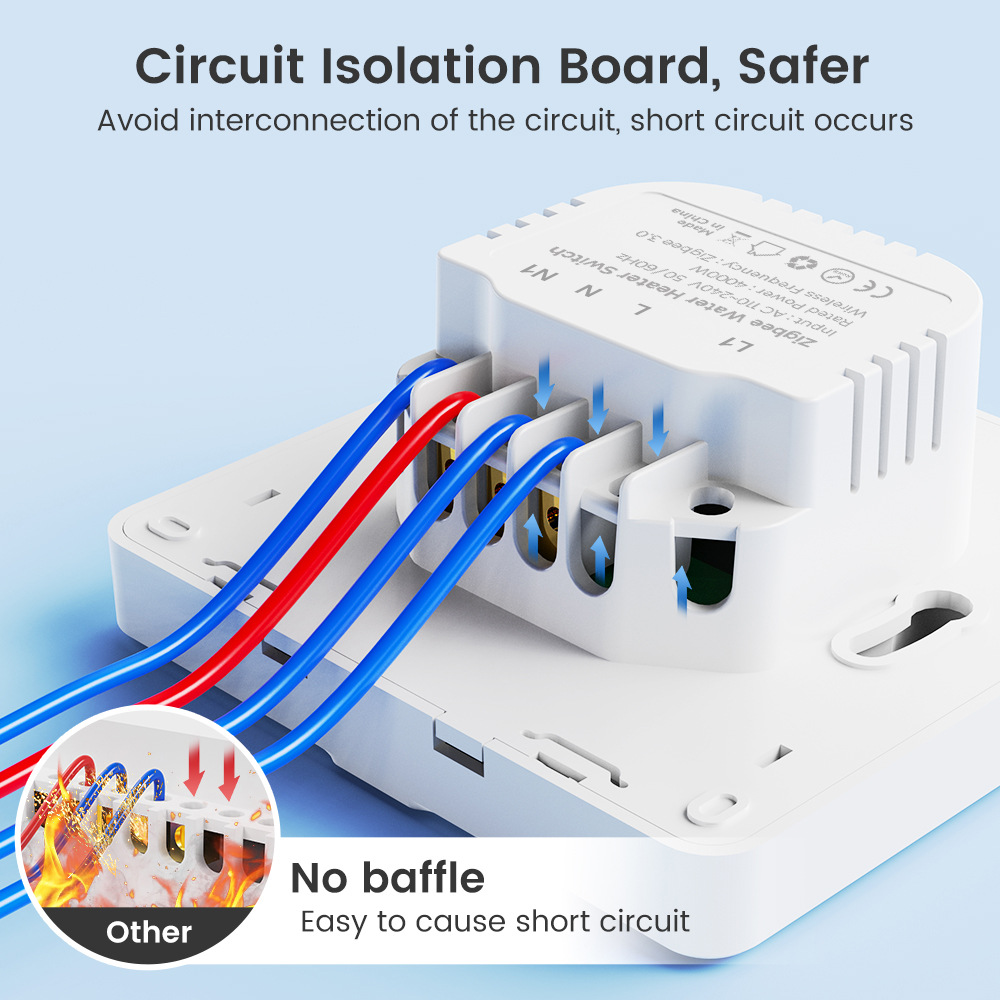

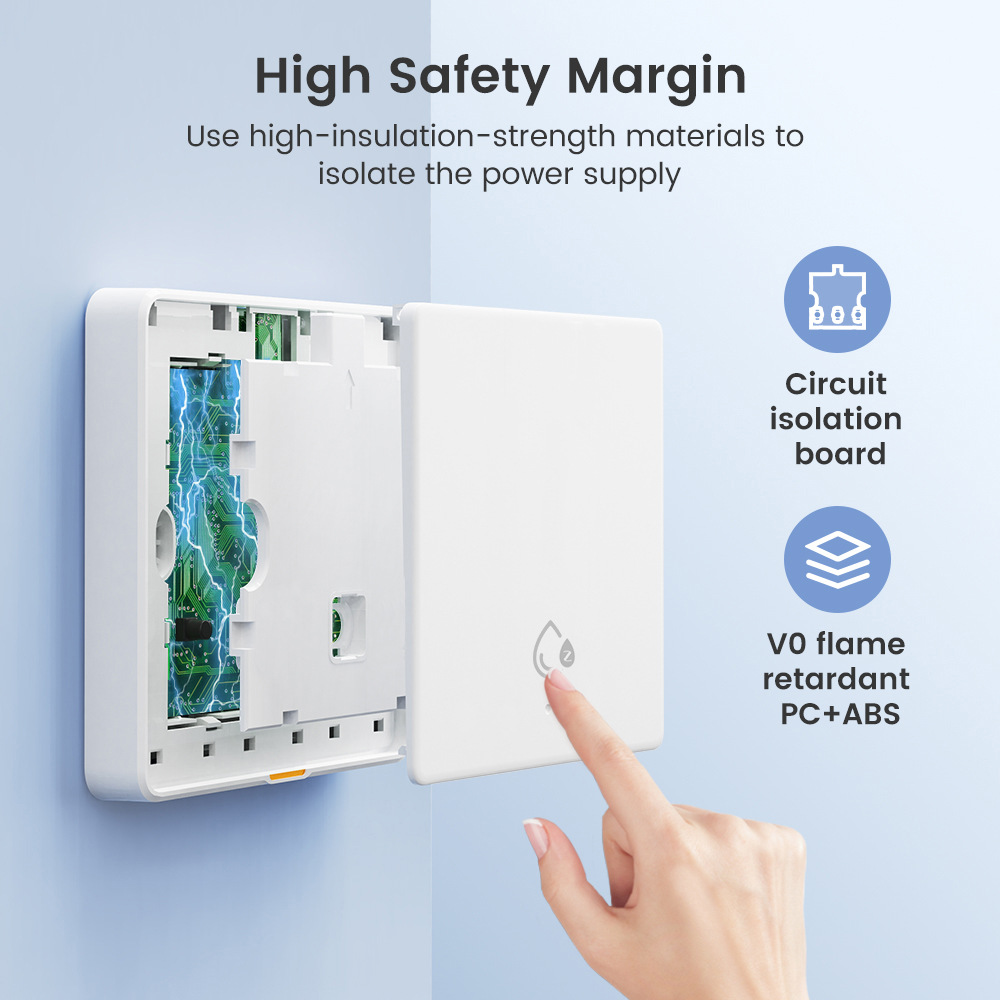

--【Double-layer partition design, high safety margin, safer】

1. At the switch wiring junction, an electrical isolation board is designed to avoid line intersection.

2. We also installed a high-insulation material isolation board with V0 flame retardant agent between the switch panel and the circuit board to avoid direct contact with the circuit board.

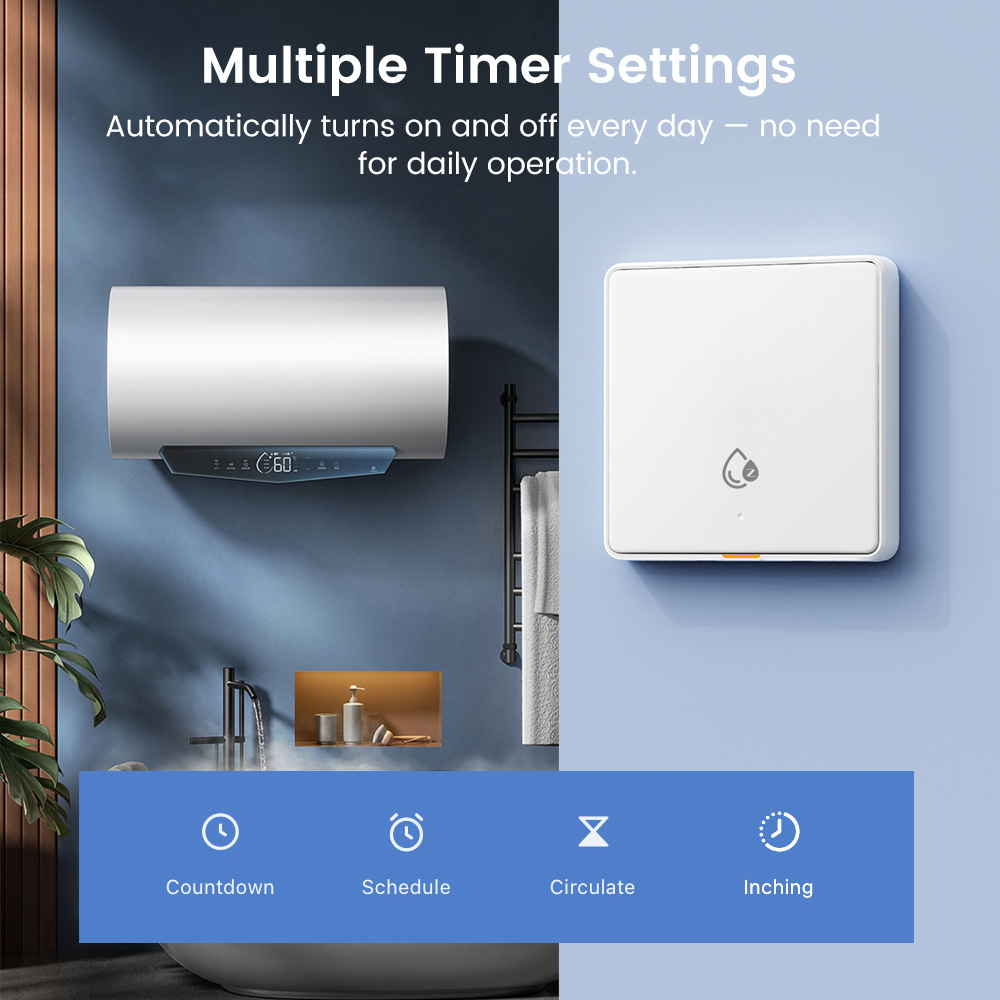

--【Timing Function】

Multiple timing settings methods, set the timing according to personal habits to realize automatic control of switching, supporting timing, countdown, loop timing, and point-and-move timing.

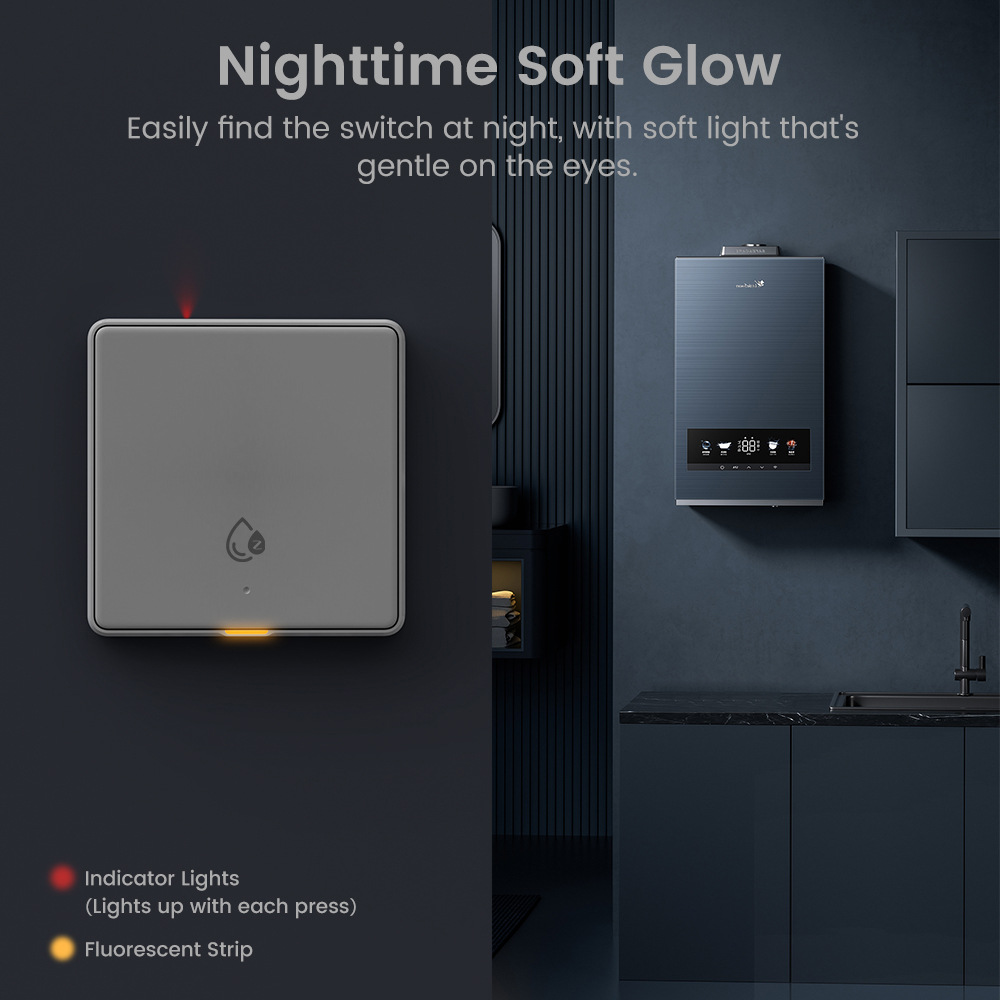

--【Indicator Lights and Fluorescent Strip Design】

The switch is equipped with a red indicator light on top and a fluorescent strip at the bottom, emitting a faint light, allowing you to easily find the switch position in dim light environments.

--【Multiple Functions】

1. Three types of relay status: default open after power-off, default off after power-off, and memory function.

2. Offline Reminder: The device's offline reminder function helps users stay informed about the device's status in real time, effectively preventing potential equipment failures.

3. Device Sharing: Family members can control the switch using their own mobile phones through the device sharing function.

4. Group Control: Create intelligent groups for switches, allowing you to control multiple smart devices with a single click through the APP. For example, setting up a "Sleep Group," you can simply tap once to turn off all devices in the group when you want to go to sleep.

Bluetooth is only used for network signal connection and cannot be used separately. WIFI + Bluetooth is more stable.

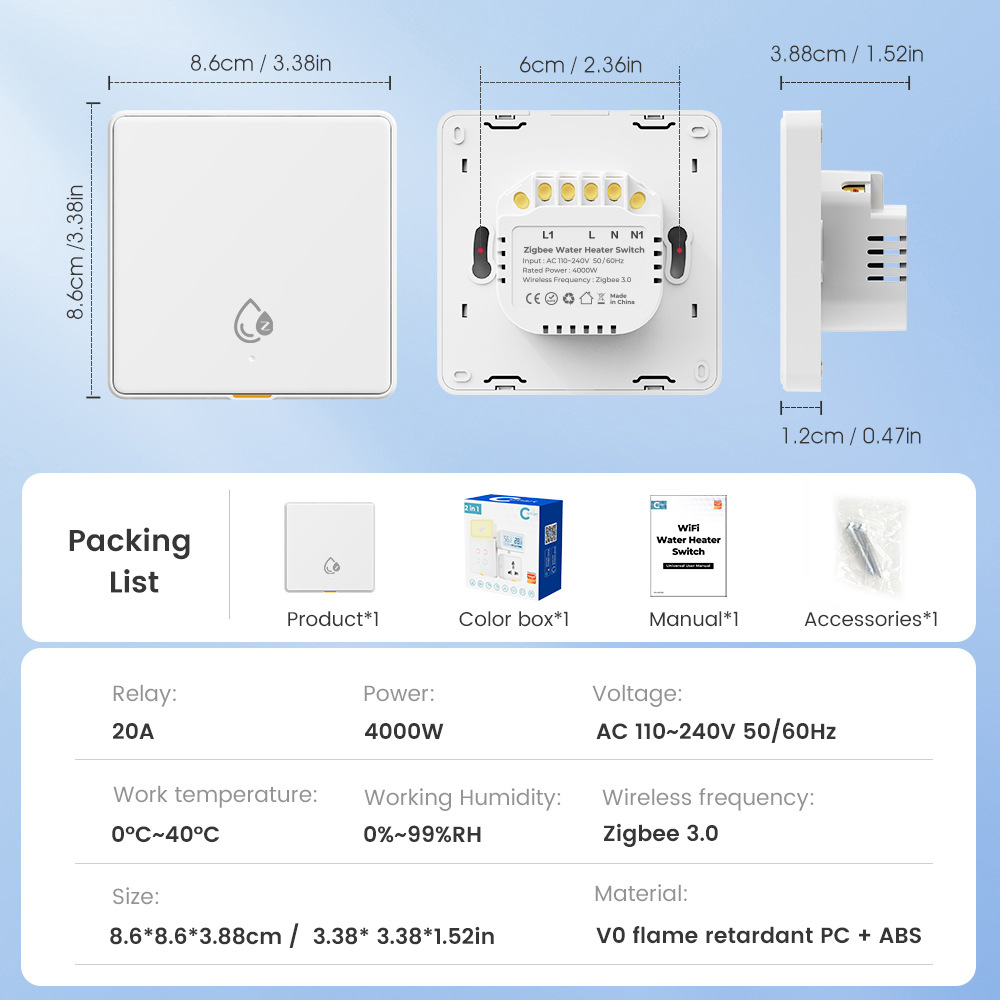

-- Product Parameters:

Relay: 20A

Power: 4000W

Voltage: AC 110~240V 50/60Hz

Working temperature: 0°C~40°C

Wireless Frequency: Zigbee 3.0

RF working frequency : 433.92MHz

RF Encoding Chip: EV1527

RF Modulation Method: ASK

Material: V0 Flame Retardant PC+ABS

European standard switch size: 8.6cm*8.6cm*3.88cm

Packing List:

Graffiti Thermostat Switch *1

Packing Box * 1

Instruction Manual * 1

Install two screws

【Single Product Packaging Parameters】

Net weight: 94g

Gross weight: 132g

Quantity: 1

Size: 9.5*9.5*5.2cm

【Carton Packaging Parameters】

Net Weight: 6.6KG

Gross Weight: 7.1KG

Quantity: 50 pieces/box

Size: 49.5*28*21cm
