Product Use: Used for driving away and training dogs
Product Function Description:

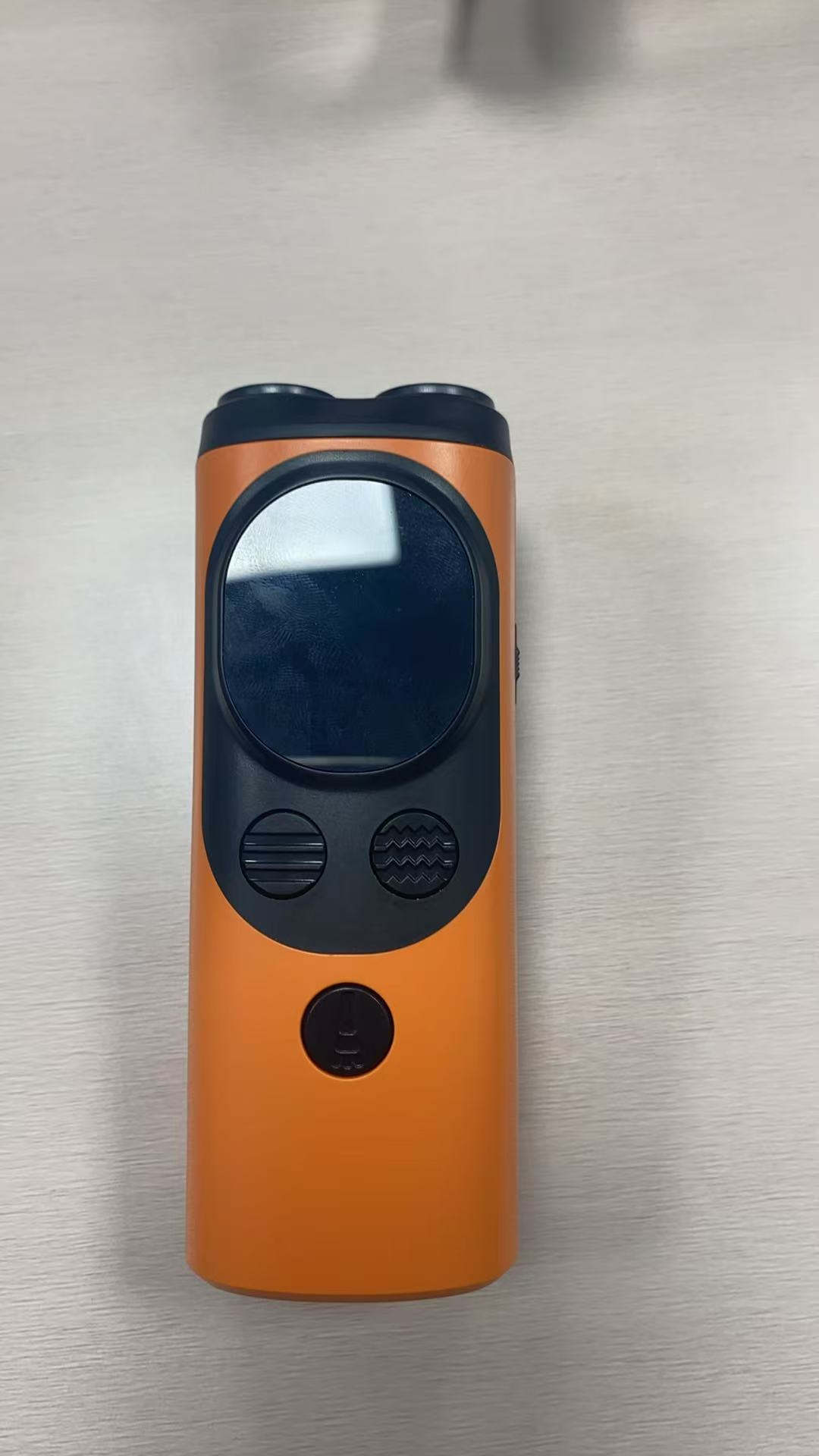

1. The OFF/ON button on the right side is for turning on and off; when turned to ON, pulling it upward activates a vibration to remind of startup, along with the unlock icon and the battery level indicator that remain lit for 3 seconds; when OFF, the screen lock icon and battery indicator will be displayed (automatic shutdown after 3 seconds).
2. After turning on the device, hold the frequency setting button for a long time to start the frequency setting mode, and the screen icon will remain lit; there will also be intermittent vibration alerts. When releasing the frequency setting switch, the vibration stops and the icon turns off. When OFF/ON is set to off, there is no power on; when the frequency setting button is pressed, the screen displays “no power on,” indicating a locked state and battery level indicator.
3. After turning on the device, when holding the frequency scanning button for a long time, the frequency scanning icon stays lit, the flash indicator light stays on, there is intermittent vibration, and the front F5 LED starts to flash; when OFF/ON is pressed on the right side, there is no power on. When the frequency scanning button is pressed, the screen displays “no power on,” indicating a locked state and battery level indicator.
4. The lighting lights are not related to the right side switch button. Pressing it once activates the continuous lighting mode; pressing it twice switches to the flash mode, and pressing it three times turns off the light.
5. During charging, the charging indicator light flashes to indicate charging; it turns green when fully charged. When the battery level is low, the red light flashes as a warning.
Precautions:
1. The product operates based on the principle of ultrasonic waves, and its effects vary depending on the breed of dog.
2. The product lighting is quite bright; do not look directly at it.
3. This product is not waterproof; do not soak or expose to rain.
Battery Capacity: 800 MAh
Battery model: Polymer 902535
Working Current: 500 mA
Charging Voltage: 5V
Working time: 2 hours
Light bead type: LED
Ultrasonic power: 20-35 kHz
Charging time: 40 minutes
Built-in accessories: Instruction manual *1, Type-c charging cable *1
In stock colors: black-gray, black-orange, black
Product weight (including color box): 152.5g
Product dimensions: 1.2.6 * 4.8 * 4.6 cm
Packaging dimensions: 1.4.8 * 1.0 * 5.4 cm
Color box weight: 27g
Packaging details: 48.5 * 41.5 * 30 cm / 60 pcs
Gross weight: 1,000 kgs
