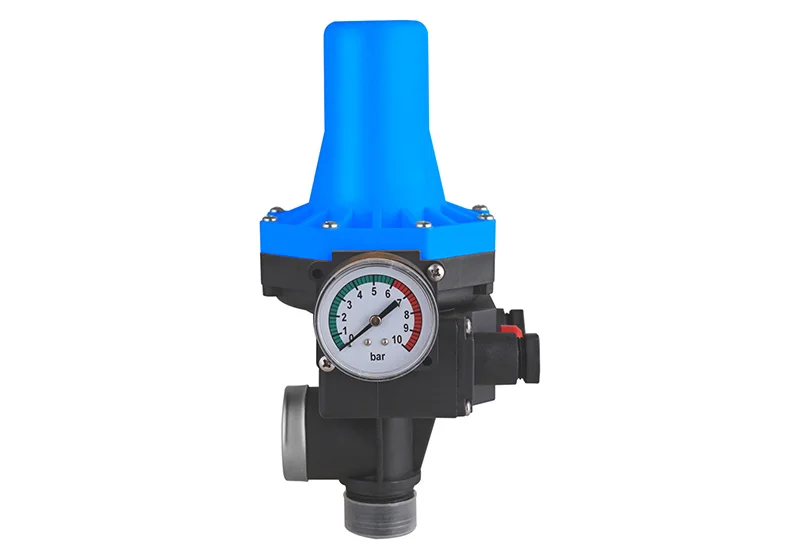

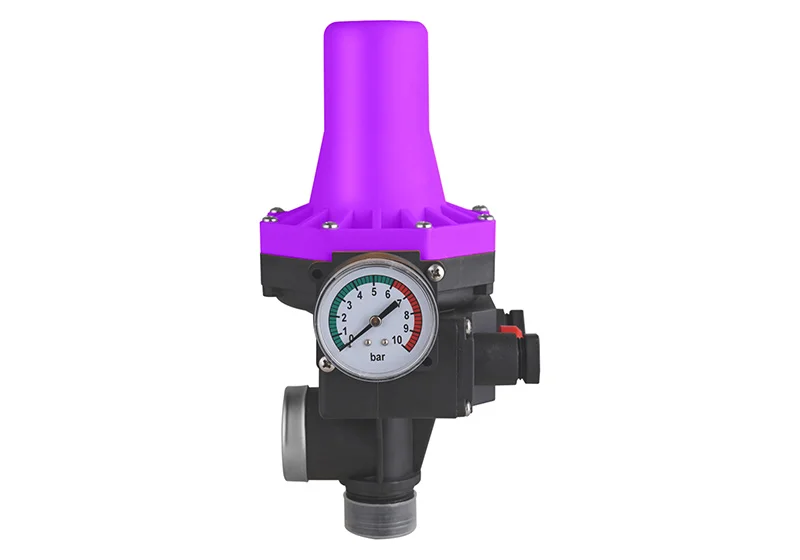

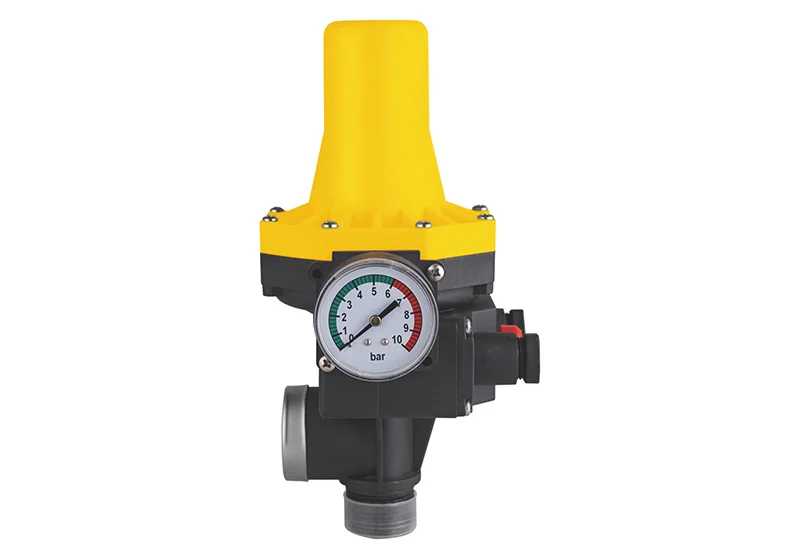

factory direct sales ps01b model 16a 265v ip65 smart water pump controller pressure gauge switch

Allen Water Heating 9yr.

Contacts Allen Chat

Mobile 86-15068986842

E-mail www.646722115@qq.com

15068986842

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

accuracy level: ± 0.1% fs

contact arrangement: spst

maximum current: 16a

maximum voltage: 265v

maximum working pressure: 650psi

model: ps01b

origin: zhejiang

intelligent or not: yes

product name: water pump controlle

max power: 1.1kw

starting pressure: 1.0-4.0 bar

permissible max pres: 10bar

thread interface: g 1.0"external threa

wide amplitude volta: 85-265v

frequency: 50/60hz

max medium temperatu: 0-60°c

protection grade: ip65

color: purple yellow orange

Supplier's product description

Report suspicious activities

Product specifications

Product Features:

1. Water system electronic pressure switch

2. The pump shall be turned on accordingly when pressure is low, or turned off when flow stops under the pump pressure standard. 3. Replace the traditional pump control system consisting of pressure switches, pressure tank check valves, etc. 4. The water pump can stop automatically in case of water shortage. 5. It can be configured according to user requirements. 6. Applications: self-priming., jet pumps, garden pumps, cleaning pumps, etc.

Product Description:

1. It is possible to see the full LED status display showing the headlight flow indicator, low voltage indicator, and water shortage indicator status.

2. Flow control mode: Startup via dual flow control and startup via pressure switch control 3. Pressure control mode: Startup controlled by the starting pressure value, with a stop function. Hold the start button for 5 seconds to switch between modes (the water shortage indicator lights on steadily indicates the pressure mode) 4. Water shortage protection: When there is no water in the water supply source, the system enters a protective state if the internal pressure is below the starting value and no flow occurs. The protection mode activates and turns off after 8 seconds 5. Anti-iron deposition machine function: If the pump is not used for 24 hours, it will operate for 5 seconds to prevent rust on the motor impeller 6. Installation angle: No restrictions; can be installed at any angle
