material:
aluminum
material: aluminum
precision:
/
precision: /
ambient temperature:
/
ambient temperature: /
origin:
zhejiang, china
origin: zhejiang, china
brand:
mac-beyond
brand: mac-beyond
type:
distributor spare parts
type: distributor spare parts
maximum working pressure:
350psi / 25bar
maximum working pressure: 350psi / 25bar
water inlet:
bspf/npt 3/4 "or 1"
water inlet: bspf/npt 3/4 "or 1"
lpg discharge disconnection:
4.3cc
lpg discharge disconnection: 4.3cc
temperature range:
-40-60 ℃
temperature range: -40-60 ℃
coupling mode:
italian style
coupling mode: italian style
material:
aluminum, brass, stainless steel
material: aluminum, brass, stainless steel
packaging:
10 pcs/box
packaging: 10 pcs/box
Supplier's product description

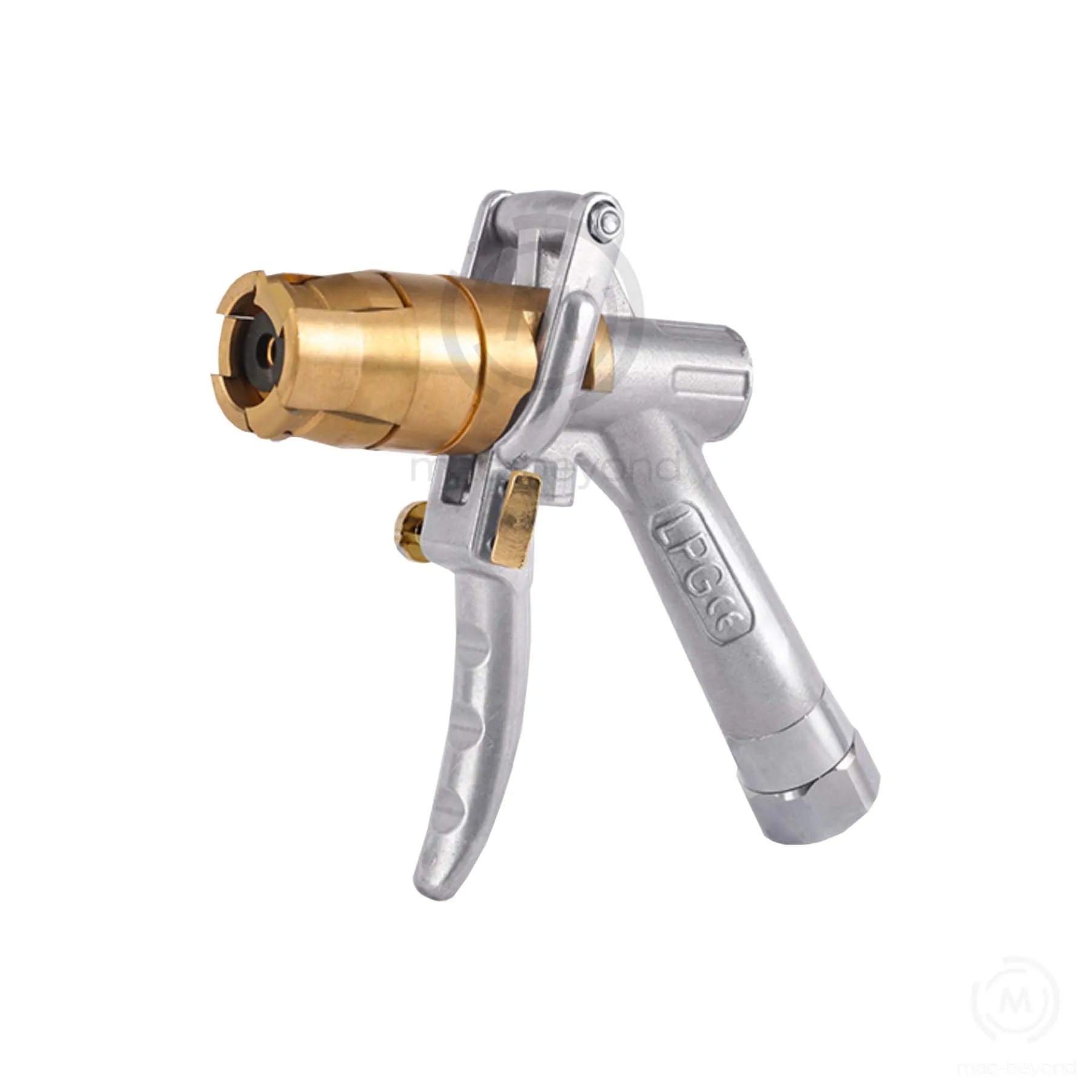

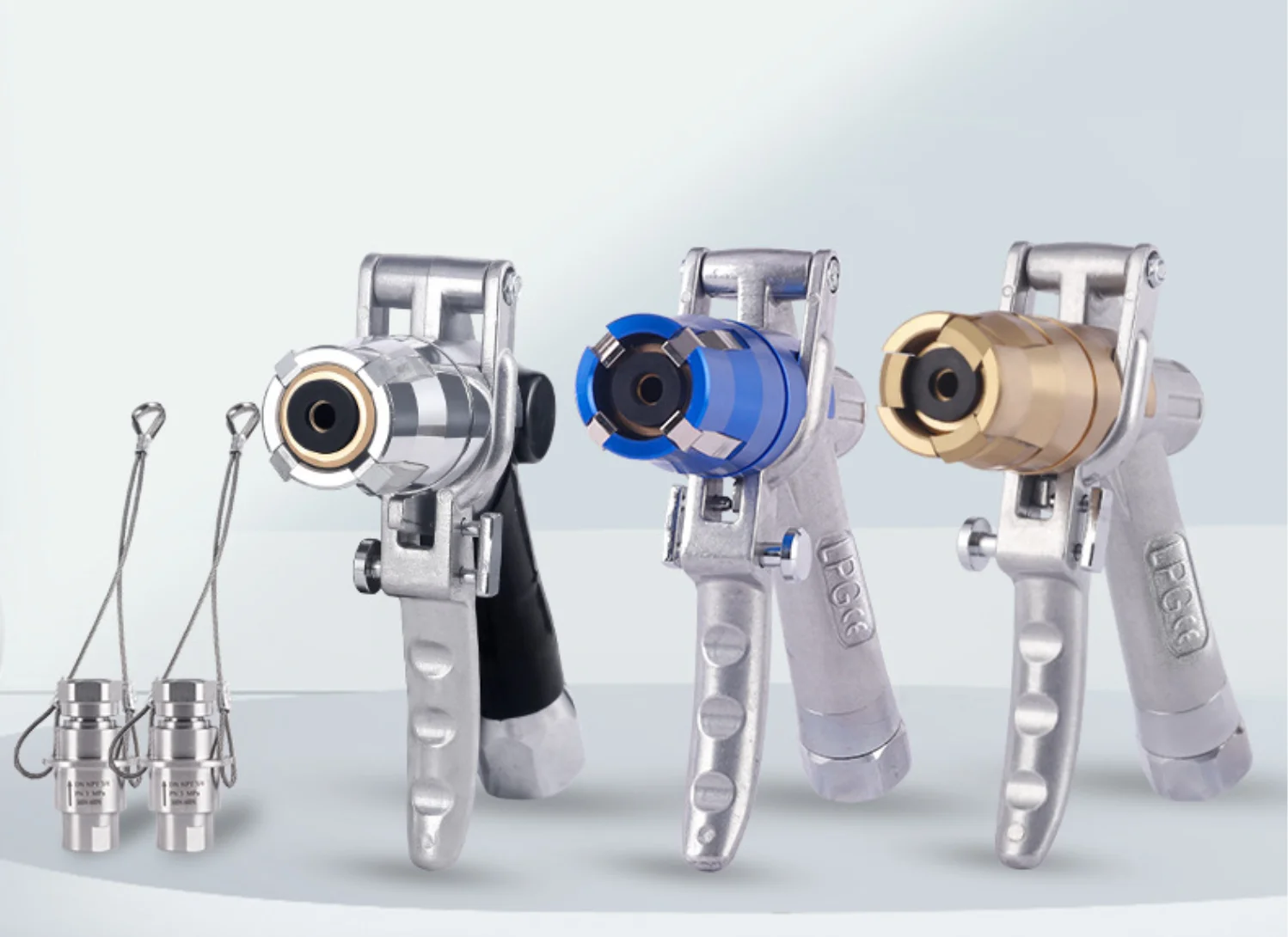

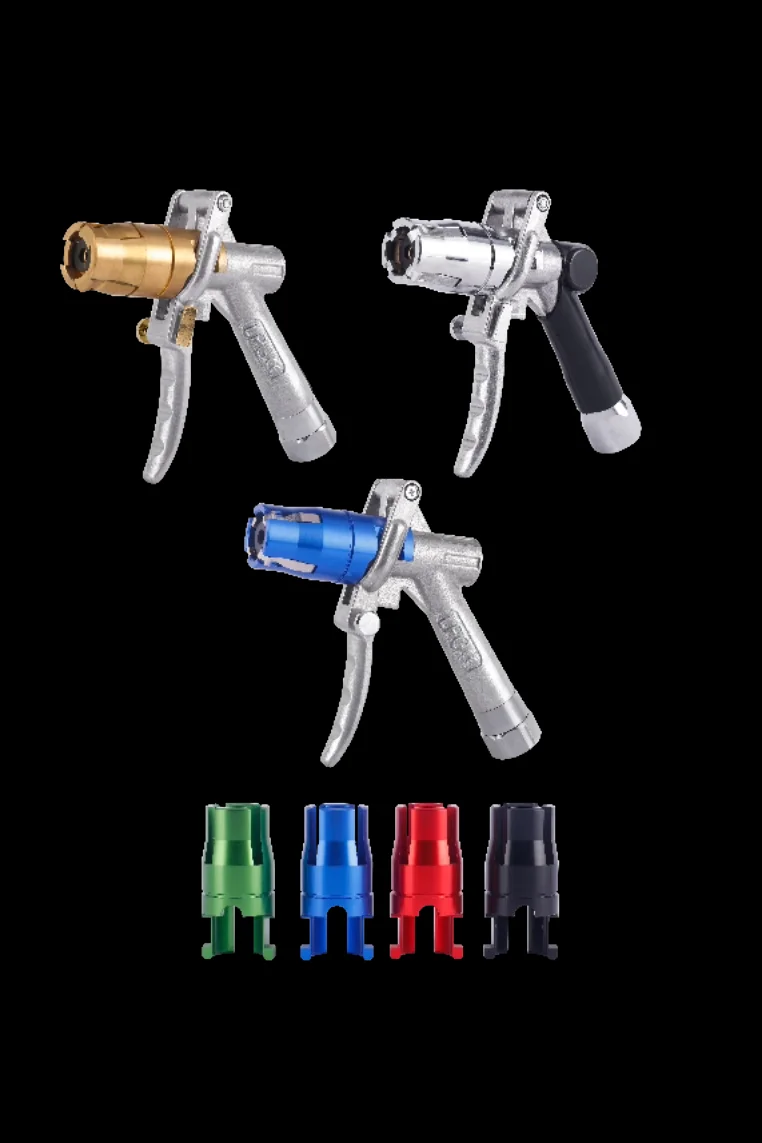

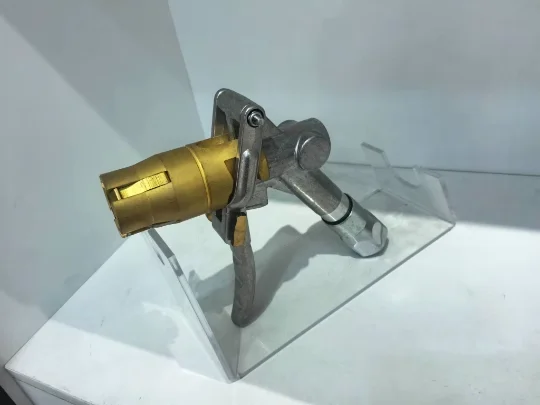

Liquefied Petroleum Gas Nozzle
Advantages:

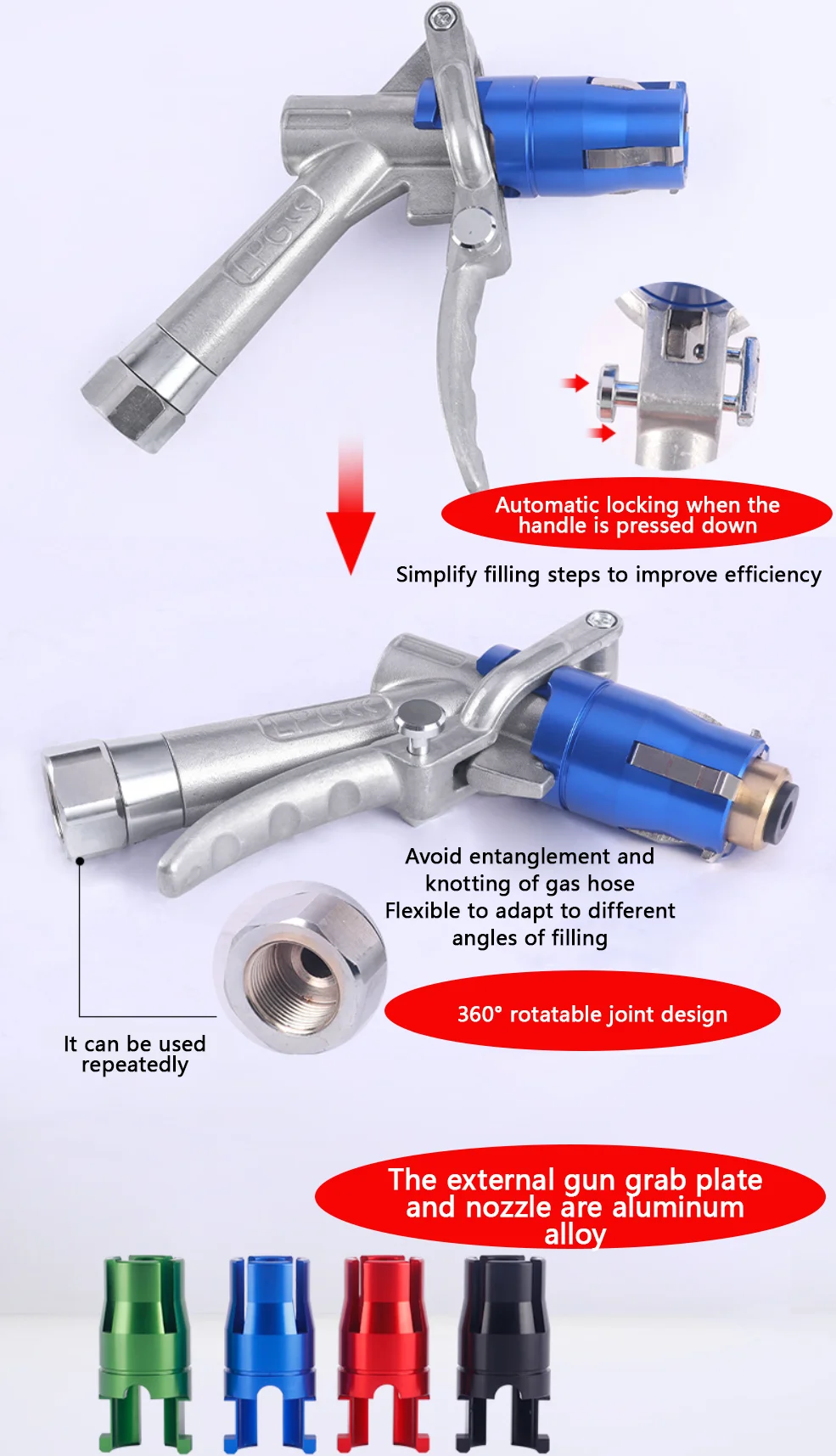

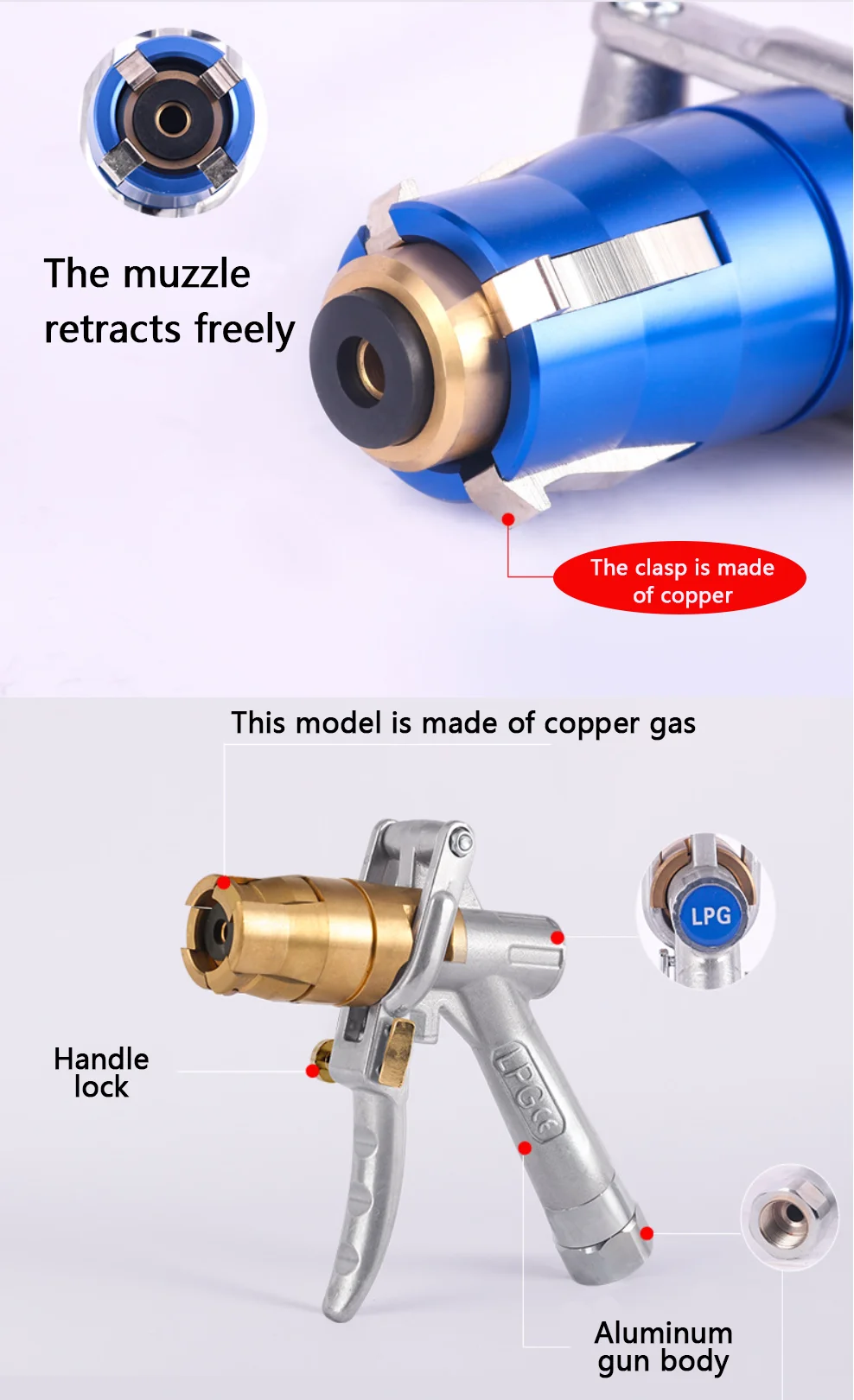

Gas nozzles for liquefied petroleum gas. The entire refueling process is user-friendly and operated by a single person. It starts simply by attaching the nozzle to the receptacle. The greatest durability comes from HammerLock technology. Ergonomic design with insulated handles, specifically designed for frequent coupling and disconnection, protect the operator from the temperature effects caused by high-flow, low-pressure gases. The force required to attach the nozzle is minimal. Durable construction using heavy-duty brass, aluminum, and stainless steel provides excellent corrosion resistance in harsh refueling environments. Ease of use is combined with a single flat 360° inlet rotation mechanism.
Use of liquefied petroleum gas torches
1. The bottom of the gun handle is connected to a gas hose, allowing the use of a gas source. 2. Insert the gun barrel into the nozzle of a liquefied petroleum gas vehicle or liquefied petroleum gas cylinder. 3. Press the handle of the air gun to lock it together with the nozzle, then open the gas valve. 4. Activate the air filler and add gas. 5. Open the handle lock, disconnect the gas source using the air gun, and remove the gas nozzle from the vehicle or cylinder.
Maximum working pressure
350 pounds per square inch / 25 bar
Entrance
BSPF/NPT 3/4 '' or 1'
LPG emission during disconnection
4.3cc
Temperature range
-40 °C to 60 °C
Coupling Style
Italian style
Materials
Body: Aluminum
net weight
Internal Components: Brass/Stainless Steel
Gross Weight
External Components: Brass/Stainless Steel
Packaging
10 pieces per box
Net Weight
20 kilograms
Gross Weight
21 kilograms
Size
360 × 320 × 320 millimeters
