bsp npt stainless steel 304 316 thread gate valve water meter gate valve

EXW Price:

CN¥ 10.0 ~ CN¥ 22.0

Min. order: 9999 piece

9999 piece

Weight 0.11 kg/piece

mixed wholesale

Specifications

stainless steel 316 * medium pressure * 2in	CN¥ 10.0
stainless steel 304 * medium pressure * 2 1/2in	CN¥ 10.0
stainless steel 201* medium-pressure* 2 1/2in	CN¥ 18.5
stainless steel 201* low pressure* 1 1/4in	CN¥ 18.5
stainless steel 316 * medium pressure * 2 1/2in	CN¥ 12.5
stainless steel 201* medium pressure* 3in	CN¥ 12.5
stainless steel 201* medium pressure* 2in	CN¥ 12.5
stainless steel 316 * low pressure * 1/2in	CN¥ 12.5
stainless steel 201* low pressure* 2in	CN¥ 12.5
stainless steel 304 * low pressure * month/4in	CN¥ 20.0
stainless steel 304 * medium pressure * 1/2in	CN¥ 12.5
stainless steel 201* low-pressure* 1 1/2in	CN¥ 12.5
stainless steel 316 * medium pressure * 4in	CN¥ 12.5
stainless steel 201* medium pressure* 1 1/2in	CN¥ 12.5
stainless steel 304 * low pressure * 1/2in	CN¥ 12.5
stainless steel 316 * medium pressure * 1in	CN¥ 12.5
stainless steel 316 * low pressure * 2 1/2in	CN¥ 12.5
stainless steel 304 * medium pressure * 1 1/2in	CN¥ 12.5
stainless steel 316 * low pressure * 1in	CN¥ 20.0
stainless steel 304 * low pressure * 2in	CN¥ 12.5
stainless steel 201* low pressure* 1in	CN¥ 12.5
stainless steel 316 * medium pressure * 1 1/2in	CN¥ 12.5
stainless steel 304 * low pressure * 1in	CN¥ 20.0
stainless steel 304 * low pressure * 2 1/2in	CN¥ 22.0
stainless steel 316 * low pressure * 4in	CN¥ 12.5
stainless steel 316 * medium pressure * 1 1/4in	CN¥ 17.56
stainless steel 304 * medium pressure * 4in	CN¥ 18.5

Send Inquiry Chat with supplier

Allen Water Heating 9yr.

Contacts Allen Chat

Mobile 86-15068986842

E-mail www.646722115@qq.com

15068986842

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

application scope: ordinary notebook

medium: water, gas, oil, etc.

interface size: standard, 1/2 '4'-(dn15-100

power: manual, manual, lever operated ball valve

structure: gate

medium temperature: low temperature, medium temperature, normal temperature

model: flz15w-16p

origin: guangdong, china

custom service: oem

name: bsp npt stainless steel 304 316 internal thread

media: water, air, gas, oil, liquid

moq: 1 piece

body material: ss304 or ss316

seal ring: ptfe/epdm

in multiple ways: 2way

termination: non-proliferation treaty, bsp,g

prtection: ip65

pressure: 1.6 ~ 6.4mpa

Supplier's product description

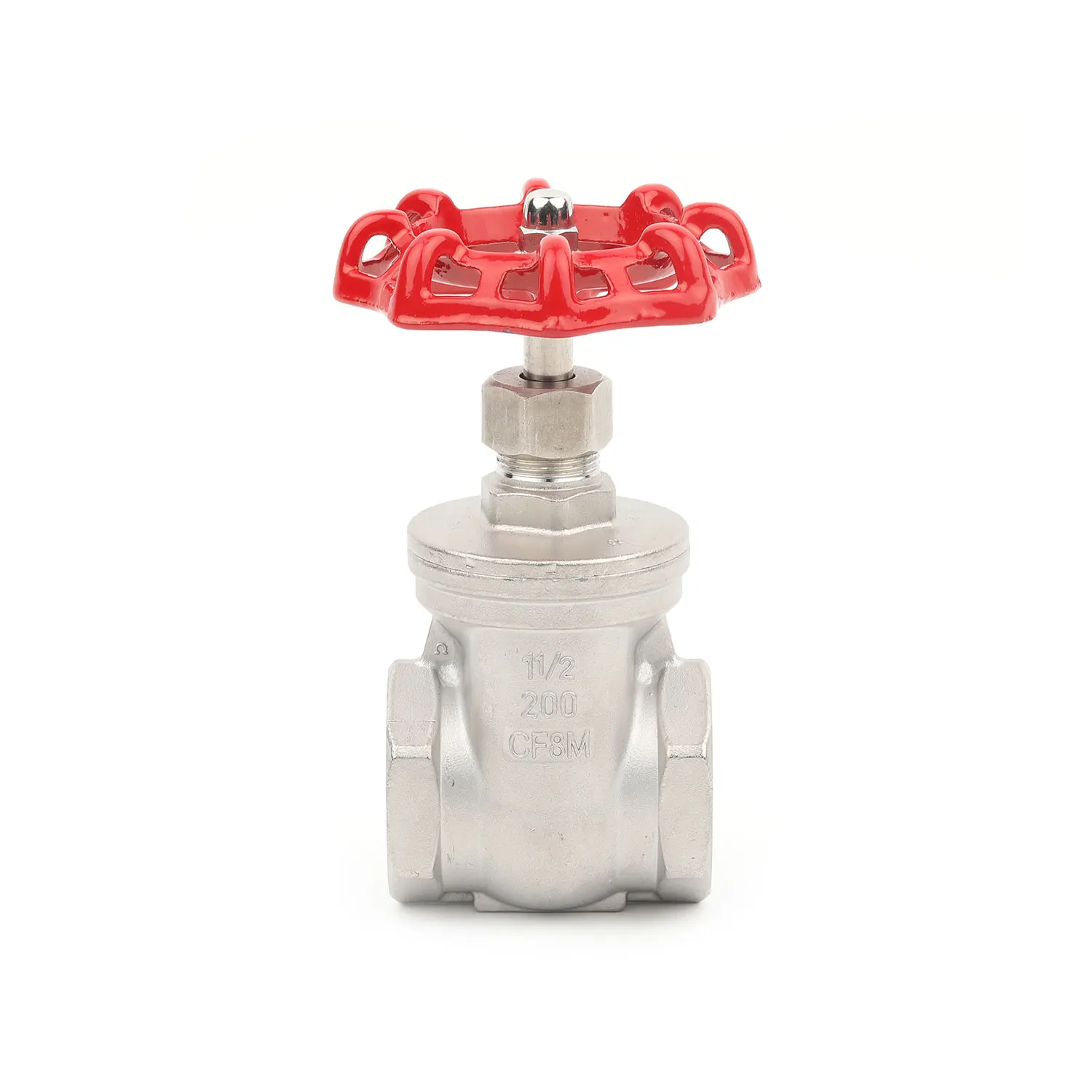

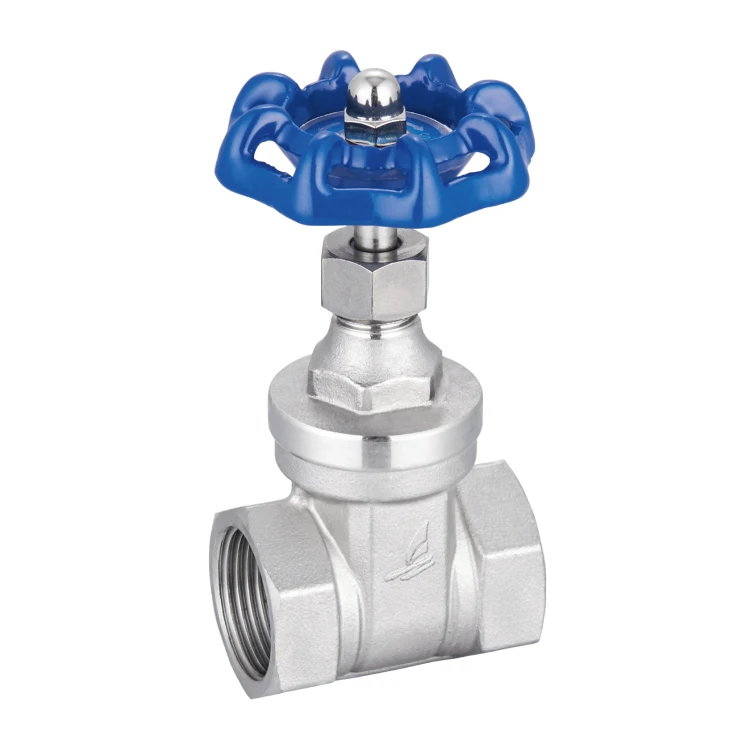

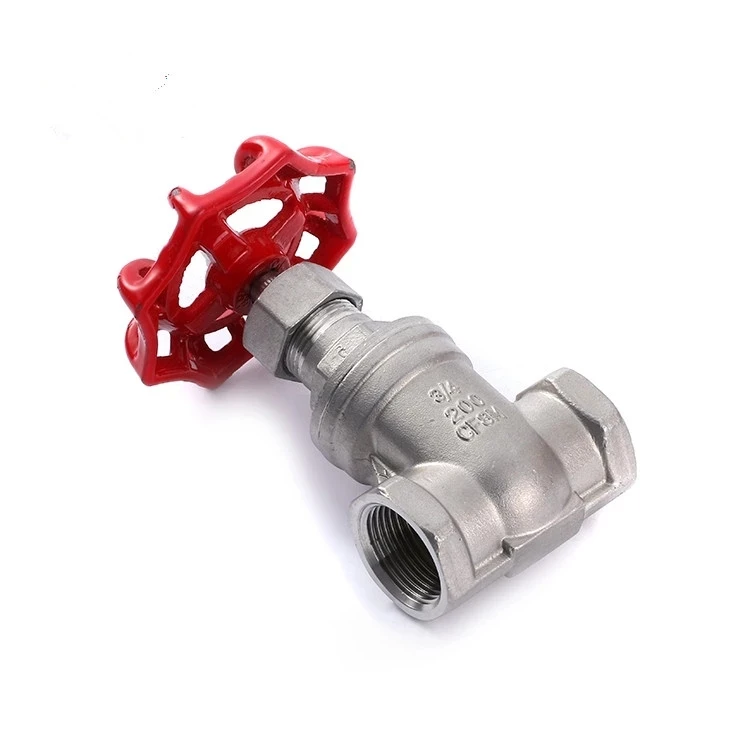

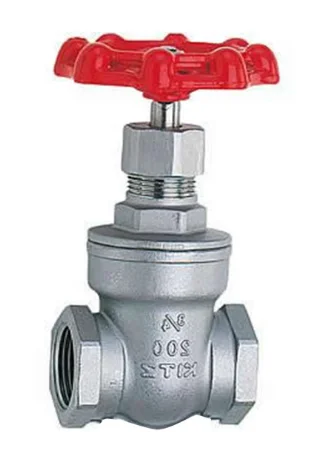

BSP NPT Stainless Steel 304 316 Threaded Gate Valve

·Product Specifications·

Advantages of the gate valve:

1. Low fluid resistance

2. The torque required for opening and closing is low, making it easy to open andClose.

3. The medium flow direction is unrestricted and does not cause interference.Flow and reduce pipeline pressure.

4. Short-length structure

5. Good sealing performance

6. Simple shape, excellent casting process, widely applicable

Applications:
Operating temperature: ≤ 425 °C

Main materials: WCB/CF8/CF8M/CF3/CF3M

Applicable media: water/oil/gas/corrosive media

Rated pressure: PN10-PN64, 150LB-800LB

Size range: 1/2” to 4” (DN15-DN10)

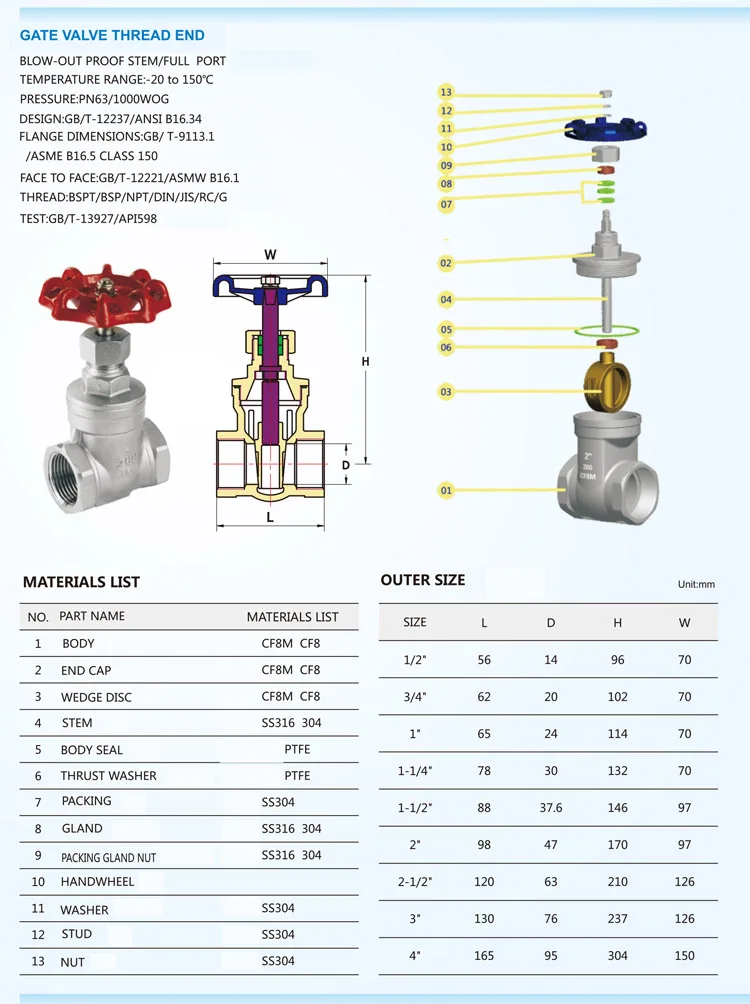

Main components and materials

Pressure level and dimensions:	200 PSI
	DN15 to DN100
	1/2 "~ 4"
Materials:	Body: CF8, CF8M
	CDs: F304 (left), F316 (left)
	Stem: 304(L), 316(L)
	Valve Cover: CF8, CF8M
Operation Type:	Handwheel
Structure:	External screws and yoke
Threaded End:	Non-Proliferation Treaty / BSPT / BSPP
Intermediate:	W.O.G
Temperature:	-29 ~ 250 °C

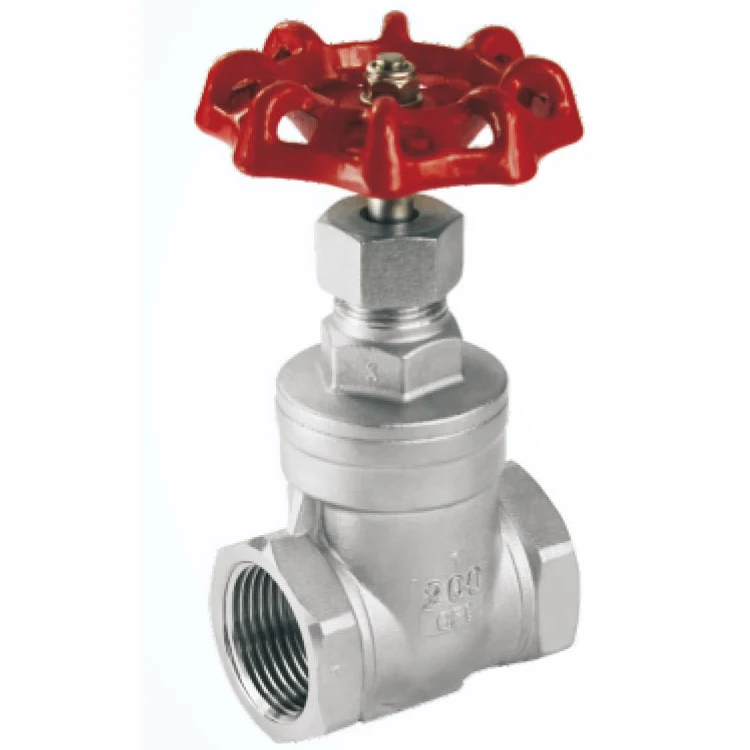

·Product Images·

BSP NPT不锈钢304 316螺纹闸阀

·More options·

BSP NPT不锈钢304 316螺纹闸阀
