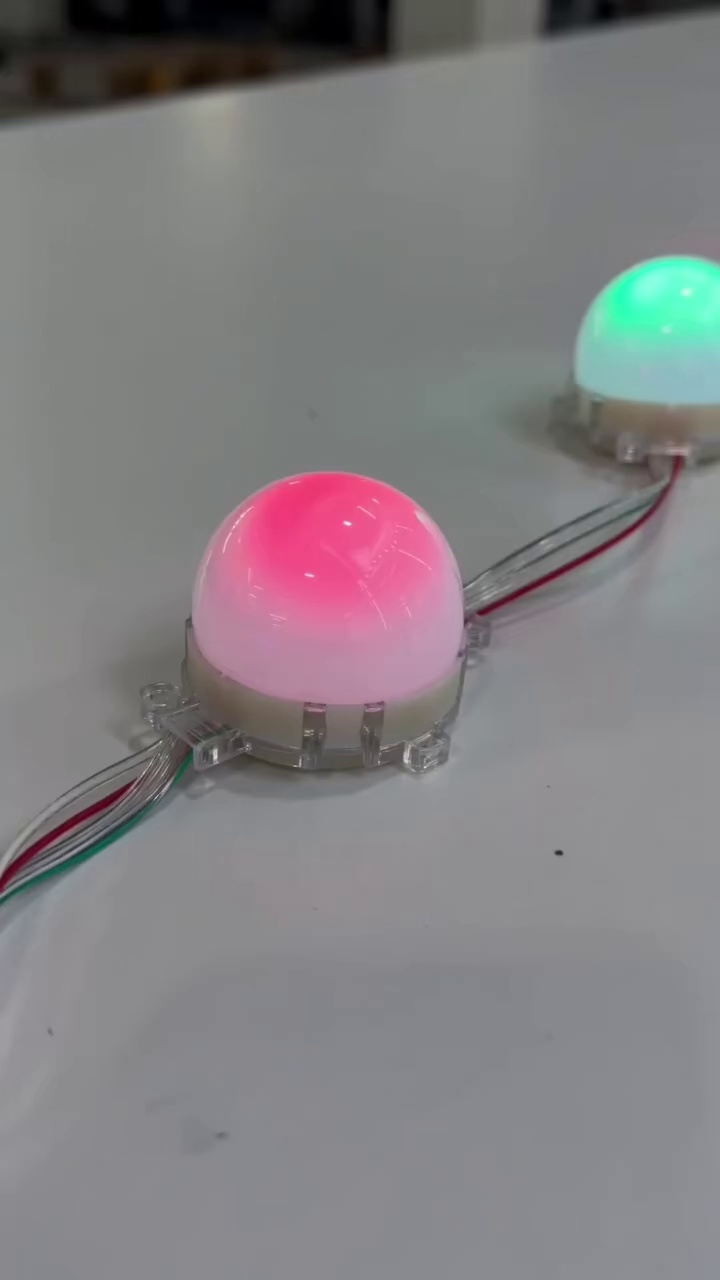

This is a DC 2.4V outdoor IP68 waterproof LED pixel point light source, designed for commercial lighting projects. The applicable scenarios are divided into 4 major categories:
1. Lighting for store signage
Glow words, borderless text, and outline outlines for canopy light boxes can be used for flowing, gradient, and moving dynamic lighting, enhancing the store's visibility at night.
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Landscape lighting for building exterior walls
Office buildings, shopping malls, facade dot matrix screens and wall outline light strips are combined into large-area pixel displays that display text and images, along with dynamic color animations.
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Recreation, Culture, and Tourism Decoration
Ferris wheel, amusement park attractions, social media-famous landmarks, scenic area architectural decorations—even in outdoor rainy conditions, they can be used reliably over the long term.
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Interior commercial atmosphere decoration
Pixel displays on the mall atrium ceiling, dynamic lighting for the stage backdrop, and ambient lights for exhibition booths create a gradient chasing lighting effect.
2. Product Usage (Complete Installation Steps)
1. Fixed installation
Reserve slot positions for clamps on both sides of the light body. Use tie wraps or screws to secure the LED chips one by one onto the signage steel frame, exterior wall ribs, and decorative framework, arranging them evenly according to the design spacing.
2. String connection and splicing
Each string of lights is equipped with male and female plug-in waterproof connectors at both ends. No welding is required; simply insert them into the clips to extend the length of the light string indefinitely. For longer strings, power must be distributed in groups to avoid voltage drop.
3. Wiring of supporting equipment
1. The end plug of the entire light string is connected to the LED control unit;
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. The controller is connected to a dedicated DC 24V switching power supply;
⚠️ It is strictly prohibited to connect directly to 220V high voltage; it must be used in conjunction with a 24V low voltage power supply.
4. Lighting adjustment
After power on, switch the lighting mode via the controller: constant on, flowing chase, gradient, stroboscopic, full-color animation, etc. Adjust the brightness and change speed as needed.
III. Usage Precautions
1. A DC24V constant voltage power supply must be used for power supply; direct connection to household 220V AC is prohibited, otherwise the LED chips will burn out directly.
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. The outdoor installation connector must be fully inserted tightly; if it is exposed to water for a long time, waterproof tape can be applied additionally to reinforce the connection.
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. If the length of a single light string is too long, the brightness at the start and end may differ. For long distances, it is recommended to supply power at both ends separately.
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Always disconnect the power before installation or maintenance. Although low voltage is safe, plugging in or removing components while energized can damage the control chip.
<t_XXXXXXXXX> <t_XXXXXXXXX>
5. The product is IP6x8 waterproof, but it cannot be submerged in water for long periods. It is only suitable for exposure to rain or humid outdoor conditions.
