dental water distiller distiller distilled water wine making machine laboratory household small distilled water machine 4l

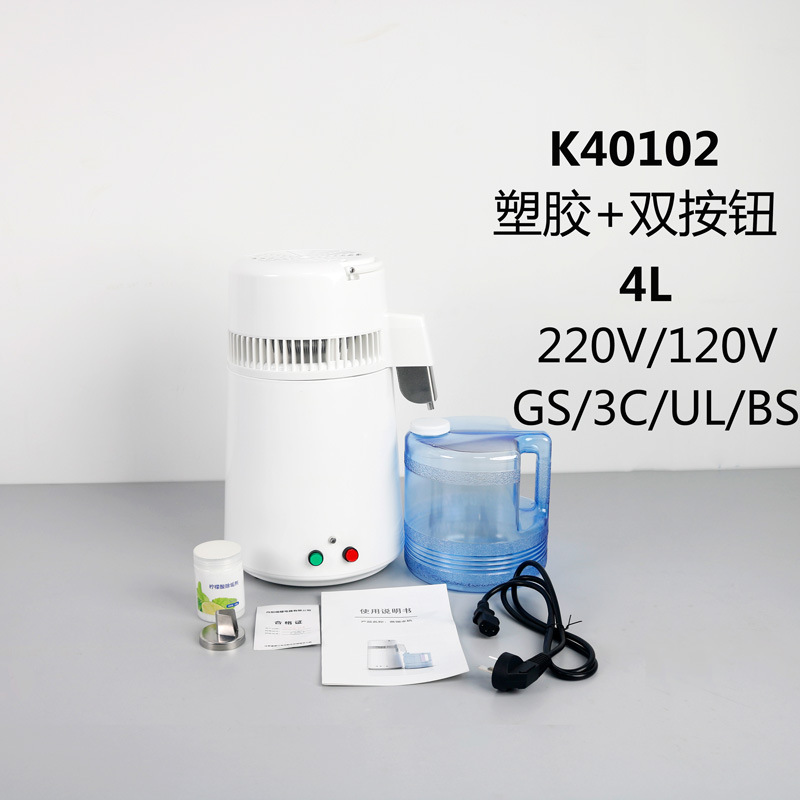

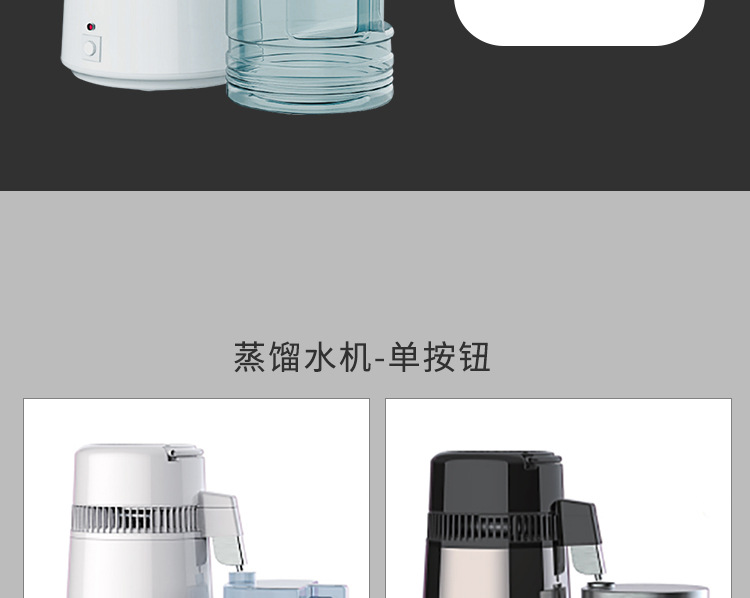

The single button, which only has an “ON/OFF” switch, controls the entire process with just one button. For the dual button: the green button is for the “Start” switch, and the red button is for the “Stop” switch. When it is necessary to stop the condensation production, simply press the “Stop” button—there is no need to wait until the water in the main unit’s inner container is completely dried up. It functions like a pause feature.

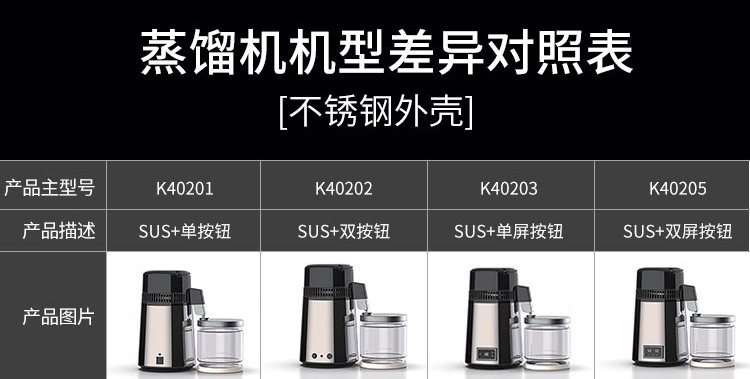

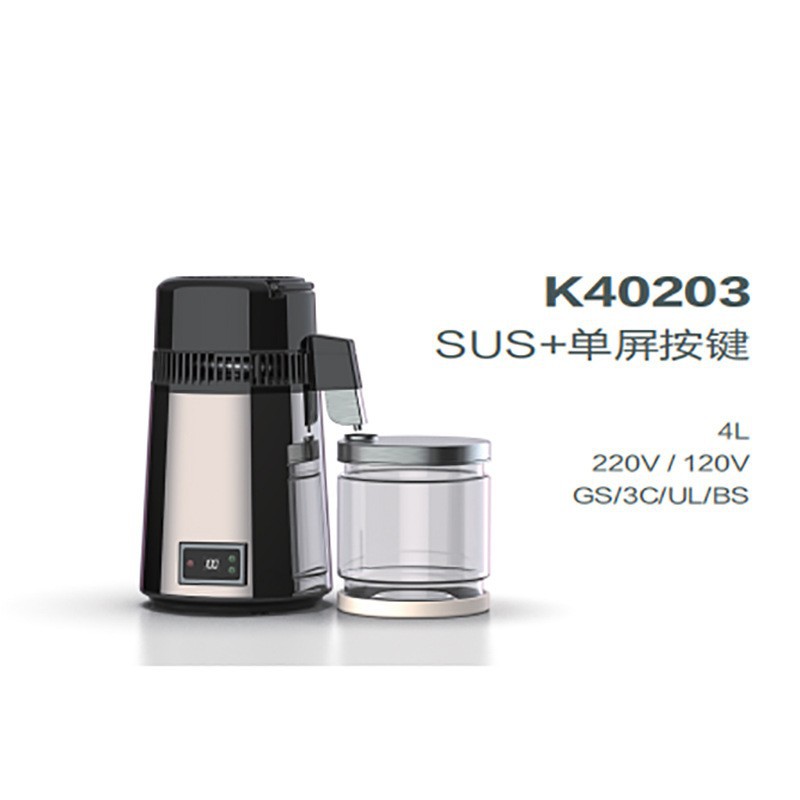

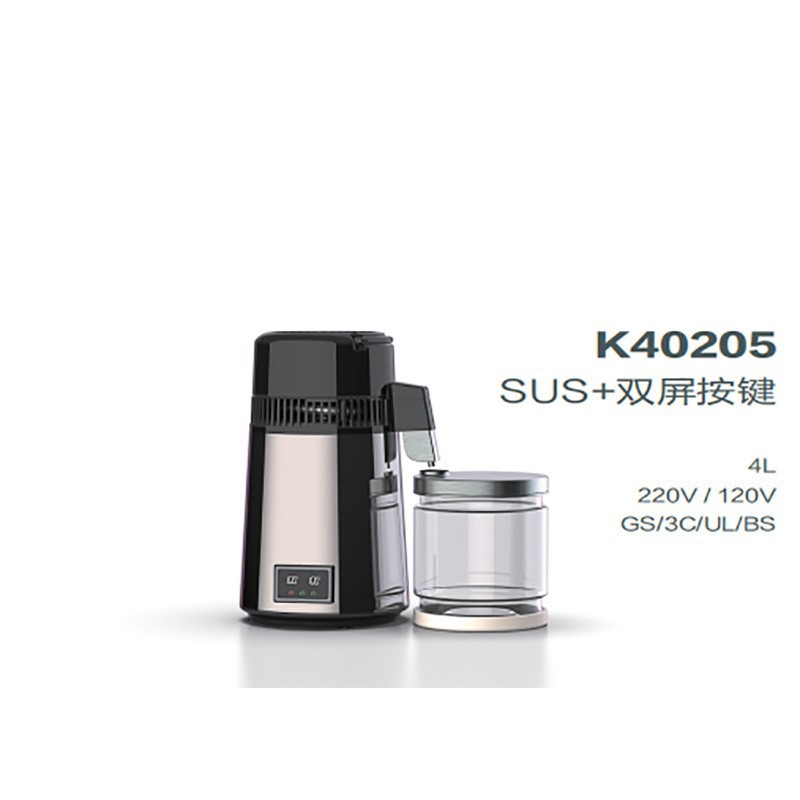

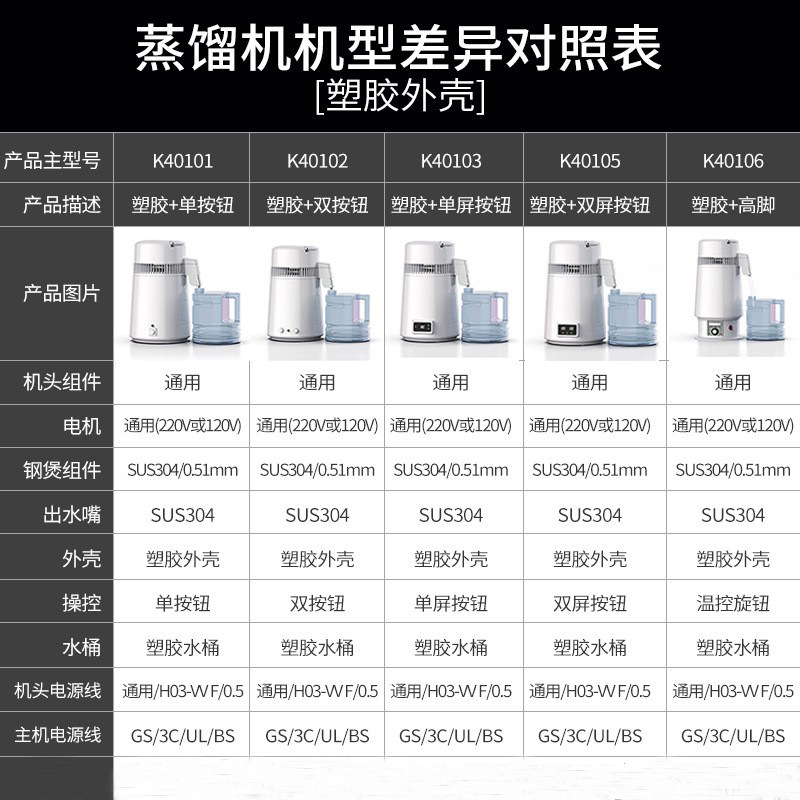

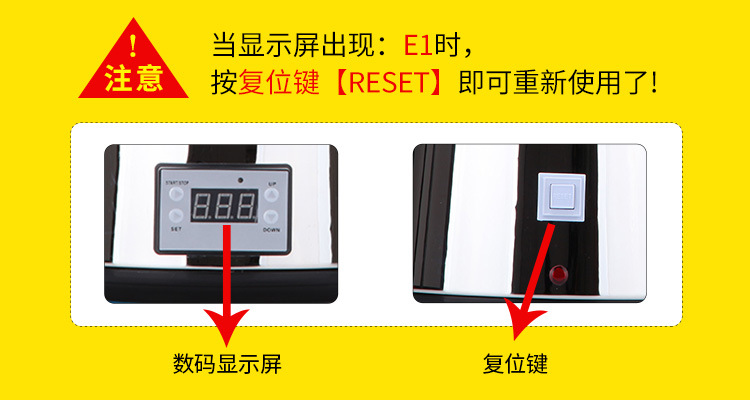

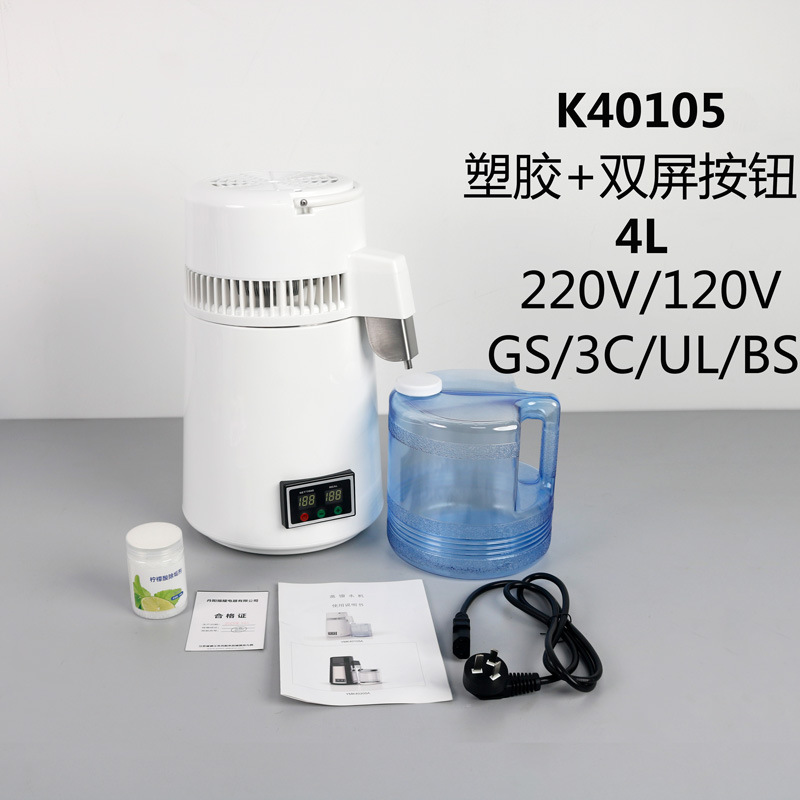

Difference between single-screen and dual-screen buttons: The single-screen button has only one display screen and can only adjust and show the operating temperature; the dual-screen button has two display screens, allowing adjustment of the set temperature and display of the current temperature.

1-year warranty

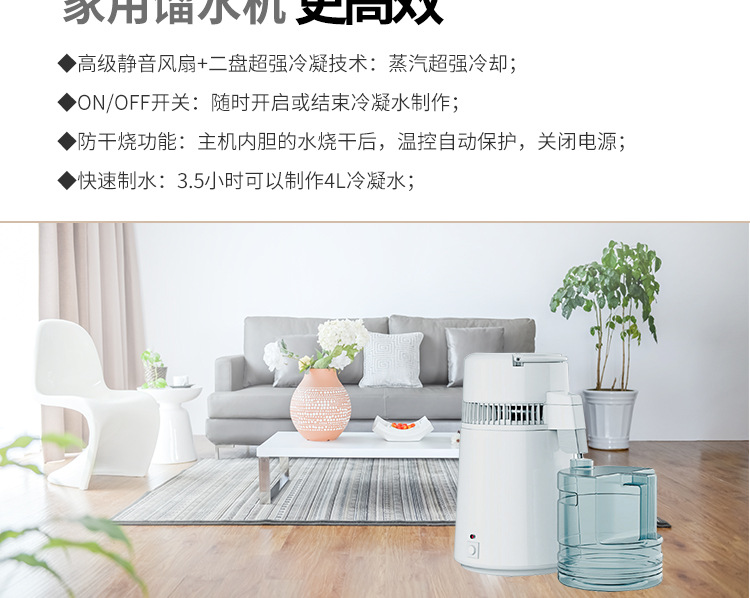

Product Features:
Silent fan + two-stage condensation technology: steam cooling;
ON/OFF switch: Turn on or stop the condensate production at any time;
Dry burn prevention function: When the water in the main unit's inner container runs out, the temperature control automatically activates protection, turning off the power;
Rapid water production: 3.5 hours are required to produce 4L of condensed water.

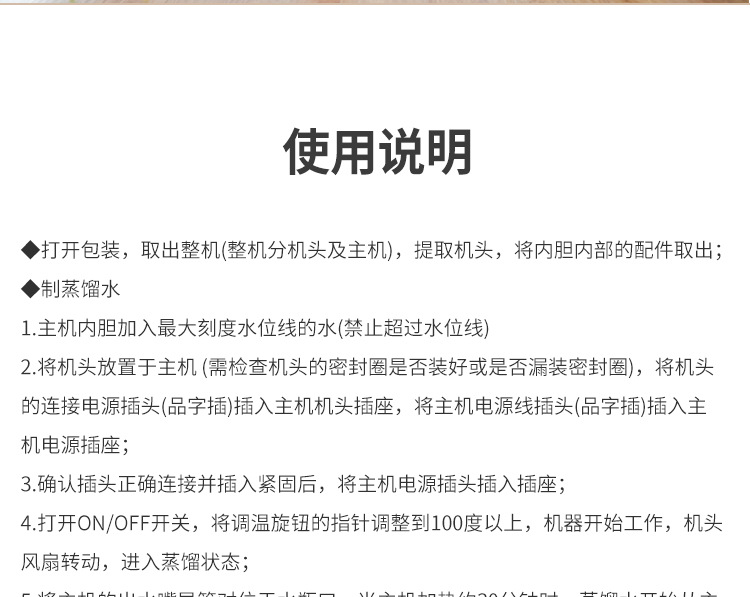

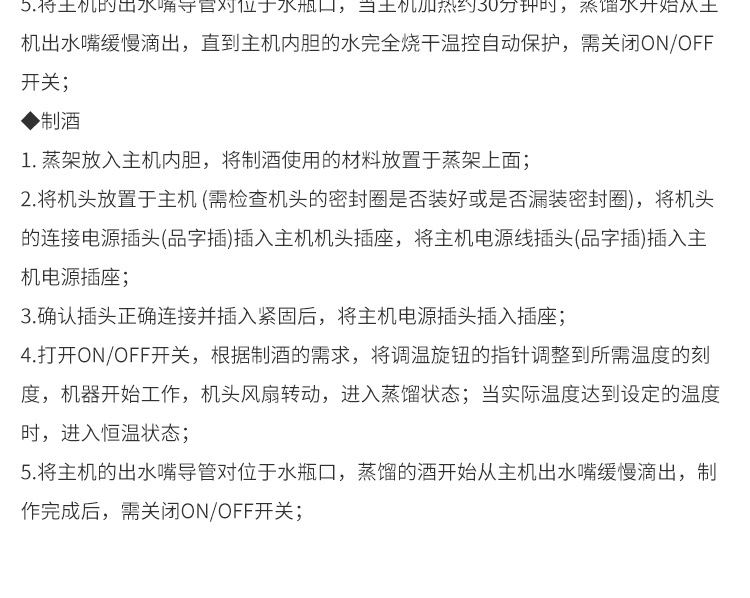

Instructions for Use

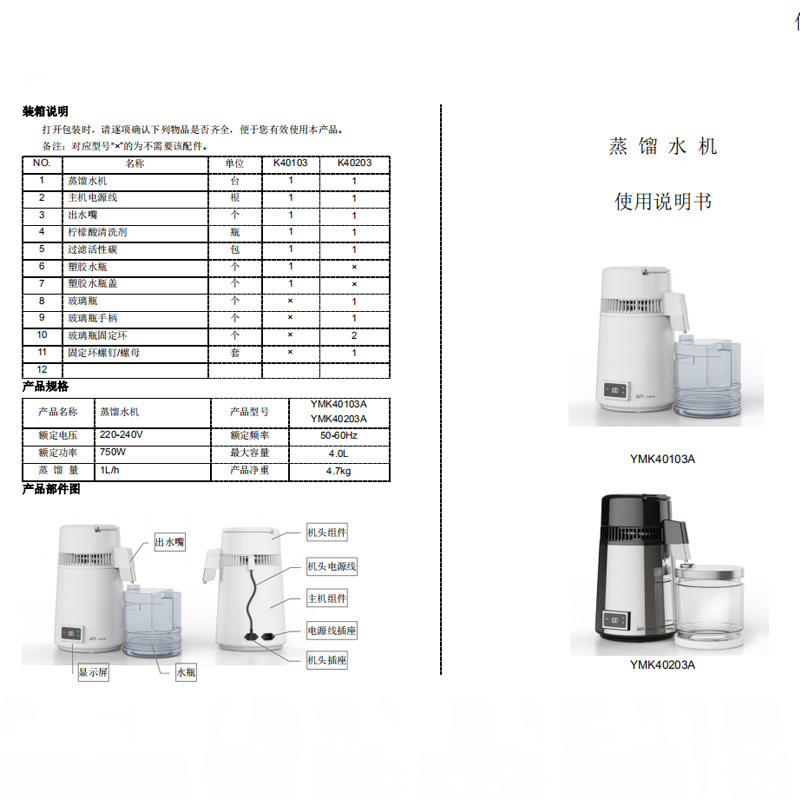

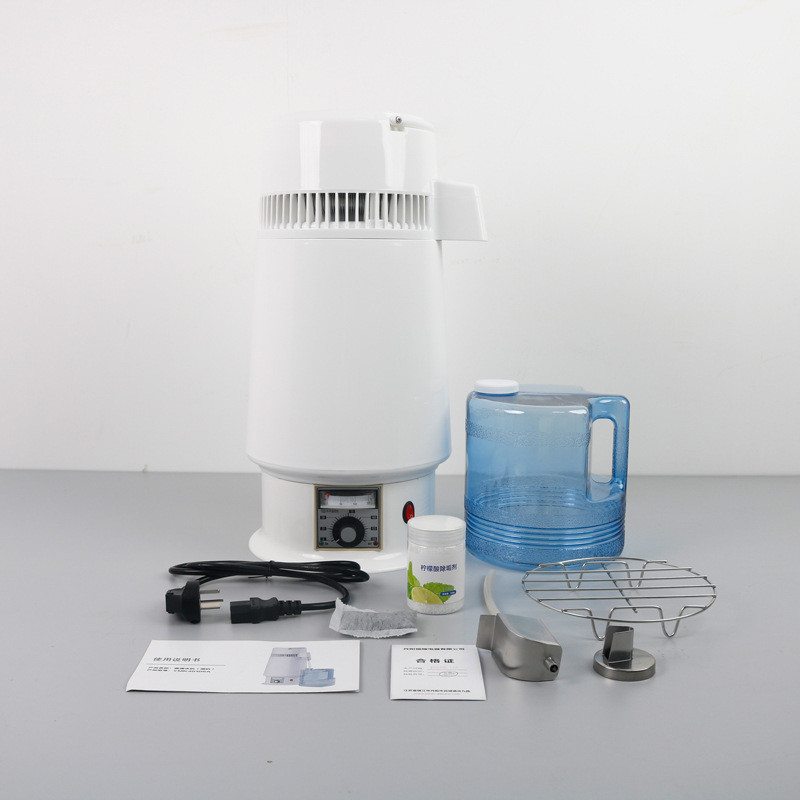

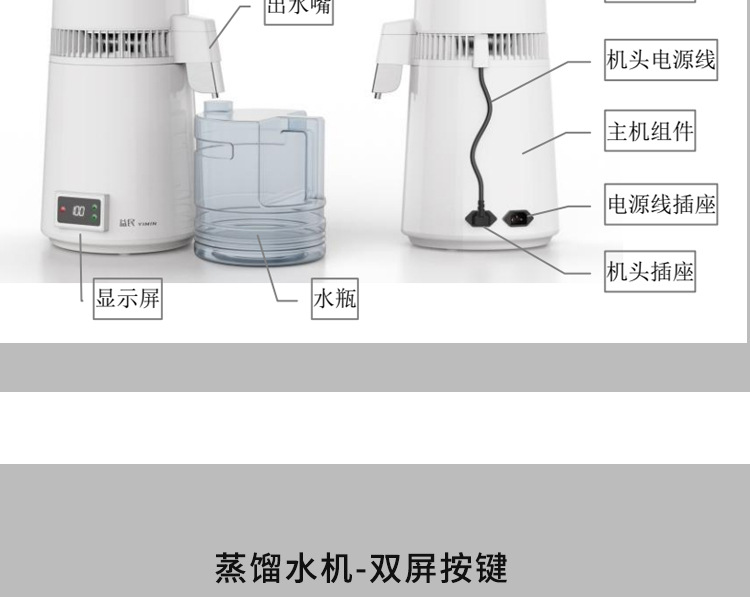

Open the package, remove the entire unit (including the head and main unit), take out the head, and extract the components inside the inner casing.
If it is a glass bottle, the cup handle needs to be assembled and ensured to be securely attached;
Add water up to the maximum scale water level line to the internal container (do not exceed the water level line);

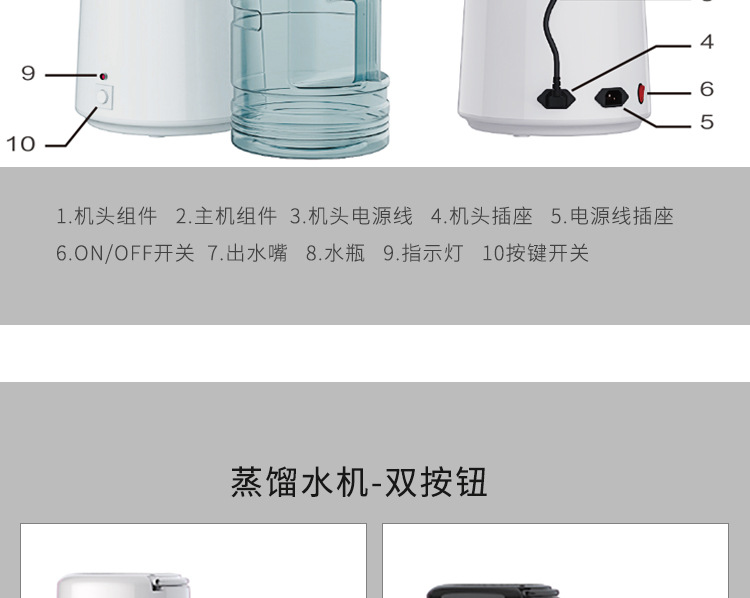

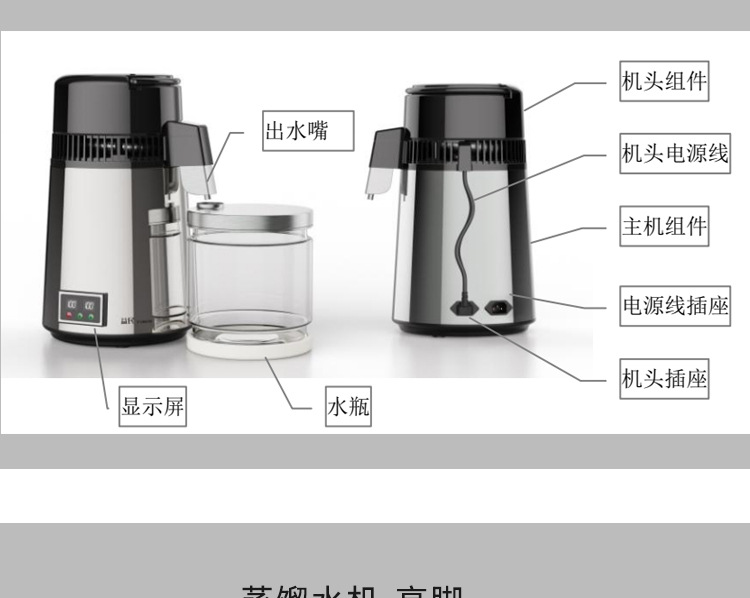

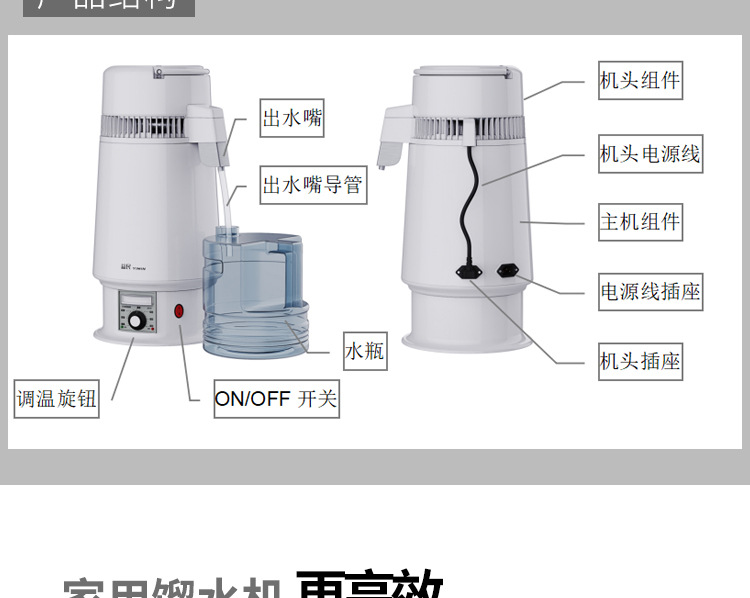

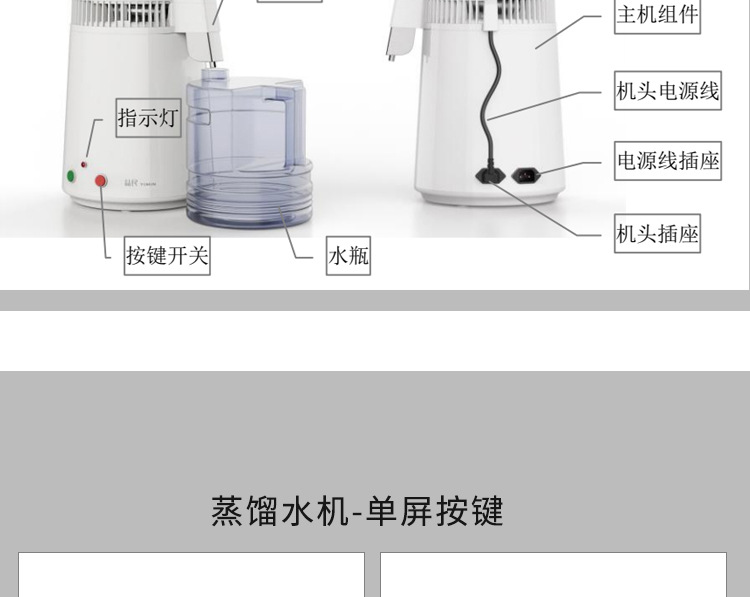

Place the head unit on the main unit (check whether the sealing ring of the head unit is properly installed or missing). Insert the power plug connecting the head unit (three-point plug) into the socket of the main unit head, and insert the power plug of the main unit (three-point plug) into the power socket of the main unit;
After confirming the plug is connected correctly and secured in place, insert the main unit power plug into the wall socket;
Turn on the ON/OFF switch of the unit, then press the start button. The indicator light on the start button turns on, the head fan begins to rotate, and the unit enters the heating mode;
(<t)_LIGHTING_Switch: Turn on the ON/OFF switch for the first time, and the indicator light turns on)
When the unit is heated for approximately 30 minutes, distilled water begins to drip slowly from the water outlet of the unit, until the water in the inner tank is completely dried up due to automatic temperature protection.

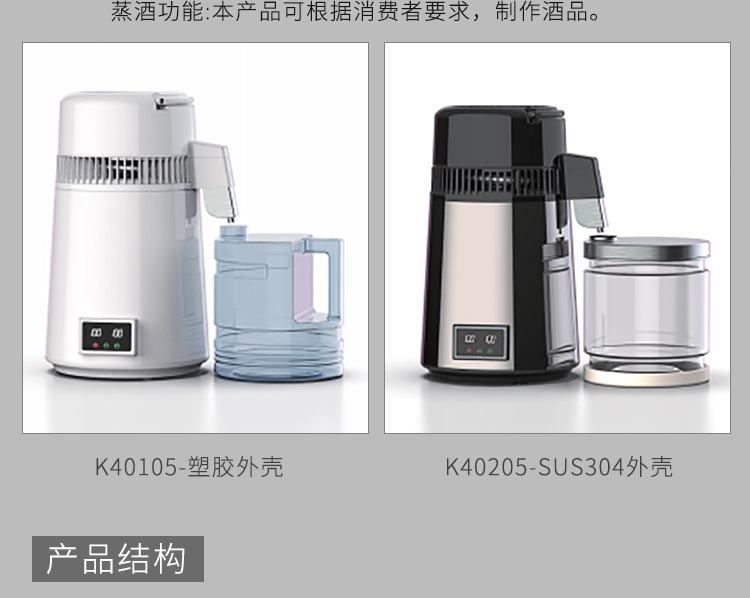

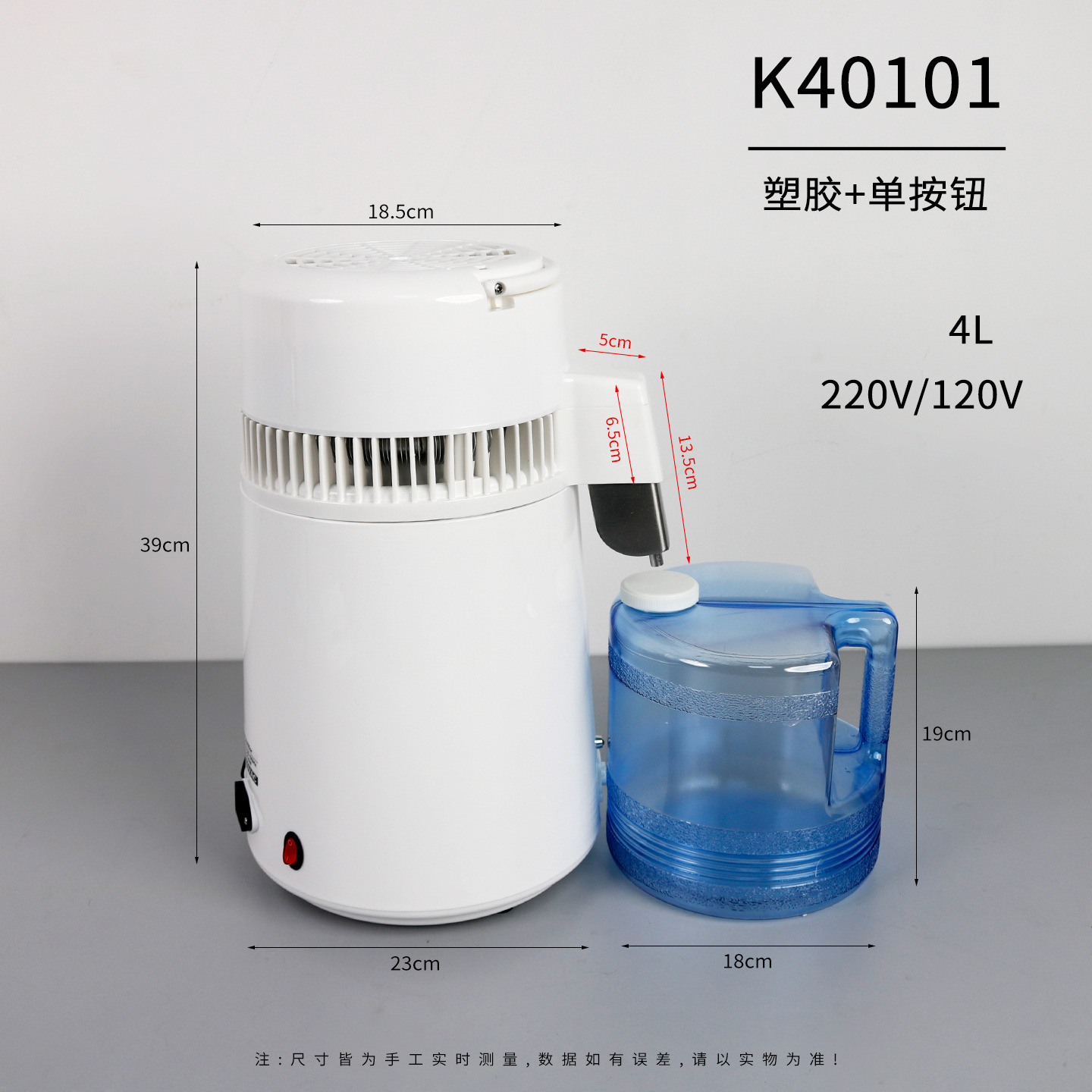

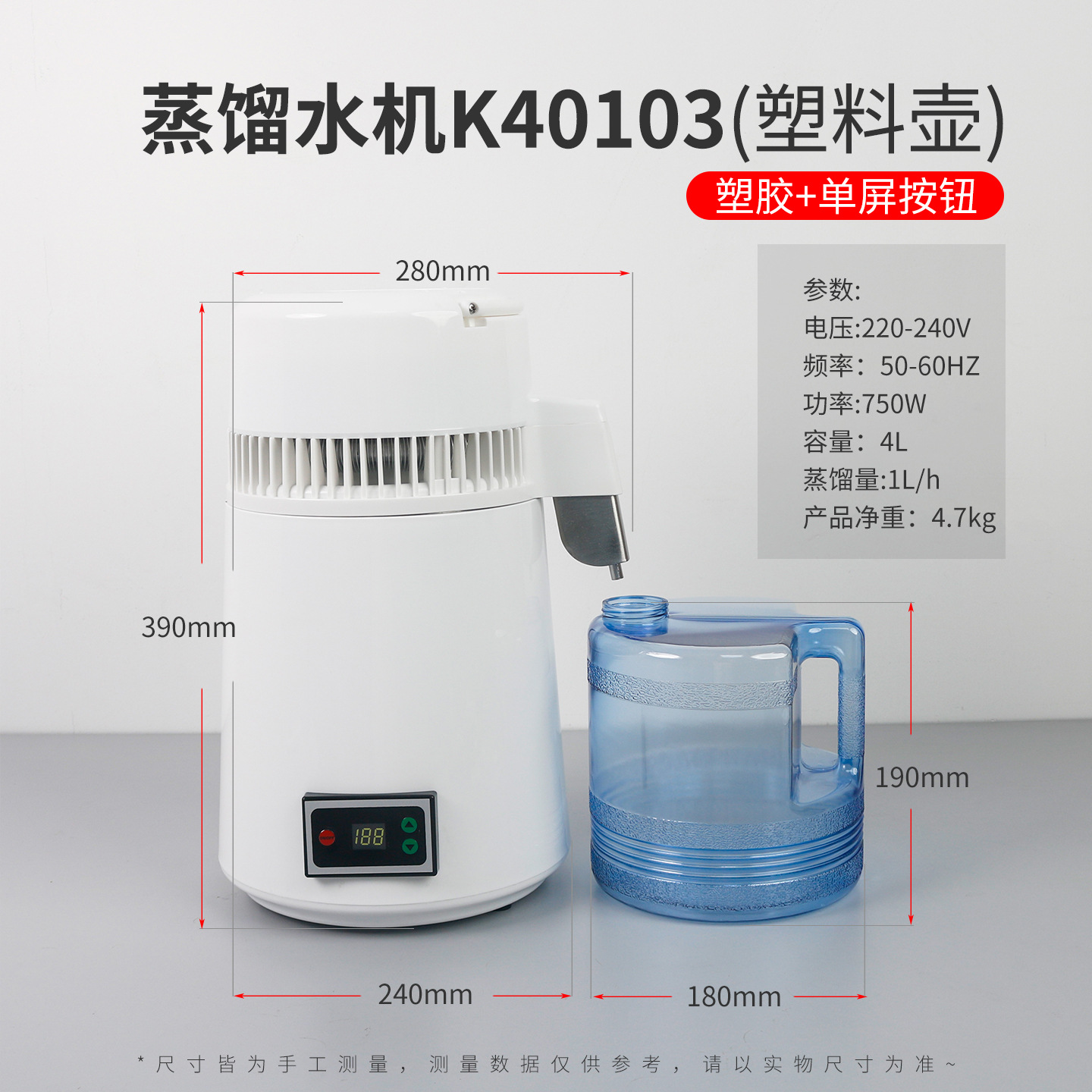

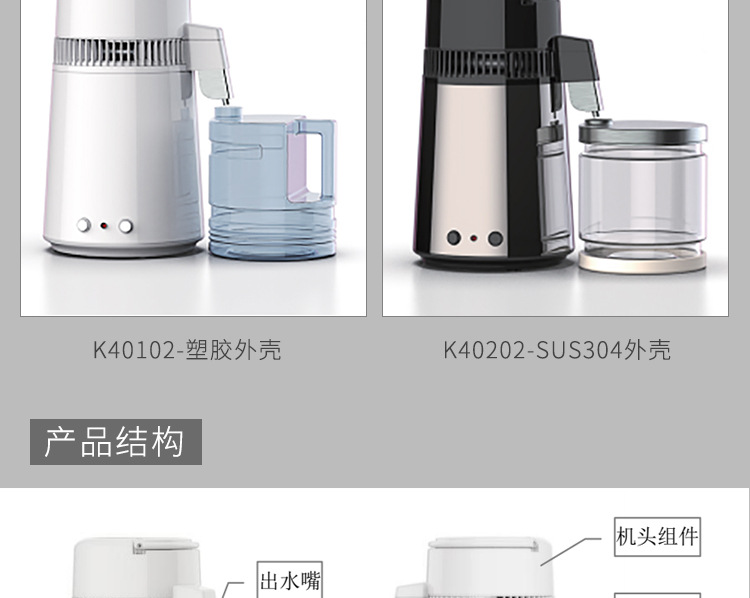

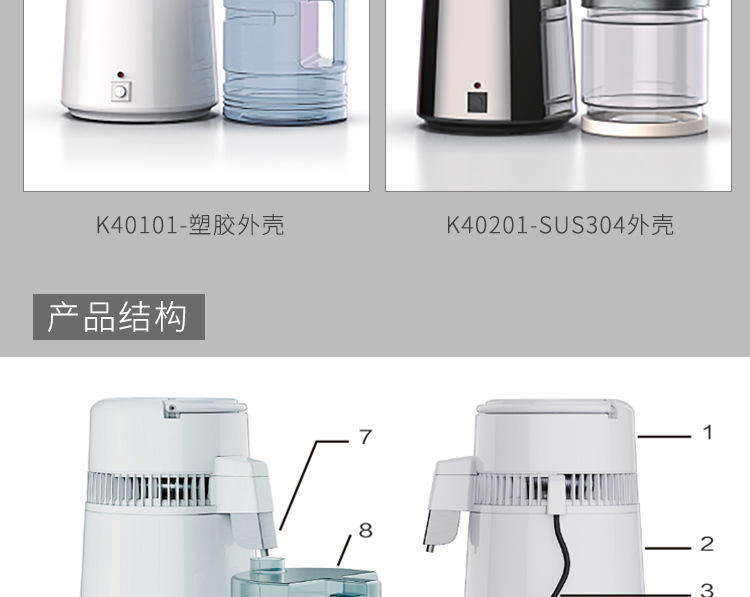

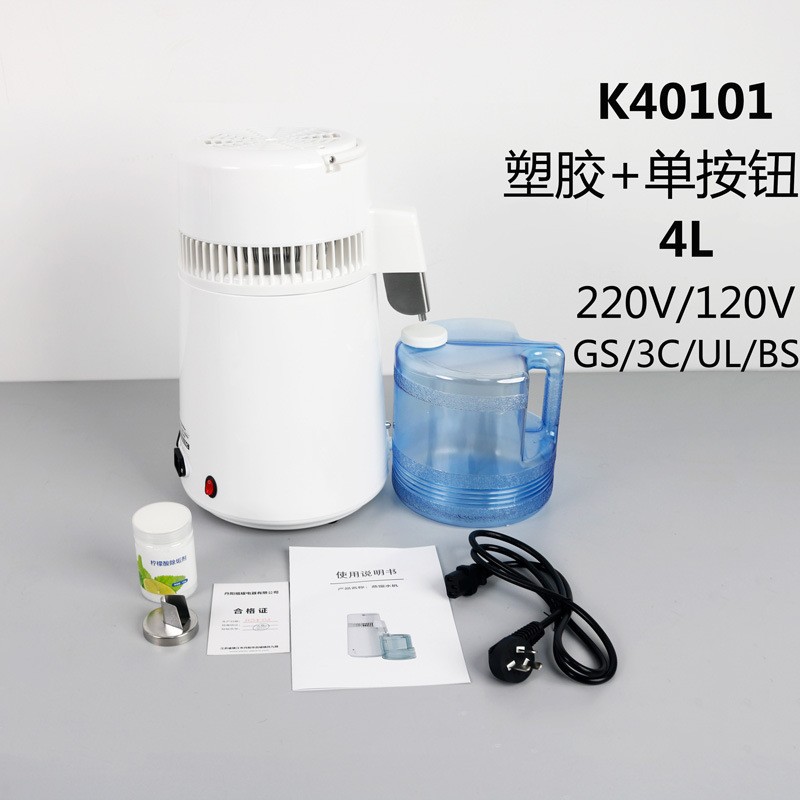

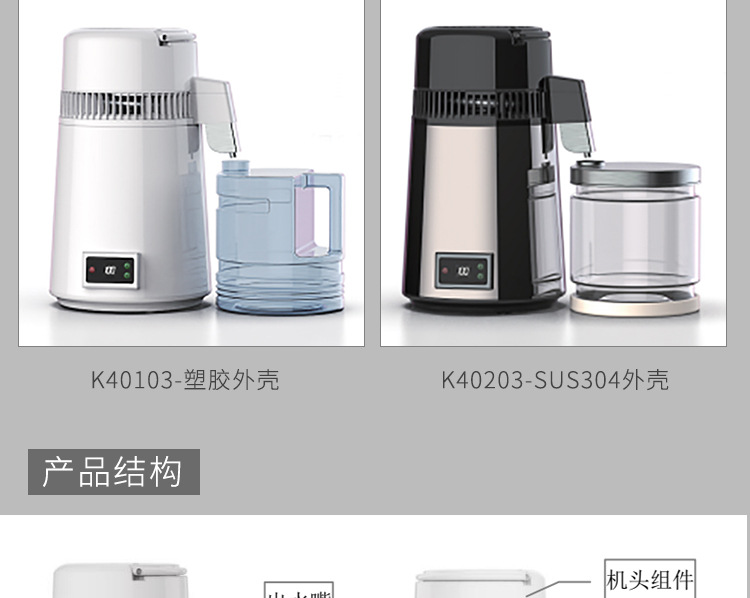

White shell

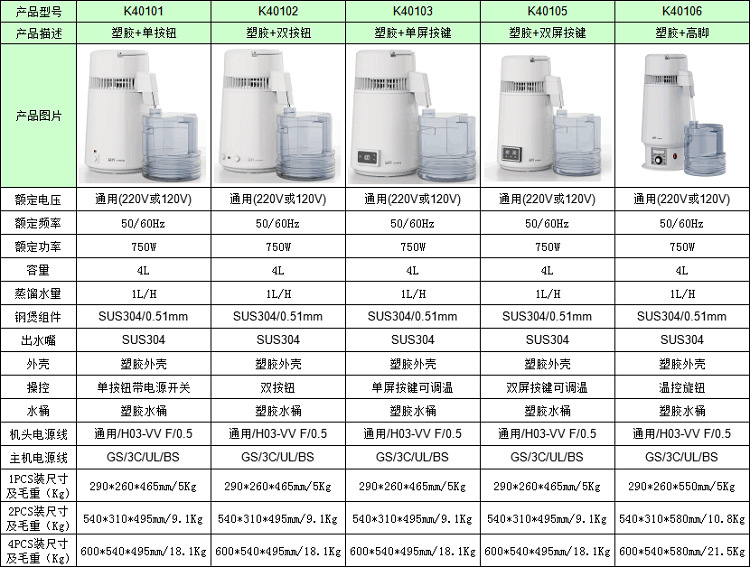

Motor: Universal (220V or 120V), Cookware components: SUS304/0.5mm, Water outlet nozzle: SUS304, Plastic casing, Plastic water tank

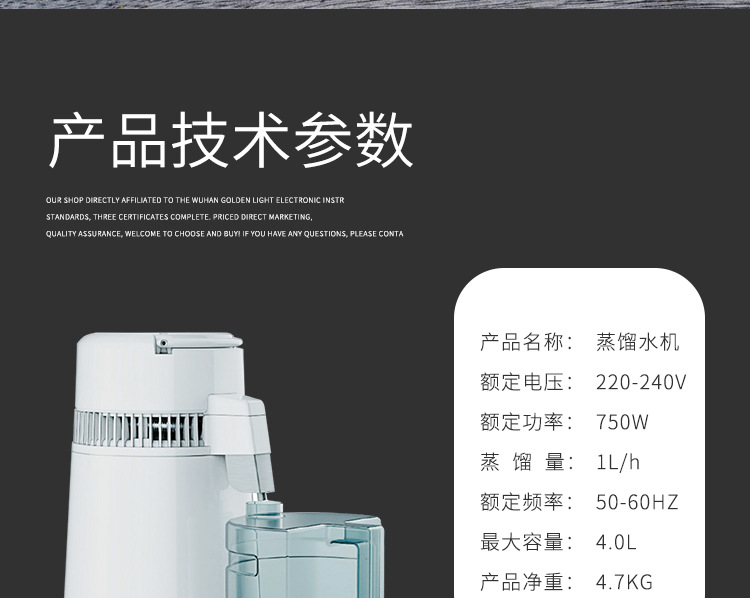

Main parameters:
Rated voltage: 220-240V
Rated frequency: 50–60Hz
Rated Power: 750W
Maximum capacity: 4.0 L
Distillation rate: 1L/h

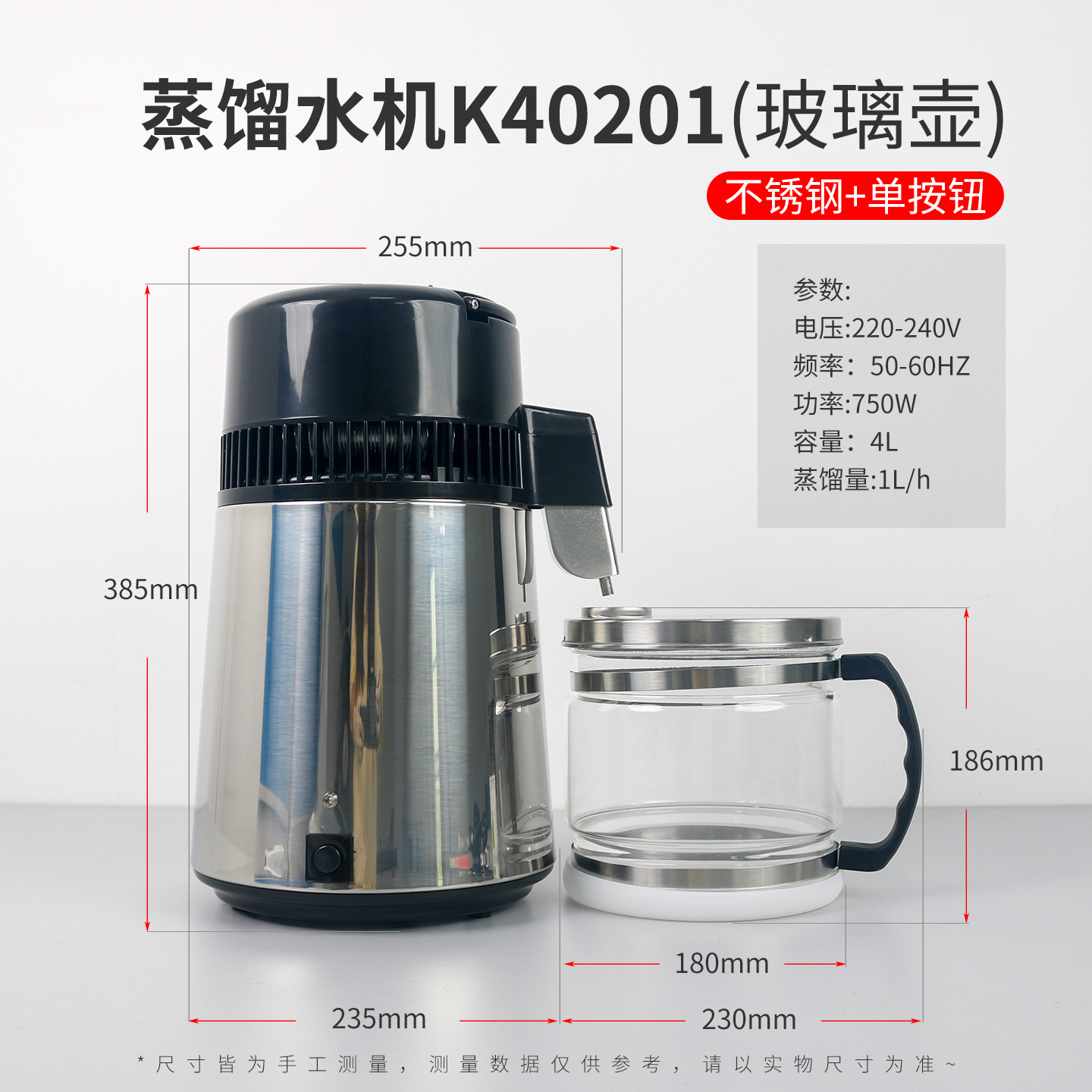

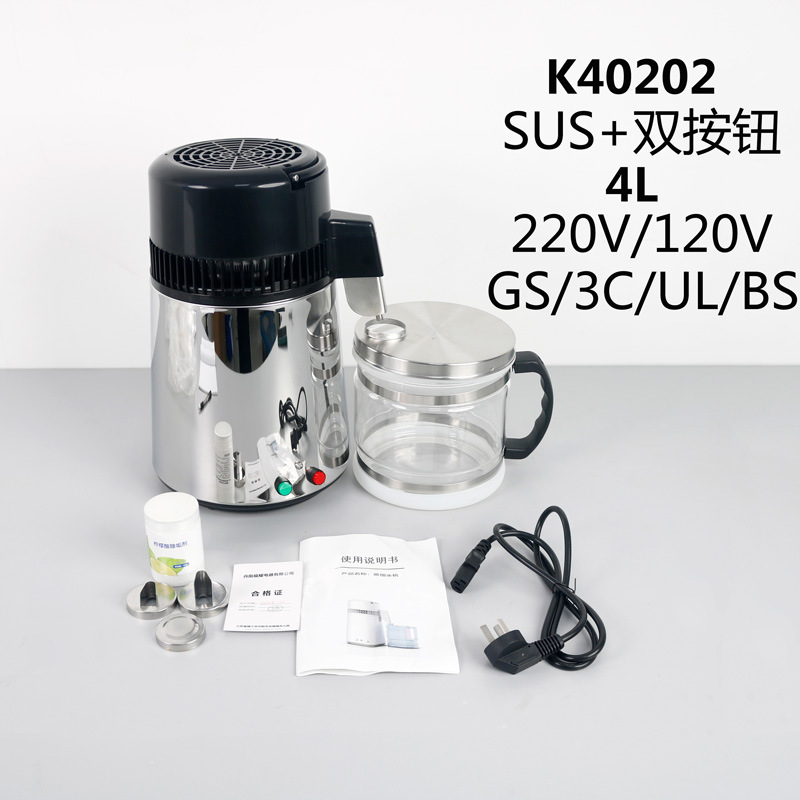

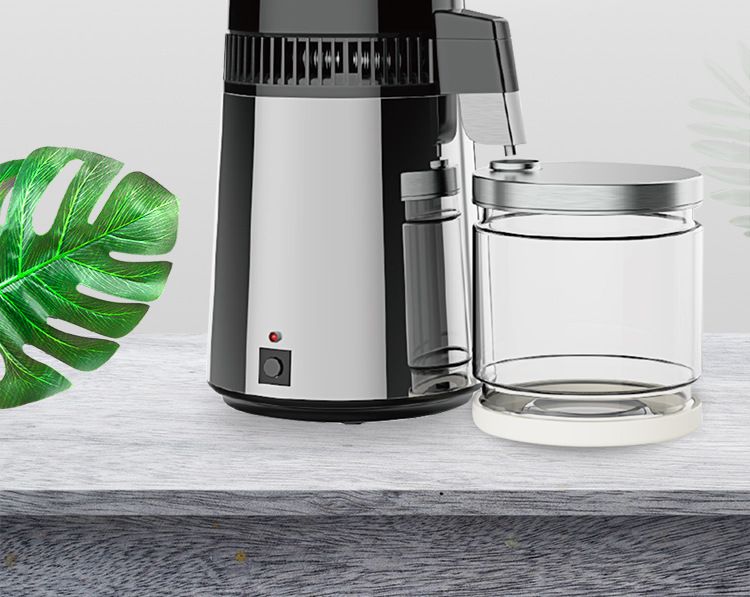

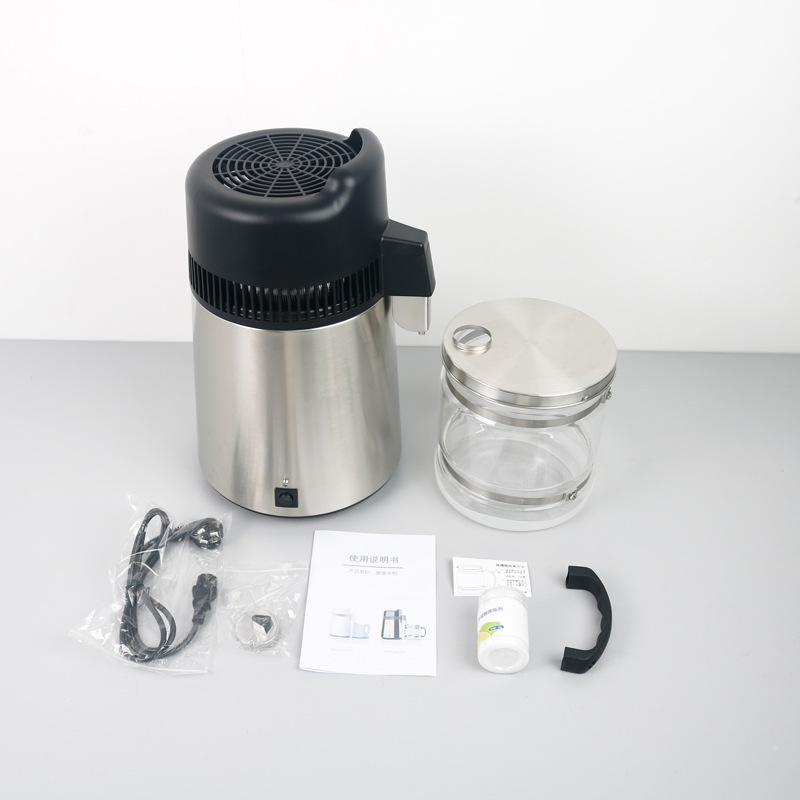

Black shell

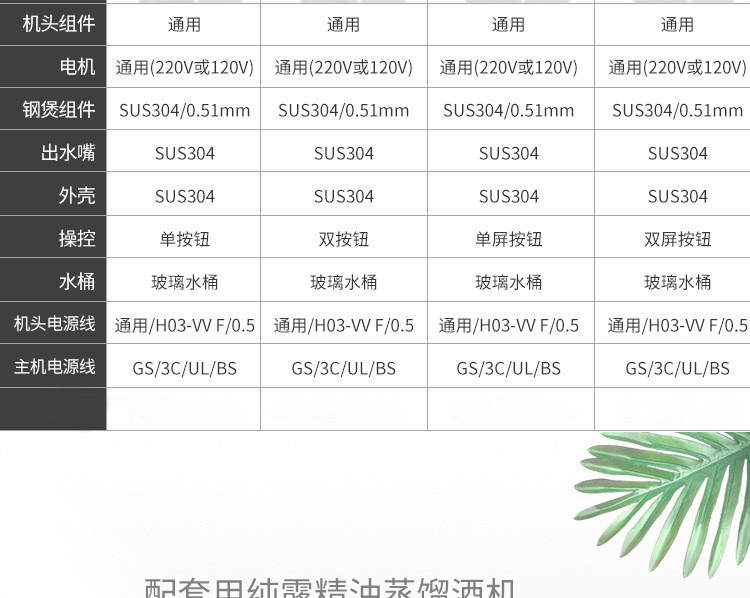

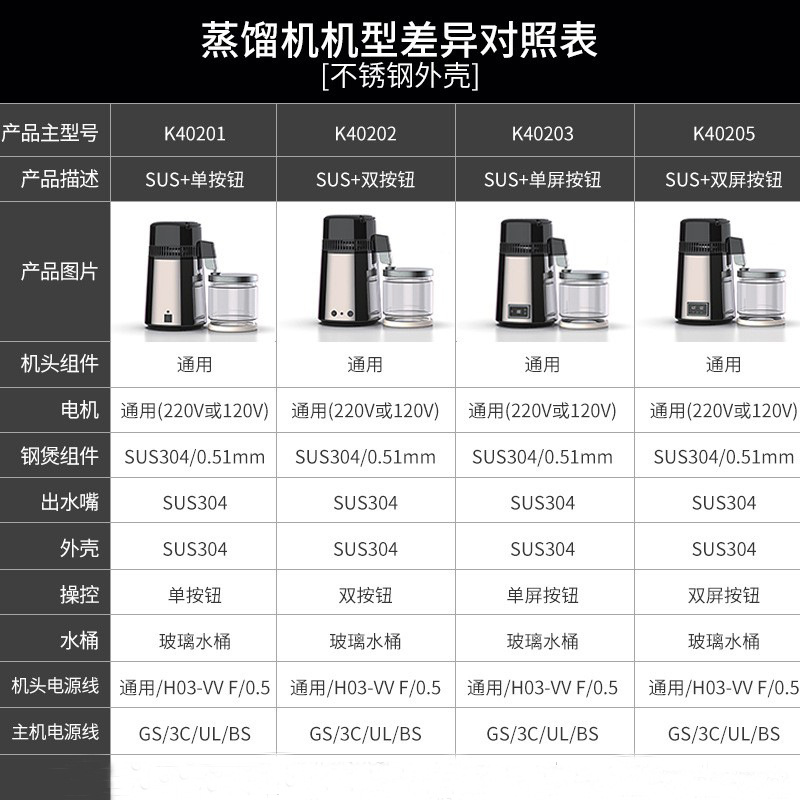

Motor: Universal (220V or 120V), Cookware components: SUS304/0.5mm, Water outlet nozzle: SUS304, SUS304 casing, Glass water tank
Main parameters:
Rated voltage: 220-240V
Rated frequency: 50–60Hz
Rated Power: 750W
Maximum Capacity: 4.0 L
Distillation rate: 1L/h

The packaging dimensions for both the 6L plastic kettle and the glass kettle are 325×310×520 mm, with weights of 5.7 KG and 7.3 KG respectively.

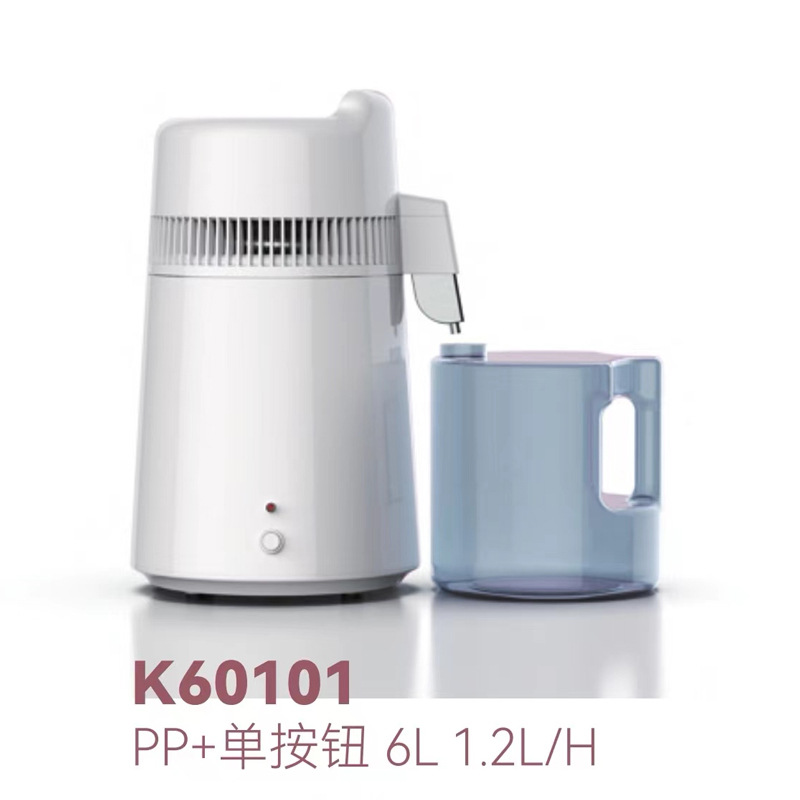

Rated voltage: 220–240 V Rated frequency: 50–60 Hz Rated power: 900 W Maximum capacity: 6.0 L Distillation rate: 1.2 L/h – product features
Advanced silent fan + dual-stage powerful condensation technology: intense steam cooling. ON/OFF switch: turn on or stop the condensation water generation at any time.
Dry Burn Prevention Function: When the water in the main unit's inner container runs out, the temperature control automatically activates protection and turns off the power. Rapid Water Production: 5 hours are sufficient to produce 6L of condensed water. Common Issues and Solutions ◆ No distilled water droplets coming out
a: The power socket for the main unit and the head unit is not properly connected; please check and reconnect it. b: The start button was not pressed (the red indicator light is not on). c: No water has been added to the inner casing of the main unit.
The amount of distilled water produced each time is insufficient.
a: The water in the internal container of the host has not reached the maximum water level mark.
b: The seal ring for the nose assembly is missing or not properly sealed; it needs to be checked, reinstalled, or replaced with a new one.
c: No water has been added to the internal container of the host.
d: The nosepiece water spout is installed improperly; it needs to be removed and reinstalled. The nosepiece component may shake during the boiling process or water may overflow.
a: The water in the main unit inner container exceeds the maximum water level mark.
b: The nose component is not installed properly in conjunction with the main unit. It needs to be removed and replaced on top of the main unit, and the placement should be checked manually.
c: The head component seal ring is not installed properly; it needs to be removed and reinstalled.
d: The water outlet nozzle has dirt and sediment buildup, which needs to be replaced or cleaned.
