Note: The sintering furnace (except for the 110V model without a vacuum pump; all other models come with a vacuum pump upon delivery).

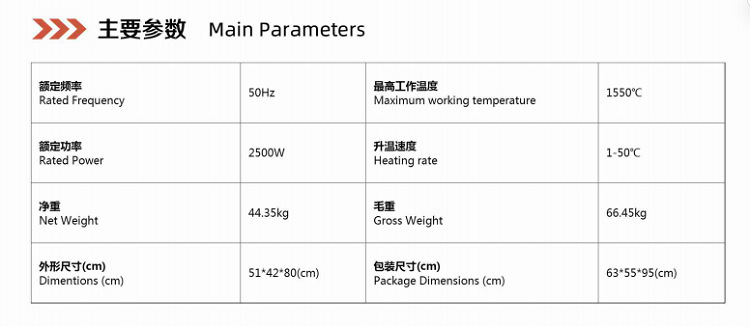

Vicce All-Round Sintering Furnace GT1 PRO, 66.5 kg, 63*55*95 (cm)

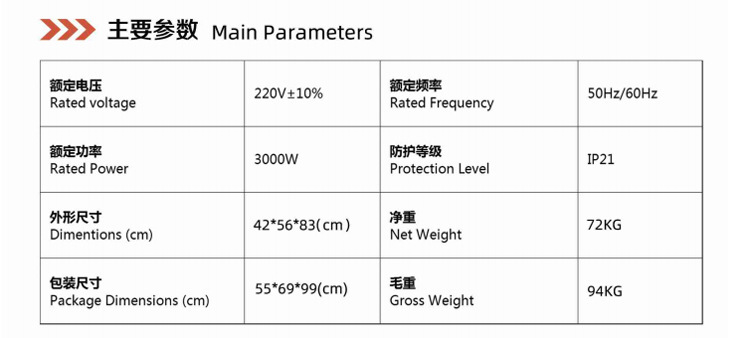

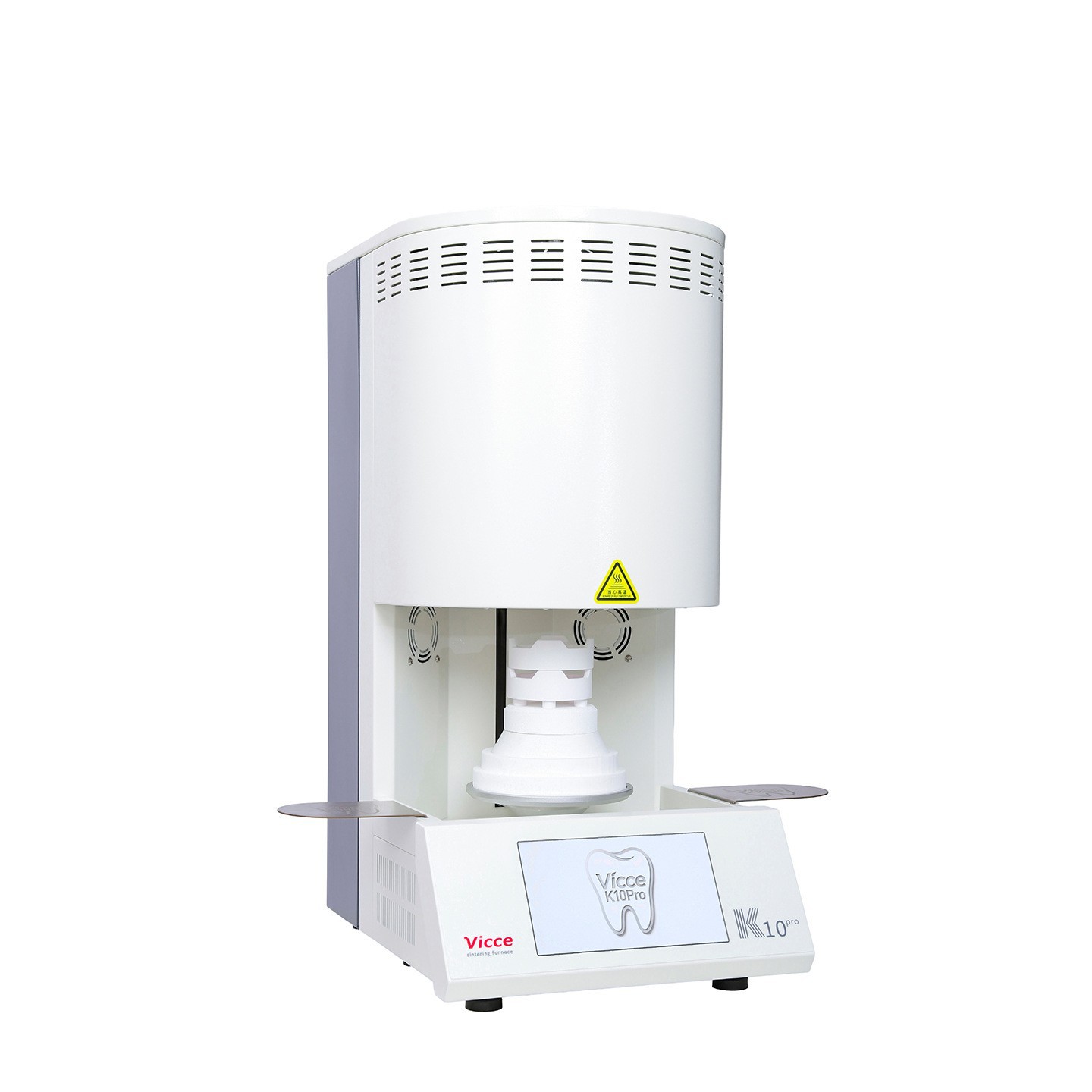

Vicce Rapid Sintering Furnace K10 Pro, 55*69*99(cm) – 94KG

The highest temperature of the porcelain baking oven is low, allowing for porcelain baking, glazing, and glass-ceramic crystallization, etc.

The sintering furnace has high temperature, and it is generally used only for crystallizing zirconia.

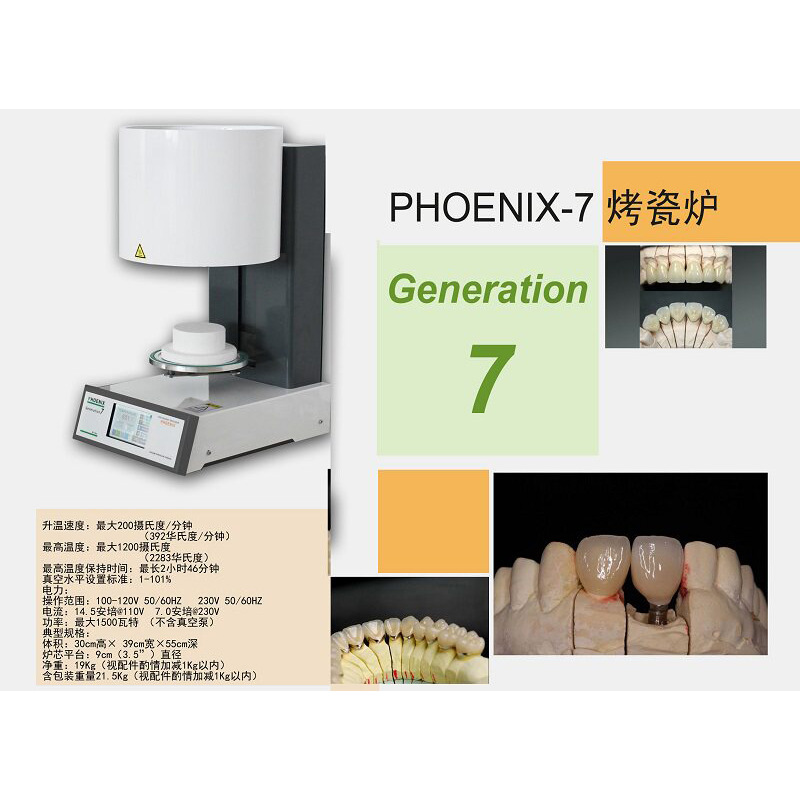

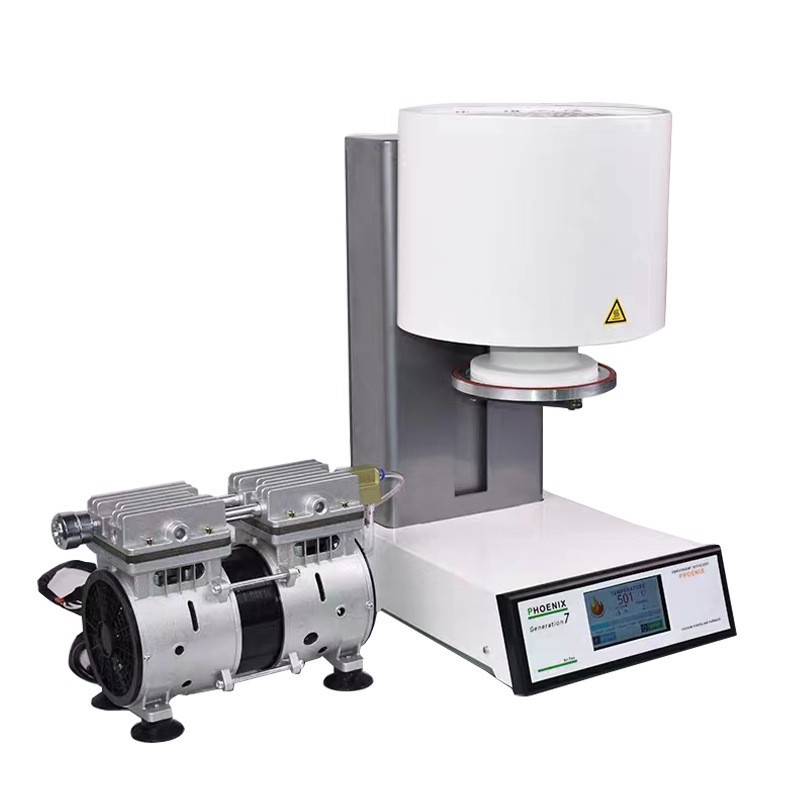

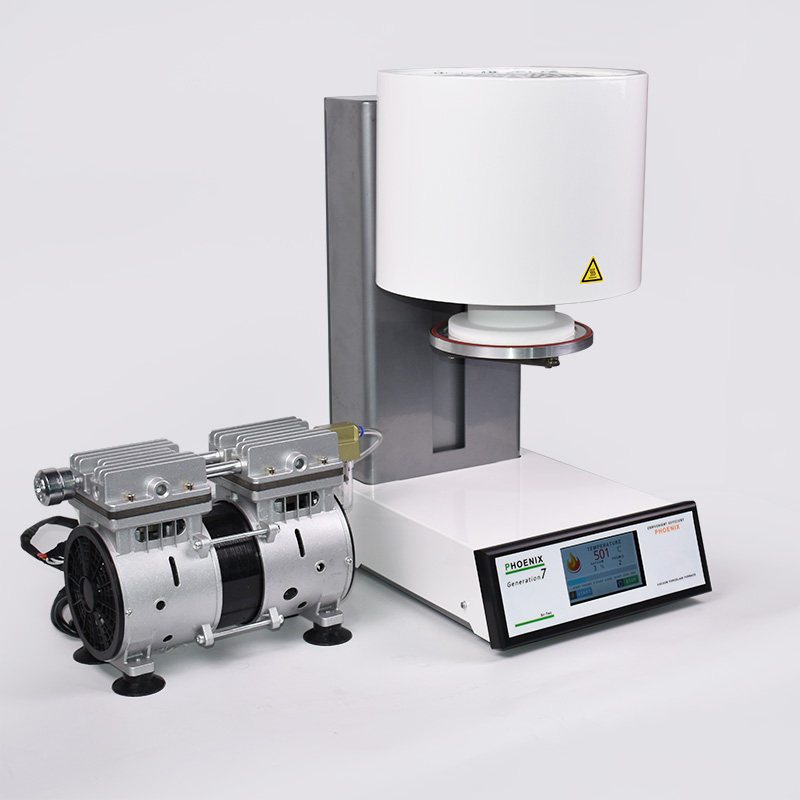

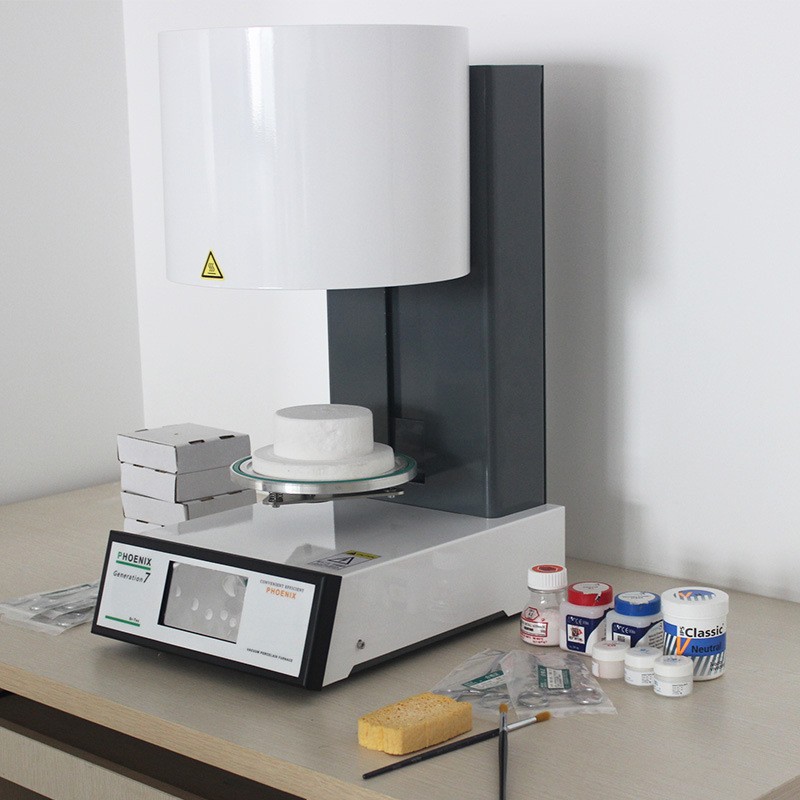

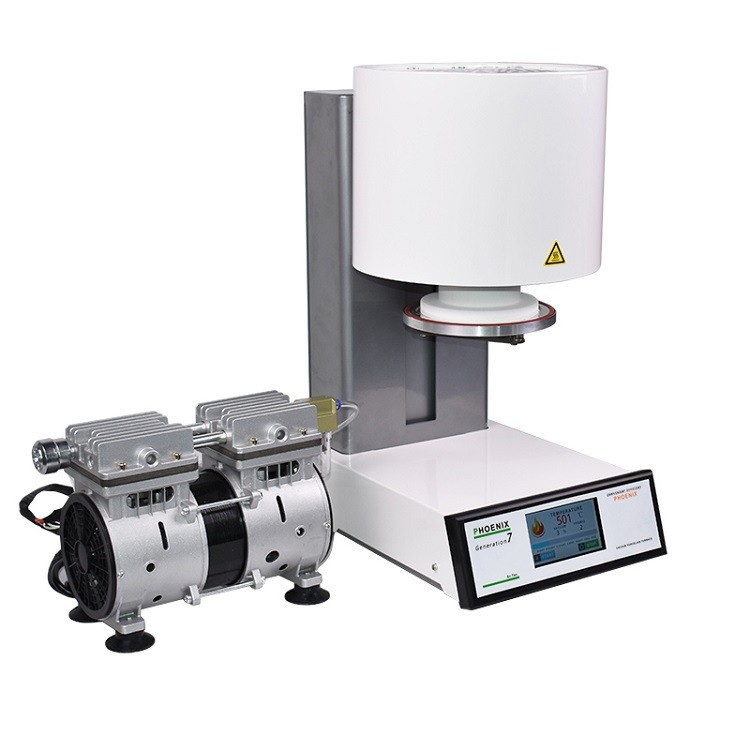

Porcelain furnace PHOENIX-7 can only be used for ordinary porcelain teeth; it cannot be used for zirconia.

1-year warranty

Operation: Temperature rise rate: up to 200 degrees Celsius per minute (392 degrees Fahrenheit per minute); Maximum temperature: up to 1200 degrees Celsius (2283 degrees Fahrenheit); Time to maintain maximum temperature: up to 2 hours and 46 minutes; Vacuum level setting standard: 1–101%; Power supply: Operating range: 100–120 V, 50/60 Hz; 230 V, 50/60 Hz; Current: 14.5 amperes at 110 V, 7.0 amperes at 230 V; Power: up to 1500 watts (excluding vacuum pump); Typical specifications: Volume: 27 m × 36 cm × 53 cm; Depth: 9 cm (3.5") diameter; Net weight: 20 Kg (adjustable by ±1 Kg depending on accessories); Weight including packaging: 23.5 Kg (adjustable by ±1 Kg depending on accessories); 2.3 Equipment list: • 1 main porcelain firing oven; • 1 firing base; • 1 power cord; • 1 operation manual; • 1 heating plate.

Features of the PHOENIX series porcelain oven: ● Hyperbolic baking function, allowing program settings for single-tone or hyperbolic modes; the hyperbolic mode provides a complete crystallization process for glass ceramics. ● Voice prompt function. ● High-quality automatic temperature adjustment function, ensuring actual temperature error within +/-1°. ● Powered by precision stepper motor, offering smooth operation and no vibration. ● Quartz spiral furnace. ● Automatic temperature calibration before each baking program. ● Low-noise tray with programmable speed. ● True-color touch screen, easy to operate. ● 90 custom programs and built-in programs. ● Status indication.

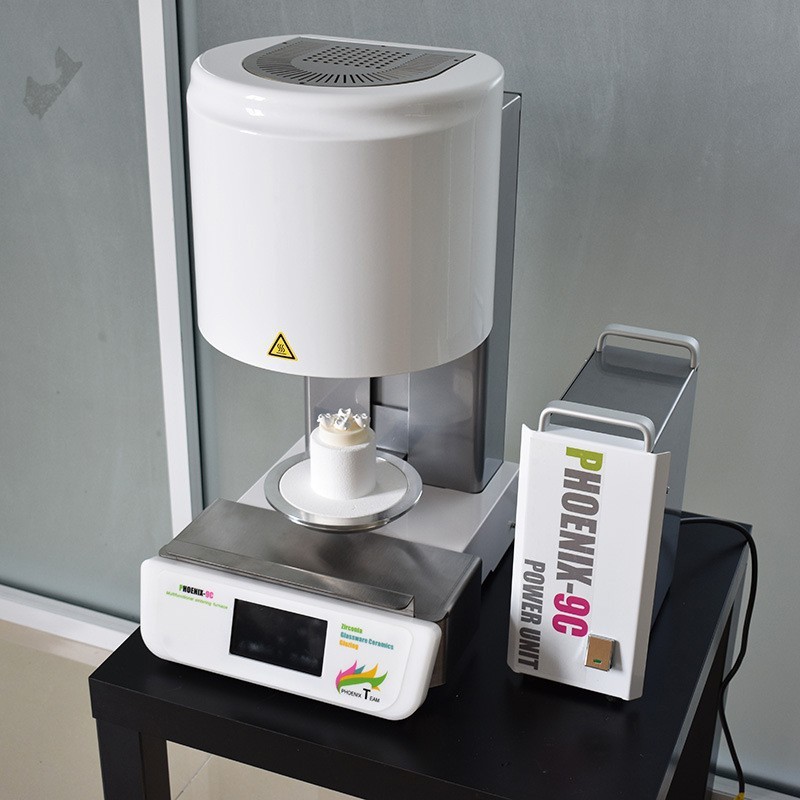

Sinter furnace PHOENIX-9C, used for zirconia production. The 110V version per US standard is not compatible with a transformer and can be used directly; the 220V version per European standard requires a transformer for use. The 9C model supports rapid sintering, with the fastest sintering time being 40–60 minutes. One cycle of rapid sintering can produce one sintering tray containing 10–20 teeth, and it does not crack during rapid sintering. For slow sintering, it takes 5–7 hours, and one cycle can produce two sintering trays with 20–40 teeth.

Functional features of the PHOENIX series crystallization furnace: ● High-quality automatic temperature adjustment function, ensuring actual temperature error within +/-1.5°. ● Easy to operate and compact in size; one of the smallest crystal furnaces in the world currently. ● Driven by precision stepper motors for smooth operation and no vibration. ● High-purity silicon carbide/silicon molybdenum rods as heating elements. ● Hyperbolic sintering system with automatic temperature calibration before each firing procedure. ● Noisy-free tray with programmable speed. ● Rapid sintering of fully anodized zirconia. ● Pre-drying time can be set. ● Maximum temperature can be adjusted up to 1630 degrees Celsius. ● Quick glazing completed in 9 minutes. ● Maximum temperature rise rate of 200 degrees per minute. ● Ready-to-use without pre-heating required. ● Automatic rapid cooling technology. ● Capable of sintering up to 4–10 restorations (on a 60mm tray). ● True-color touch screen for easy operation. ● 90 custom programs and built-in programs. ● Status indication.

1-year warranty

Operation: Temperature rise rate: up to 200 degrees Celsius per minute; Maximum temperature: up to 1530 degrees Celsius; Time to maintain maximum temperature: up to 2 hours and 46 minutes; Power supply: Operating voltage range: 100–120V, 50/60Hz; Current: 14.5 amperes at 110V, 7.0 amperes at 230V; Power: up to 1300 watts; Typical specifications: Dimensions: W×XL×H: 27×36×56 cm and 29×22×13.5 cm; Furnace core platform: diameter of 6.5 cm; Net weight: 20 Kg (adjustable by ±1 Kg depending on accessories); Weight including packaging: 25.5 Kg (adjustable by ±1 Kg depending on accessories); 2.3 Equipment list: • 1 main crystallization furnace unit • 1 firing base • 1 power cord • 1 operation manual • 1 power unit • 1 cooling rack

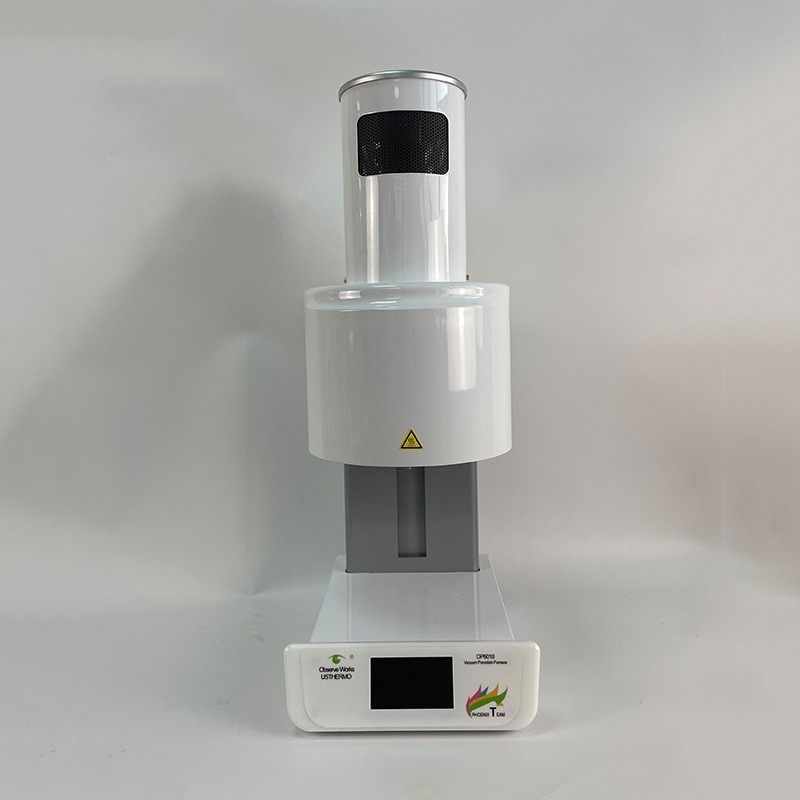

Micro Vacuum Porcelain Kiln USTHERMO-SP8II

1-year warranty
Power:
Operating range: 100-120V, 50/60Hz, 230V, 50/60Hz
Current: 14.5 amperes @ 110 V, 7.0 amperes @ 230 V
Power: up to 1500 watts (including vacuum pump)
Typical Specifications:
Volume: 18 m in height × 25 cm in width × 38.5 cm
Deep furnace core platform: 7*7 cm side length
Net weight: 12 Kg (adjust by up to 1 Kg depending on accessories)
Weight including packaging: 13 Kg (can be adjusted by up to 1 Kg depending on accessories)

Operations:
Temperature rise rate: up to 100 degrees Celsius per minute
(212 degrees Fahrenheit per minute)
Maximum temperature: up to 1100 degrees Celsius
(2012 Fahrenheit)
Maximum temperature retention time: up to 2 hours and 46 minutes
Vacuum level setting standard: 1-101%

2.3 Equipment List: • 1 ceramic oven unit
• 1 spare wrench for the furnace door
• 1 power cord
• 1 operation manual
• 1 burner

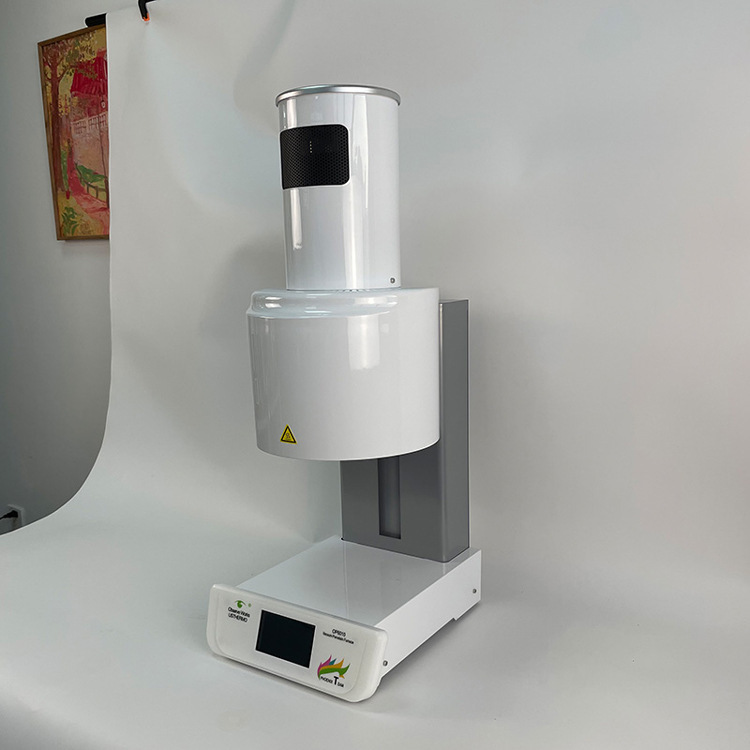

Porcelain Kiln OP6010A PLUS

1-year warranty
Specification Introduction:
Operation:
Temperature rise rate: up to 200 degrees Celsius per minute
(392 degrees Fahrenheit per minute)
Maximum temperature: up to 1200 degrees Celsius
(2,283 degrees Fahrenheit)
Maximum temperature retention time: up to 2 hours and 46 minutes
Vacuum level setting standard: 1 - 101%
Power:
Operating range: 100–120V, 50/60Hz, 230V, 50/60Hz
Current: 14.5 amperes @ 110 V, 7.0 amperes @ 230 V
Power: up to 1500 watts (excluding vacuum pump)
Typical Specifications:
Volume: 27 m in height × 36 cm in width × 70 cm in depth
Furnace core platform: diameter of 9cm (3.5”)
Net weight: 23 Kg (adjust by up to 1 Kg depending on accessories)
Weight including packaging: 26.5 Kg (adjust by up to 1 Kg depending on accessories)

Functional features:
● Motor-driven die casting mode; no air source required, constant pressure, adjustable speed, and high die casting efficiency.
● Fully compatible with the porcelainceramic oven function; it can automatically switch to porcelainceramic mode or cast porcelain oven mode based on the selected program.
● Voice prompt function.
● A high-quality automatic temperature adjustment function ensures that the actual temperature error is within +/-1°.
● Driven by a precision stepper motor, ensuring smooth operation and no jitter.
● Quartz spiral furnace.
● Automatic temperature calibration is performed before each calcination procedure.
● The tray is low-noise, and the speed can be programmed.
● True color touch screen, easy and straightforward to use.
●50 custom programs and built-in programs.
● The die casting force is adjustable, and the die casting distance is displayed in real time.
● Ring fracture detection function.
●Status indication.

Equipment List:
• 1 main unit of ceramic casting furnace
• 1 calcination base
• 1 power cord
• 1 operation manual
• 1 pair of pliers
• 2 die-cast rods
• 1 embedded ring, 100g
• 1 cooling stand
