Complete product information for the non-welding connectors for both SMD/COB LED strips (suitable for wiring support with KT1 124 mirror controller)
1. Differentiation and packaging specifications of two products 📦
1. Solderless intermediate connection (no lead wire)
- Adaptation scenario: extending and splicing the middle section of the LED strip by connecting the ends of two cut-off segments together; no external cables are required.
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Packing specifications: 2,000 pcs per whole box, with small packaging size of 100 pcs per small package

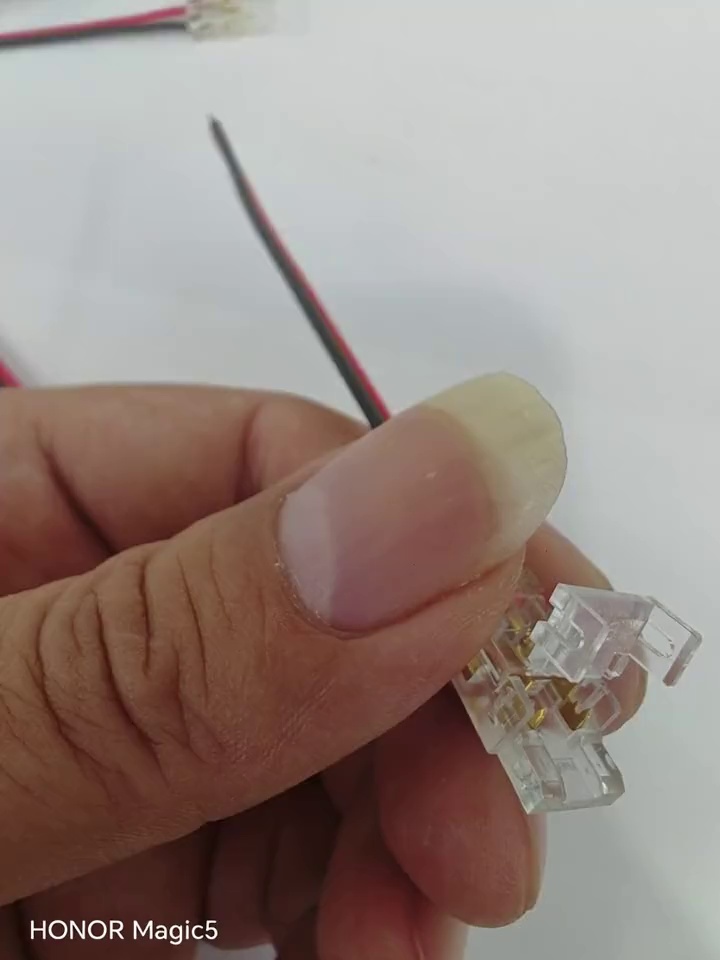

2. Solderless connection (includes red and black wiring, similar to the actual photographed model with leads)
- Adaptation scenarios: Connect to the controller at the end of the LED strip, and to the power supply; includes red and black positive and negative leads for proper wiring connection.
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Packing specifications: 1,000 pcs per full box, with small packaging size of 1,000 pcs per small package
2. General Product Basic Parameters ✨
1. Enclosure: Transparent flame-retardant PC crystal enclosure with excellent hardness and high temperature resistance. It allows direct visualization of the internal fastener engagement status, facilitating the diagnosis of wiring faults.
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Built-in terminals: Gold-plated metal contact pads with excellent anti-oxidation properties, suitable for humid bathroom environments, and reduce the likelihood of poor contact or flickering lights due to long-term use
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Compatible product categories: SMD surface-mount LED strips and COB high-density LED strips, two major mainstream LED strip categories; suitable for conventional 8mm board width LED strips, and compatible with 12V DC voltage output by KT1214 controllers
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Installation features: The snap-fit design eliminates the need for welding, eliminating the requirement for a soldering iron or solder. After cutting the light strip, simply snap it in to complete the wiring, making installation easy.
