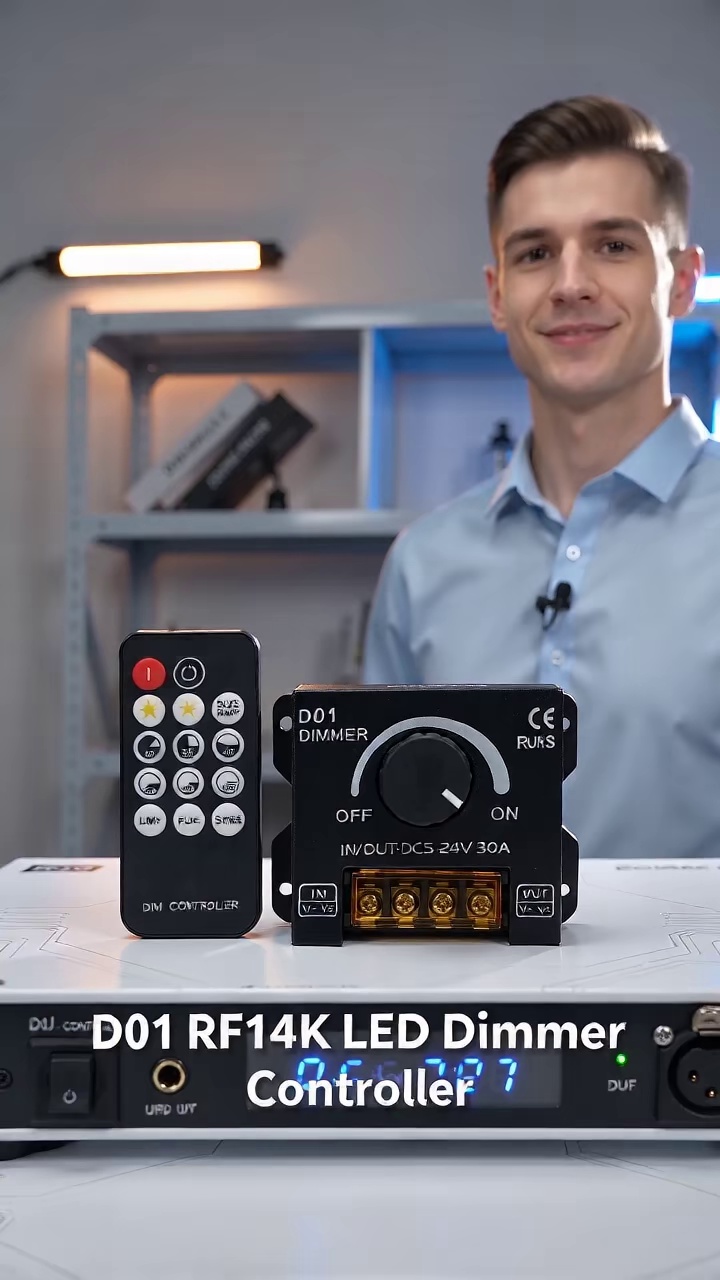

D01 Knob + RF Wireless Remote LED Dimming Controller – Complete Product Details in Chinese
1. Core basic parameters
1. Model: D01 (RF14K wireless remote-controlled DIMMER)
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Working voltage: DC 5V–24V wide-voltage universal
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Maximum load current: 30A, suitable for high-power long LED strips and advertising light boxes
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Dual control mode: physical knob adjustment on the device + 14-key wireless RF remote control
<t_XXXXXXXXX> <t_XXXXXXXXX>
5. Certification standards: CE, RoHS environmental protection certification
2. Product hardware structure
1. Host: Black metal casing, without a dimming knob in the middle, marked with positions from OFF to ON; left and right have IN power input and OUT light output brass terminal blocks, with clear positive and negative indicators, and the wiring is secure and unlikely to heat up.
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Features of the 14-key RF remote control:
– Turn power on/off;
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Segmented brightness: 10%/20%/40%/60%/80%/100% – six fixed levels;
<t_XXXXXXXXX> <t_XXXXXXXXX>
– 60-second timed delay to turn off the light;
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Dynamic lighting modes: JUMP transitions, FADE gradients, STROBE flashes.
III. Core Product Advantages
1. Dual control: on-site adjustment via the body knob, remote control from a distance, suitable for fixed installation scenarios.
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. High-power capacity of 30A: Supports large-area LED light strips, door signage, and ambient lighting for cabinets and entire rooms, with no flow pressure drop limitation.
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Wide voltage compatibility of 5–24V: Suitable for general low-voltage LED lighting, 5V display strips, and 12V/24V home lighting strips.
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Multiple dynamic lighting effects: three dynamic modes—gradient, flicker, and flash—to enhance lighting displays.
<t_XXXXXXXXX> <t_XXXXXXXXX>
5. Brass large terminal block: It has strong electrical conductivity, can handle high currents without overheating, and reduces the risk of circuit failures.
<t_XXXXXXXXX> <t_XXXXXXXXX>
6. RF remote control has no obstruction or limitation; the lighting can be controlled even through cabinets and walls.
4. Standard Wiring Usage Instructions
1. Power connection: The positive and negative terminals of the DC power supply should be connected to the V+ and V- terminals in the IN area of the host;
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Load on the LED strip: Connect the positive and negative terminals of the LED monochrome strip to the V+ and V- terminals in the OUT area of the host device;
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Two control methods are available after power on:
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Manual: Rotate the body knob to achieve a seamless adjustment from zero brightness to full brightness;
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Remote control: The remote button switches the brightness, dynamic mode, and timer for turning off the light.
5. Applicable Scenarios
Advertising with glowing text, low-voltage light strips for kitchen cabinets/wardrobes/tv cabinets throughout the house, light boxes, display case decorations, device indicator strips, single-color ambient lighting for indoor spaces
