Complete Product Analysis: Touch Panel Dual Temperature Segmented Dimming Controller
1. Core hardware specifications (black drive unit)
1. Model Features: CCT SEGMENTED DIM – Dual color temperature segmented dimming driver
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Working voltage: DC 12V–24V, wide voltage compatibility
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Rated current: 10A; sufficient load power, suitable for large-area dual color temperature LED strips
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Wiring Definition
<t_XXXXXXXXX> <t_XXXXXXXXX>
- INPUT: V+ positive terminal, V- negative terminal, connected to a DC switching power supply
<t_XXXXXXXXX> <t_XXXXXXXXX>
- OUTPUT: Dual-output, CW (cold white light), WW (warm white light), two V+, compatible with dual color temperature 2-wire COB/LED strip lights
<t_XXXXXXXXX> <t_XXXXXXXXX>
5. Certification: CE, RoHS environmental and safety certification
2. Function of the white touch wall panel control panel
Panel section button functions:
1. Top 4 keys
<t_XXXXXXXXX> <t_XXXXXXXXX>
- Cold white single-color key, warm white single-color key, dynamic mode switch key, main power on/off key
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Large circular touch ring in the middle: Slide to adjust color temperature, with a seamless gradient between warm and cool light
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Bottom 4 keys
<t_XXXXXXXXX> <t_XXXXXXXXX>
- BRIGHT+ Brightness increase / BRIGHT- Brightness decrease
<t_XXXXXXXXX> <t_XXXXXXXXX>
- SPEED+ increases the dynamic lighting speed / SPEED- decreases the dynamic lighting speed
III. Overall Product Positioning

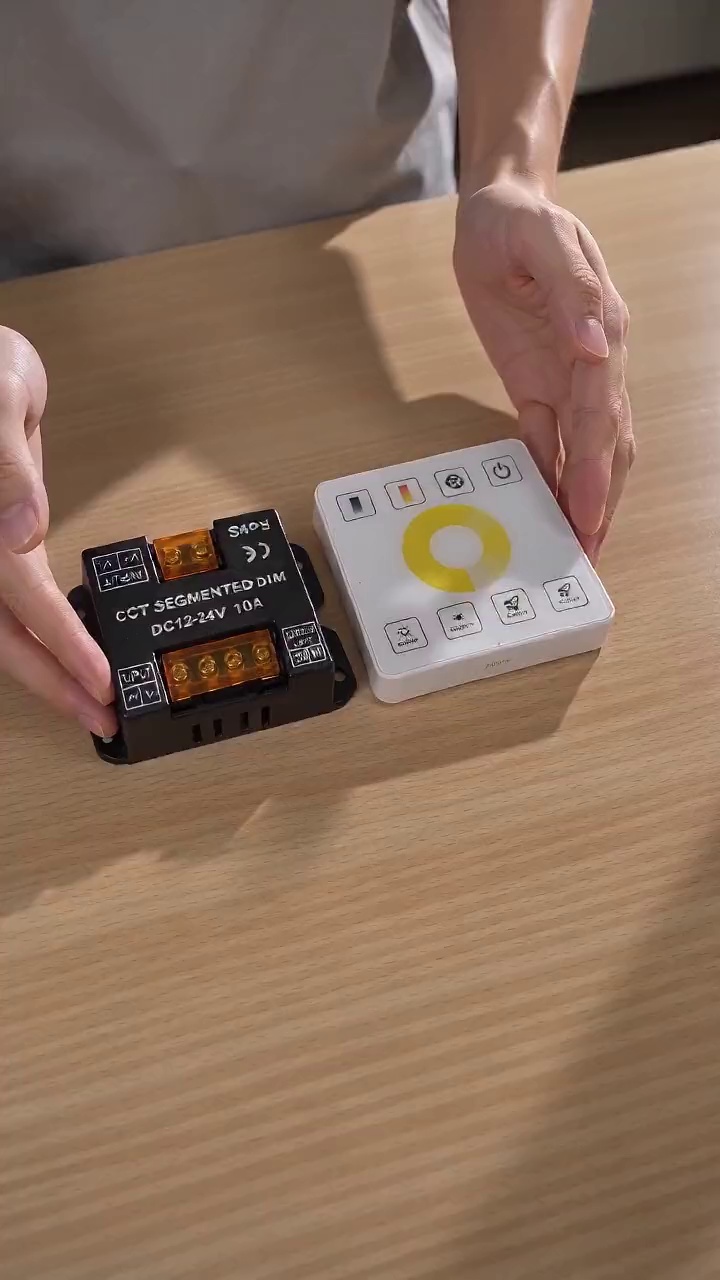

This is a touch panel split-type dual color temperature LED dimming kit, consisting of a metal wiring control unit + 86-type wall touch remote controller, designed specifically to operate CW/WW dual color temperature LED strip lights.
Core Features
1. Continuous color temperature adjustment: Smooth transition from cool white light to warm white light, suitable for adapting to home ambiance preferences
<t_XXXXXXXXX> <t_XXXXXXXXX>
2. Continuous brightness adjustment: freely increase or decrease the light intensity
<t_XXXXXXXXX> <t_XXXXXXXXX>
3. Dynamic flow moisture segmentation mode, with adjustable speed adjustment
<t_XXXXXXXXX> <t_XXXXXXXXX>
4. Wall touch control – no remote needed; embedded installation in home decor looks more elegant
<t_XXXXXXXXX> <t_XXXXXXXXX>
5. 1.2–2.4V general low-voltage, suitable for cabinet lights, wardrobe lights, ceiling linear lights, and suspended TV cabinet light strips
