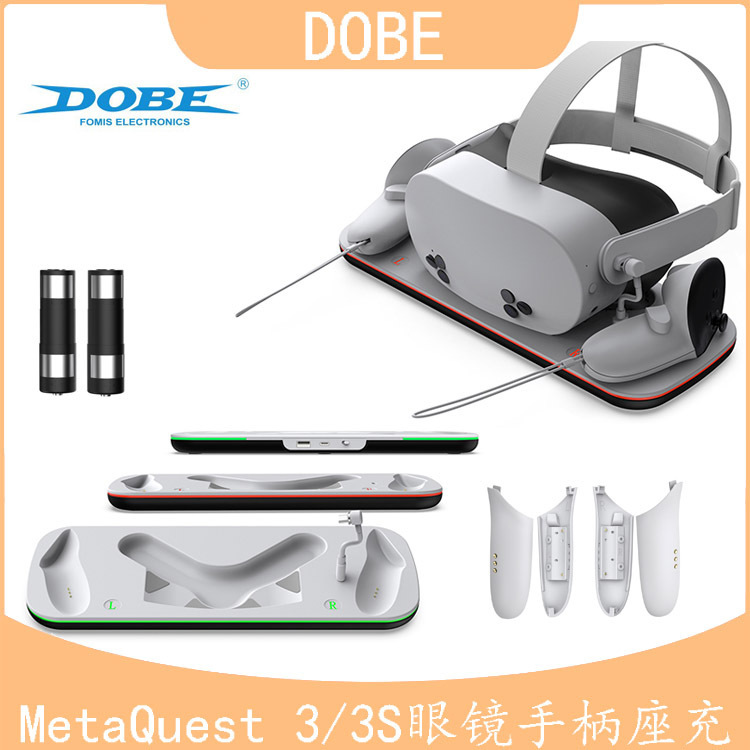

meta quest3svr helmet charging base meta quest3 handle contact type with led light bar fixed charger

Product Introduction

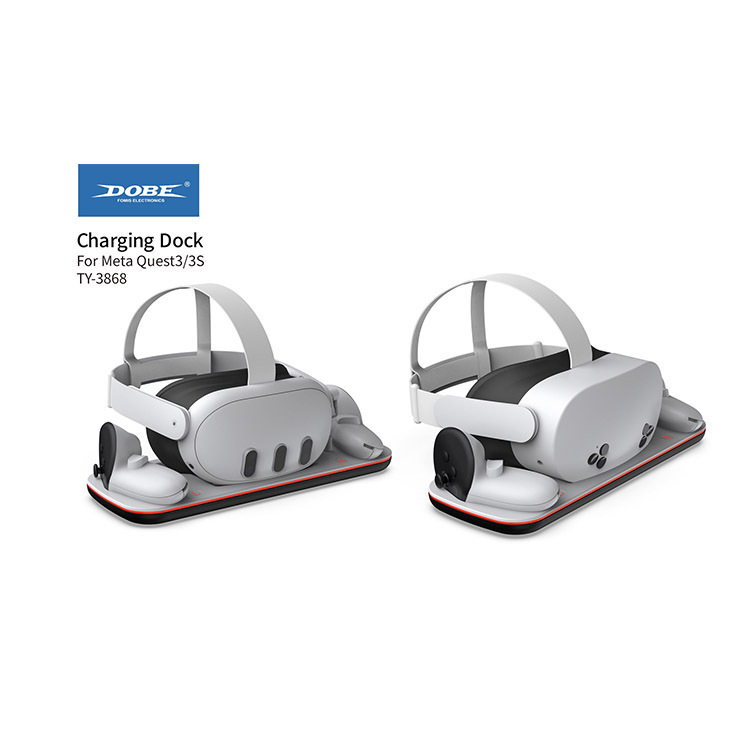

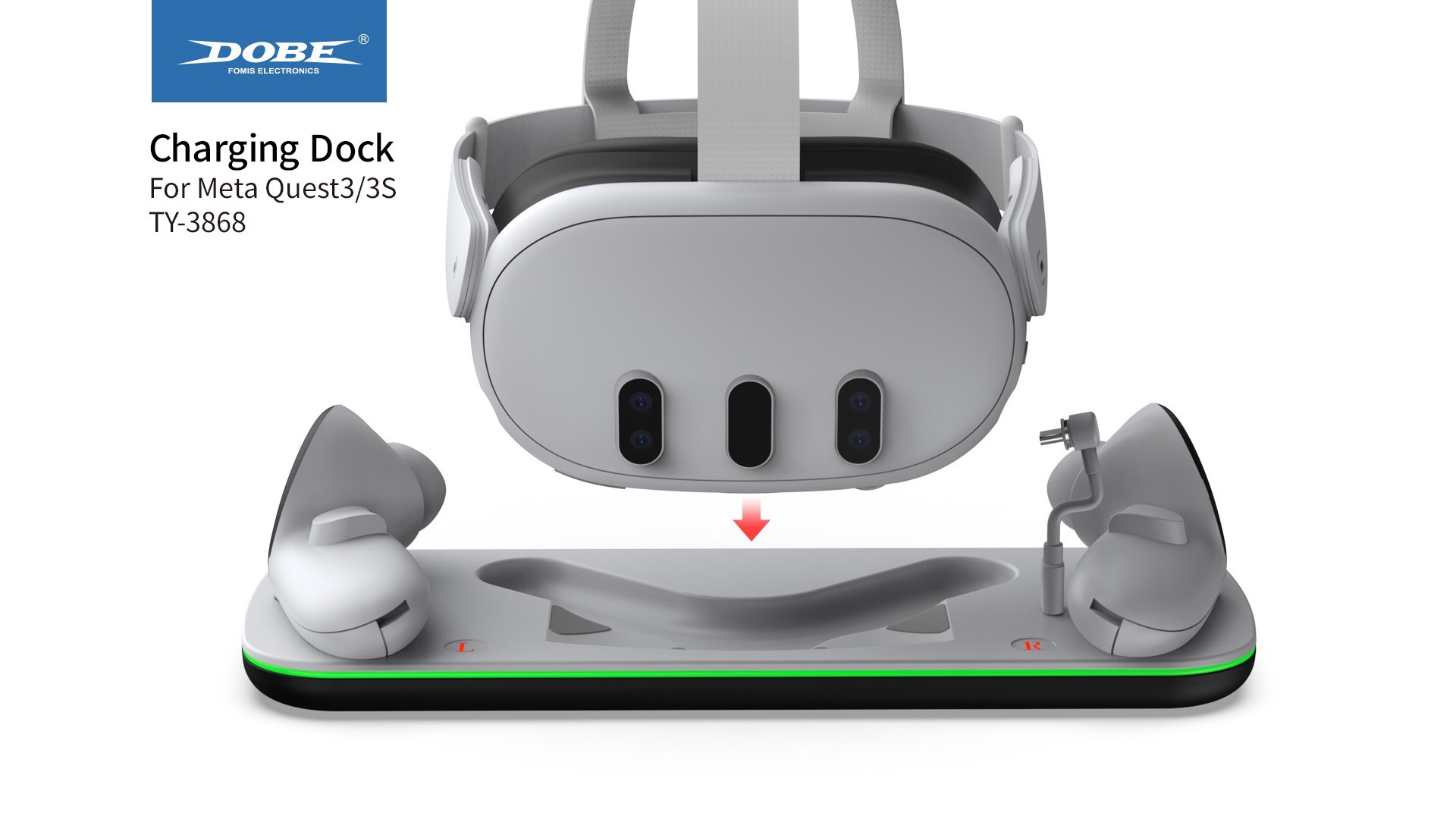

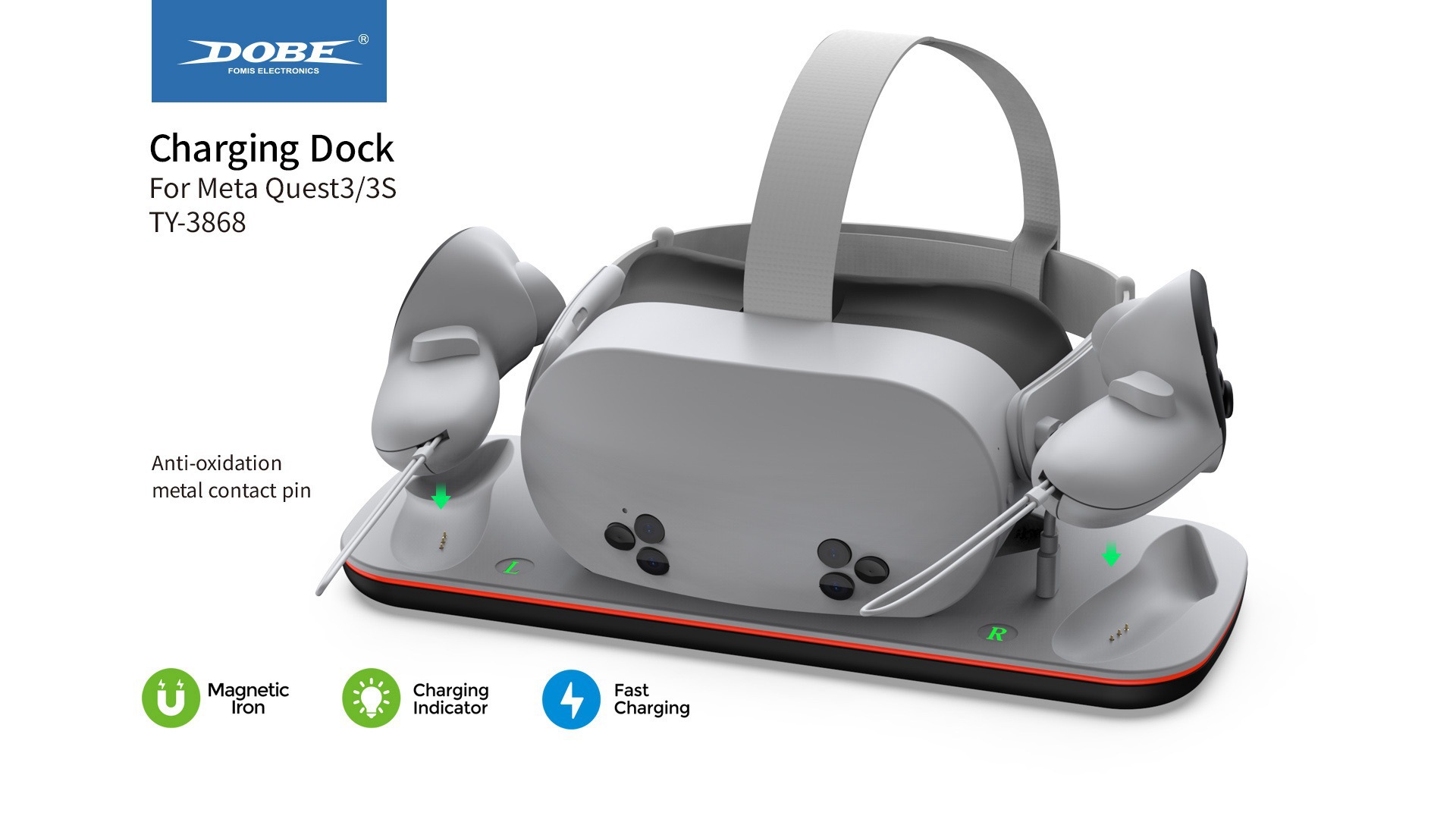

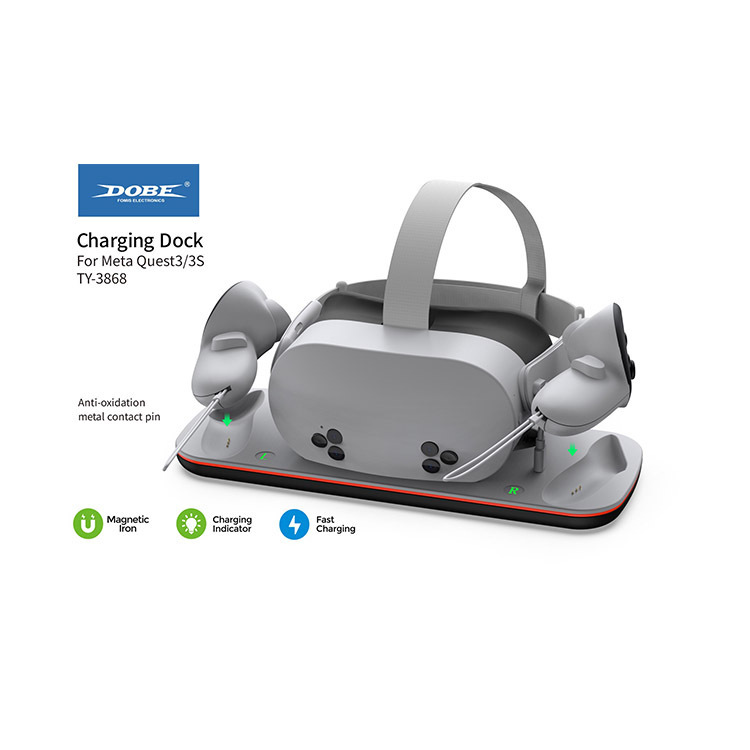

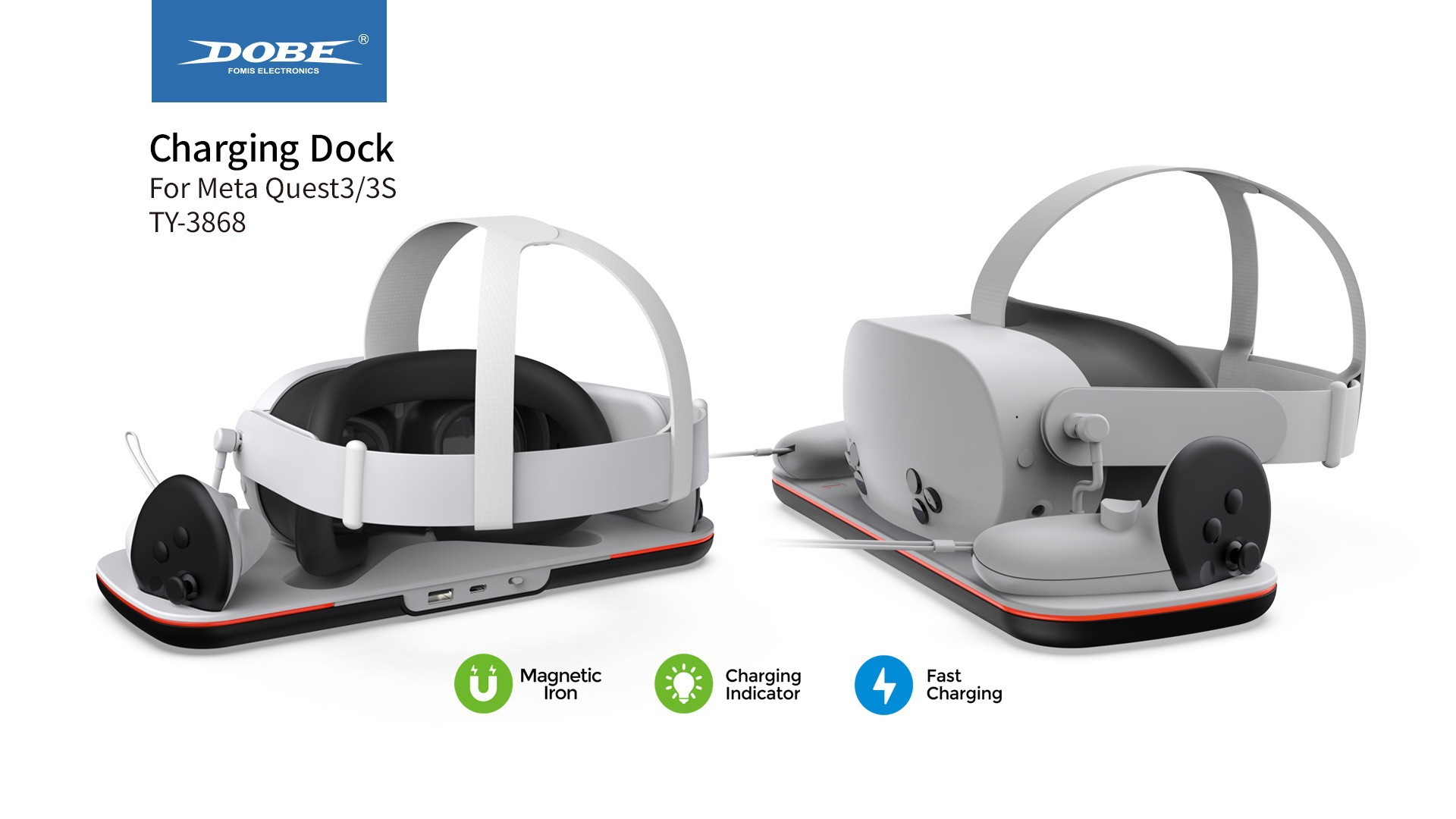

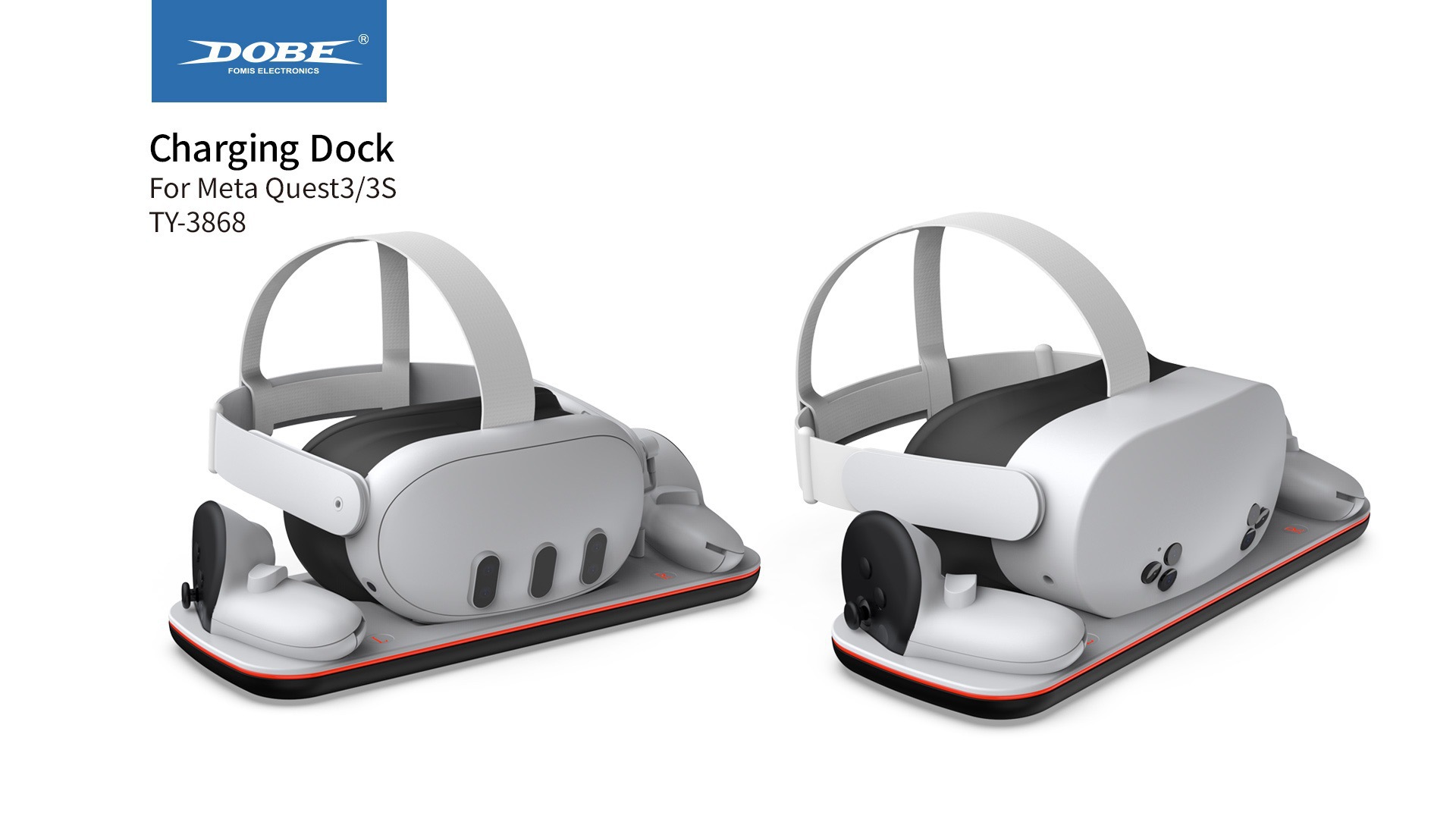

This product can be used as a charging dock for the Meta Quest3 S/Meta Quest3 headset design, combining the charging functions for the VR headset and left/right controllers. It features a high-precision microprocessing chip for controlling circuits. It supports fast charging via the original Ocuus3VR power source, and the independent charging status is indicated by different indicator lights. The product has a Type-C to Type-C connection for the original Oculus 3 power source or standard PD (TYPE-C port) power source as the power input, and it provides a USB (5V 1A) charging output interface.

Product specifications

1. Input: Type-C PD 5V 3A (original power supply) or Type-C standard PD 12V 2A

2. VR Headset Charging Current: 2.8A

3. VR helmet charging time: Approximately 3 hours (original power source)

4. VR controller charging current: 350mA x2

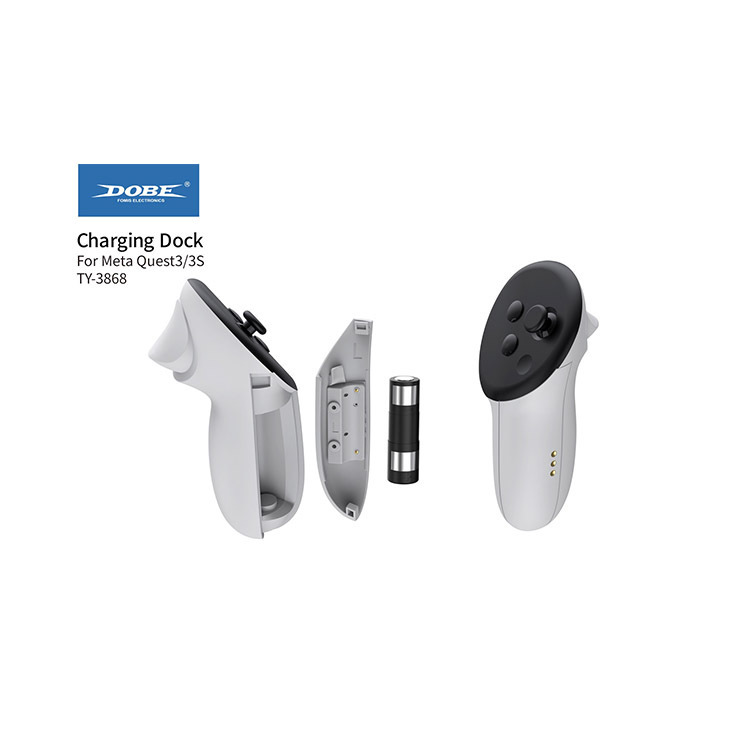

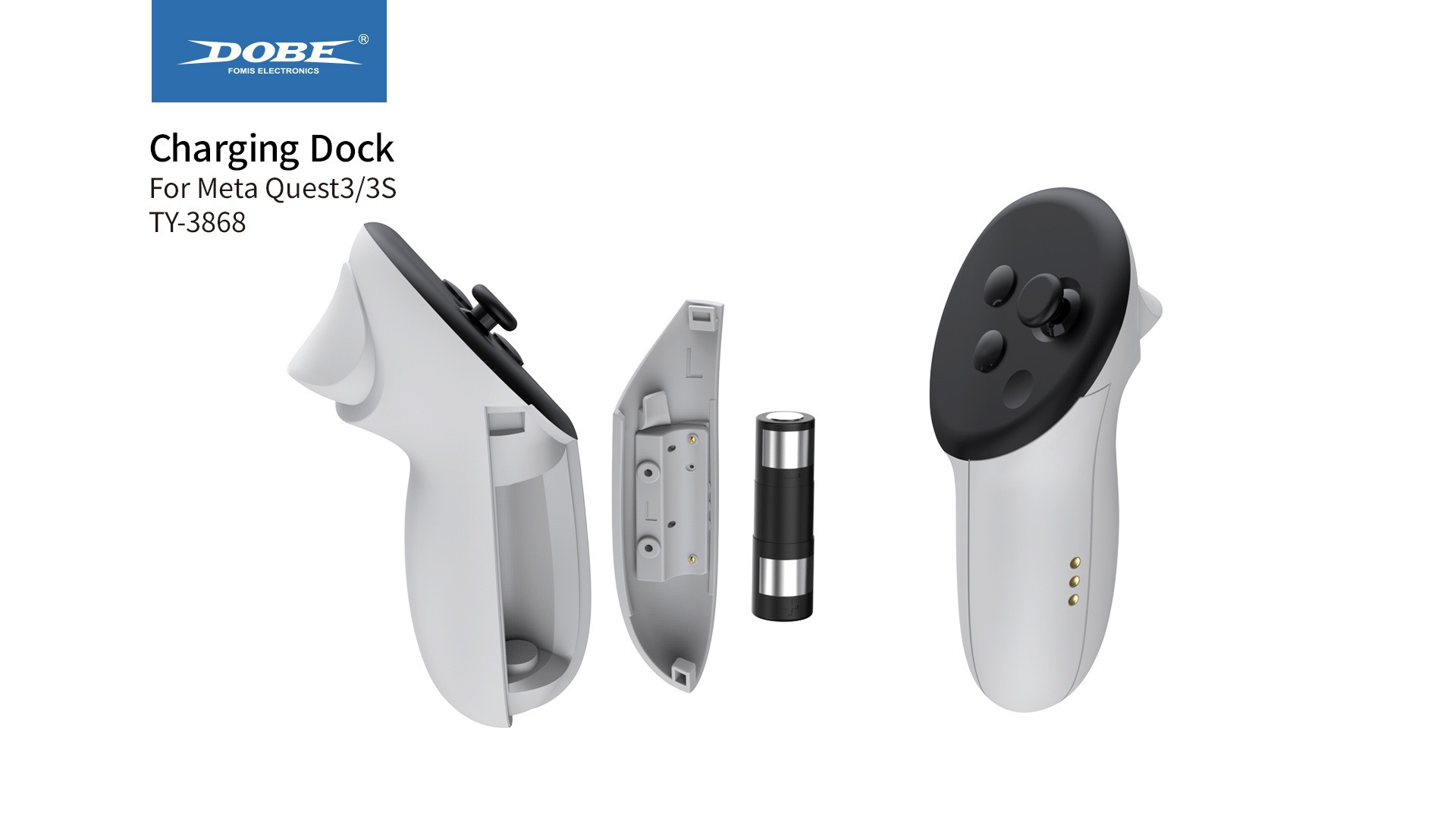

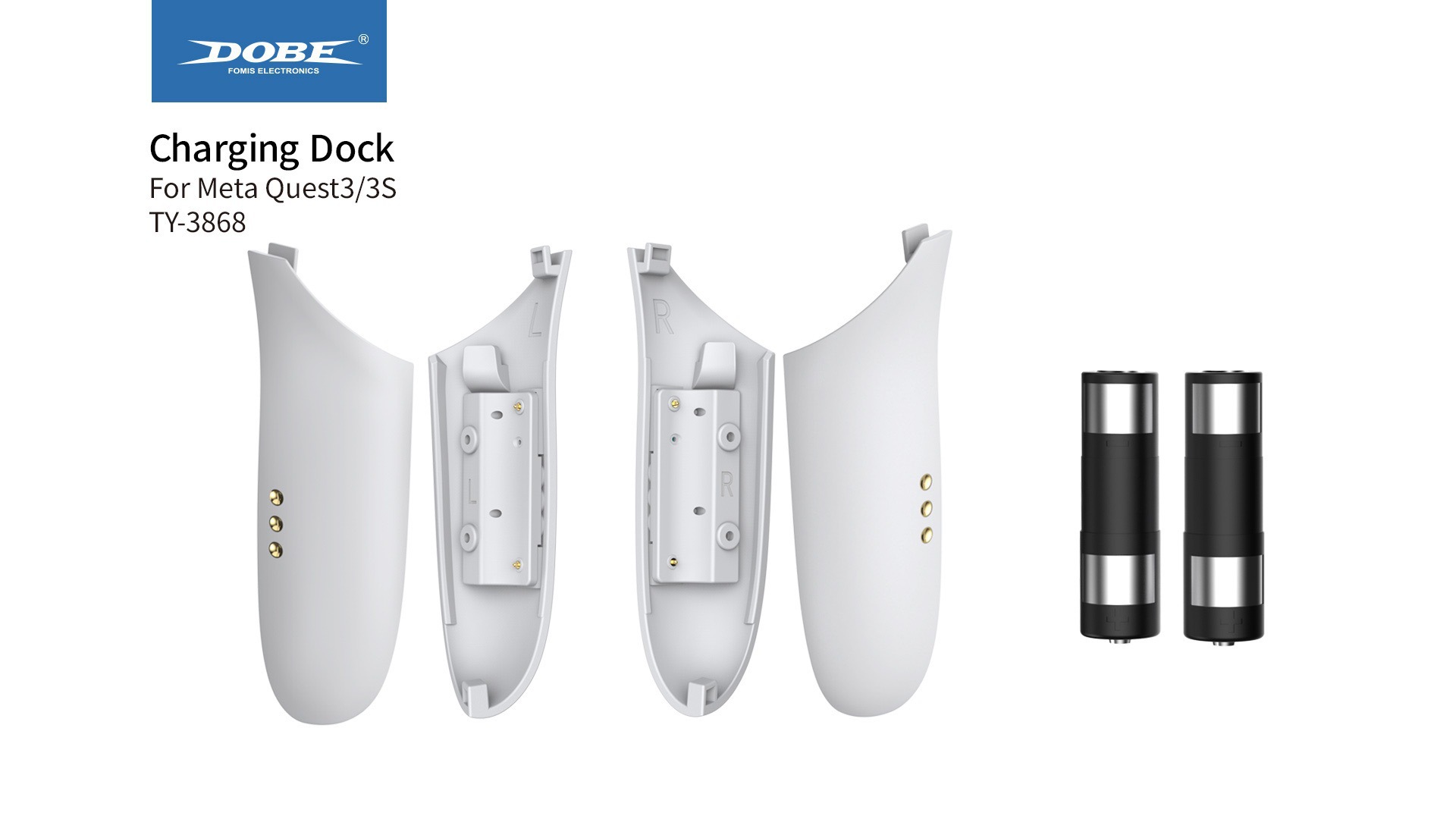

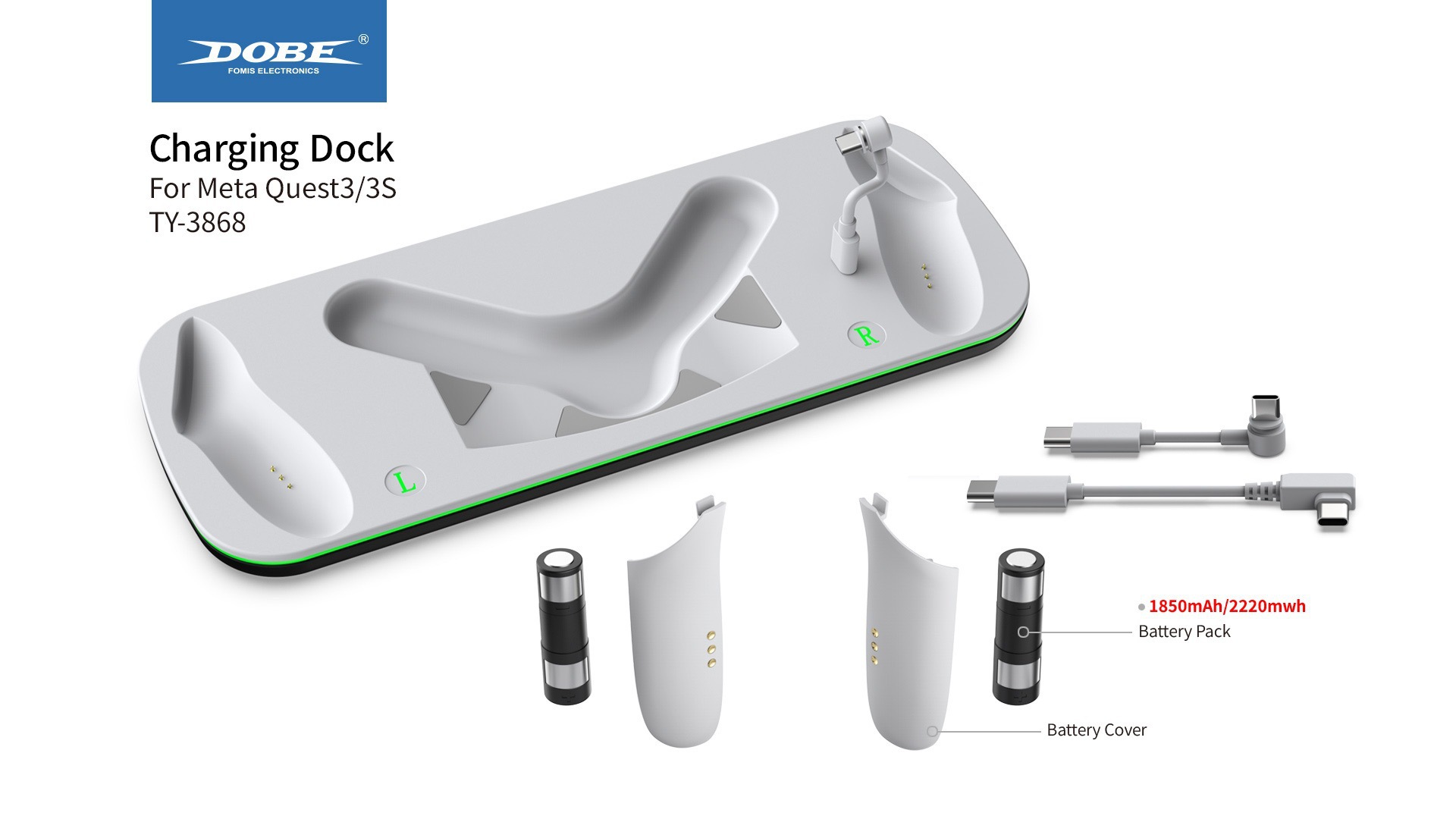

5. VR controller charging time: Approximately 5–6 hours (with a 1.2V 1850 mAh battery)

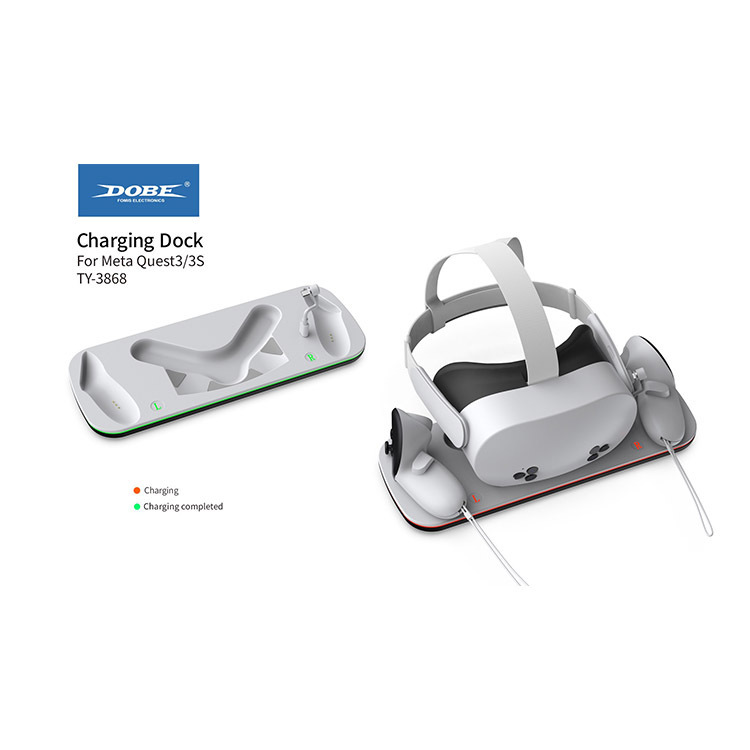

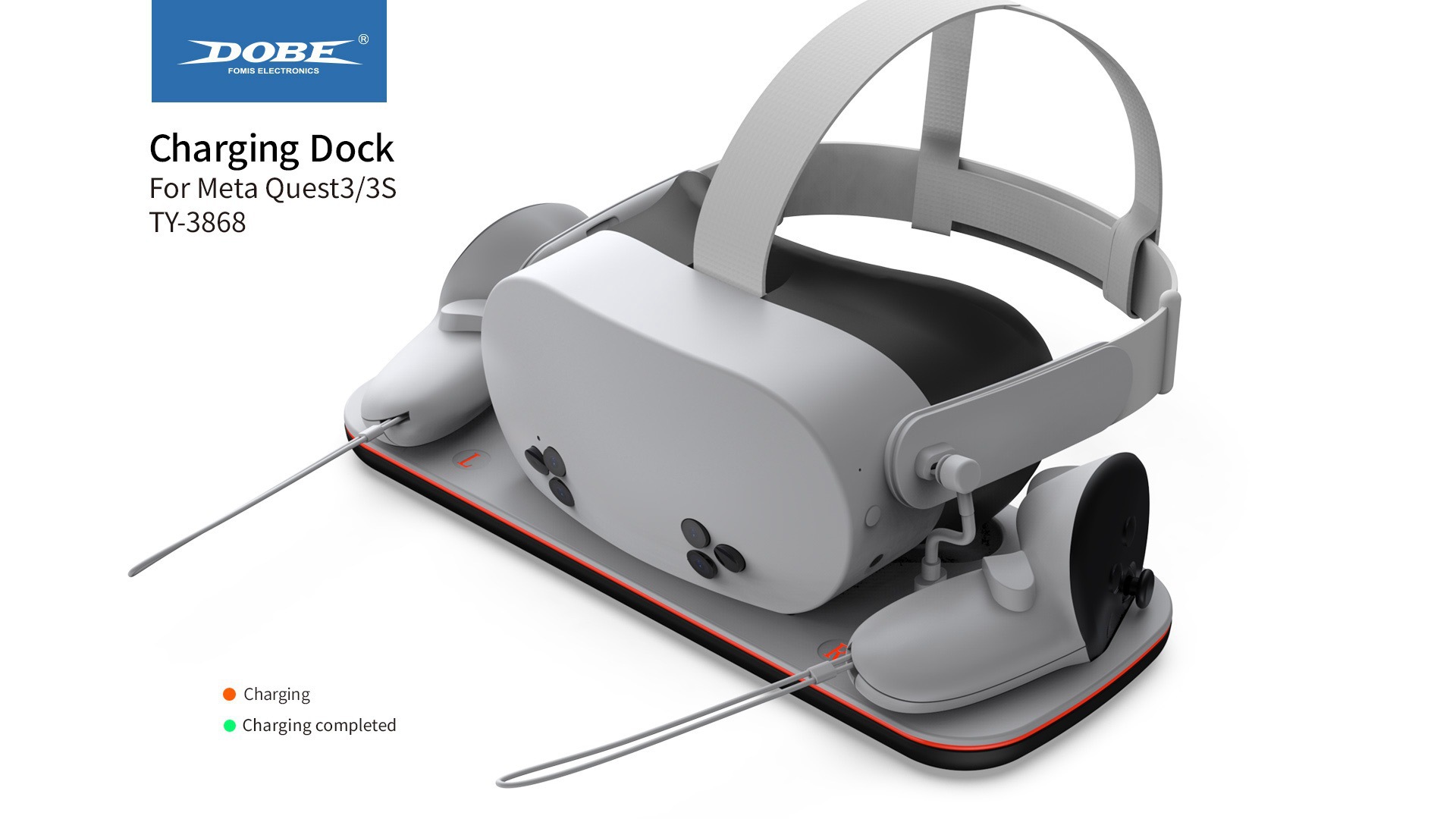

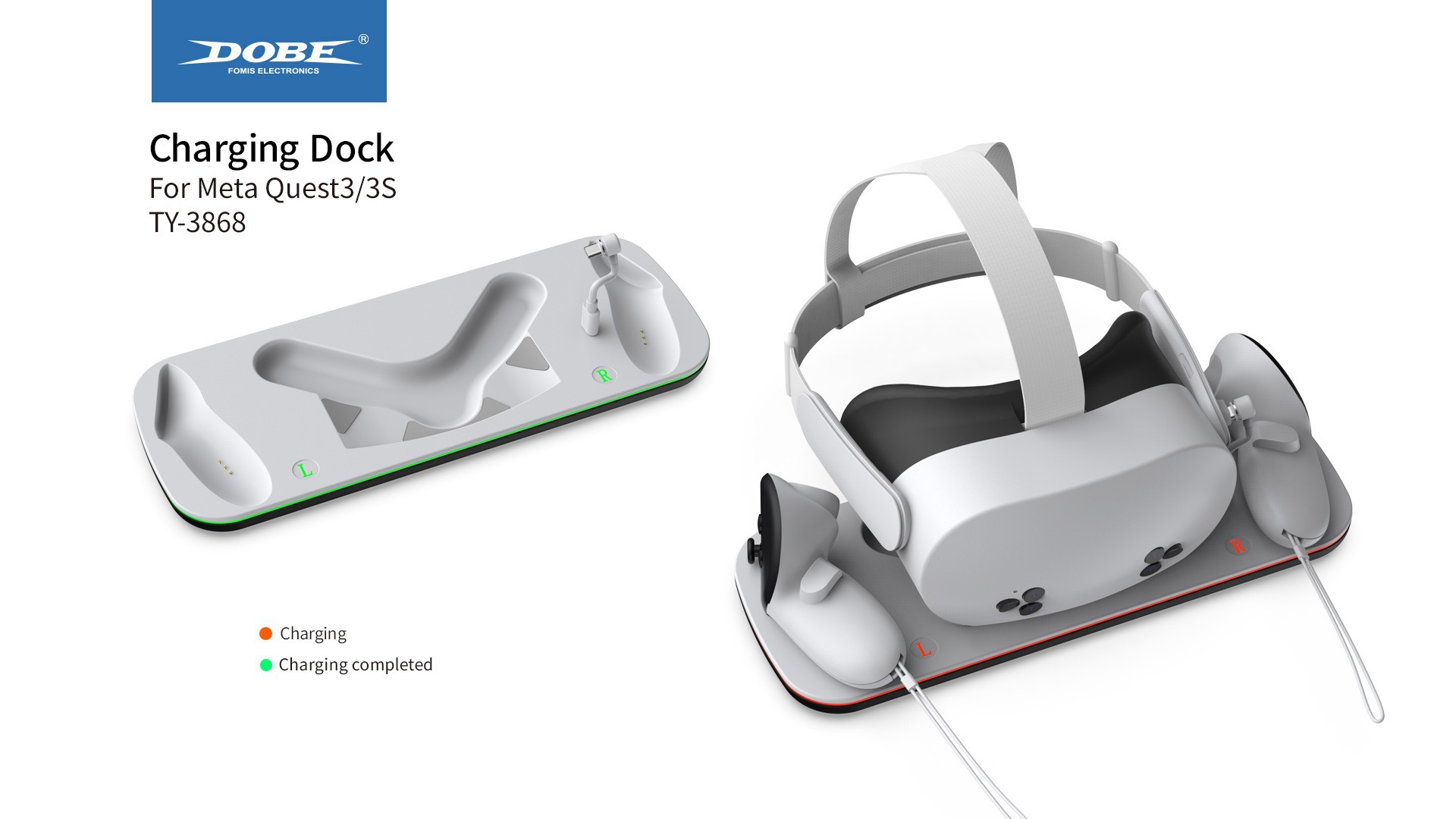

6. VR Headset Charging Indicator Light:

.t_0%-95% charging: Orange LED light remains on continuously

. Charging 96%-99%: Orange LED light breathing pattern

·Full/Standby: The green LED strip remains on

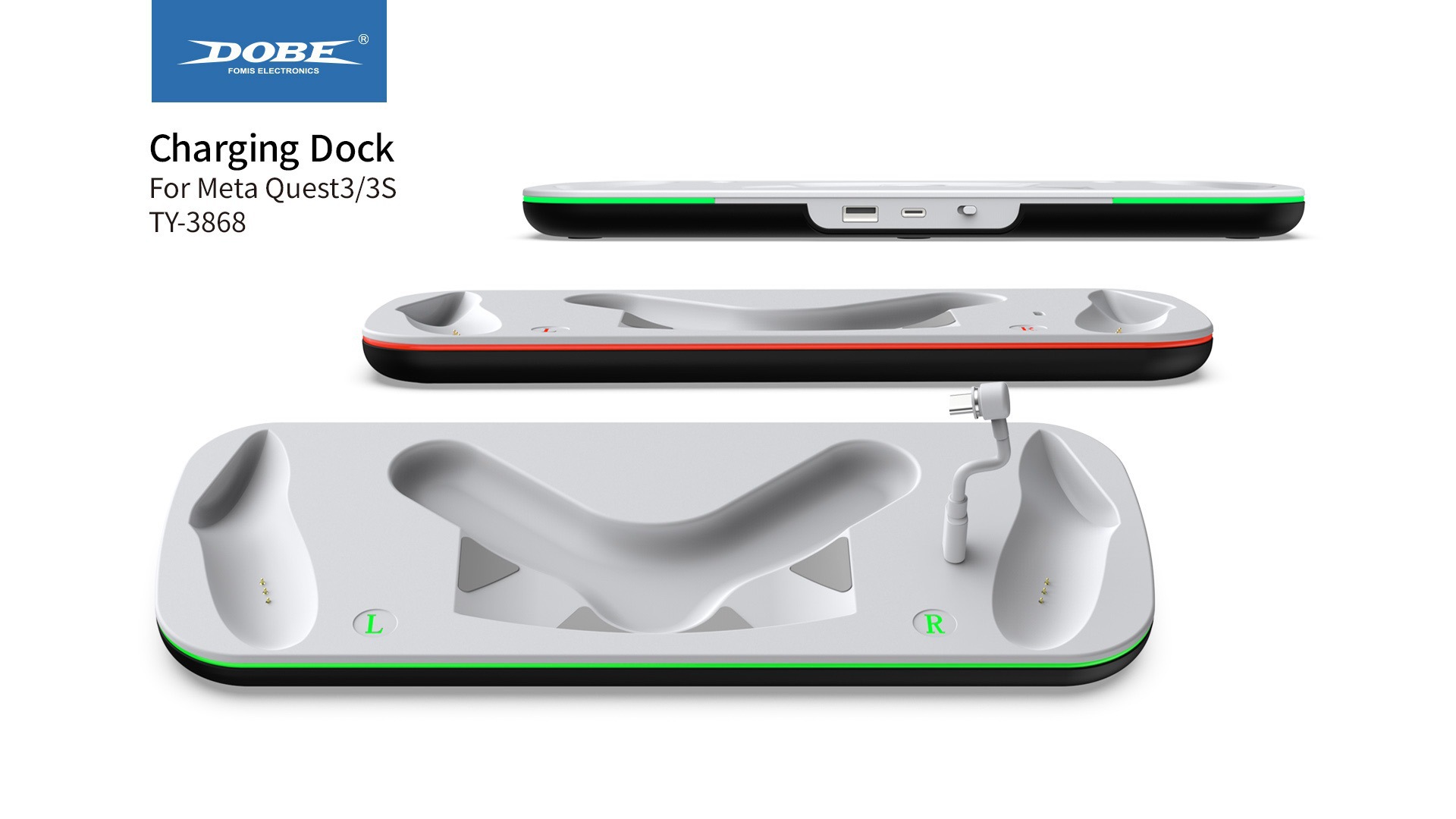

7. VR Controller Charging Indicator Light:

.Charging: The corresponding red “R, L” characters remain red and lit continuously

.Fullness: The corresponding green “R, L” characters remain green and lit.

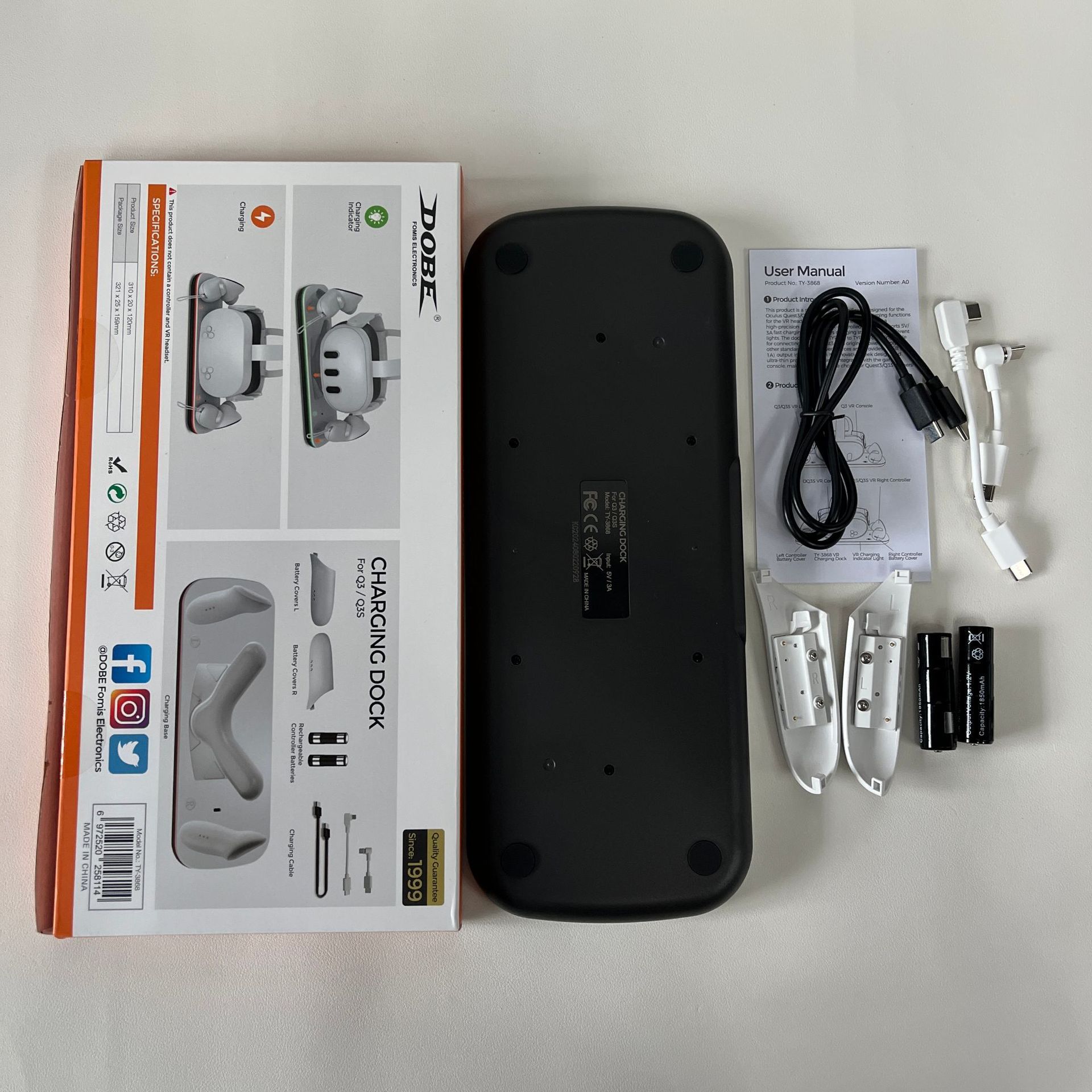

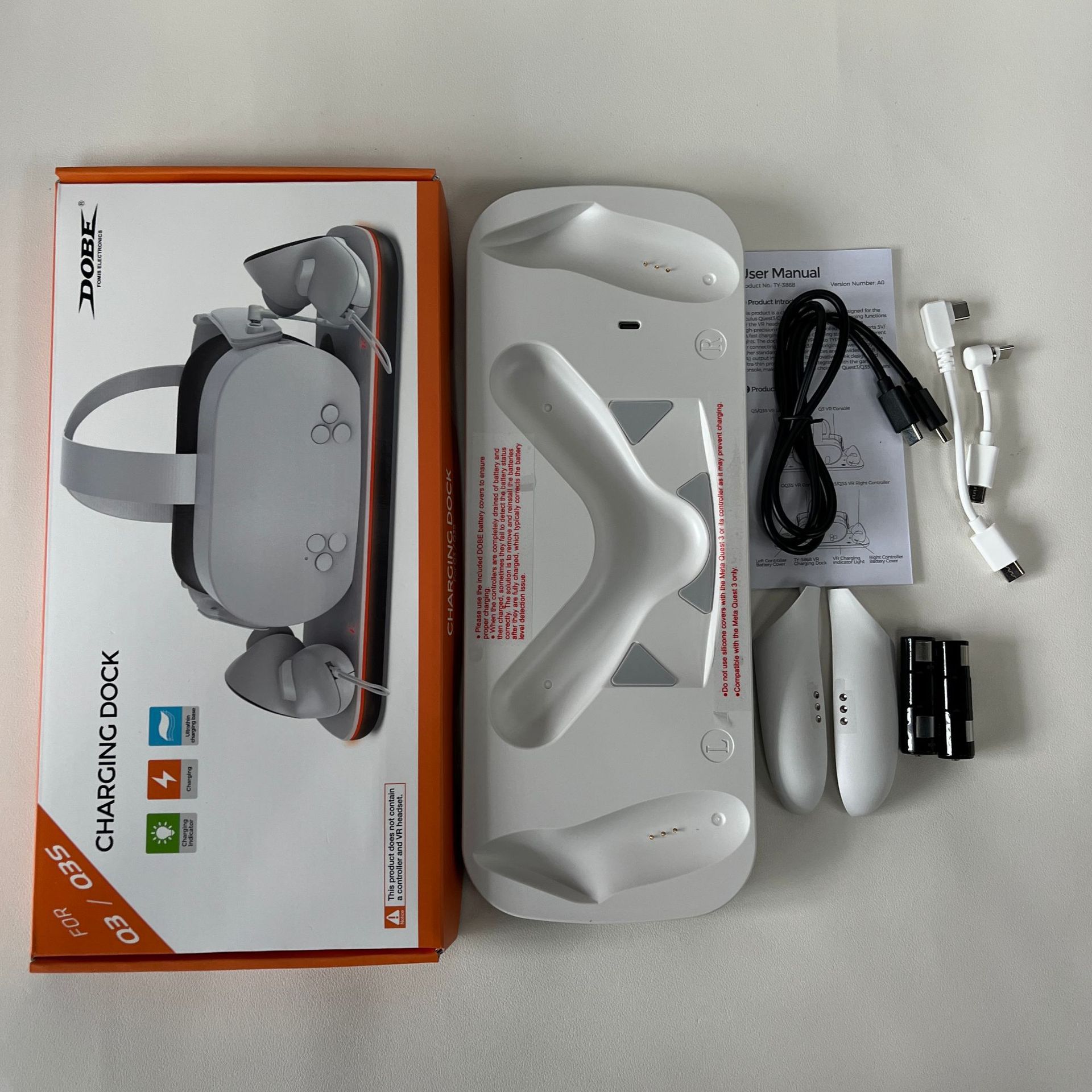

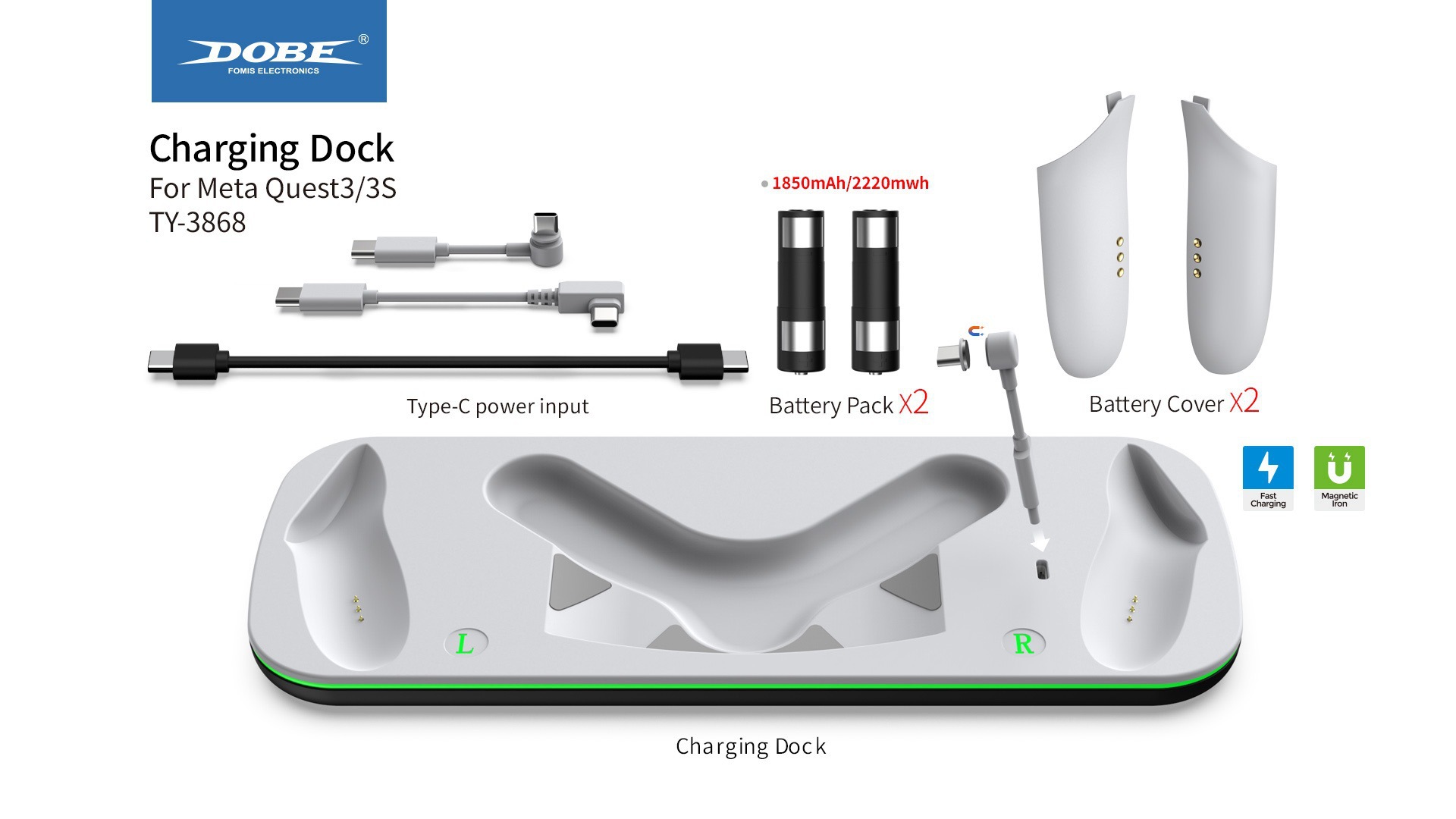

The product comes with a TYPE-C charging cable.

During Quest3/Q3S charging, please use the original power source or another TYPE-C 5V 3A power source.
