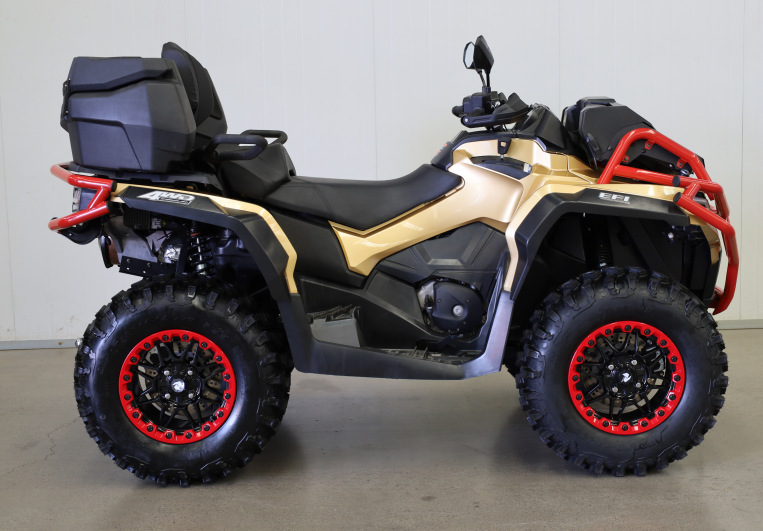

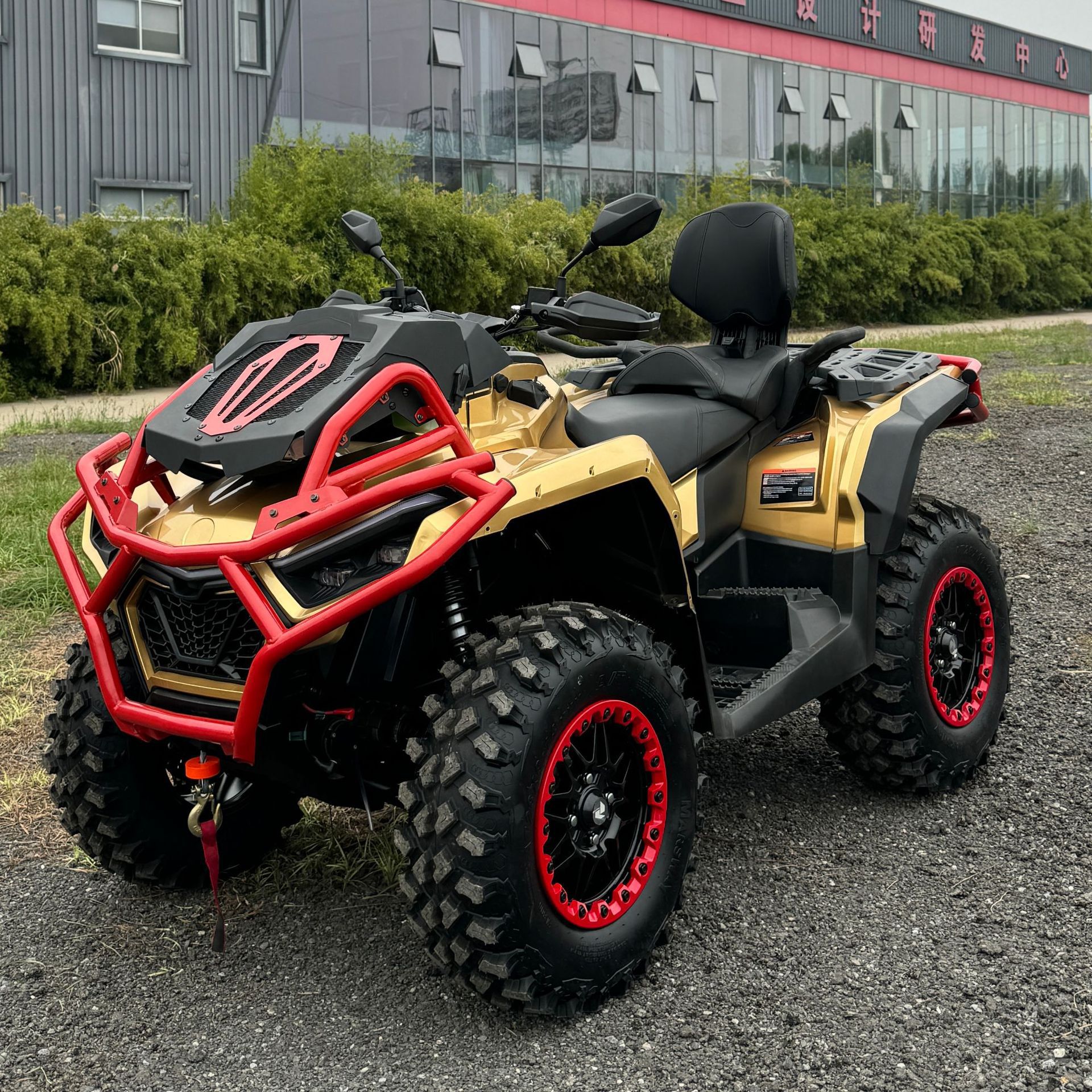

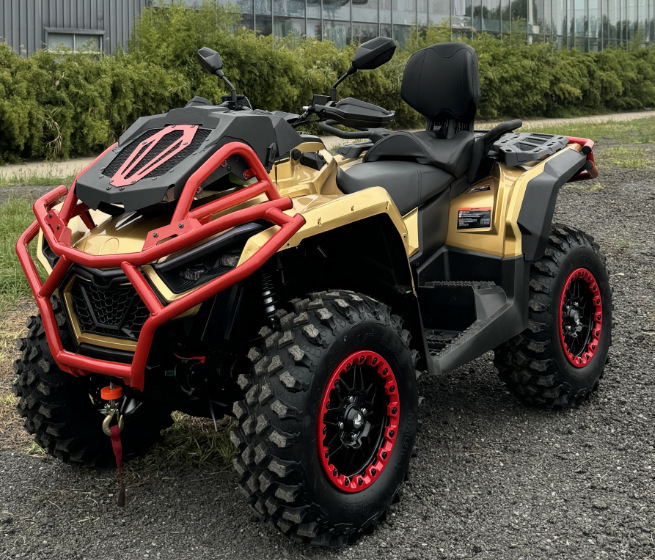

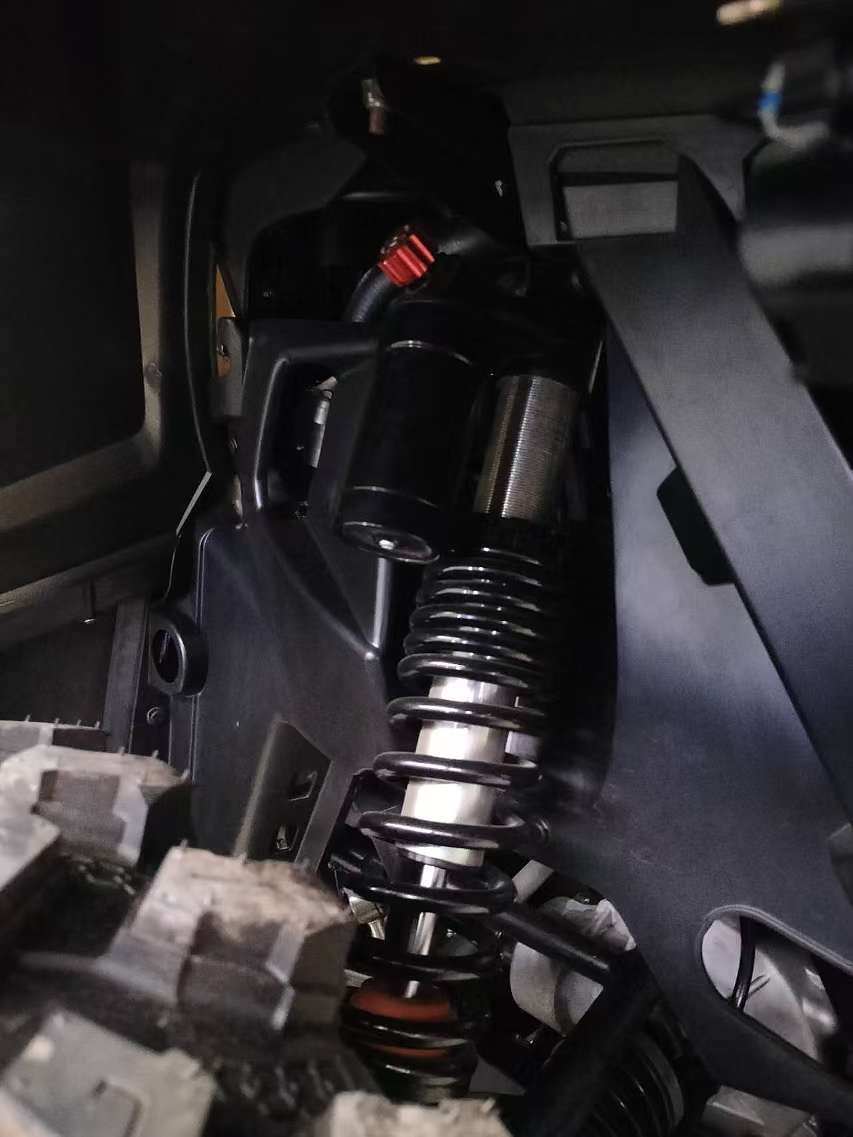

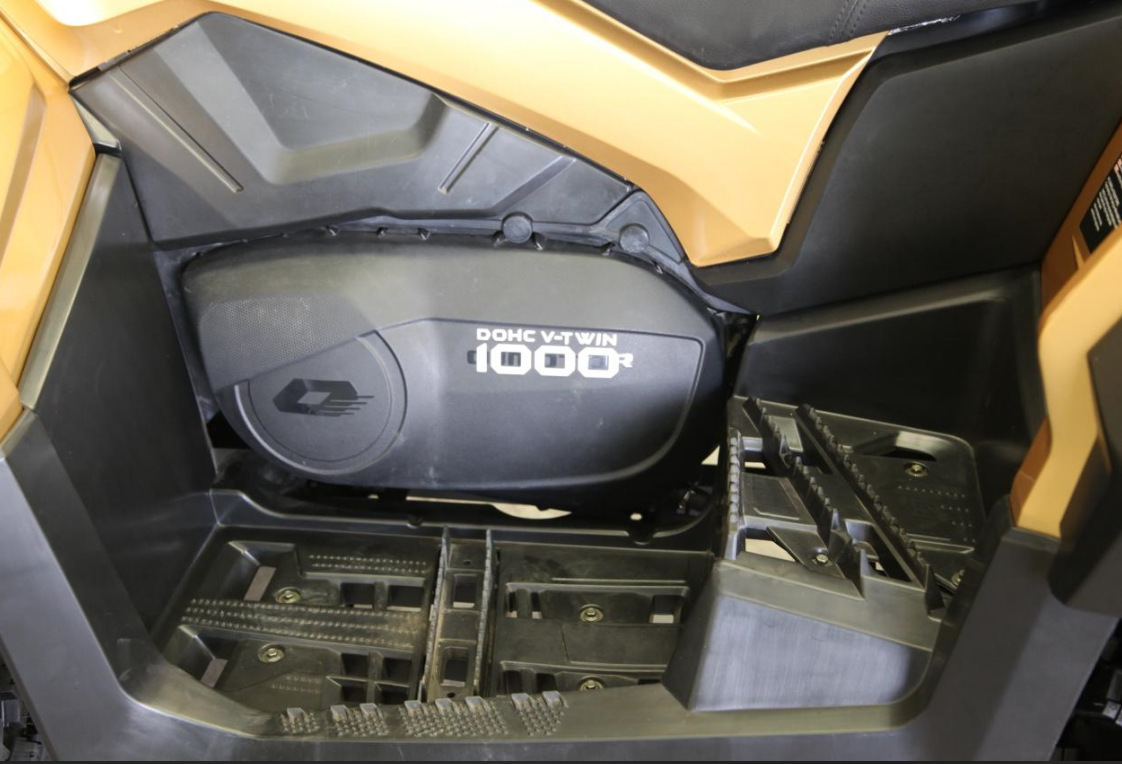

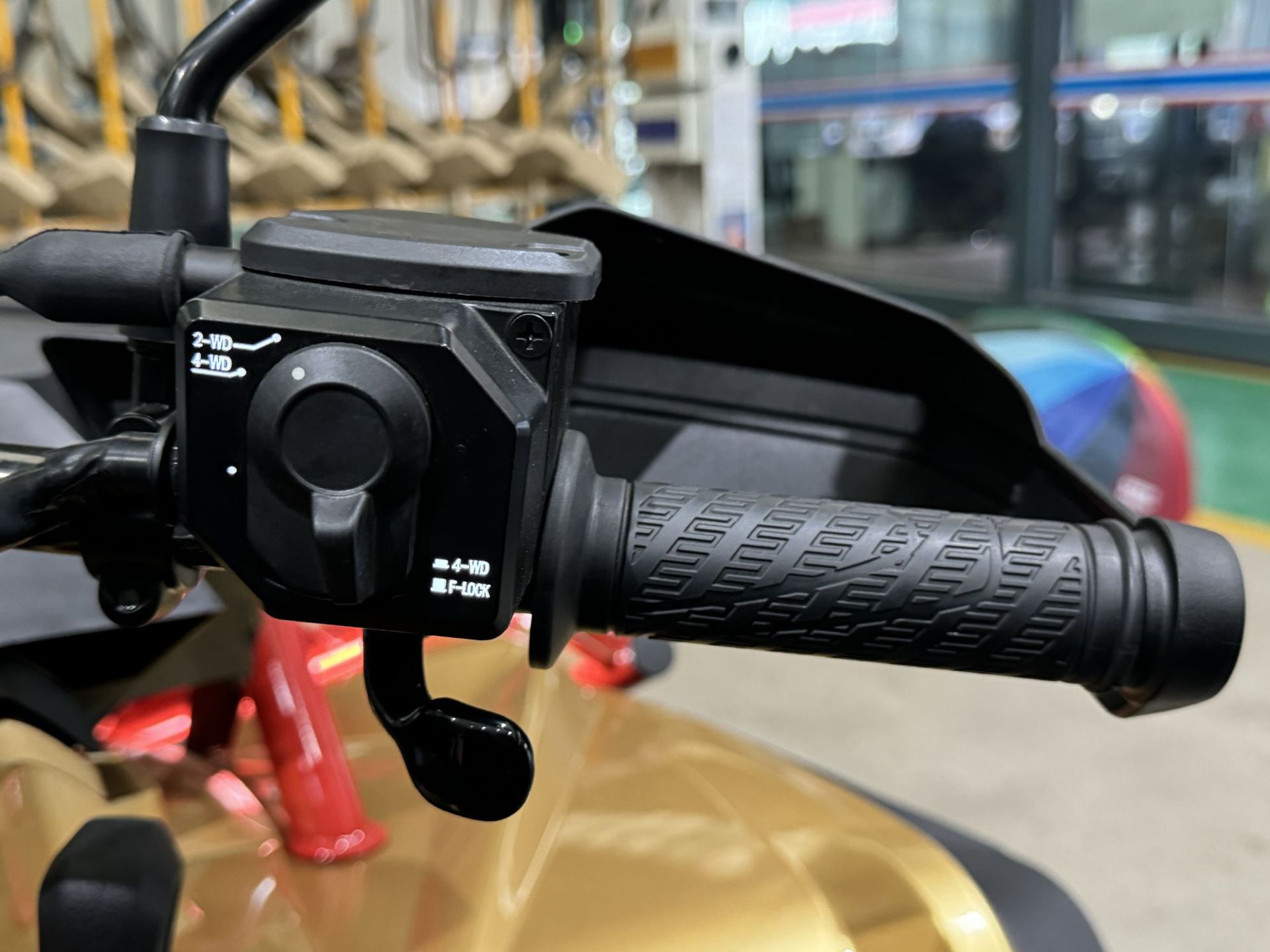

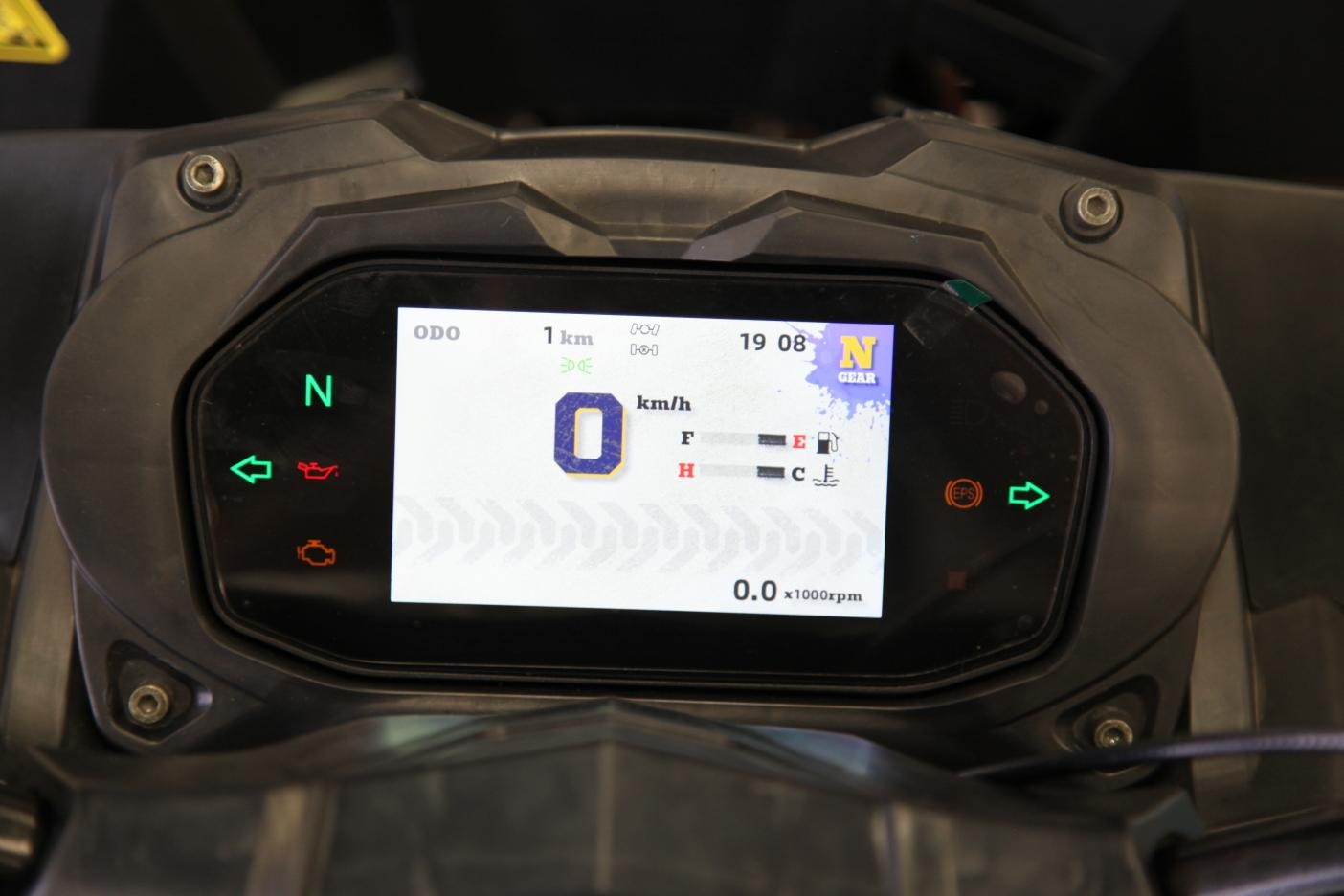

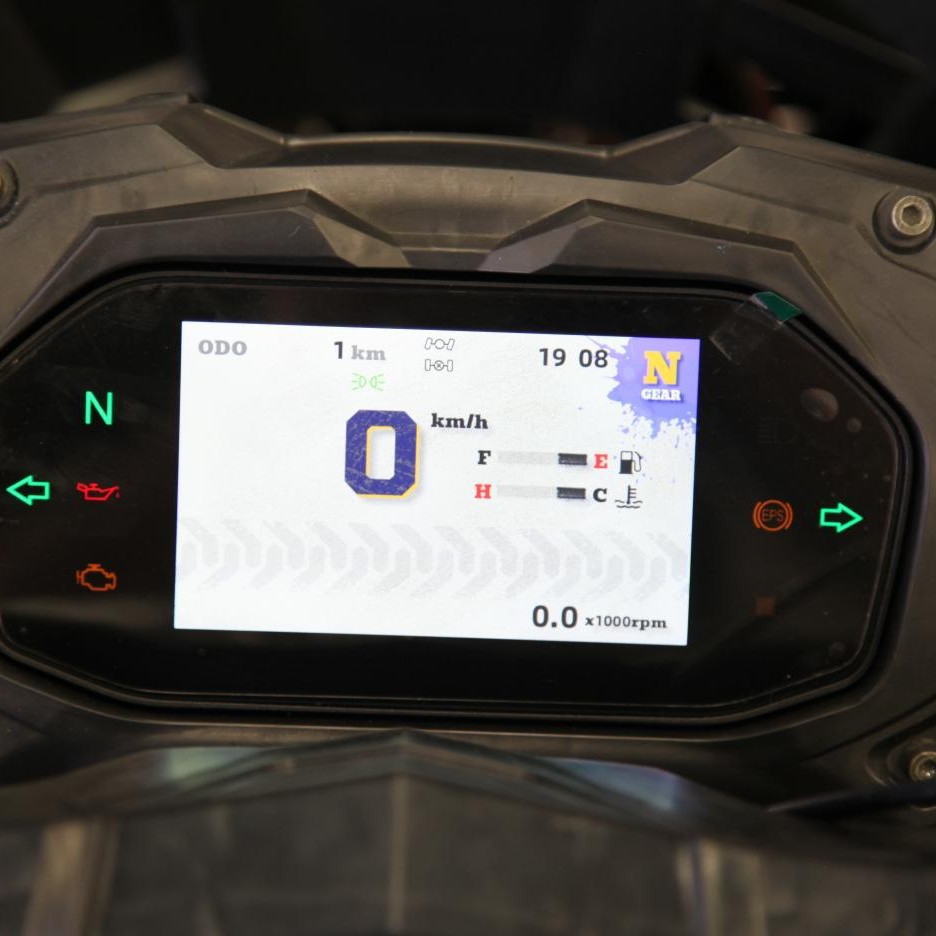

Loading Information 4.0 ft HQ Container, 16 Units 2.0 ft HQ Container, 8 Units Packing Size 2320*1400*1280 mm Gross Weight 550 KGS Technical Parameters Engine & Drivetrain Cooling Liquid Cylinders Displacement 976cc Drive System Type Selectable 2WD / 4WD / Lock 4WD with Visco-4Lok front differential Engine Type 4-Stroke V-Twin, SOHC Bore*Stroke 91x75 MAX.Torque 95NM/5500RPM MAX.Horsepower 92HP/7300RPM Starting system Electric Transmission CVT shaft Fuel System/Battery BOSCH Electronic Fuel Injection Transmission/Final Drive Automatic CVT P/R/N/L/H Dimensions Rack Capacity 75/150 LBS Estimated Dry Weight 1.014 lb (460 kg) Fuel Capacity 4.8 gallons Ground Clearance 13 in. (33 cm) Overall Vehicle Size (L x W x H) ) 2450*1290*1500 mm Payload Capacity 740 lb (336 kg) Passenger Capacity 2 Wheelbase 59 in. (1493 mm) Seat Height 36.75 in. (93.3 cm) Brakes Front/Rear Brakes Dual 260 mm disc brakes with hydraulic twin-piston calipers Parking Brake Park In-Transmission and Hand Brake Additional Specifications Front Suspension Arched double A-arm with front sway bar Instrumentation Digital Gauge, Speedometer, Odometer, Tripmeter, Tachometer, Coolant Temperature, Volt Meter, Hour Meter, Service Indicator, Clock, Gear Indicator, Fuel Gauge, Hi-Temp Light, Seatbelt Reminder Light, DC Outlet Lighting White LED Low/High & Red LED Tail / Brake Lights Rear Suspension Torsional Trailing arm Independent (TTI) Tires / Wheels Electronic Power Steering Standard Front Tires 28 x 9-14 Rear Tires 28 x 11-14 Wheels Cast Alum inum
