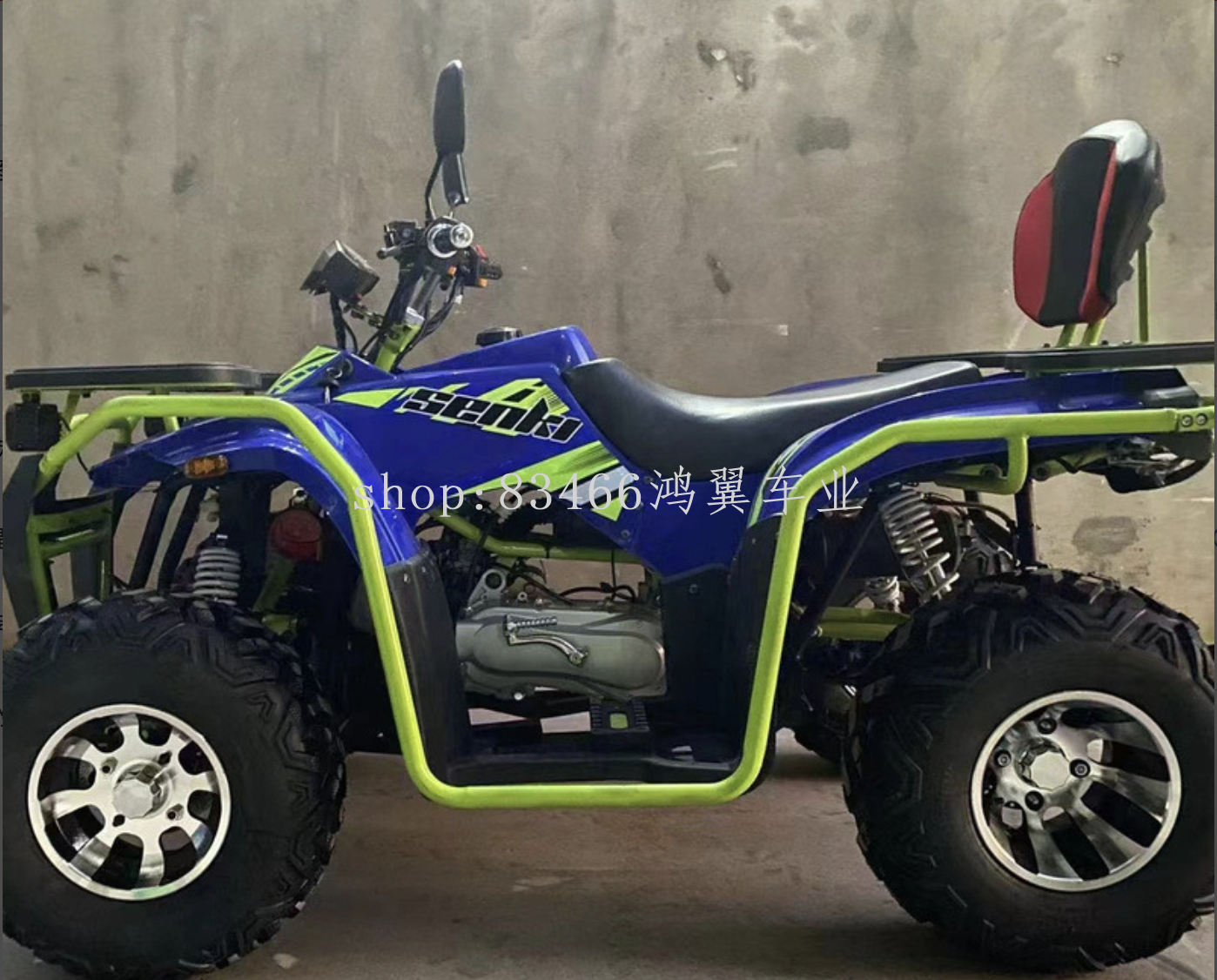

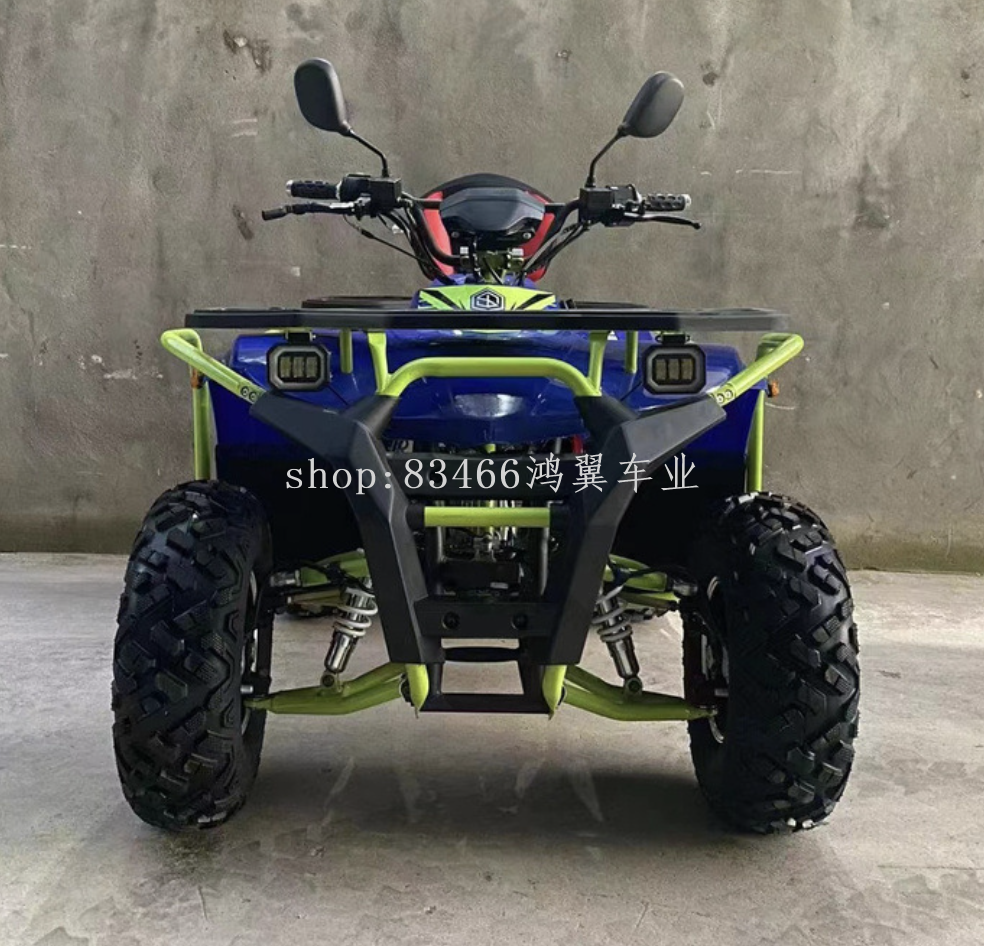

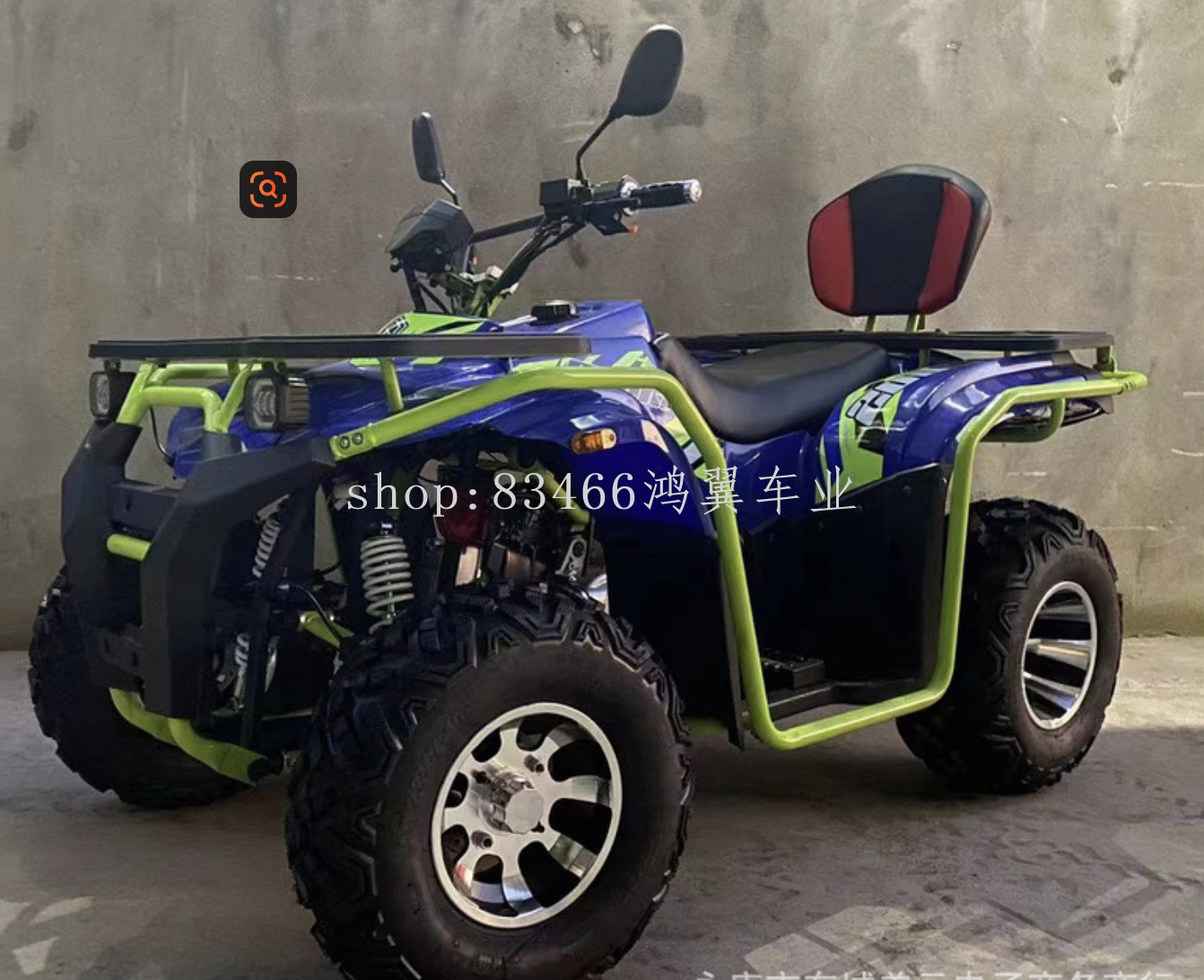

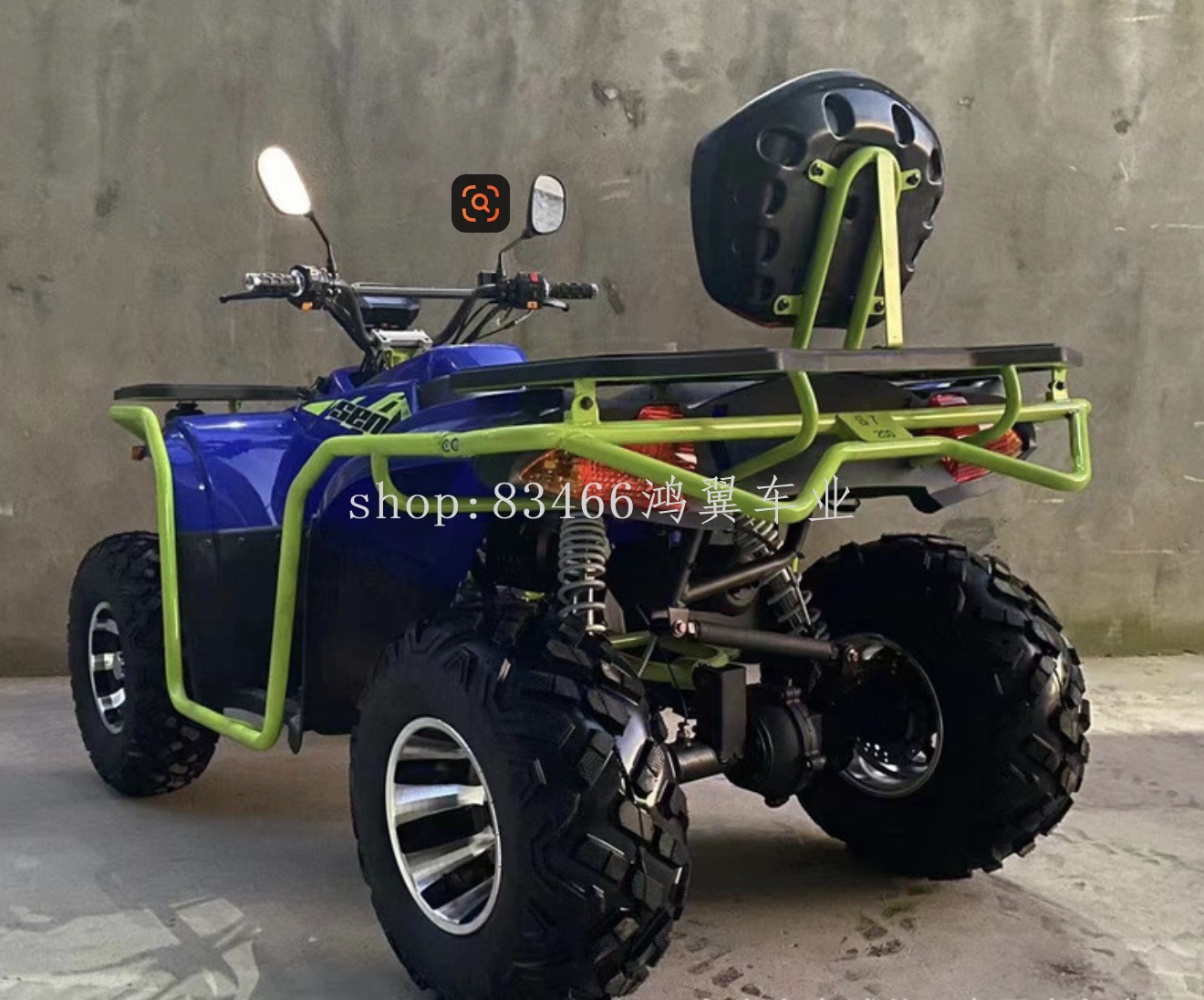

warwolf 200cc all-terrain vehicle gy6 axis drive atv site rental mountain atv quad frenzy atv

HongYi 1yr.

Contacts zhen Chat

E-mail 411955970@qq.com

WeChat kkxokk

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

displacement: 200cc

brand: xyps

customized processing: yes

model: wolf war 200cc

engine model: wang ye

overall dimensions of the whole vehicle: 210x115x95cm

item no.: wolf war 200cc

main downstream platforms: ebay, amazon, wish, aliexpress, independent

major sales areas: africa, south america, southeast asia

have authorized private brands: yes

whether cross-border export is exclusively available: yes

New Model Warwolf 200CC Automatic Transmission, Easy Hand Shiftable Vehicle Dimensions: Length × Width × Height: 2100×1500×1000 mm
Wheelbase: 1300mm
Front wheel track: 900 mm
Rear wheel track: 860 mm
Minimum ground clearance: 220 mm
Seat cushion height: 780±20 mm
Chassis height: 260mm
Handle height: 1100 mm
Packaging dimensions: length × width × height: 2100×1500×820mm
Front mechanical suspension travel: 75mm
Mechanical suspension travel: 90 mm
Minimum turning diameter: 3500±500 mm
Turning angle <45° (actual 39°)
Side slip amount <5m/km
Rated load: 300 kg
Net weight of empty vehicle: 220 kg
Gross weight with packaging: 260 kg
Brake type (front/rear) Front hydraulic brake
Braking Control Mode (Front/Back) Rear Disc Brake
Wheel rim type (front/rear): 10-inch hub can be upgraded to 12-inch aluminum wheel
Tire specifications (front/rear): Vacuum tire / Front - 2.3×7.0/10 / Rear - 2.2×10.0/10
