Product Information:

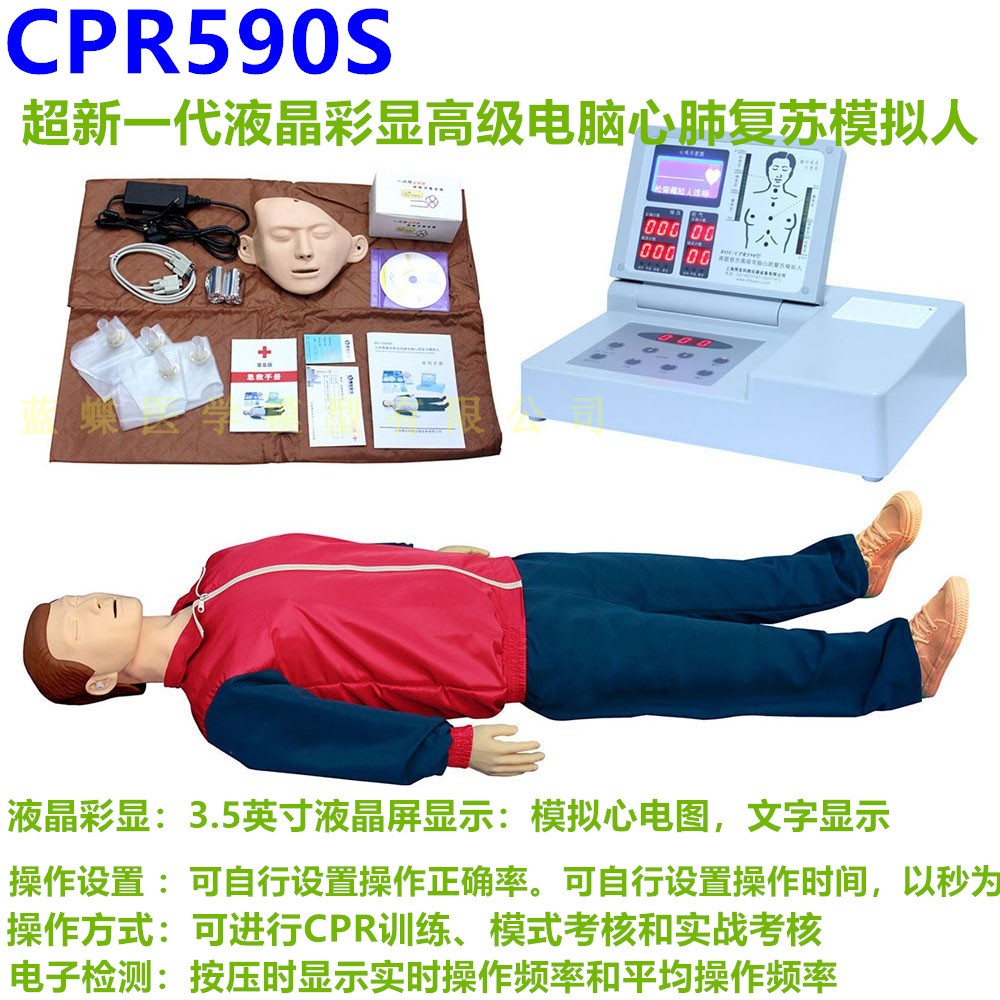

This product undergoes comprehensive upgrades based on the original CPR590 basic functions, emphasizing auxiliary features for CPR training operations, as well as the ability to set various parameters independently. It utilizes a combination of LCD screen and digital tube for display, making it more suitable for clinical and teaching practices related to CPR operations.
Execution standard: AHA 2015 Guidelines for International Cardiopulmonary Resuscitation (CPR) & Emergency Cardiovascular Care (ECC)

Functional features:
■ 3.5-inch LCD display: analog ECG, text display
■ The mannequin has distinct anatomical features, a realistic hand feel, uniform skin tone, lifelike shape, and an attractive appearance.
■ Simulated vital signs:
• In the initial state, the simulated human’s liquid crystal pupils are dilated, and there is no pulse in the carotid artery.
• During the pressing process, a simulated human carotid artery passive pulsation is induced, with the pulsation frequency matching the pressing frequency.
• After the rescue, the simulated human's liquid crystal pupils returned to normal, and the carotid artery resumed spontaneous pulsation.
• The LCD pupil scaling and carotid pulse can be enabled and disabled via a switch.
■ Artificial respiration and cardiopulmonary resuscitation can be performed. Standard airway opening can be carried out, and the airway indicator light turns on.
■ Three operation modes: capable of performing CPR training, mode assessments, and real-world assessments.
• Method 1: CPR training, which includes compression and ventilation exercises.
• Method Two: Pattern assessment. Within the set time limit, according to the 2015 national/international cardiopulmonary resuscitation standards, perform 5 cycles of operations with a correct compression-to-ventilation ratio of 30:2.
• Method 3: Practical assessment, where the instructor can set the operation time range, standards, number of cycles, frequency, and the ratio of pressing to blowing.

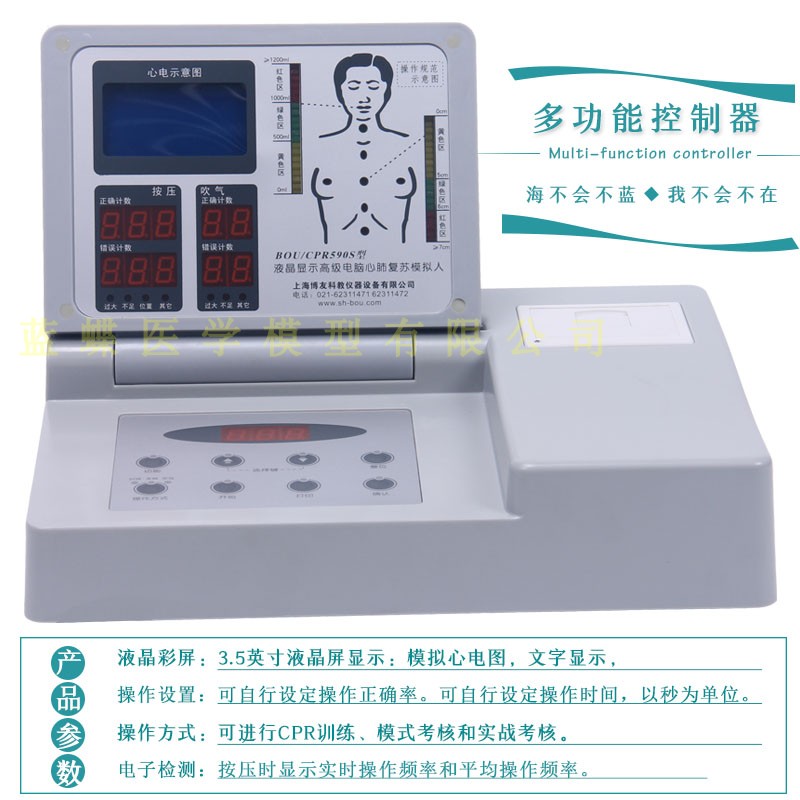

Controller display screen functions:
■ Electronic monitoring: Electronic indicators show the airway opening and compression sites. Counts of correct and incorrect breaths and chest compressions.

?1?71?1?777?1?71?1?772 During pressing, the real-time operation frequency and average operation frequency are displayed.

■ Voice prompts: Chinese voice prompts are used throughout training and assessment. The voice can be turned on or off, and the volume can be adjusted.
■ Text prompts: Chinese text prompts are used throughout training and assessment.
■ Barcode indicates air volume: The correct air volume is 500~600 ml to 1000 ml:
• When the airflow is too low, the barcode appears yellow.
• When the airflow is appropriate, the barcode appears green.
• When the airflow is too high, the barcode appears red.
• The tidal volume blown in is too fast or excessive, causing the indicator light to indicate gas entering the stomach; digital counting display; error message prompt;
■ The barcode indicates the pressing depth; the correct pressing depth is 5–6 cm:
• When the pressing depth is too shallow, the barcode appears yellow.
• When the pressing depth is appropriate, the barcode turns green.
• When the pressing depth is too deep, the barcode turns red.
■ The operation time can be set manually in seconds.
■ Operation Frequency: 2015 standard is at least 100 times per minute, and you can also set the value yourself.
■ Power Status: Utilizes a 220V power supply, which is regulated by a voltage regulator to output 12V power. (A lithium battery can be added optionally for direct use in cases without an external power source.)

Printer Features:
■ Print the operation process after the operation is completed.
■ The report includes information on operation methods, cognitive assessment, first aid breathing techniques, pulse examination, respiratory checks, removal of foreign objects, operation frequency, compression and ventilation ratio, number of cycles, the number of compressions and breaths per cycle, correct/incorrect compressions, causes and counts of incorrect compressions, causes and counts of incorrect ventilation, causes of incorrect ventilation, set time, operation time, and assessment evaluation.

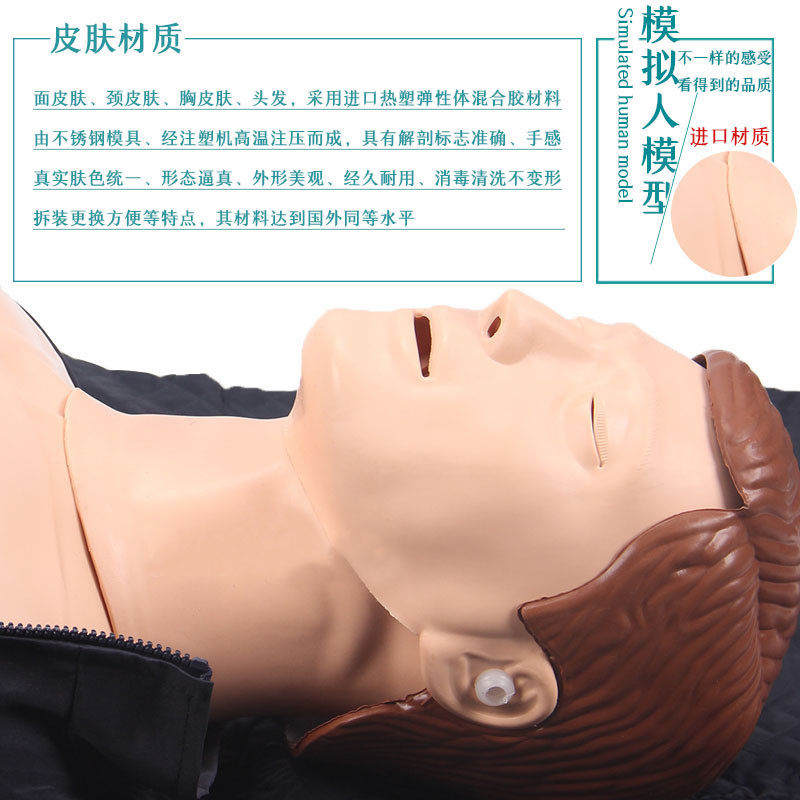

Material characteristics:
■ For the face skin, neck skin, chest skin, and hair, a imported thermoplastic elastomer mixed adhesive material is used. It is manufactured using stainless steel molds and injection molding at high temperatures. It features accurate anatomical details, realistic texture, uniform skin tone, lifelike shape, attractive appearance, durability, resistance to disinfection and cleaning without deformation, and easy disassembly and replacement. The material meets international standards.

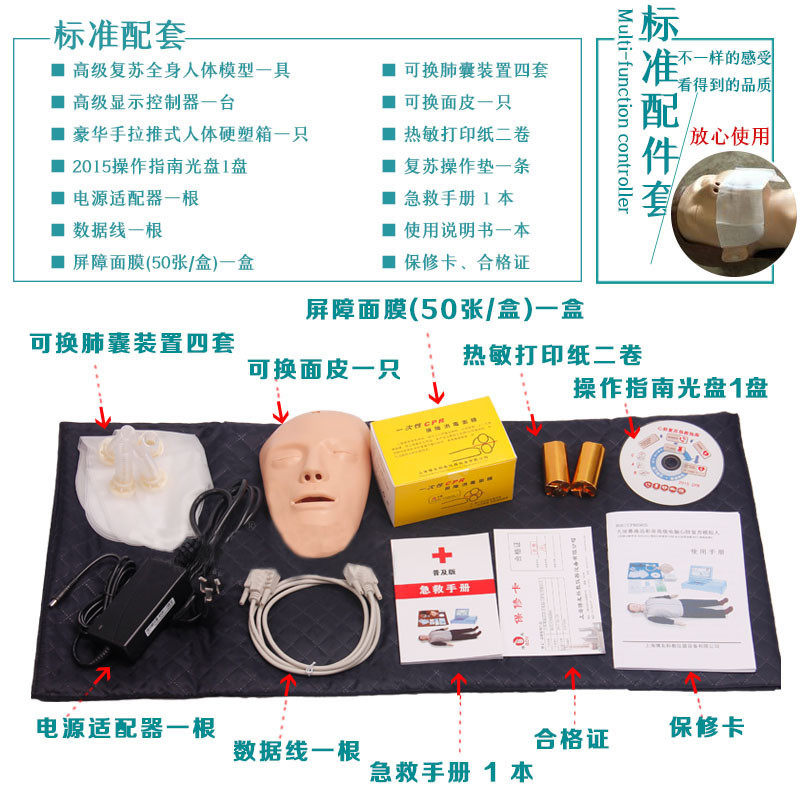

Standard set configuration:
■ One full-body human model restored;
■ One display controller;
■ One luxury hand-pulled push-type rigid plastic human body container;
■ One recovery operation pad;
■ One power adapter;
■ One data cable;
■ Barrier facial mask (50 pieces/box) – 1 box;
■ Four sets of lung sac replacement devices;
■ One with interchangeable skin;
■ 2 rolls of thermal printing paper;
■ 2015 International New Operation Guide CD, Disc 1;
■ 1 emergency manual;
■ One user manual;
■ Warranty card, certificate of conformity;

The product can be equipped with a lithium battery (optional equipment means additional cost is required).
