english cross-border version cpr manikin pre-hospital emergency human body model artificial respiration dummy cpr480

This product adheres to the 2015 cardiopulmonary resuscitation standards, and its core components include a simulated human model and a cardiopulmonary resuscitation display device. It enables training and assessment of cardiopulmonary resuscitation, with integrated printing and display functions. It is used for cardiopulmonary resuscitation training at social resuscitation training institutions, hospitals, medical schools, health schools, the Red Cross, and other organizations.

Execution standard: AHA 2015 Guidelines for International Cardiopulmonary Resuscitation (CPR) & Emergency Cardiovascular Care (ECC).
Feature Introduction:
Simulate standard airway opening;
During manual chest compressions:
1. The dynamic barcode indicator light shows the compression depth: correct compression depth (5–6 cm range) is indicated by the green barcode light, insufficient compression depth (less than 5 cm) by the yellow barcode light, and excessive compression depth (greater than 6 cm) by the red barcode light—providing a dynamic feedback display of the CPR compression depth.
2. Digital counting display; detailed recording of the number of correct and incorrect presses (number of times the pressure was too high, too low, or incorrect position).
3. Language hint: Chinese voice hints explaining the specific reason for the error upon pressing, so that the trainer can correct it promptly.
During mouth-to-mouth breathing (breathing):
1. The dynamic barcode indicator light shows the tidal volume: the correct tidal volume (500/600 ml – 1000 ml) is indicated by the green barcode light, while too low or too high tidal volumes are displayed via the yellow or red barcode lights for dynamic feedback on the magnitude of the tidal volume;
2. Digital counting display: Record in detail the number of correct and incorrect breaths (number of breaths with excessive volume, insufficient force, and incorrect breathing).
3. Language hint: Chinese voice hints provide detailed explanations of the specific reasons for the blowing error, enabling the trainer to correct them promptly.
Press and ventilation ratio: 3:2 (single or double person).
Operation cycle: 30 compressions followed by 2 manual breaths, a 30:2 five-cycle CPR procedure.
Operation frequency: International standard: at least 100 times per minute.
Operation methods: training operations; assessment operations, custom assessments.
Operation time: Timing is measured in seconds.
Language settings: You can adjust language prompts and prompt volume levels, or turn off language prompts.
  Printing of grades:The operation result allows for thermal printing of long and short report cards.
Pupil response test: Before and after the assessment procedure, it simulates the real dynamic changes in pupil size, including dilation and constriction.
Check the carotid artery response: examine by touching with hands, observe the automatic pulsation of the carotid artery during simulated pressing procedures; also assess the actual manifestation of the automatic pulsation of the carotid artery after the procedure is completed.


Material characteristics: Face skin, neck skin, chest skin, and hair. It is made using imported thermoplastic elastomer mixed adhesive material, crafted with stainless steel tools and injection molded at high temperatures by an injection molding machine. It features accurate anatomical details, realistic texture, uniform skin tone, lifelike shape, attractive appearance, durability, resistance to disinfection and cleaning without deformation, and easy disassembly and replacement. The material meets international standards.

Standard configuration:

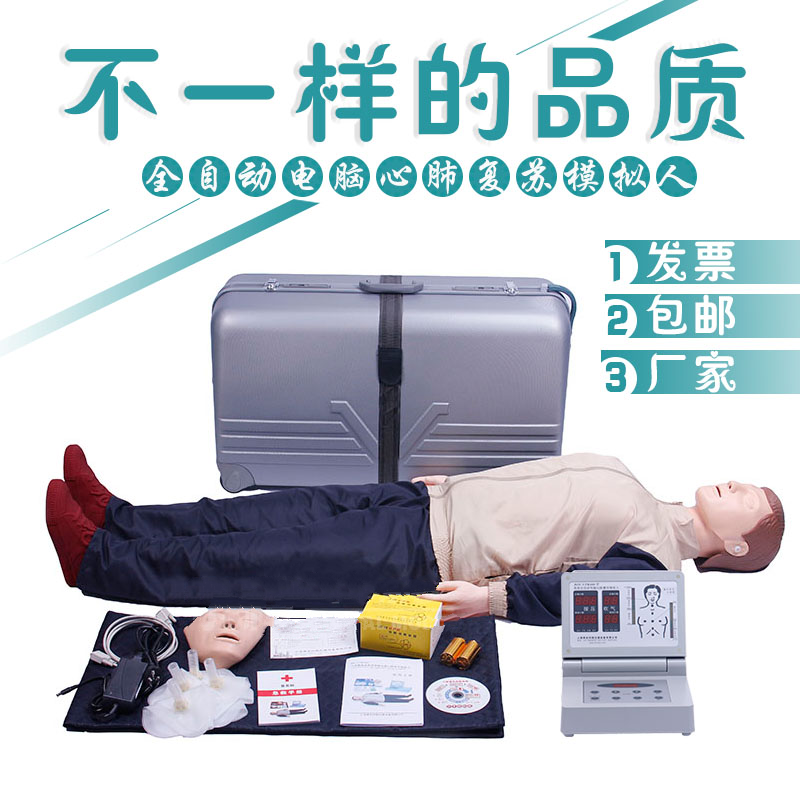

Whole-body human model for revival – One

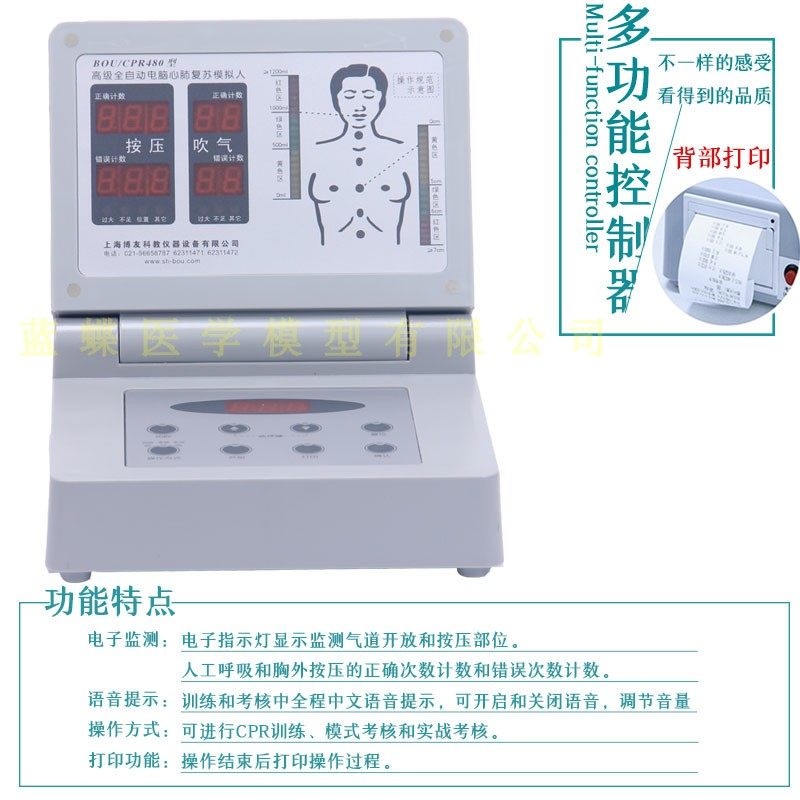

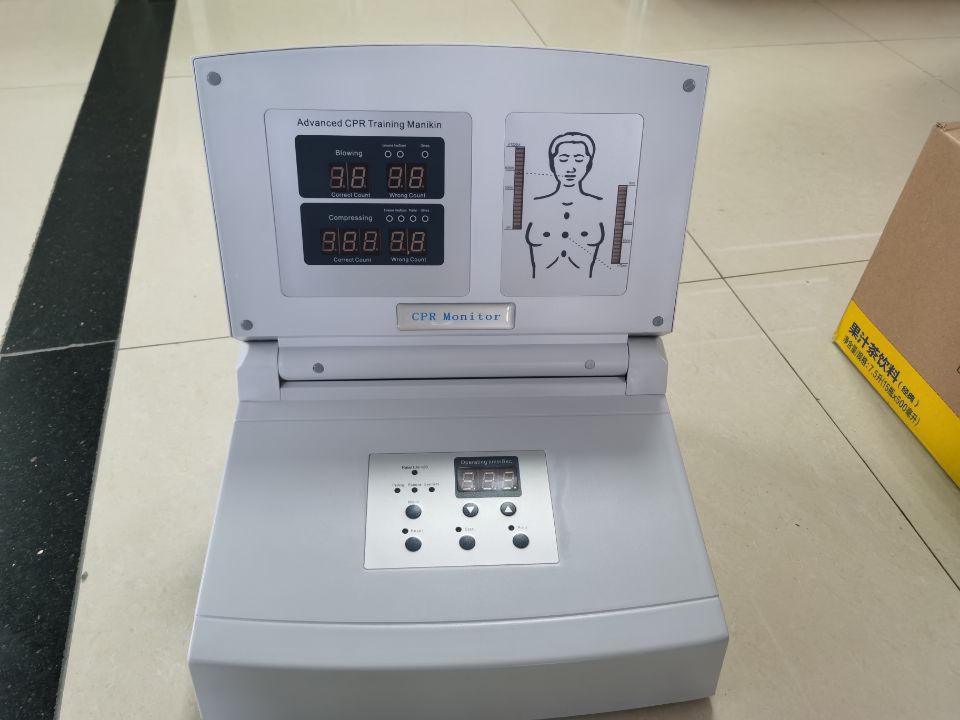

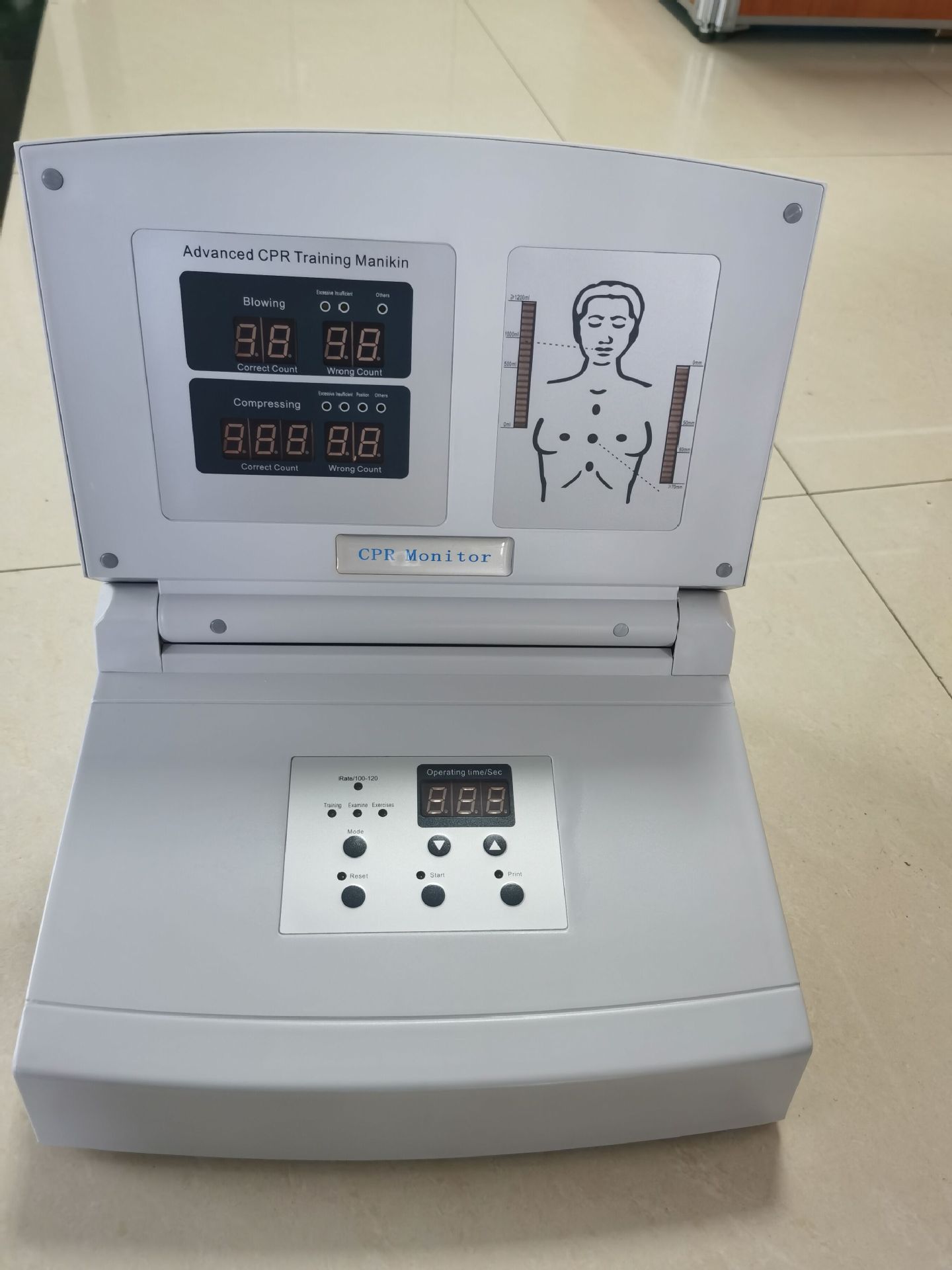

Computer LCD Monitor                   One

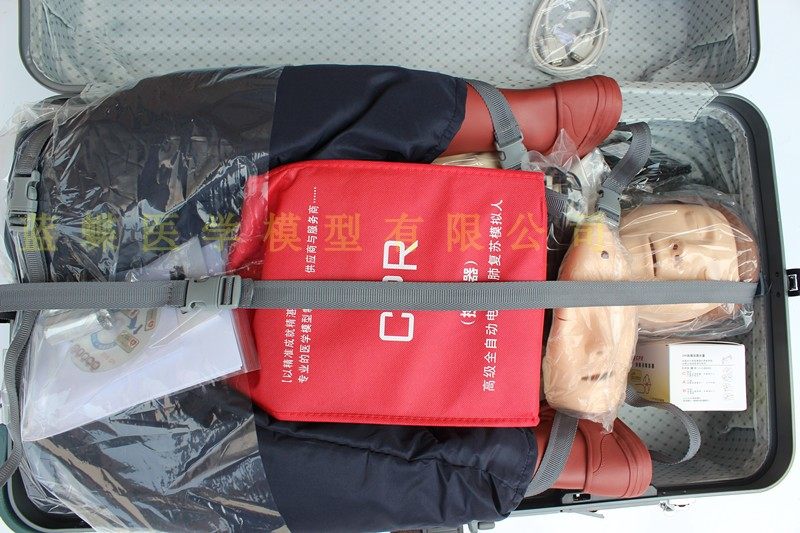

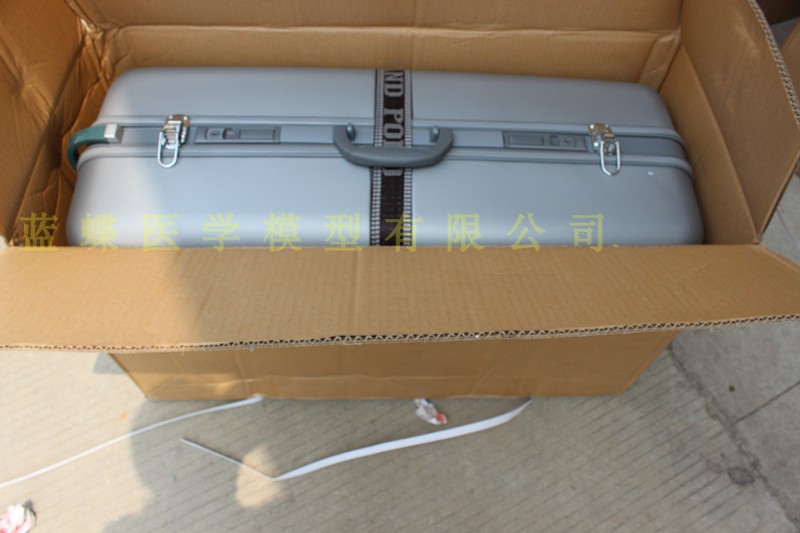

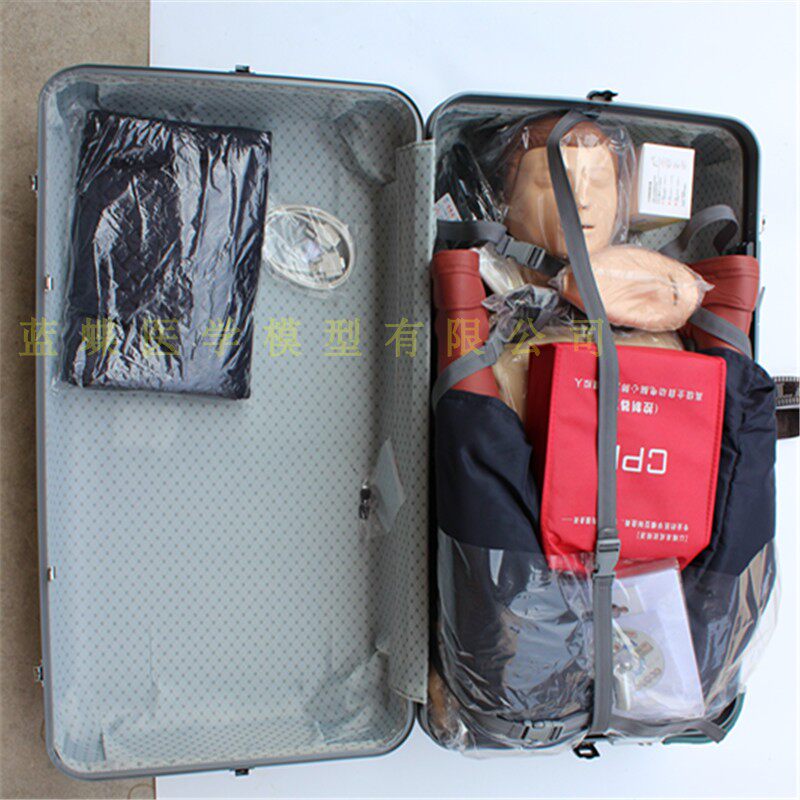

Luxury hand-pulled rigid plastic body container           One
Resuscitation Operation Pad                                   One
Barrier facial mask (50 pieces per box)                      One box
Lung sac replacement device                              Four sets
Can change skin                                                                           one
Thermal print paper                                  2 rolls
2015 International Operation Guide CD – 1 disc
User manual, warranty card, certificate of conformity One set
