cpr490 advanced fully automatic computerized cpr manikin, emergency training dummy, artificial respiration

The CPR490 product features comprehensive upgrades based on the CPR480, highlighting additional functions for CPR training operations, as well as the ability to set various parameters independently, making it more suitable for clinical and teaching practice requirements.
Execution standard: AHA 2010 Guidelines for International Cardiopulmonary Resuscitation (CPR) & Emergency Cardiovascular Care (ECC)

Functional features:

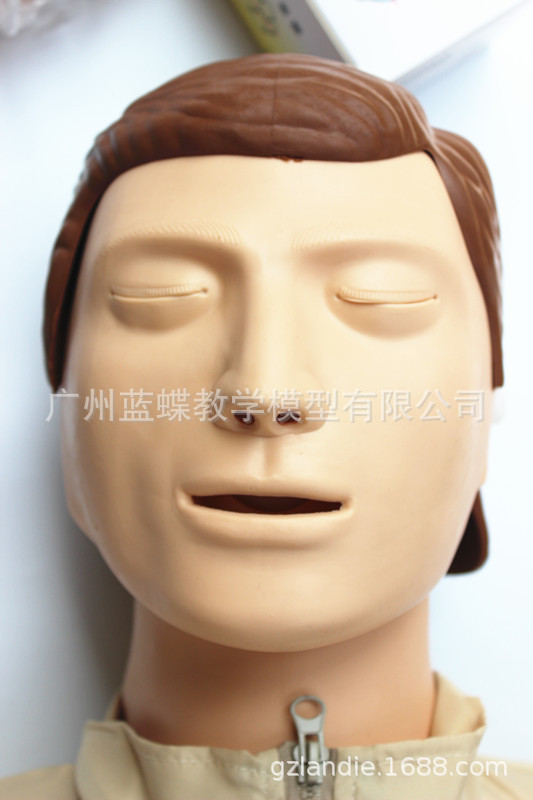

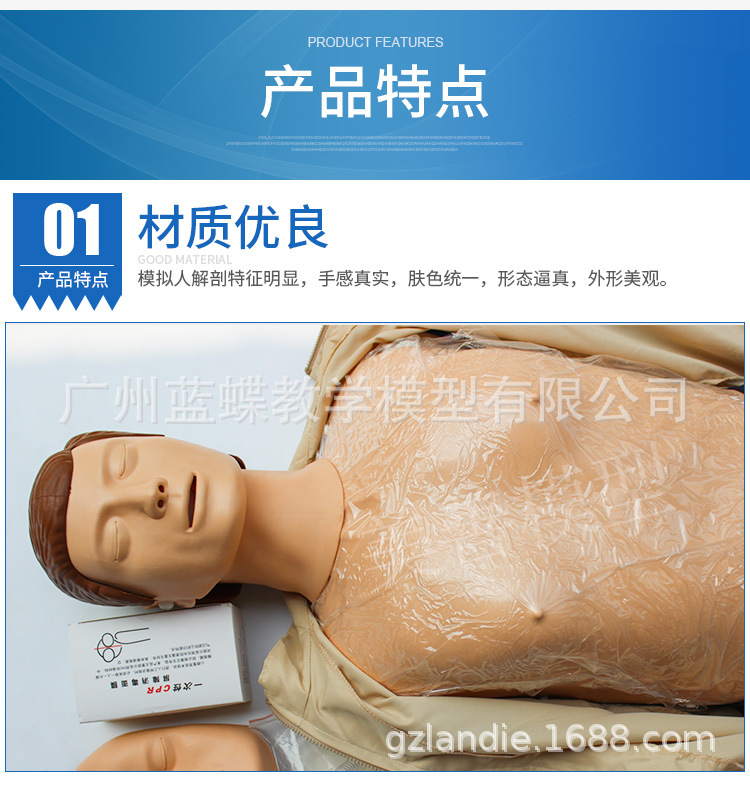

■ The mannequin has distinct anatomical features, a realistic hand feel, uniform skin tone, lifelike shape, and an attractive appearance.
■ Simulated vital signs:

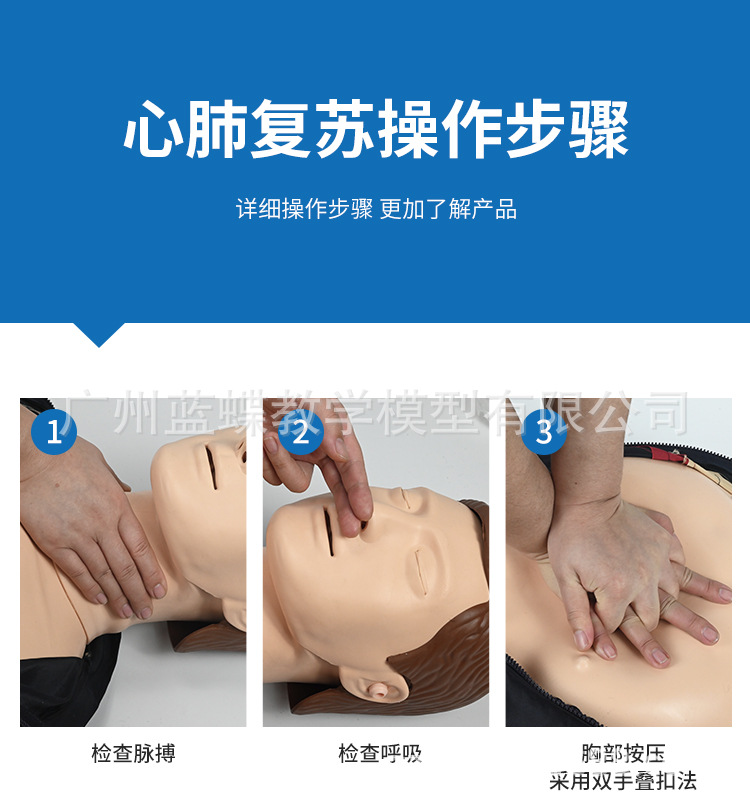

• In the initial state, the simulated human has dilated pupils and no pulse in the carotid artery.
• During the pressing process, a simulated human carotid artery passive pulsation is induced, with the pulsation frequency matching the pressing frequency.
• After the rescue, the simulated human pupil returned to normal, and the carotid artery resumed spontaneous pulsation.
• The pupil dilation and carotid pulse can be enabled or disabled via a switch.

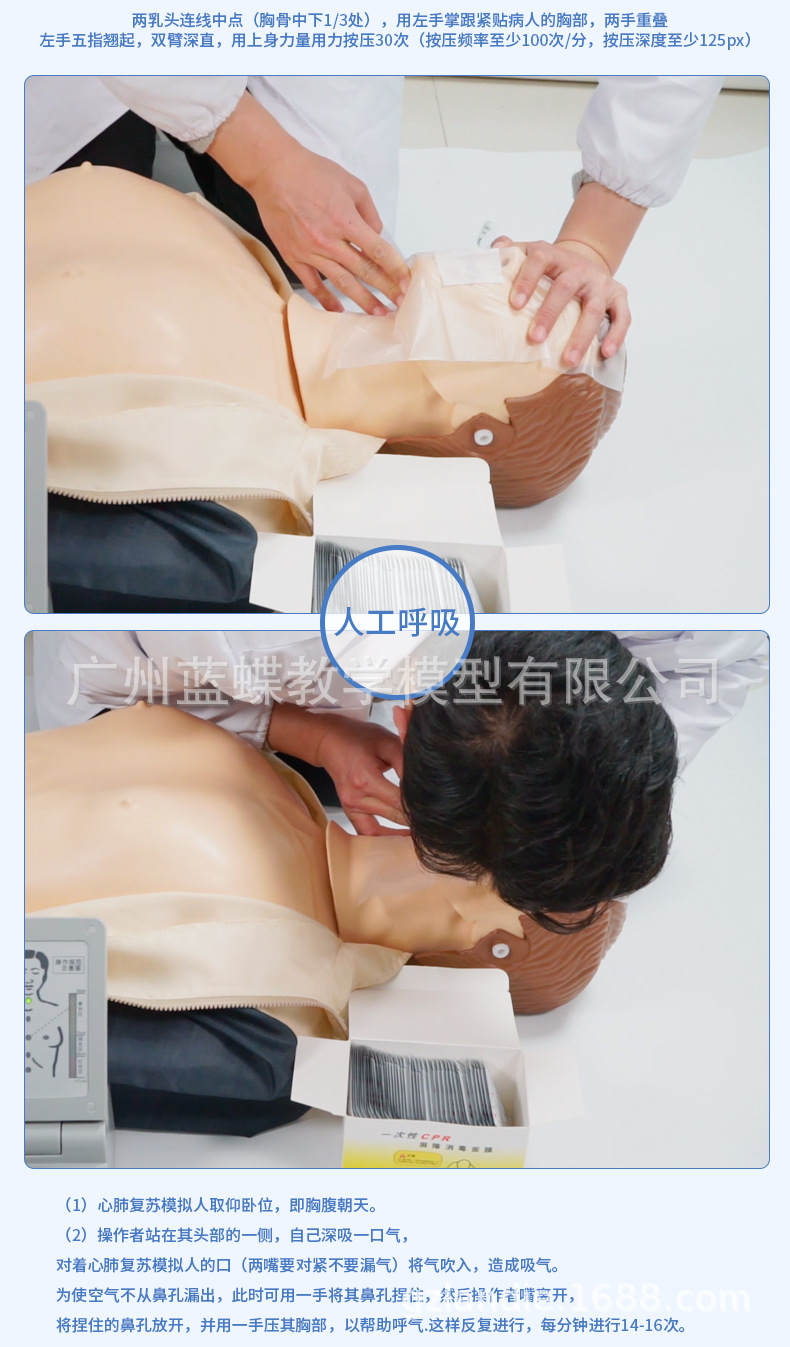

■ Artificial respiration and cardiopulmonary resuscitation can be performed. Standard airway opening can be carried out, and the airway indicator light turns on.
■ Three operation modes: capable of performing CPR training, mode assessments, and real-world assessments.
• Method 1: CPR training, which includes compression and ventilation exercises.
• Method Two: Pattern assessment. Within the set time limit, following the 2010 International Cardiopulmonary Resuscitation standards, perform 5 cycles of operations at a ratio of 30:2 for correct compressions and breaths.
• Method 3: Practical assessment, where the instructor can set the operation time range, standards, number of cycles, frequency, and the ratio of pressing to blowing.

Controller display screen functions:
■ Electronic monitoring: Electronic indicators show the airway opening and compression sites. Counts of correct and incorrect breaths and chest compressions.
■ Voice prompts: Chinese voice prompts are used throughout training and assessment. The voice can be turned on or off, and the volume can be adjusted.

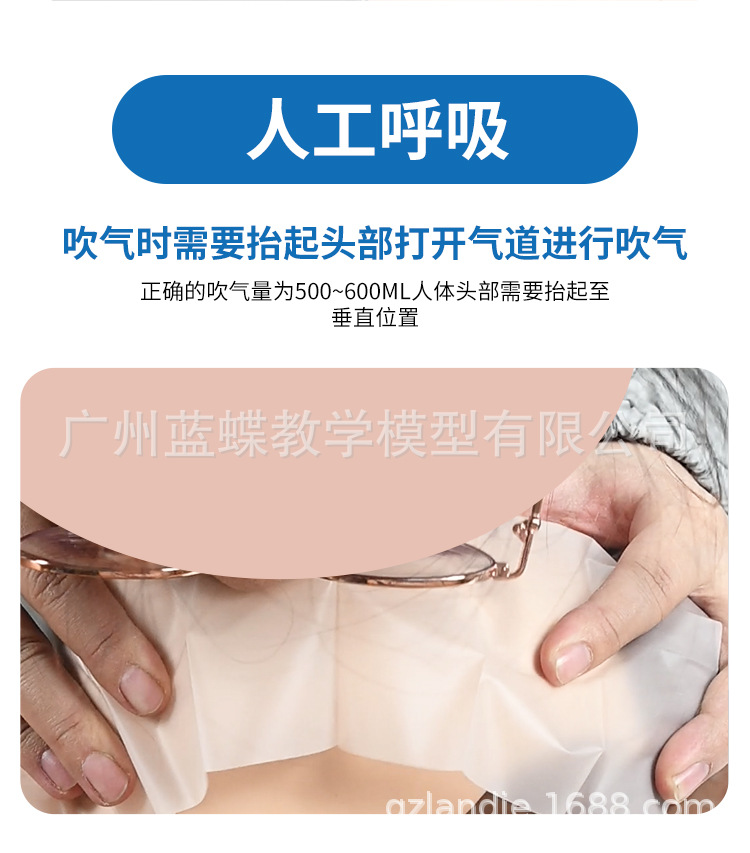

■ Barcode indicates air volume: The correct air volume is 500~600 ml to 1000 ml:
• When the airflow is too low, the barcode appears yellow.
• When the airflow is appropriate, the barcode appears green.
• When the airflow is too high, the barcode appears red.
• The tidal volume blown in is too fast or excessive, causing the indicator light to indicate gas entering the stomach; digital counting display; error message prompt;

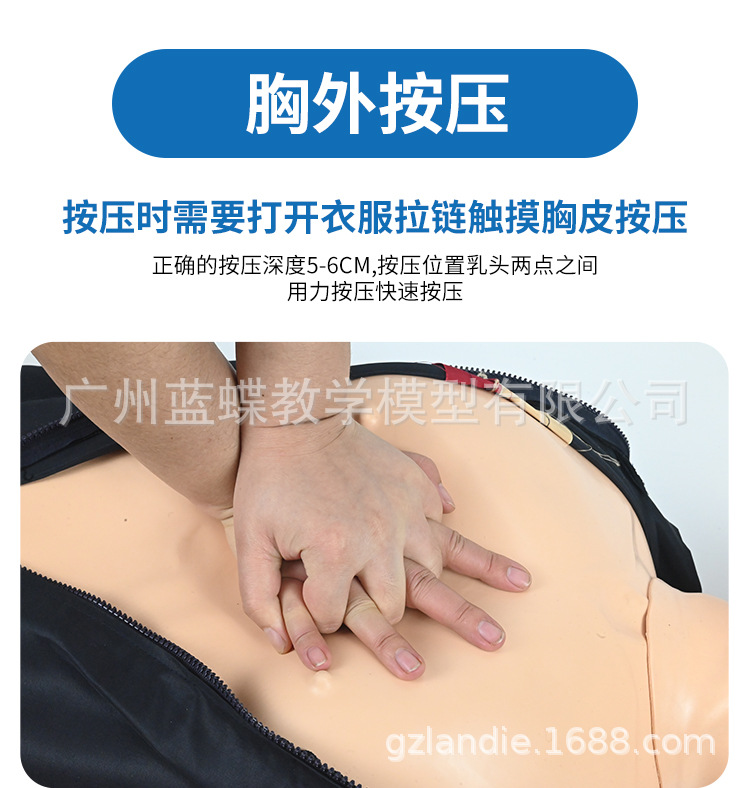

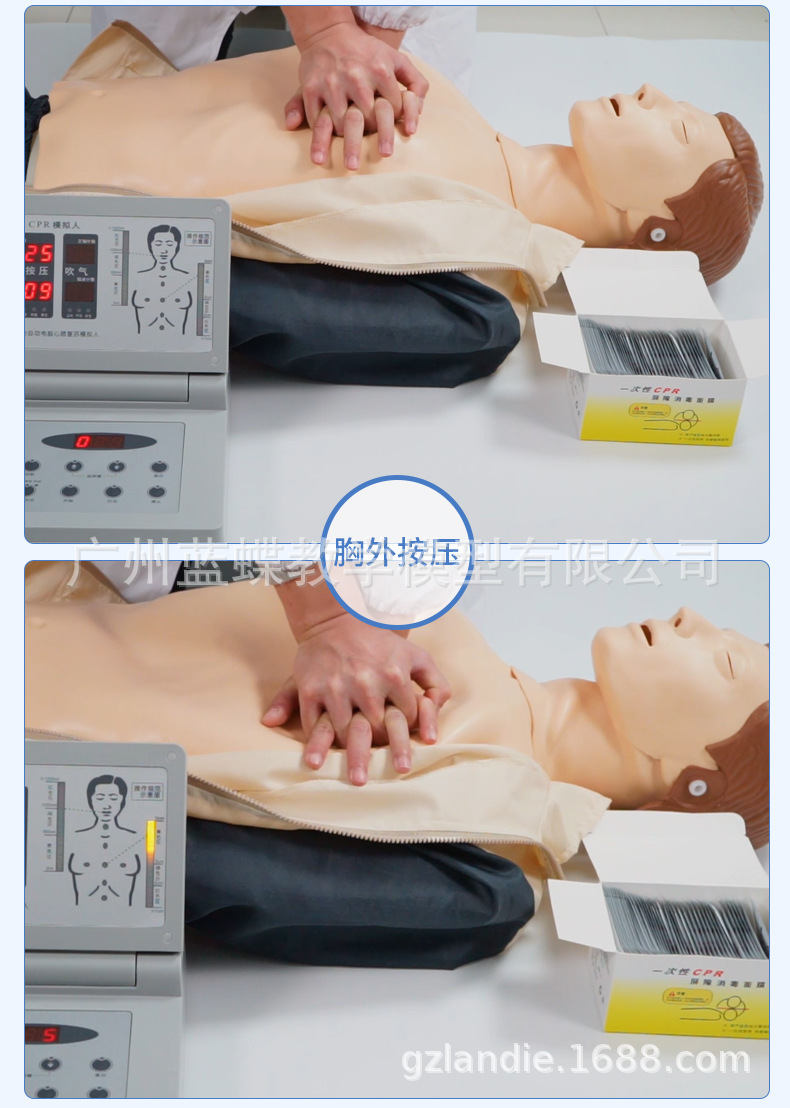

■ The barcode indicates the pressing depth; the correct pressing depth is 5–6 cm:
• When the pressing depth is too shallow, the barcode appears yellow.
• When the pressing depth is appropriate, the barcode turns green.
• When the pressing depth is too deep, the barcode turns red.
■ The operation time can be set manually in seconds.
■ Operation Frequency: 2010 standards mean at least 100 times per minute, and users can also set their own value.
■ Power status: Uses a 220V power supply, which is regulated by a voltage regulator to output 12V power. (A lithium battery can be added optionally for direct use without an external power source.)

Printer Features:

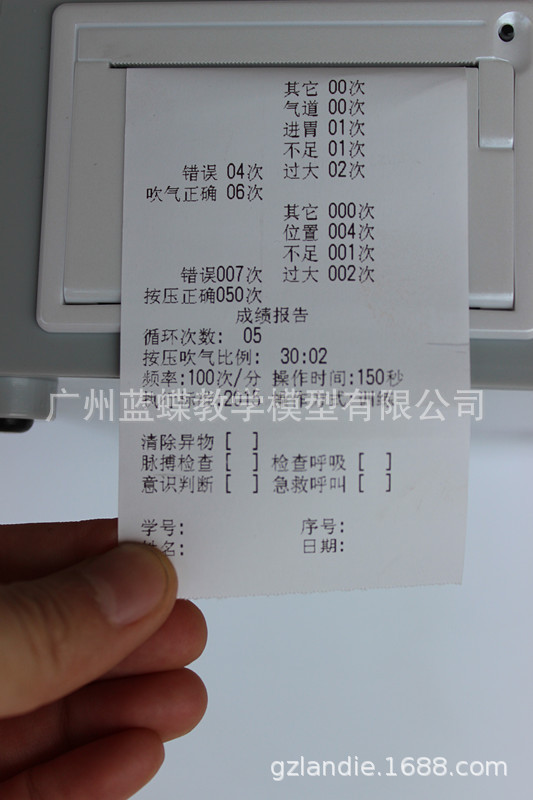

■ Print the operation process after the operation is completed.

CPR4X0 New Features:
■ The report includes information on operation methods, cognitive assessment, first aid breathing techniques, pulse examination, respiratory checks, removal of foreign objects, operation frequency, compression and ventilation ratio, number of cycles, the number of compressions and breaths per cycle, correct/incorrect compressions, causes and counts of incorrect compressions, causes and counts of incorrect ventilation, causes of incorrect ventilation, set time, operation time, and assessment evaluation.

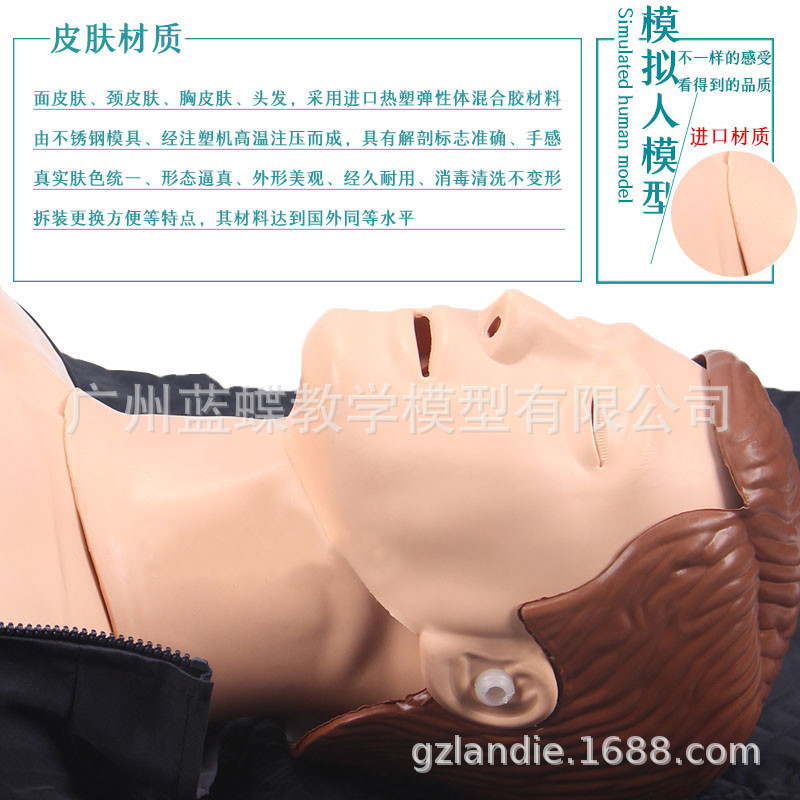

■ For the face skin, neck skin, chest skin, and hair, a imported thermoplastic elastomer mixed adhesive material is used. It is manufactured using stainless steel molds and injection molding at high temperatures. It features accurate anatomical details, realistic texture, uniform skin tone, lifelike shape, attractive appearance, durability, resistance to disinfection and cleaning without deformation, and easy disassembly and replacement. The material meets international standards.

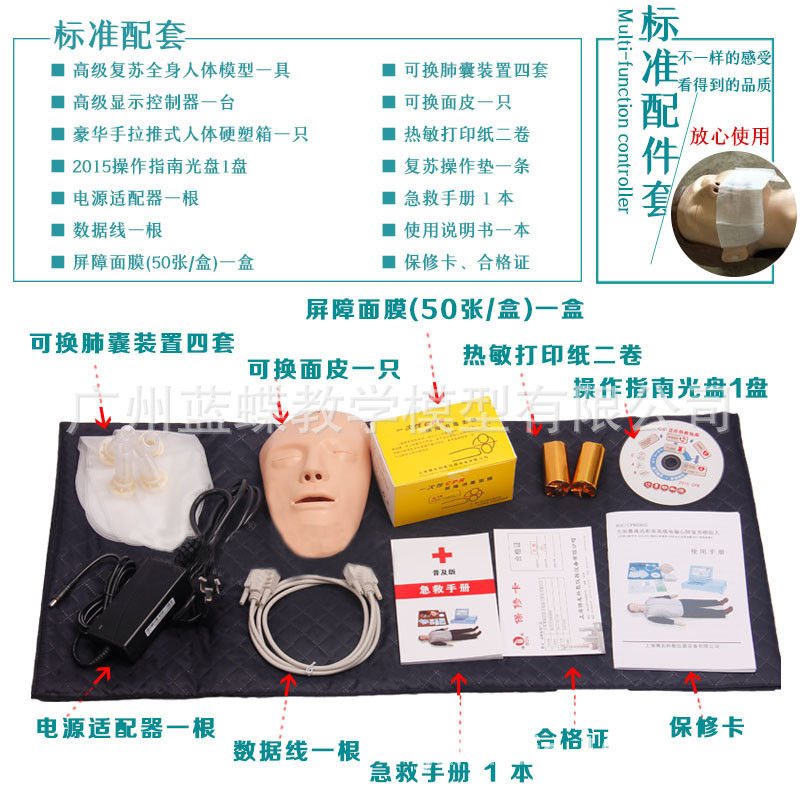

Standard set configuration:
■ One full-body human model restored;
■ One display controller;
■ One luxury canvas tote bag;
■ One recovery operation pad;
■ One power adapter;
■ One data cable;
■ Barrier facial mask (50 pieces/box) – 1 box;
■ Four sets of lung sac replacement devices;

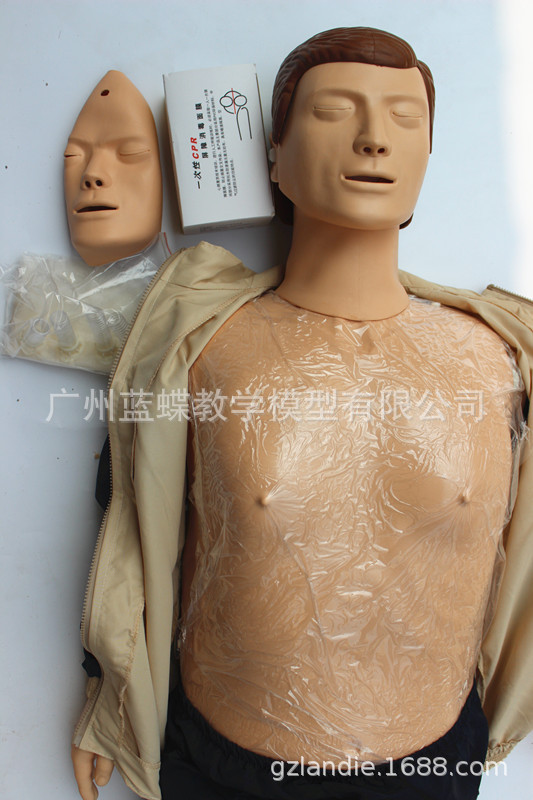

■ One with interchangeable skin;
■ 2 rolls of thermal printing paper;
■ 2010 International New Operation Guide CD, 1 disc;
■ 1 emergency manual;
■ One user manual;
■ Warranty card, certificate of conformity;
