supply steel casing miniature pressure gauge, axial black horizontal mounting, mini y35z, 16 bar, m10×1, factory direct sales

Yannan metals bathroom 2yr.

Contacts Mr.white Chat

Mobile 86-15005791262

E-mail 594860434@qq.com

15005791262

WhatsApp +8615005791262

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

import or not: no

order number: y35z

customized processing: yes

item no.: gc-013

brand: wofas

model: y35z/16bar/m10 * 1

type: miniature pressure gauge

measuring range: 0-16bar = 1.6

accuracy level: 2.5

connection type: axial m10 * 1

nominal diameter: 35

ambient temperature: -40~70

specifications: steel casing copper connection/y35z/16bar/axial m

whether cross-border export is exclusively available: no

material: ordinary steel casing

diameter: 35mm

range: 0 ~ 16bar

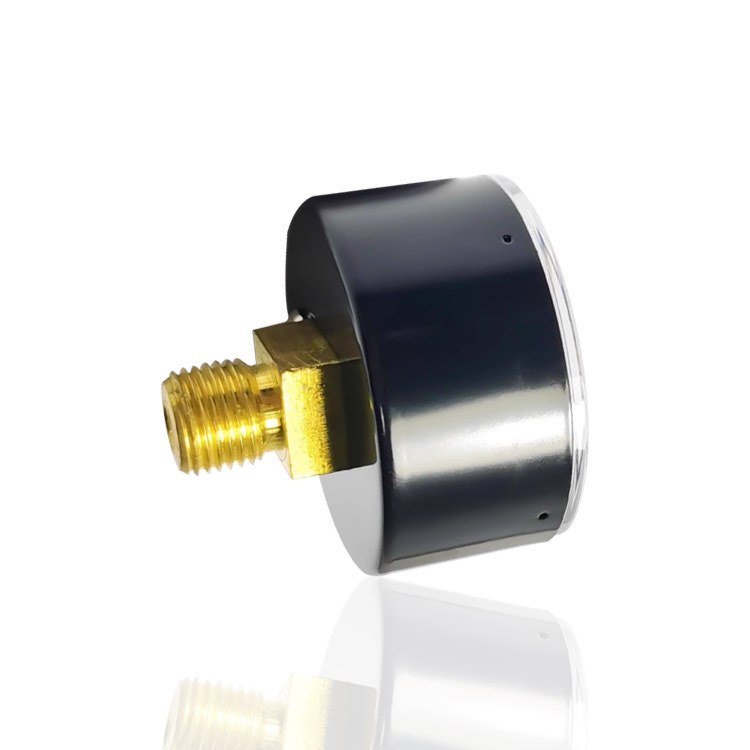

Filter Micro Pressure Gauge

Model: Y35Z

Diameter: 35 mm (customized to 30 MM is also possible)

Range: 0~16 bar (customizable)

Precision Class: Level 2.5

Thread installation direction: Axial

Thread specifications: M10*1 (customizable)

Material: Black metal iron casing + copper connections

Purpose: Used in conjunction with household water purifiers for wide and pre-filter applications

产品展示

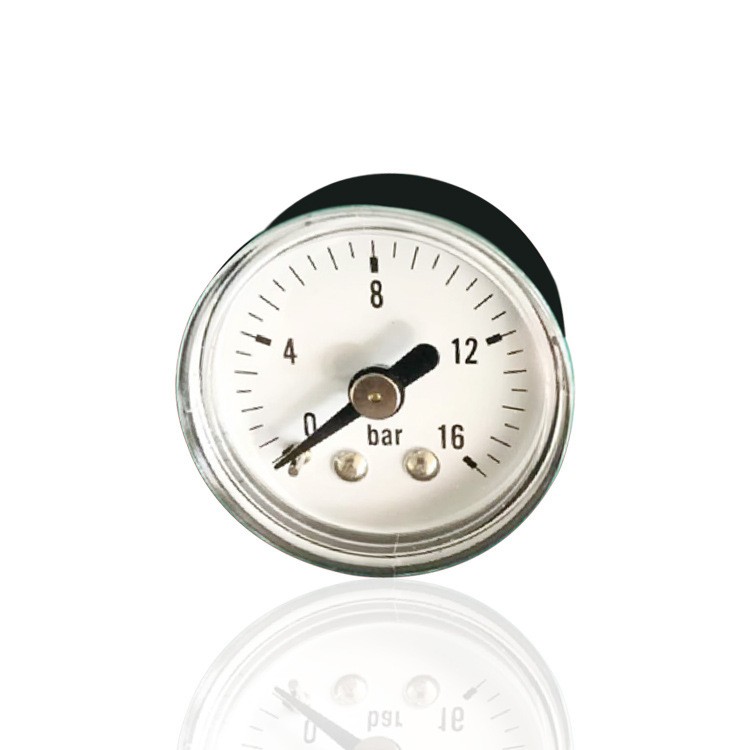

Y35Z-16bar M10X1-1.jpg

Diameter: 35mm

Y35Z-16bar M10X1-2.jpg
Range: 0~16 bar

Y35Z-16bar M10X1-3A.jpg

Thread installation direction: Axial

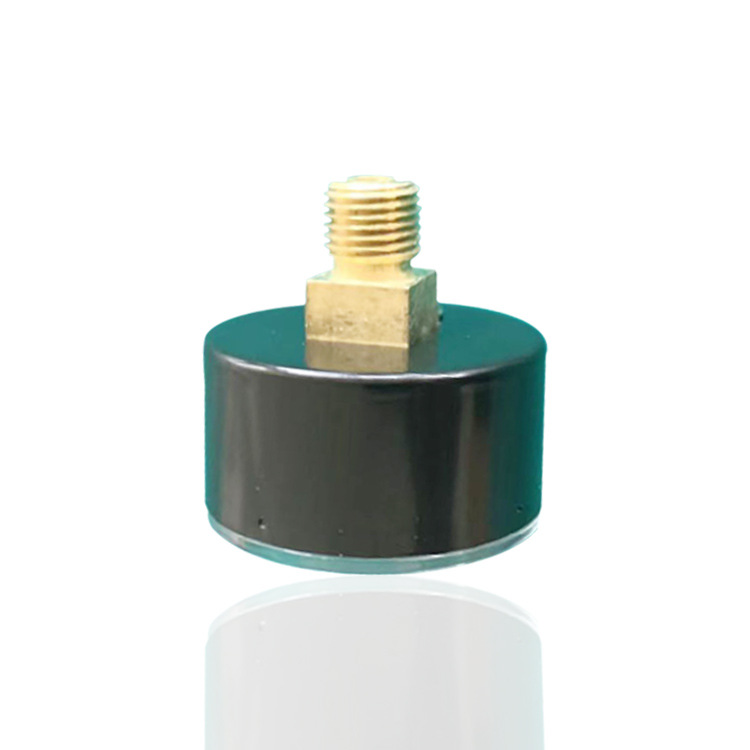

Y35Z-16bar M10X1-4.jpg
Thread specifications: M10*1
Y35Z-16bar M10X1-5.jpg
Material: Iron shell + copper connections


Product Information:

Name: Filter Micro Pressure Gauge
