Micro Multifunctional Drill Saw

Advantages List:

• Versatile adapters for multiple functions
• Compact design for ease of use
• Quick-coupling system for efficiency
• Precision performance and safety features
• Autoclavable for reuse

Specification：

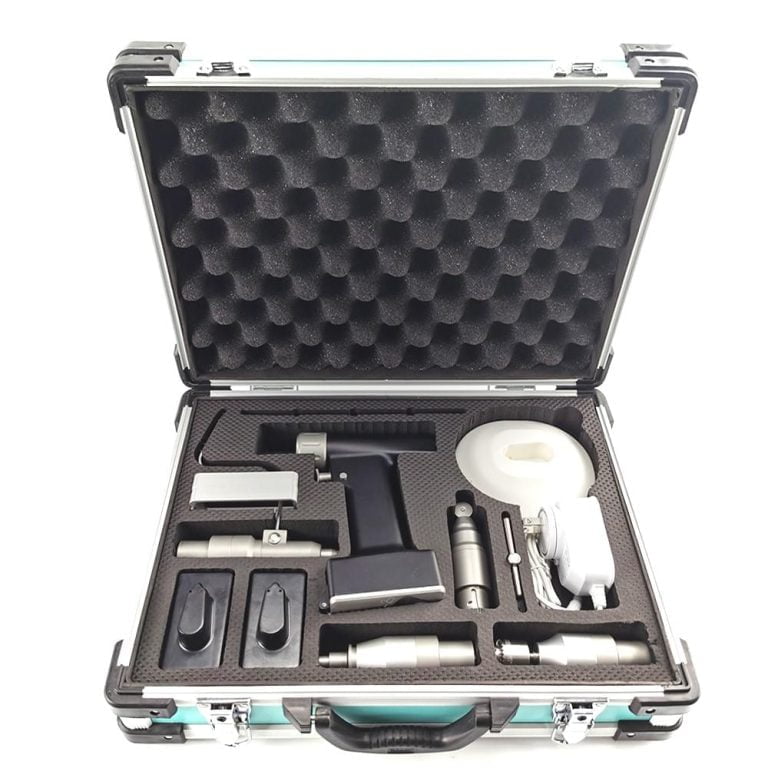

1.Mini Multifunctional Drill Saw System handpiece

2.Battery   3.Charger  4.Disinfection channel

5.Mini Sagittal Saw Attachment

6.Mini Ao CoupingDrill Attachment

7.Mini Bone Drill Attachment

8.K-WireAttachment

Note：

1.Sterilization temperature limited to ≤ 135°C (Improved variant can withstand up to ≤ 155°C). Exceeding 135°C may result in motor damage.

2.Standard bone drills accommodate drill bits under 6 mm; reaming drills offer high torque with an RPM of around 300. Hollow drills, used with nails or K wires, operate at approximately 600 RPM.

3.Post-surgery, it’s imperative to remove the battery from the power tool to prevent the battery’s lifespan from being shortened by minor electric discharge.

4.Batteries are not sterilizable and are not heat resistant; exposing them to high temperatures may cause damage.

5.Promptly cleanse the macine after surgery using a purging solution to prevent blood from adhering to it, followed by thorough drying.

6.Ensure the battery compartment of the tool’s handpiece remains free of water post-sterilization.

7.The mini multinational saw blade, crafted from medical-grade stainless steel, prioritizes flexibility over hardness to avoid breakage. Due to its susceptibility to wear, it’s advisable to use each blade for only one surgery.
