Function description: The portable pump is designed to help users avoid lifting the heavy fuel tank during refueling.

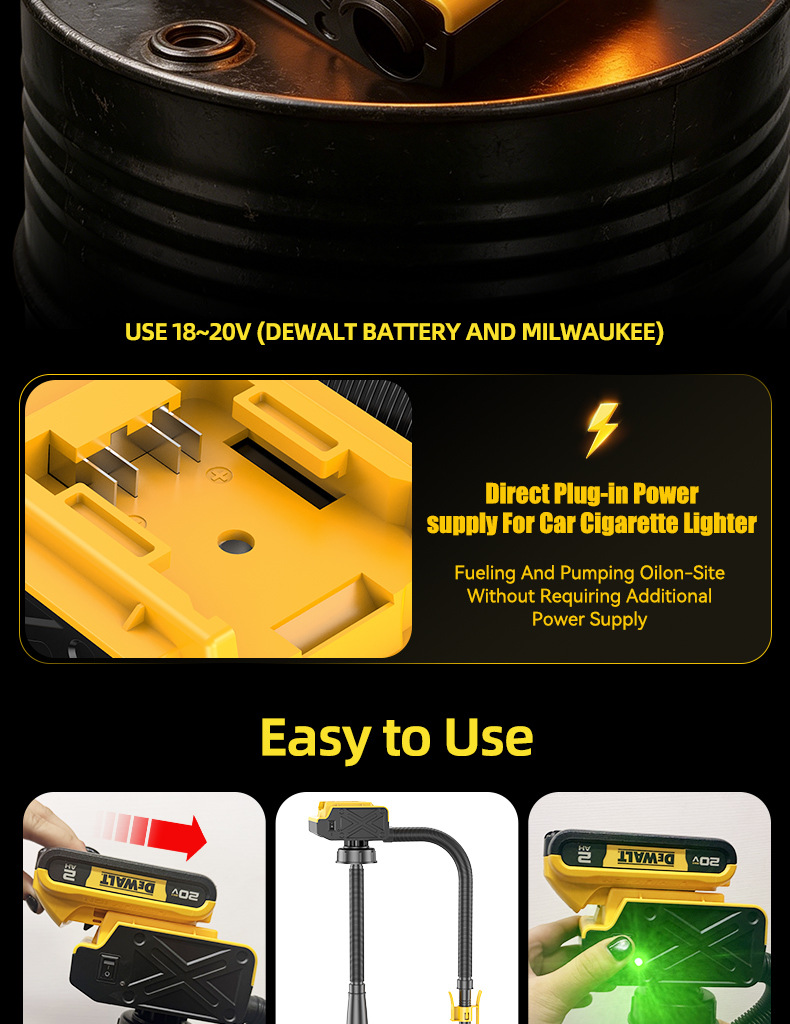

Battery Compatibility: Compatible with DeWalt 20V and Milwaukee 18V

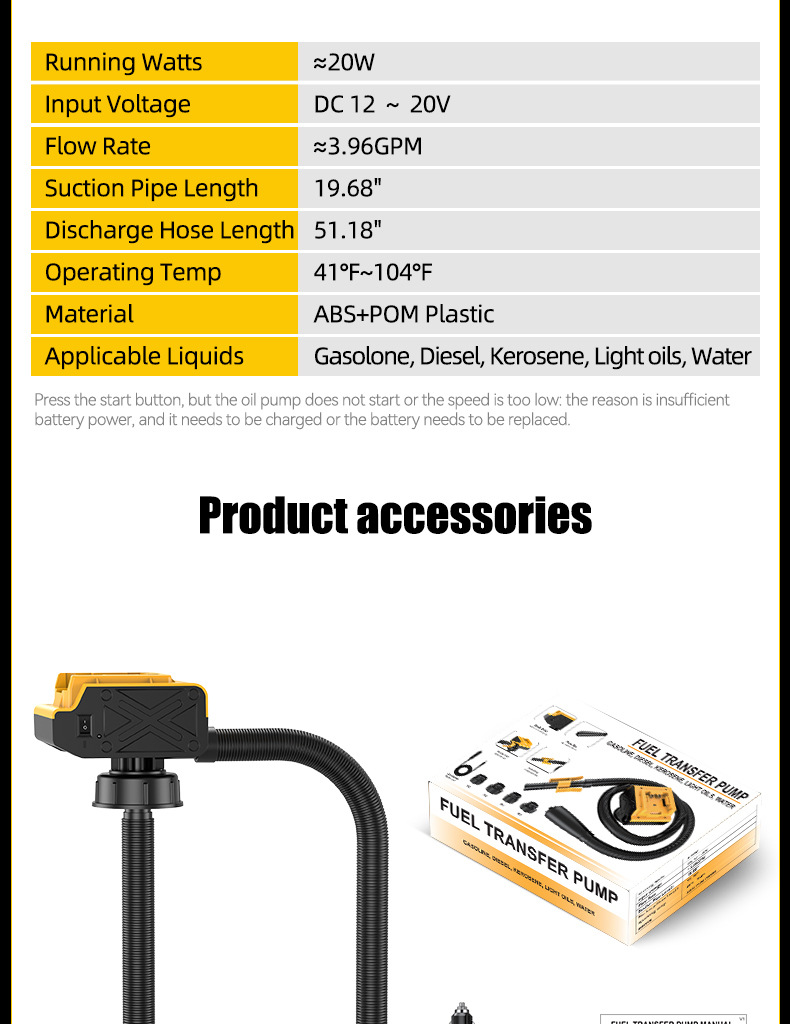

Rated voltage: DC12～20V

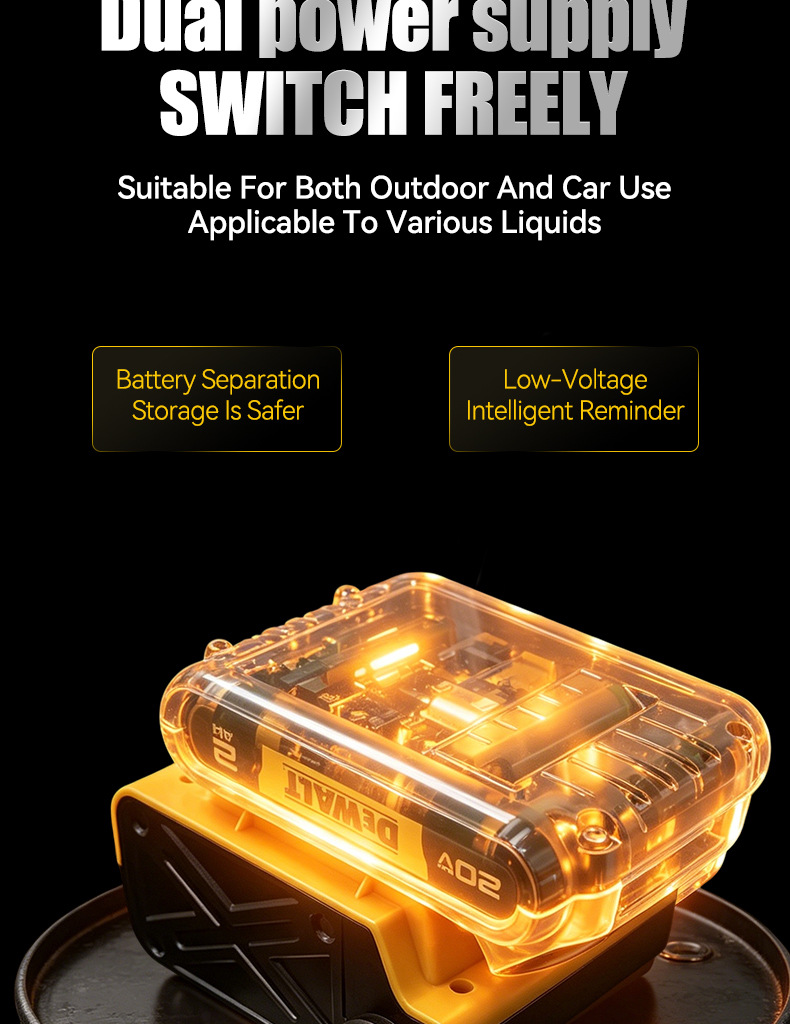

Power supply method: External 21V power tool battery + built-in DC interface for the device (12V direct current)
Rated Power: 20W
Motor specifications: 370 brushed motor at 11500 RPM
Battery life: Approximately 5 hours (based on standard compatible battery conditions)

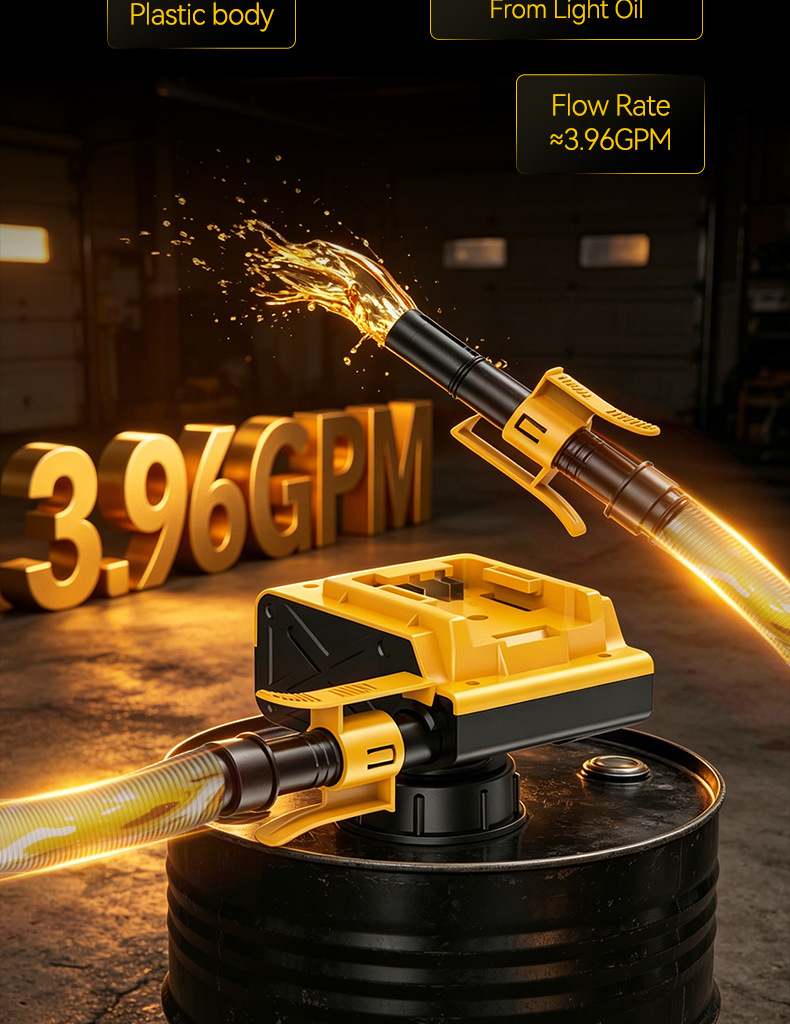

Flow rate: 6 to 12 liters per minute
Shell material: ABS+POM plastic
Operating noise: ≤50 dB
Product dimensions: 120*91*86 mm

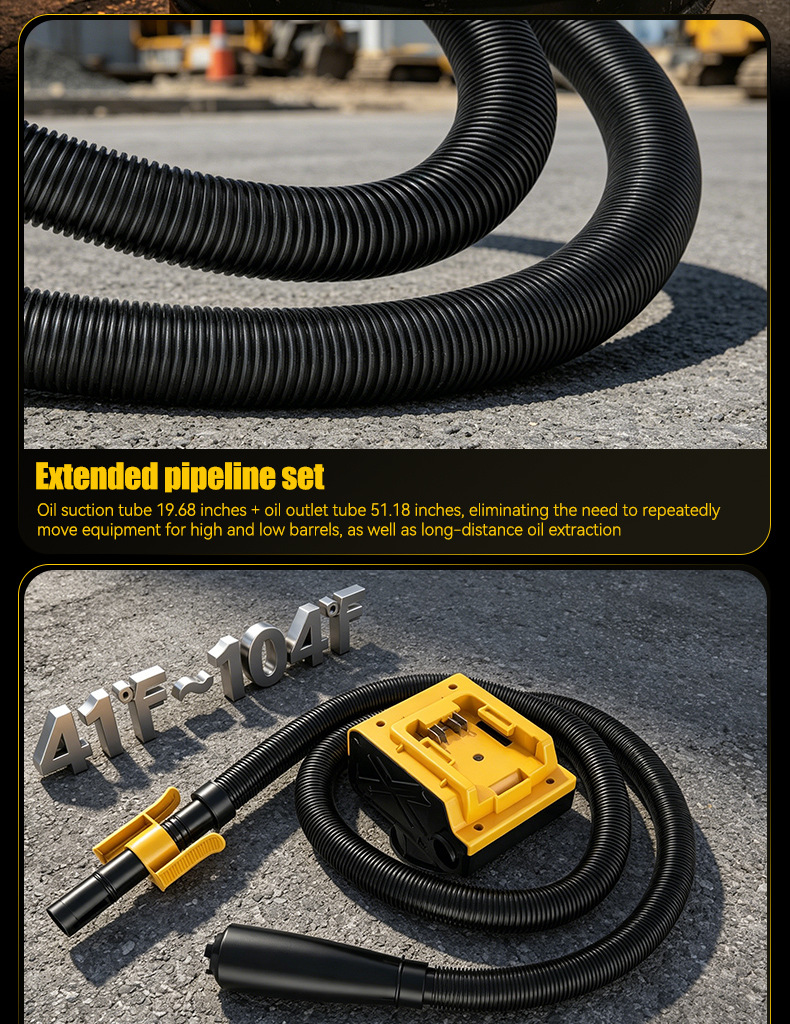

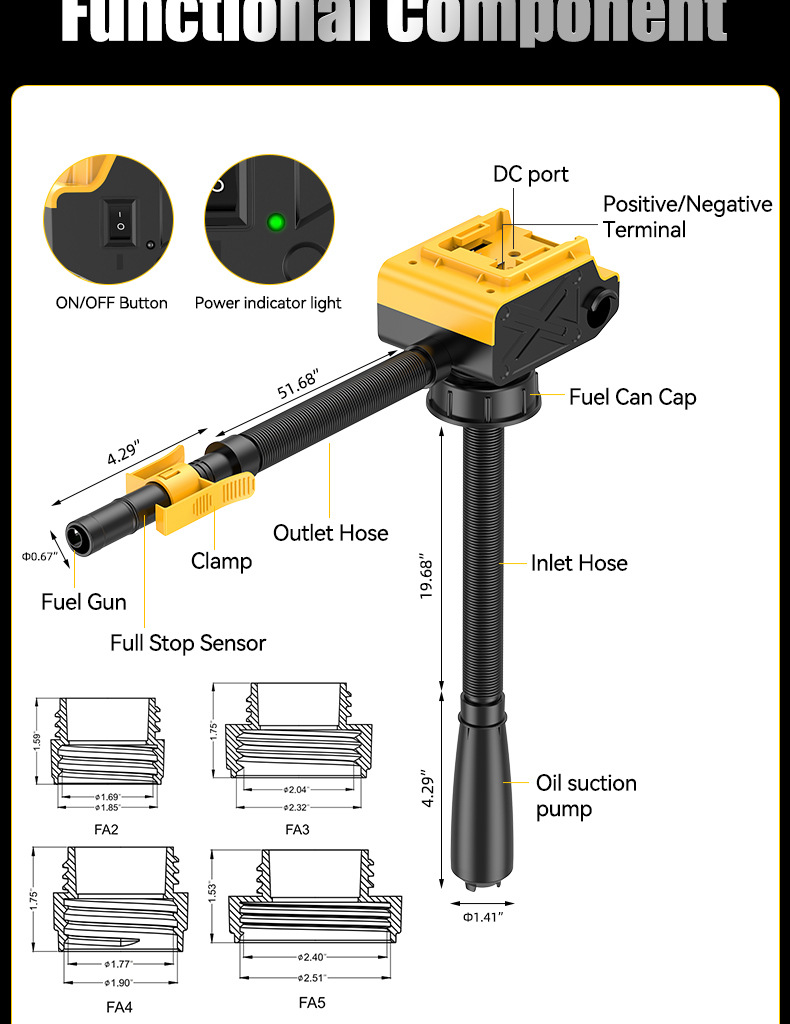

Length of water-exposed corrugated pipe: 1300 mm
Length of water inlet corrugated pipe: 500mm
Applicable liquids: gasoline, diesel, kerosene, water, light oil

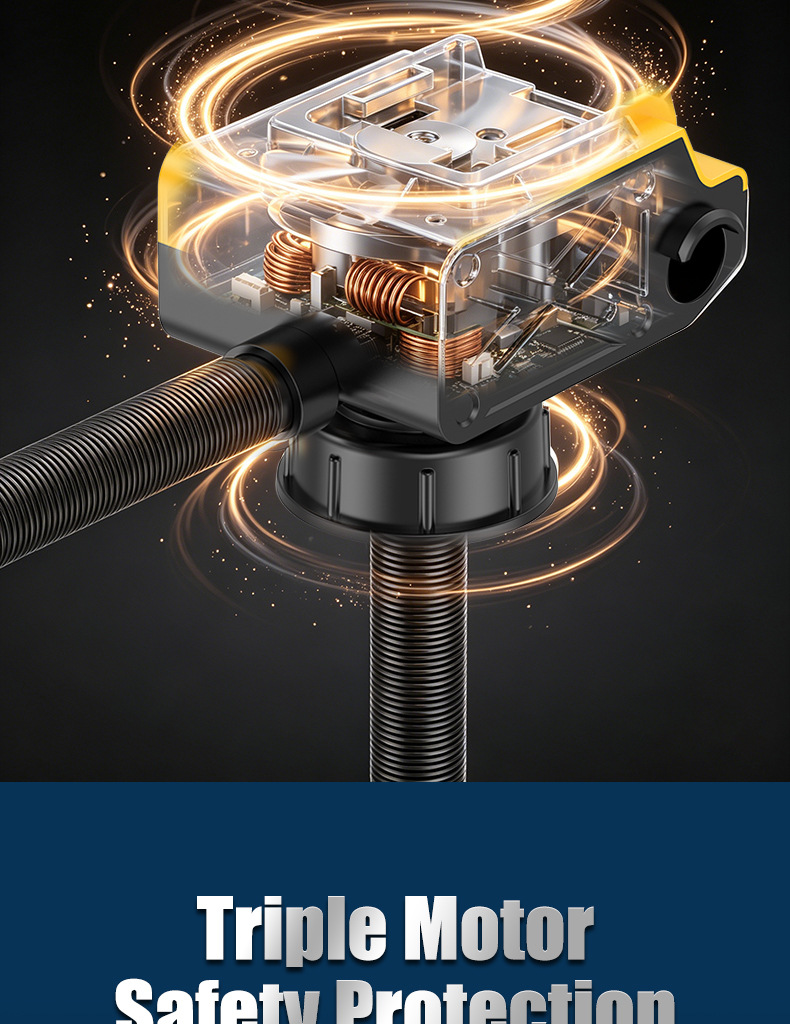

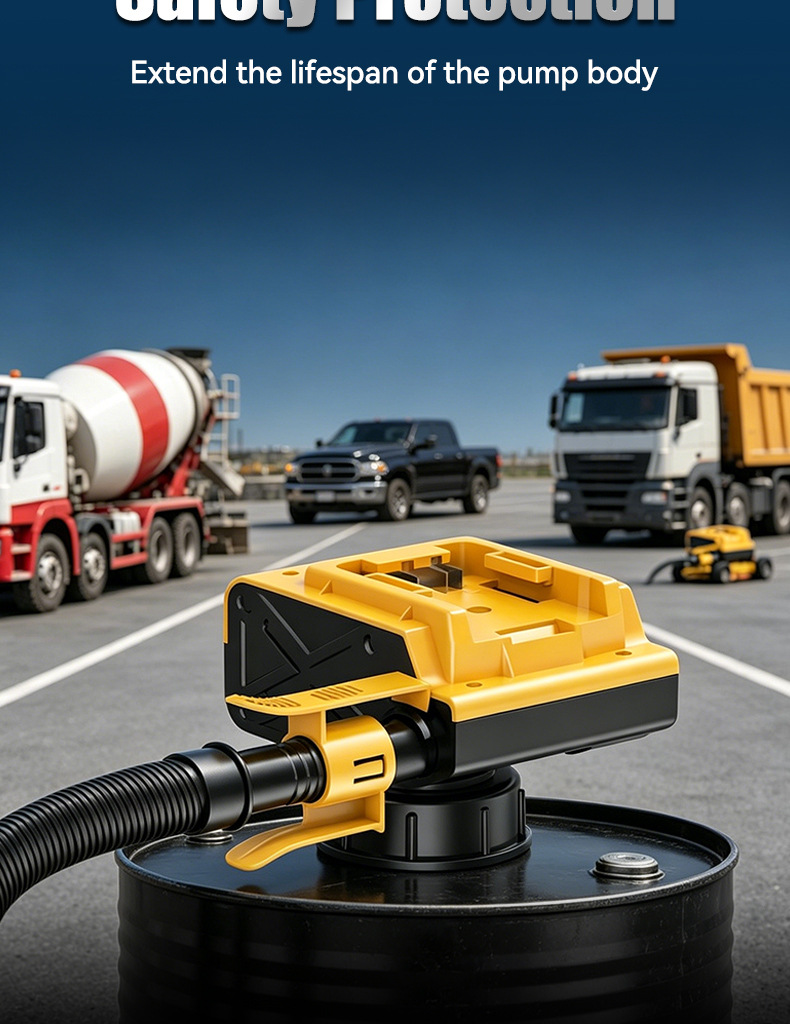

Product protection: oil shortage idle operation, blockage and overload protection, fault alert notification

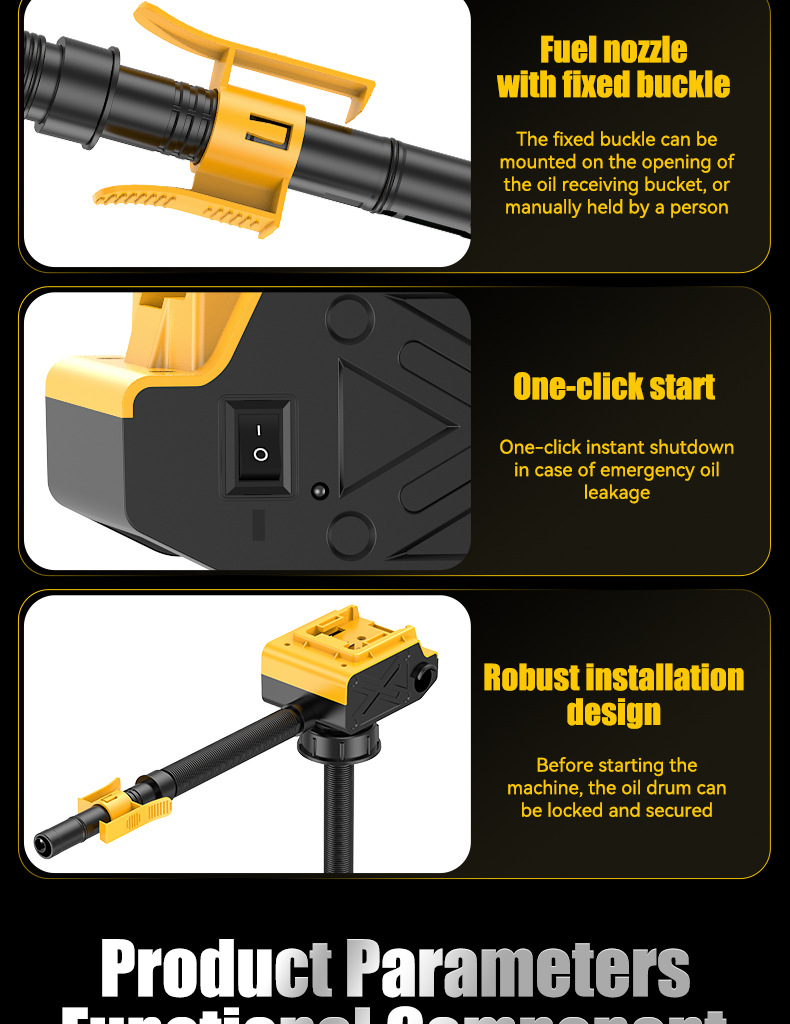

Product detail description:
1. The device is suitable for external 21V tool batteries + 12V DC power, and is suitable for various application scenarios;
2. Pump wells are widely used for: gasoline, diesel, kerosene, water, and light oil liquids;

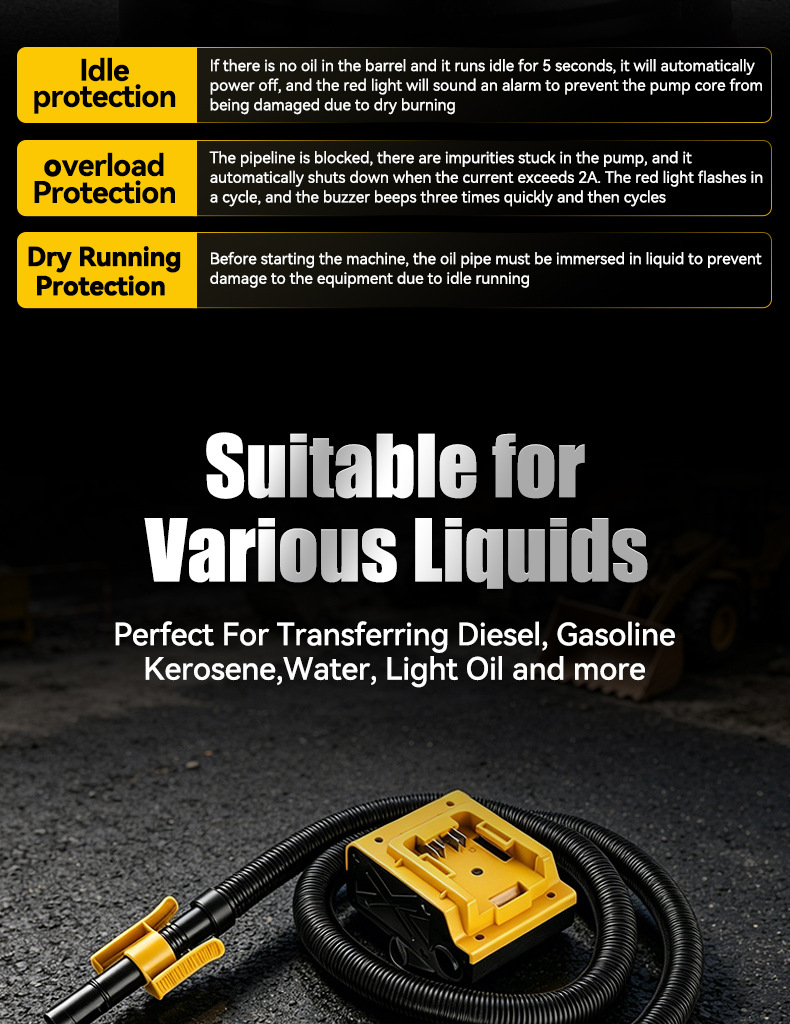

3. If the equipment idles for 5 seconds, the protection system automatically cuts off the motor power and stops operation;
4. When the equipment red light remains on, a continuous alert procedure will be activated, indicating that the liquid tank is lacking oil and requires shutdown. After replenishing the oil, re-enable the pumping function to prevent the pump core from wearing out due to dry operation;

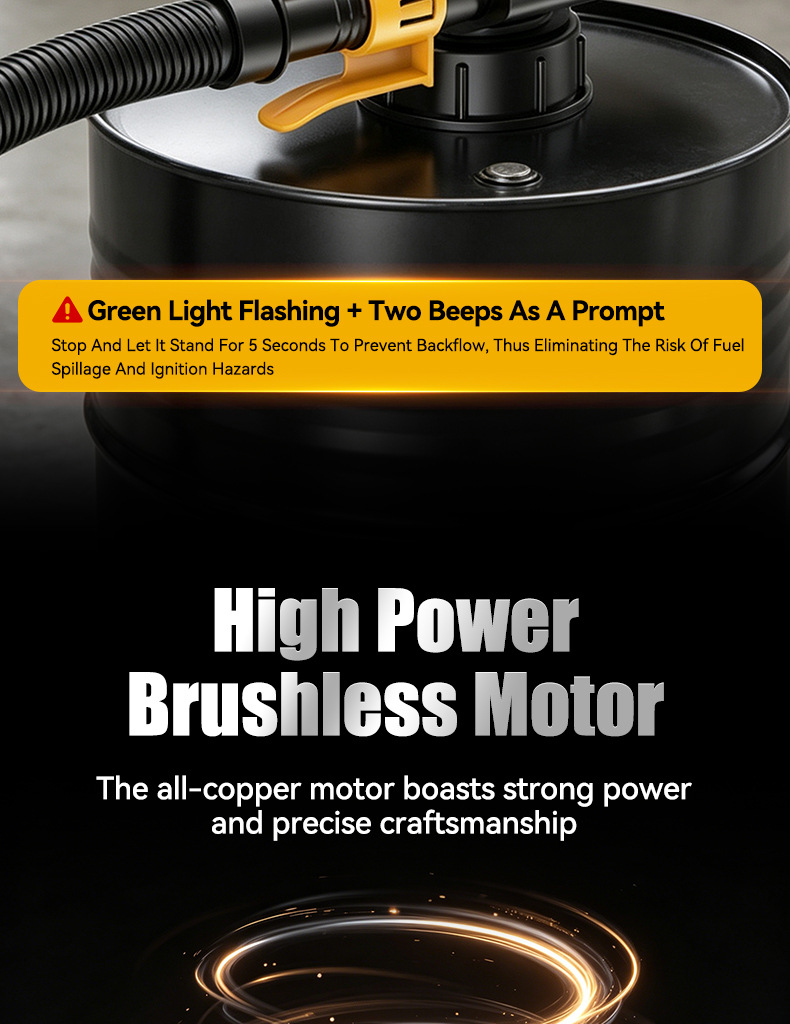

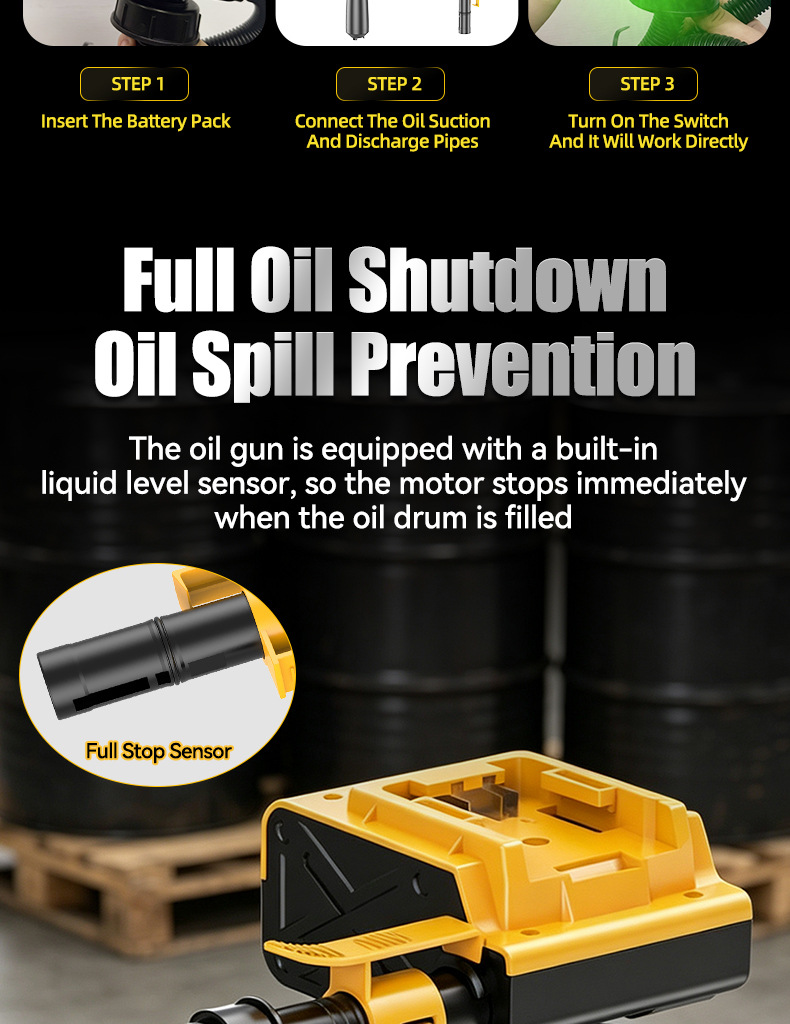

5. The device has a built-in liquid level detection function. When refueling, if the liquid level rises and touches the detection element, the device immediately triggers the full oil shutdown procedure. In this case: the motor stops operating, oil output is interrupted, and the green indicator light on the device flashes along with an alarm sound to repeatedly alert that the container is full of oil.
6. To prevent impurities or foreign objects from entering the pump chamber, wrapping around the fan blades, or blocking the oil outlet, which could cause the motor to stall, overheat, or trigger an overload protection activation with operating current > 2.5A, the device features a flashing red light and alarm function upon startup.
