far infrared quartz heating tube 220v oven laminator packaging dryer tunnel furnace heating tube 380v 远红外线石英加热管220V烤箱覆膜机包装烘干机隧道炉发热灯管380V

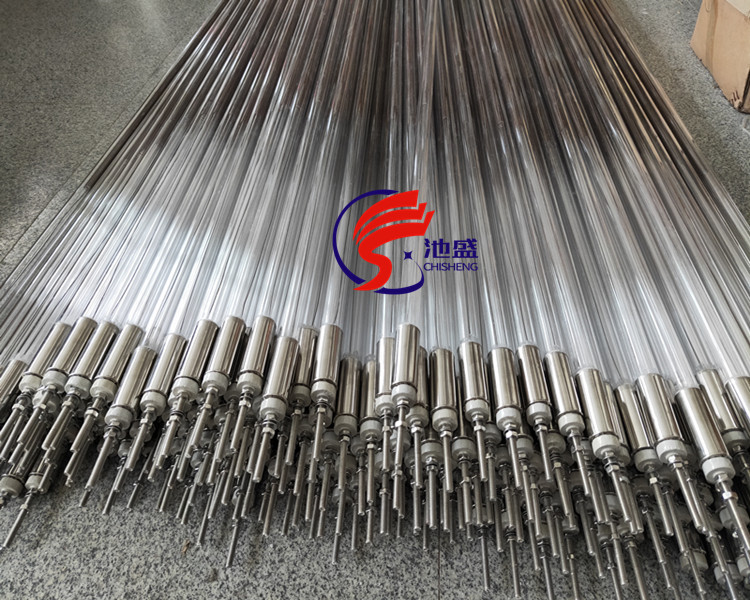

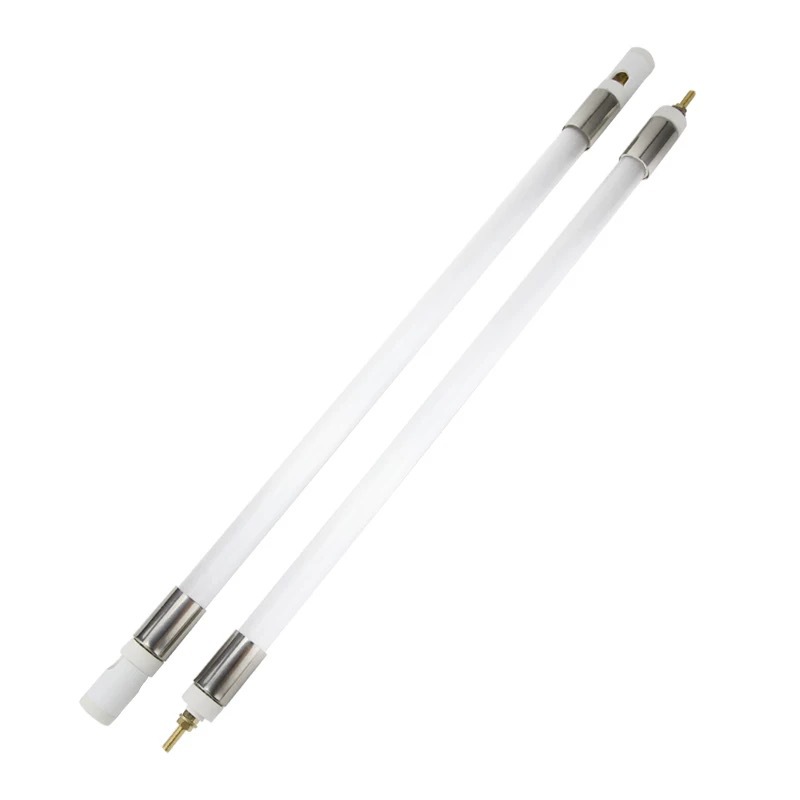

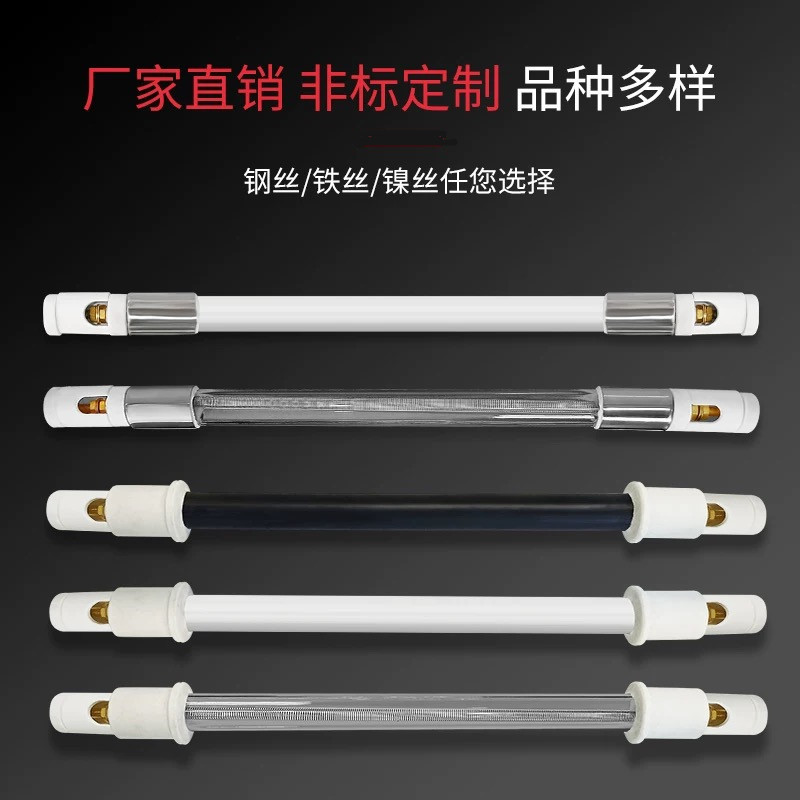

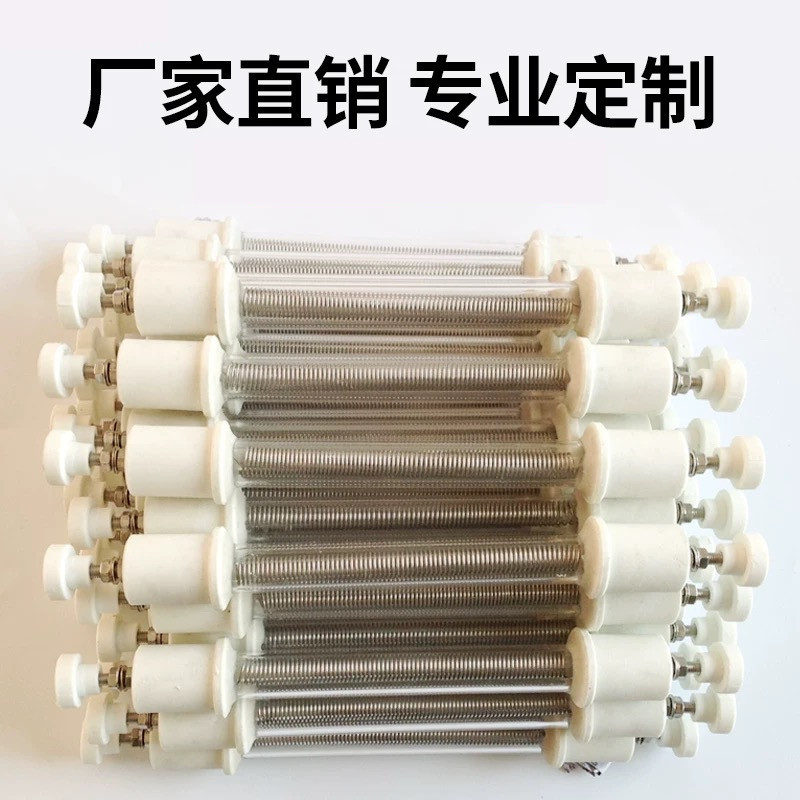

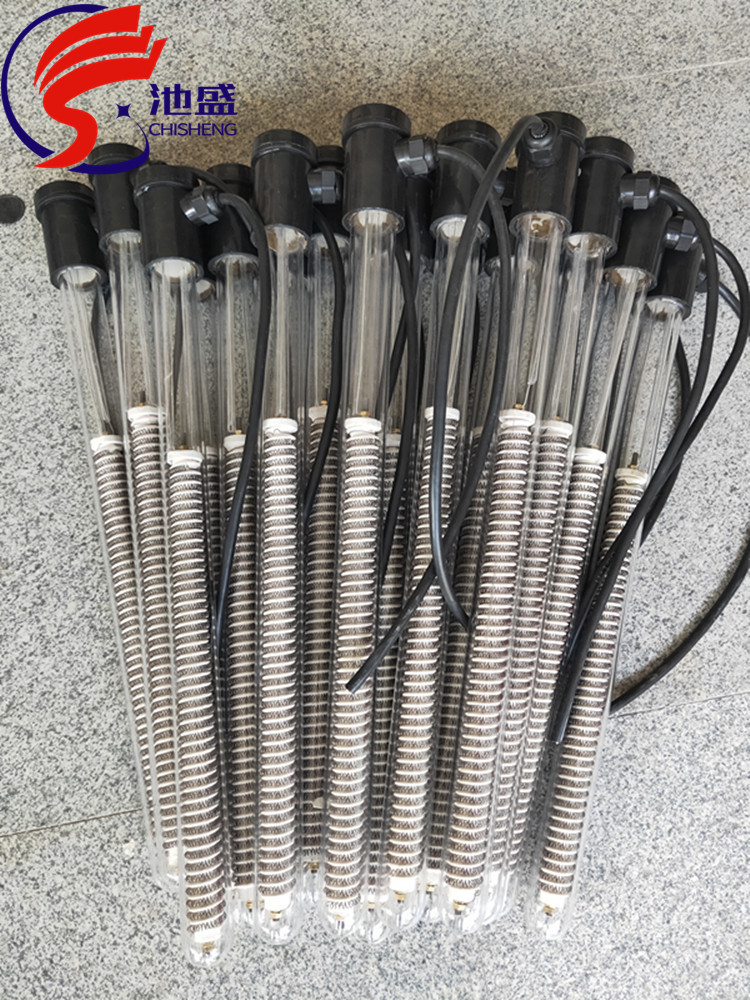

The far-infrared heating tube uses milky-white quartz glass tubes or high-temperature transparent quartz glass tubes, paired with high-temperature electric heating alloy wires as heating elements. Since the milky-white quartz glass can absorb almost all visible light and near-infrared light from the heating wire and convert them into far-infrared radiation, it is approximately 30% more energy-efficient than conventional heating elements.

Technical Features

1. No far-infrared coating is required; the spectral radiation matches well, absorption properties are excellent, radiation performance does not degrade over long-term use, and the electric heating conversion efficiency is high. It is approximately 30% more energy-efficient than conventional heating elements.

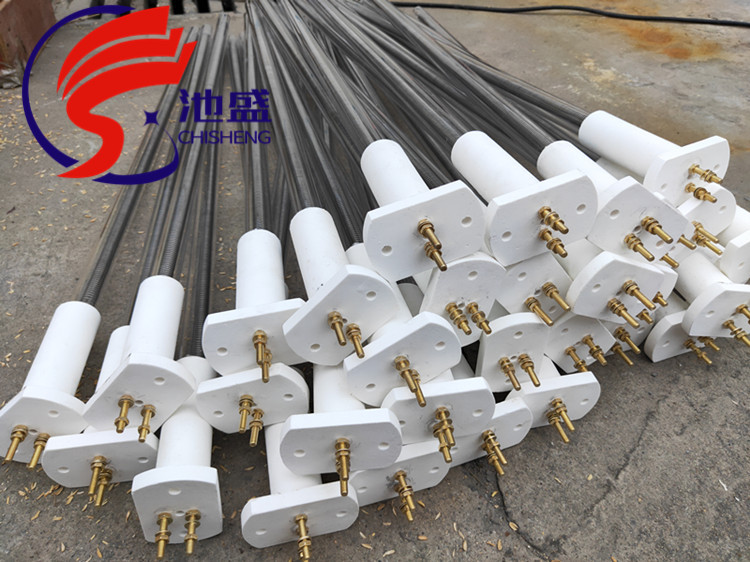

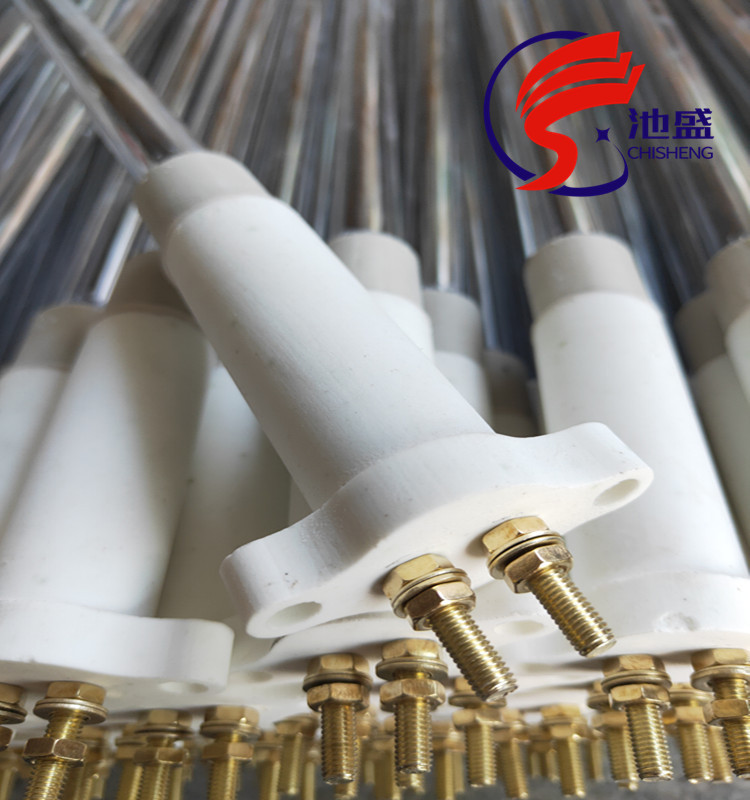

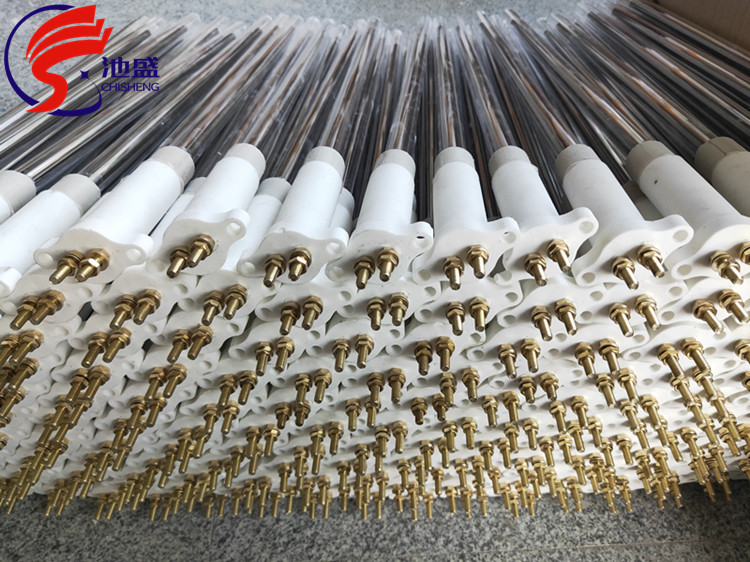

2. It has high operating temperatures and a wide selection range. Among them, those packaged with ceramic caps can withstand temperatures up to 800°C.
3. It has rapid temperature rise, low thermal inertia, good thermal chemical performance stability, and a long service life.
4. is a cleaning-type heater suitable for household appliances.
5. The design, manufacturing, and installation are all very convenient.

Installation and usage precautions:
1. During horizontal installation, the tilt shall not exceed 30 degrees.
2. When using, use an aluminum or stainless steel reflector cover, either a flat or parabolic reflector. However, a parabolic reflector is ideal: it enhances the radiation utilization rate, and our factory can provide custom manufacturing services.
3. Avoid intense vibration and shaking.
4. The distance between the heating element and the object to be heated should be controlled at 150 to 450 millimeters, depending on the specific condition of the dried item.
5. Quartz heating elements are brittle materials; safety should be observed during installation and use. When in use, necessary protective measures must be taken based on the specific conditions of the object being heated to prevent mechanical damage.
