Installation instructions:

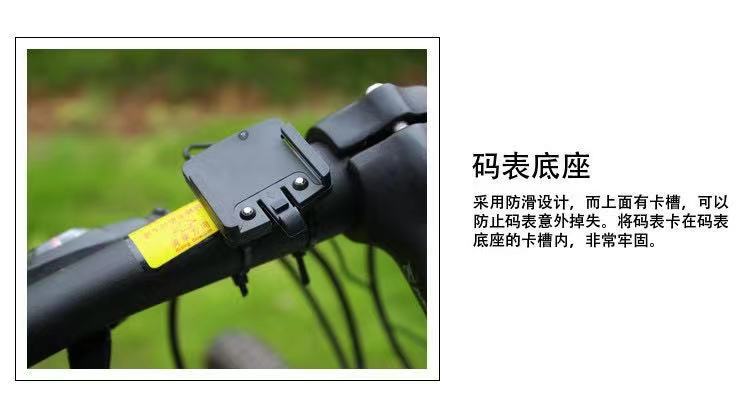

1. Install the header seat onto the handlebar;
2. Insert the AG13 button battery into the battery compartment on the back of the meter.
3. Initialize the code table data; generally, setting just one parameter for tire circumference is sufficient for normal operation.
3. Insert header into the header seat chute;

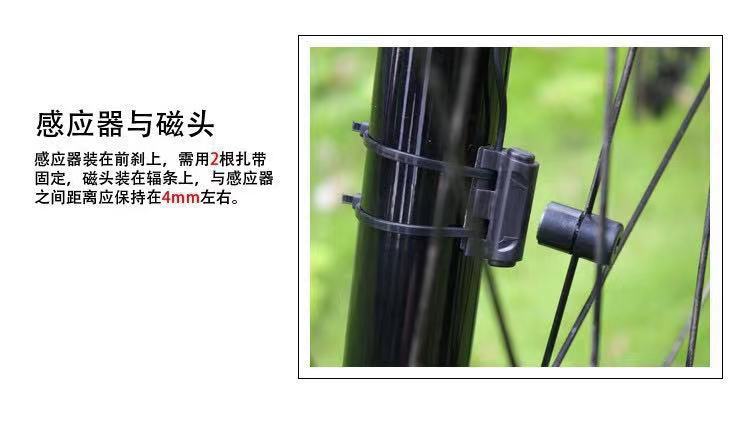

4. Install the sensor on the front wheel hub, ensuring the sensing head faces directly toward the spokes;
5. The induction magnet is installed on the spoke, aligned with the induction head, at a distance of approximately 3–5 mm;
6. Secure the cables with nylon straps;

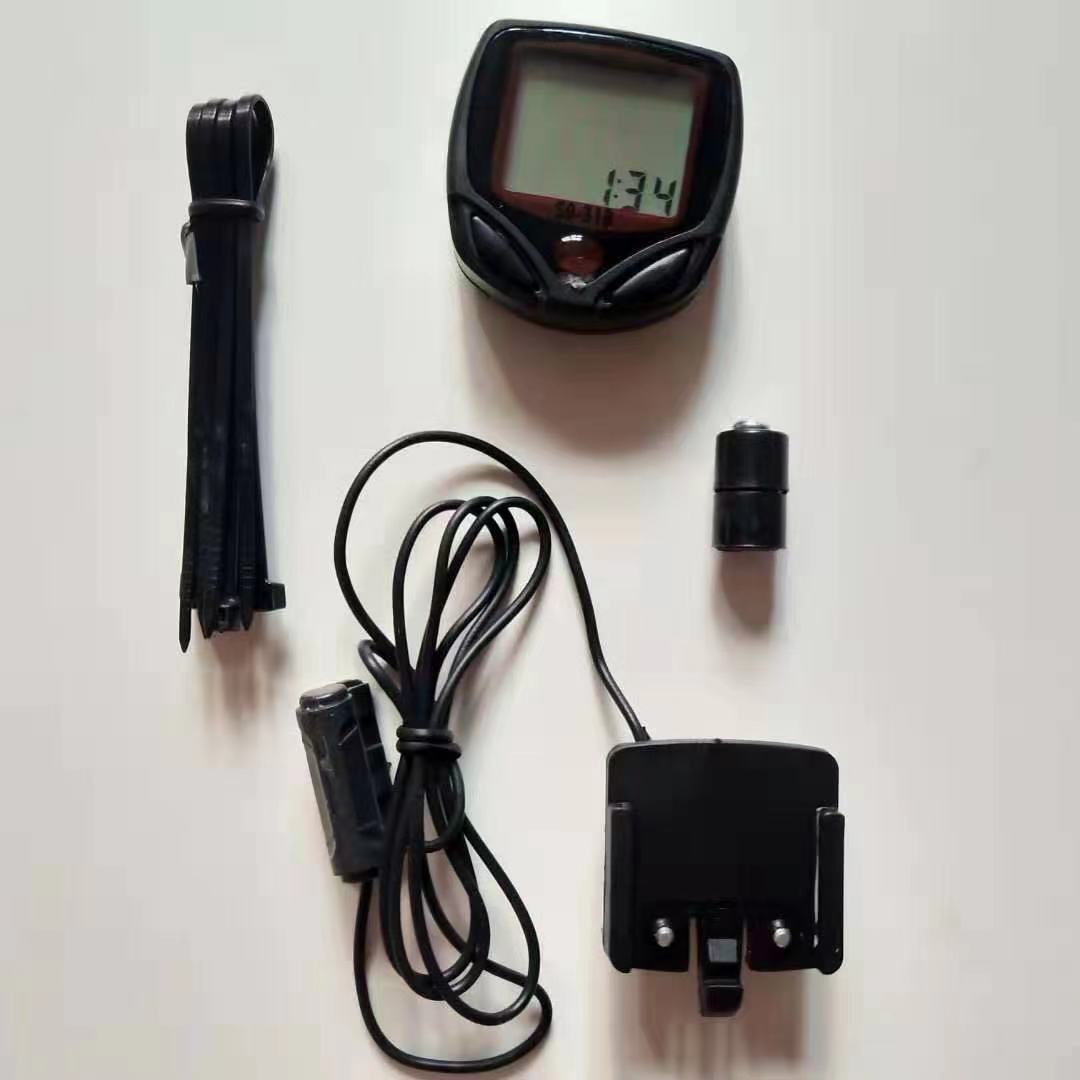

7. Check whether the above header seats, sensors, and induction magnets are installed firmly. This package includes rubber gaskets and detailed Chinese and English instructions to ensure successful installation.
8. For functions, please refer to the manual settings
Set Function
1. Install the battery into the battery compartment on the back of the meter head;
2. Within 15 seconds, right-click to enter the tire circumference settings;
3. Refer to the wheel diameter and circumference comparison table. For example, for a 28 model, the wheel circumference is 224 cm. Press the left button to set the three-digit value to 224 (the machine is preset at 208 cm).
4. Right-click and confirm;
For the 5 functions, please refer to the manual settings.
