Visual Insemination Gun for Dogs

Vsun Vet’s Visual Insemination Gun for Dogs is a state-of-the-art device designed for precision in canine breeding. This essential component of the Artificial Insemination Kit for Dogs is crafted for use in both large and small dog breeding, featuring a miniature endoscopic camera for clear guidance during the insemination process.

The Visual Insemination Gun is equipped with a semen deposition module, meticulously designed to introduce semen into the female dog’s reproductive canal, enhancing the likelihood of successful fertilization. The device also boasts a rotatable display, allowing for convenient monitoring and teaching, with the ability to swivel 120° and rotate 360° for easy viewing and sharing of visual information.

With multiple functions beyond insemination, including disease detection, the Visual Insemination Gun is a valuable tool for improving farming and animal husbandry productivity. Its HD screen supports video recording, photo taking, and playback, while the portable vas deferens is made of medical-grade material for safe and effective use. The probe design blows away water vapor generated by temperature differences or mucus sticking to the camera head, and the anti-fall rope design ensures the safety of the insemination process.

Advantages List:

• Miniature endoscopic camera for visual guidance
• Intricate semen deposition module for precise insemination
• Rotatable display for easy monitoring and teaching
• One machine with multiple functions for disease detection
• HD screen with video and photo capabilities
• Portable vas deferens made of medical-grade material
• Air duct design to clear vision obstructions
• Anti-fall rope design for secure handling

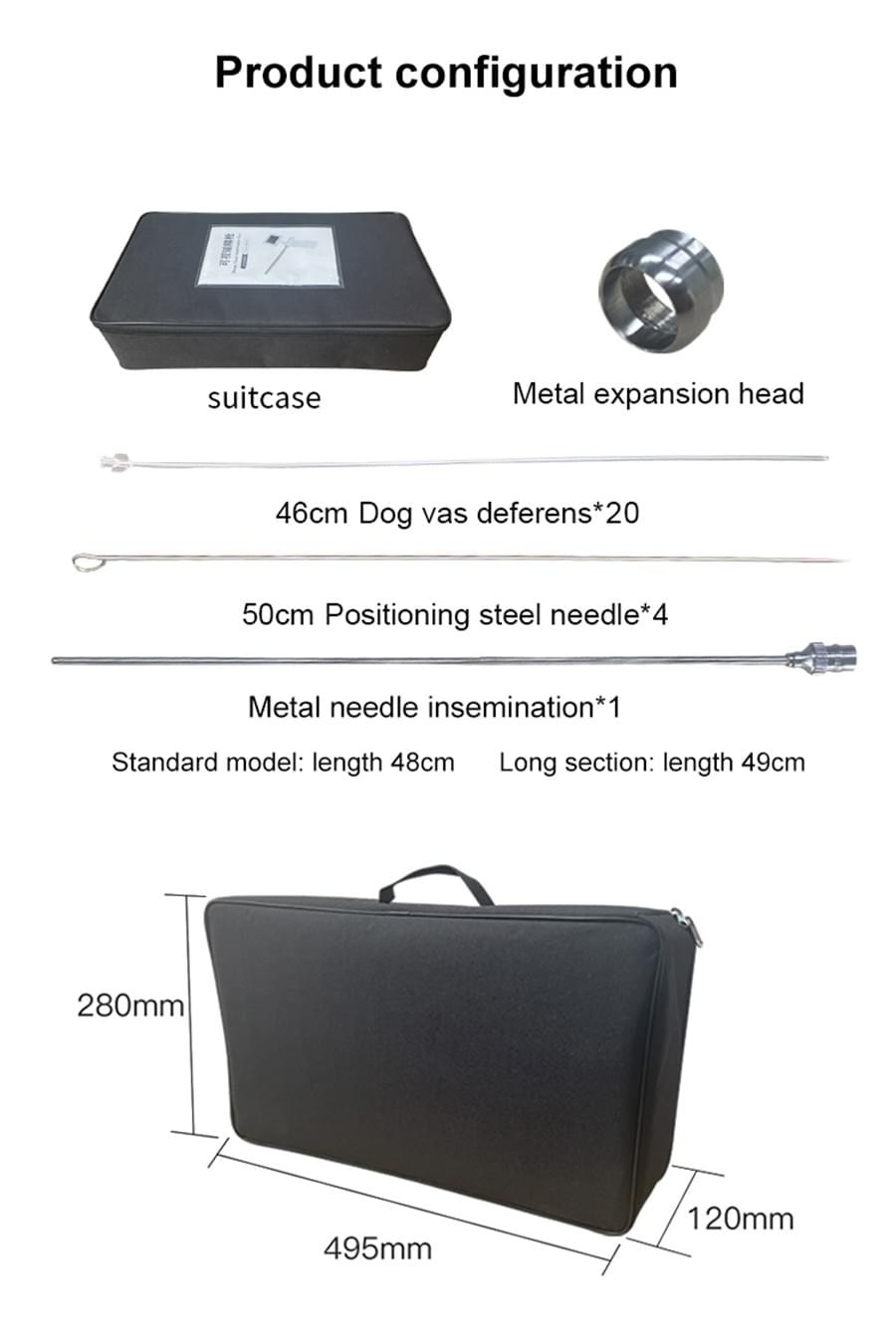

Parameters:

How to use the Visual Insemination Gun for Dogs？

1. Wipe the probe of the visual gun with the alcohol cotton ball, and the front-end expansion head is installed, and the positioning steel needle is inserted into the insemination needle.
2. Place the dog upside down or half upside down, and insert the probe rod of the visual semen insemination gun into the reproductive tract of the dog until it does not move.
3. Slowly back up the infusion gun, if the screen is blurred, you can press the pneumatic button on the handle. Blow off the cover in front of the camera.
4. To see the position of the uterine orifice, insert the injection needle from the back end of the visual infusion gun, observe the changes of the display, you can fine-tune the direction, so that the injection needle from the uterine orifice into the crease, about 4CM.
5. Remove the positioning steel needle, connect the insemination needle with the syringe containing semen, and inseminate slowly. Push the semen inside the final insemination needle with gas not higher than 1.5ML.
6. Pull out the insemination needle, pull out the visual insemination gun, keep the dog upside down, complete the insemination.
