Description

model: fe750

custom service: oem, odm, obm

material: metal, plastic

power: -

voltage: 110v,220v

warranty: 3 years

Product Highlights

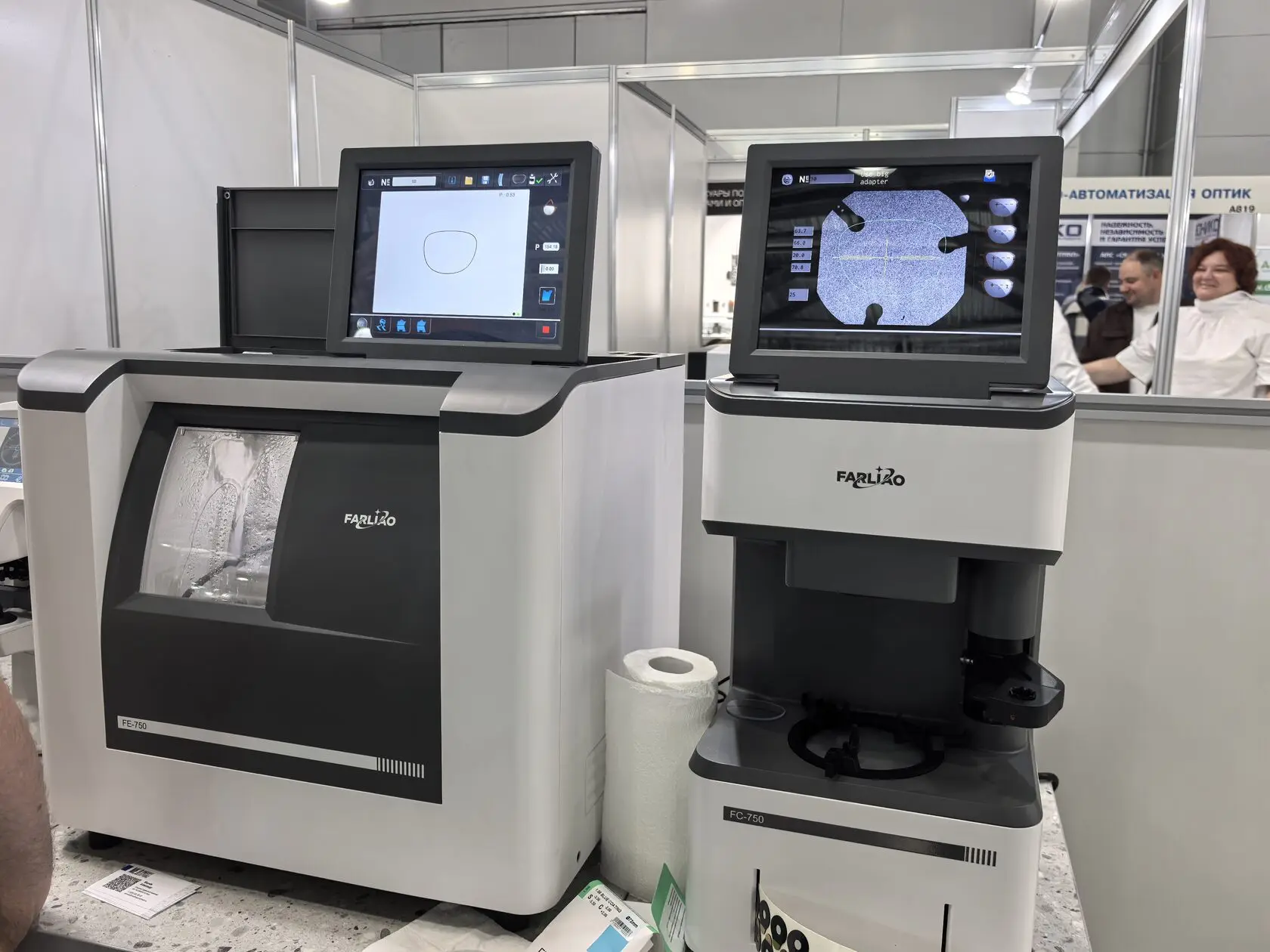

3D lens scanner, available with frame tracker to scan optical frames. One-click operation, precise and fast scanning, accurate centering. Large touch screen, 1:1 scale display, visual comparison between frame and scanned image. Robust and stable data processing, scanning, editable graphics, multi-machine connectivity—high cost performance ratio

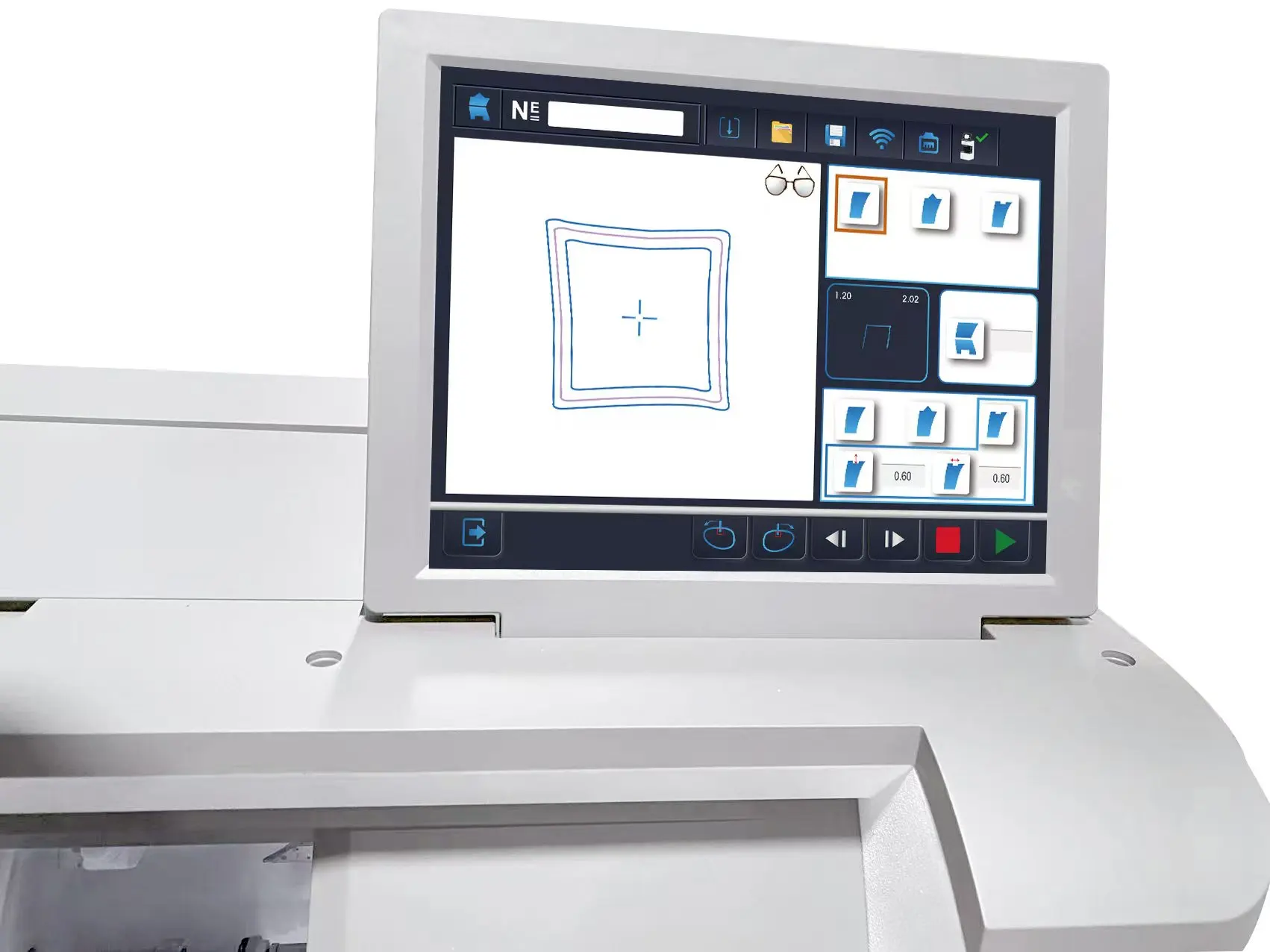

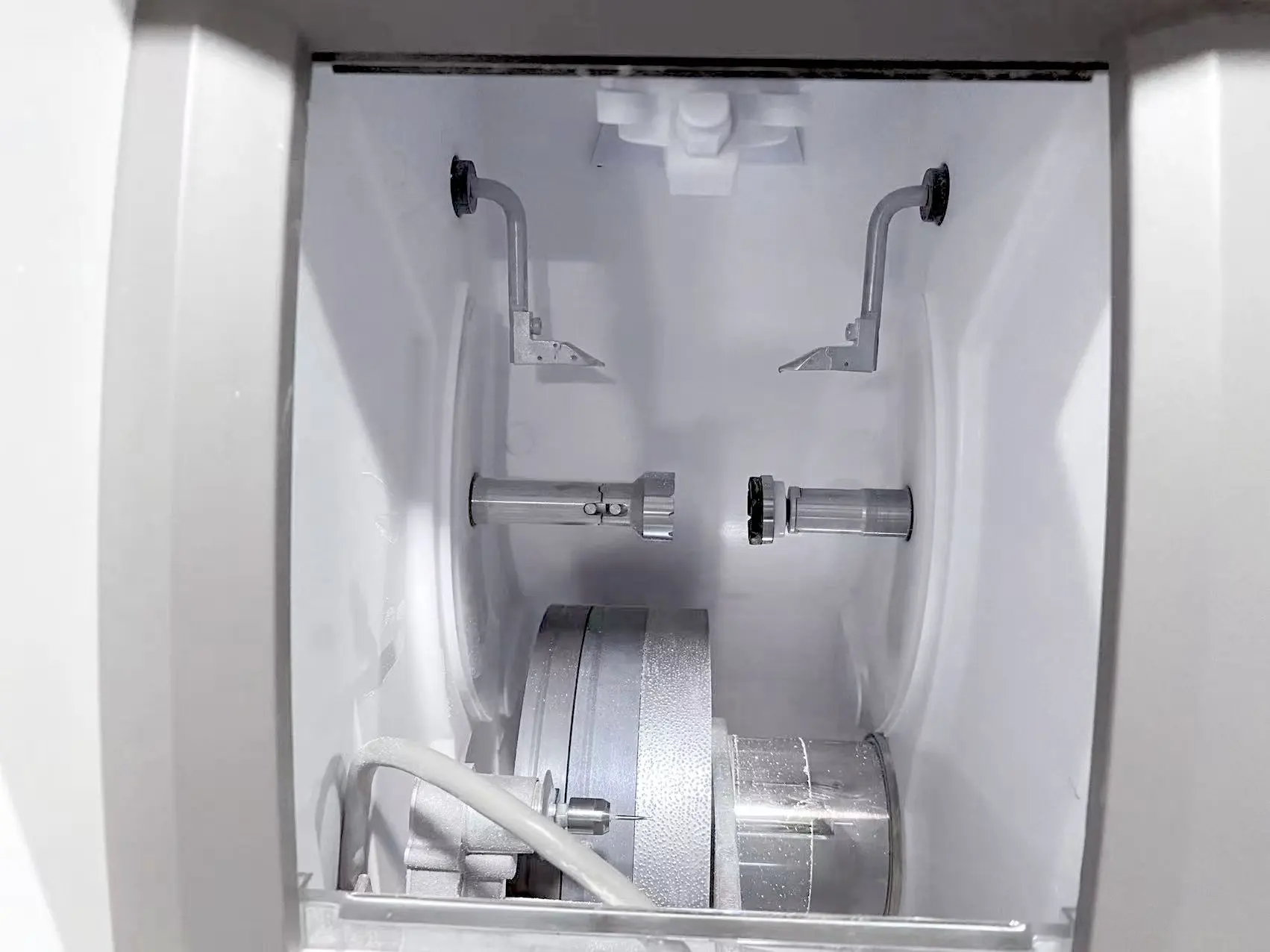

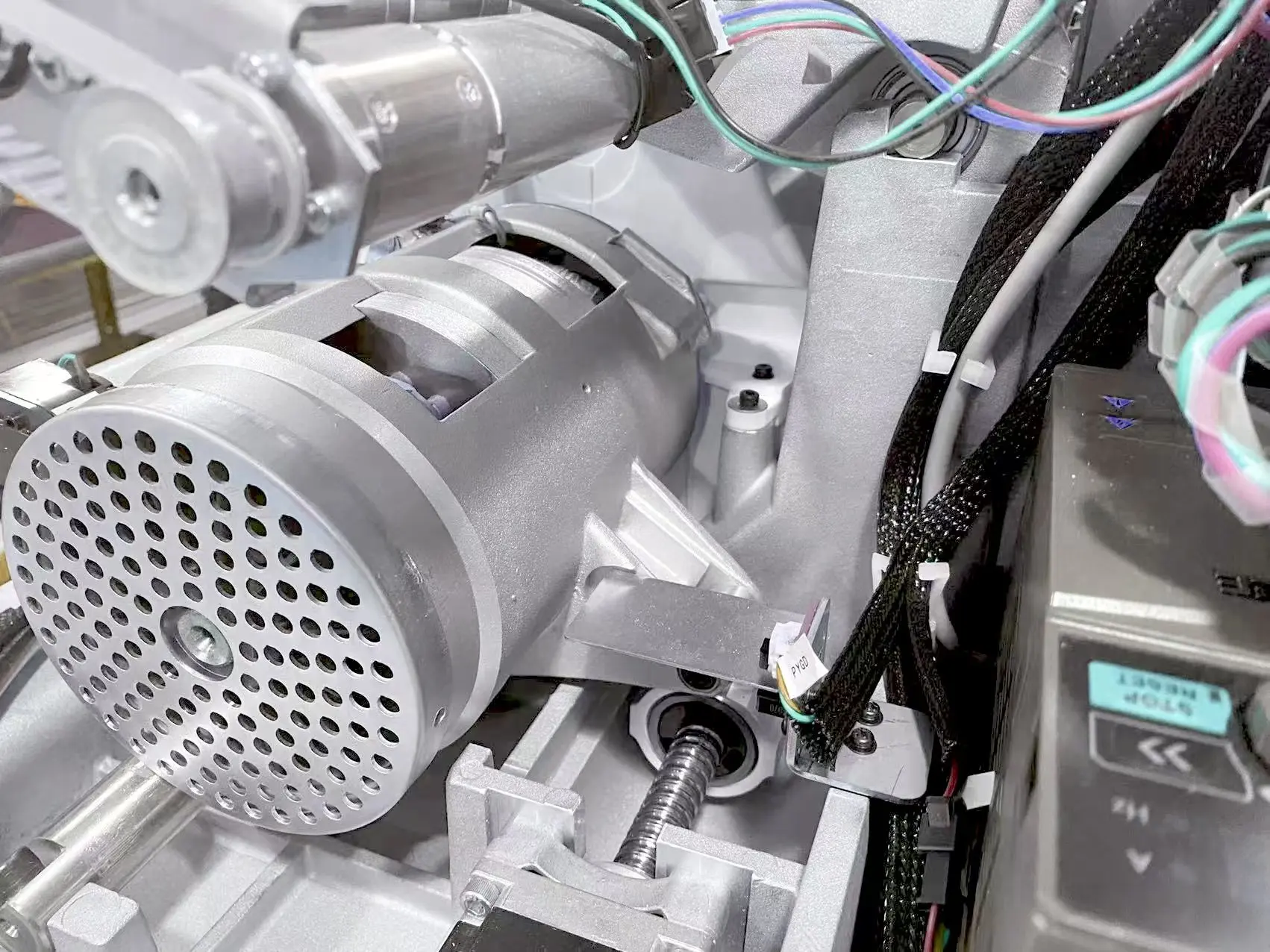

Edge grinding machine technical specifications: editable and scalable graphics function, two-way water jet and lighting within the processing chamber. Maximum number of stored images: 400 images. Adjustable chamfering position. Lens materials: plastic polycarbonate, high-refractive-index plastic, glass, Trivex. Diamond wheel set diameter: 100 mm. Edge grinding modes: chamfering (normal/automatic/manual mode), flat edge grinding, polishing. Maximum cutting diameter: 80 mm. Minimum flat edge grinding size: 20 mm. Maximum frame center distance: 100 mm. Display screen: 1.4-inch color TFT LCD touch screen with adjustable angle. Input voltage: AC 220V 50Hz / AC 110V 60Hz. Output voltage: DC 5V 3A, DC 24V 5.8A. Power consumption: 1000W. Net weight: 48 kg. Dimensions: 636 mm * 452 mm * 591 mm

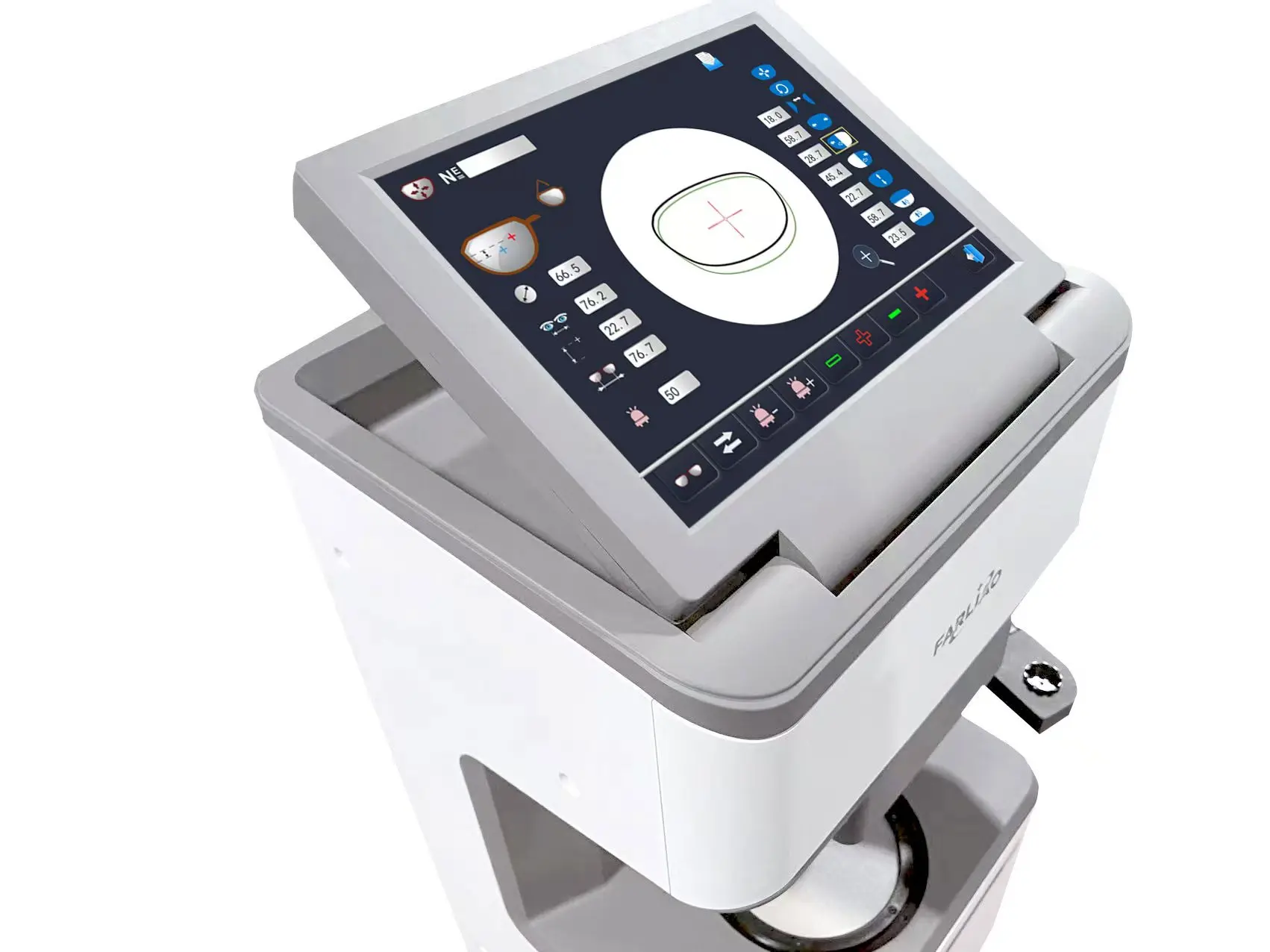

Scanning/Blocking Technical Parameters Imaging System: Dual-center optical imaging system Scanning and Positioning System: Scanning imaging, precise positioning Scanning Time: <3s Scanning Accuracy: 0.1 mm Display Screen: 8-inch color TFT LCD touch screen Power Supply: AC100-240V, 50/60Hz N. Weight: 9 kg Dimensions: 470*230*320 mm
