diameter 13cm
直径13cm |
CN¥ 25.17 |
diameter 16cm
直径16cm |
CN¥ 27.27 |

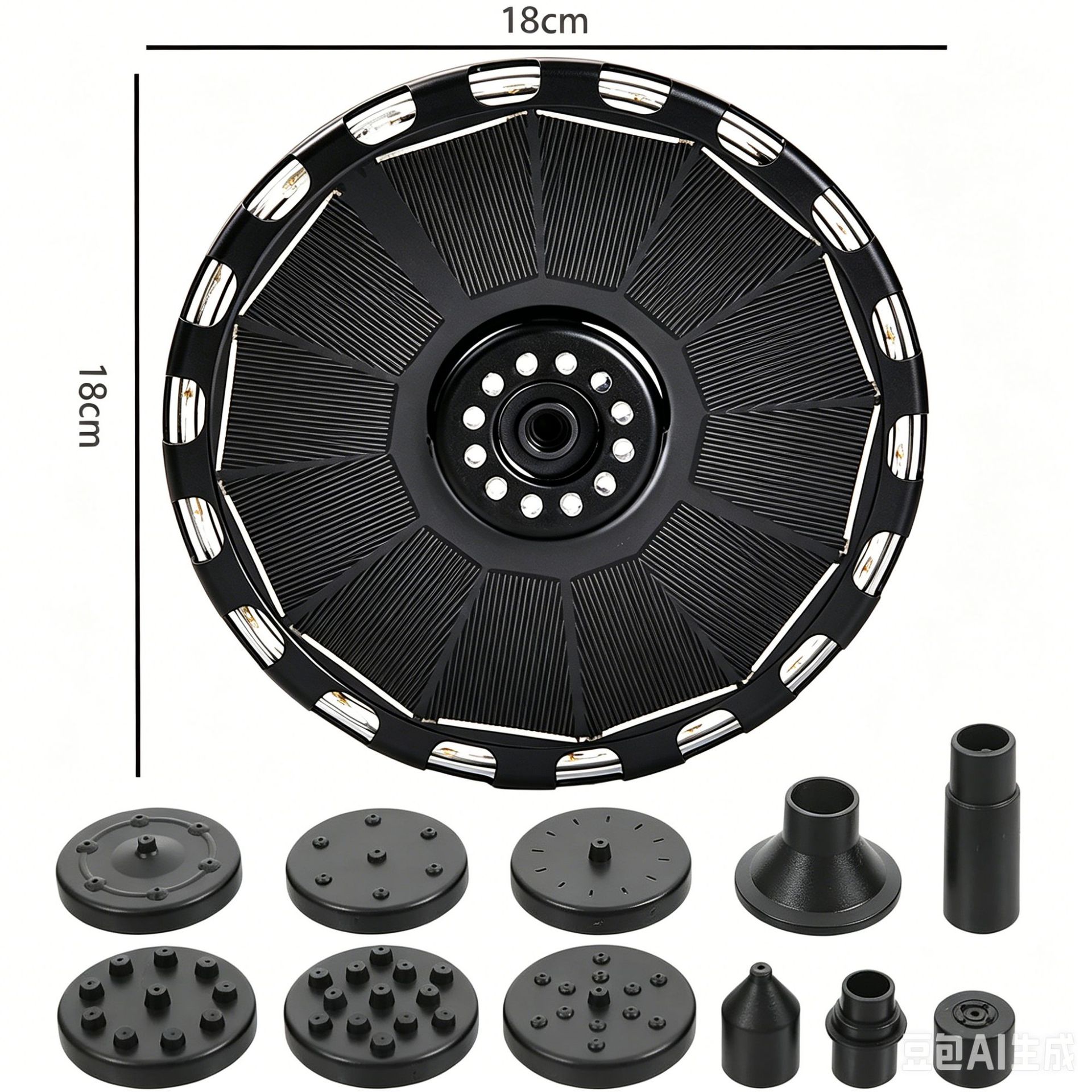

diameter: 18cm
直径18cm |
CN¥ 44.76 |
ACAI 15yr.
Contacts Wang Zuocai Chat
Mobile 86-13957935631
E-mail acai13841B@163.com
WeChat 15257915656
Specifications and parameters:Diameter: 13 cm
Solar panels: 7V/1.0W monocrystalline silicon. Size of solar panels: diameter 130mm.
Pump parameters: DC 4.5-12V, maximum flow rate: 180L/h, maximum head: 100cm
Product net weight: 200g
Weight of one box: 1.25 kg
Inner box dimensions: 145*145*45 mm
Outer box dimensions: 450*440*290mm
Boxes/60 sets
Specifications and parameters:Diameter: 16 cm
Solar panels: 7V/1.5W monocrystalline silicon. Solar panel dimensions: diameter 160mm.
Pump parameters: DC 4.5-12V, maximum flow rate: 200L/h, maximum head: 110cm
Product net weight: 245g
Weight of one box: 10kg
Inner box dimensions: 175*175*45 mm
Outer box dimensions: 480*360*360 mm
Boxes/40 sets

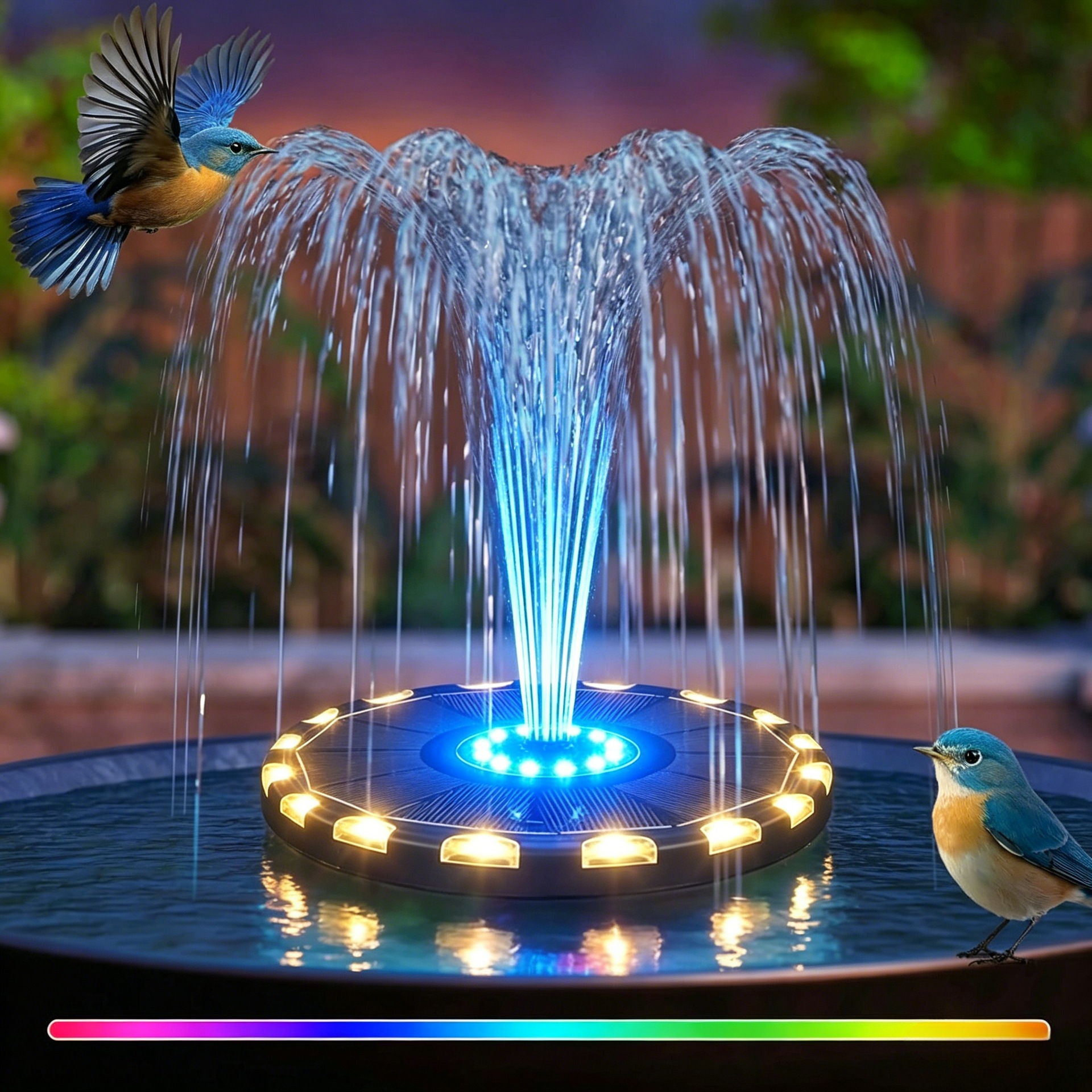

Product Performance:
Spraying height: 35–65 cm; when connecting different nozzles, the spraying height will vary.
When the solar panels receive sufficient sunlight, the pump will start within 3 seconds.
Precautions:
1 This product is a solar direct-drive water pump with no external battery. The spraying height depends entirely on the intensity of sunlight. When sunlight is weak, the pump will not operate continuously but will automatically start repeatedly until the sunlight reaches a certain level, at which point the pump resumes continuous operation. When using the product, place it in direct sunlight without any obstructions; shade will affect the normal operation of the pump.
Two water pumps must be completely immersed in water and should not operate with dehydration for extended periods. When the water pumps are first immersed, due to air inside them, it is recommended to wait until they start spraying water properly before inserting the nozzles.
3 Please keep the water source clean and regularly clean the pump to prevent foreign objects from being sucked in by the pump, which could cause it not to function properly.
