manufacturer’s stranded wire and enameled wire 8/0.08, 16/30/43/ up to 60; rohs certified. 厂家绞线和漆包线8/0.08 16/ 30/ 43/到60/ROHS认证

1. Coated wire single-strand single-piece structure:

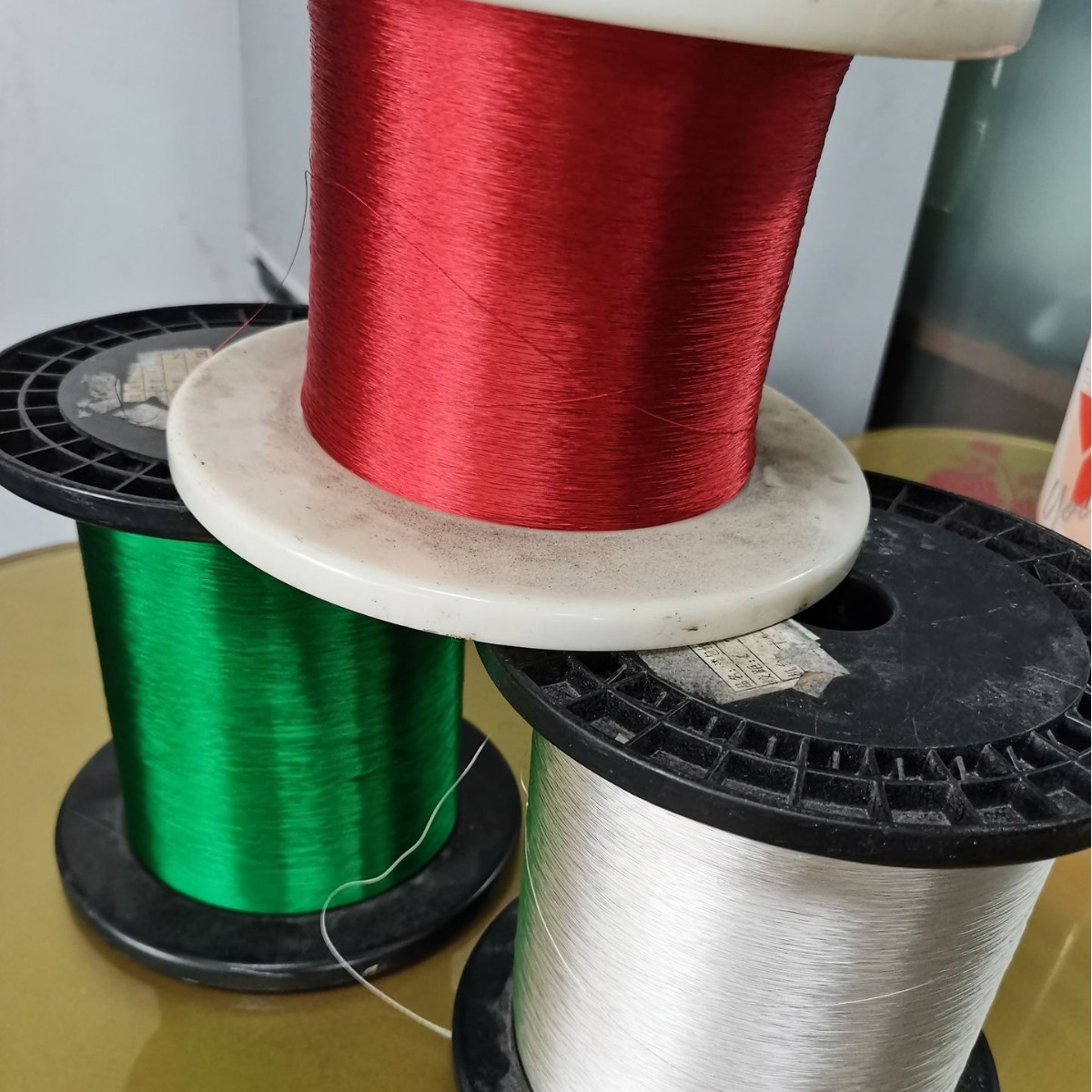

The common specifications range from the thinest 0.05MM, 0.06MM, and 0.07MM to the thickest 3.2MM. Among them, for 0.05, there are single-strand single-piece versions in black, red, and natural color; for 0.08, there are single-strand single-piece versions in red, natural color, green, blue, and several other colors available.

2. Multi-strand stranded wires and wire wrapped wires structure:

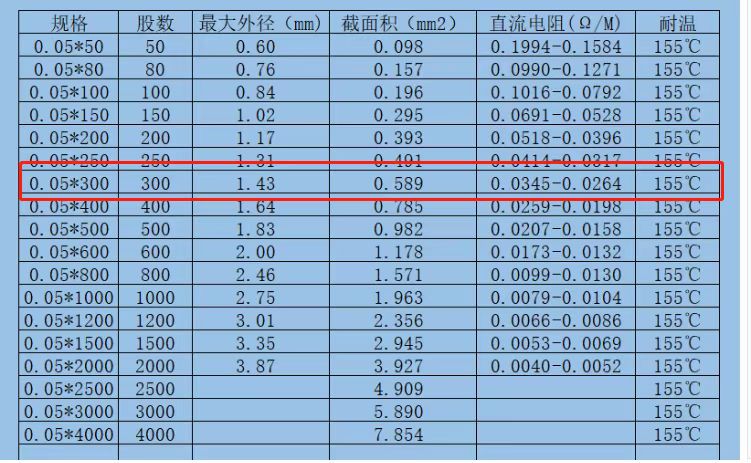

Tightest0.05MM,0.06MM,0.07MMTo the thickest level3.2MMThe primary colors are mainly natural tones, with red as a secondary color. Commonly used ratios include 8/0.08, 8/0.07, 8/0.06, 7/0.05, 11/0.08, 12/0.08, 16/0.08, 19/0.08, 30/0.08, 43/0.08, 65/0.08, and so on.

The silk-covered wire can be produced based on demand, and various common types are available.

3. The silver-plated enameled wires are divided into single-strand and twisted structures: they offer better transmission performance and are the preferred choice for high-end precision products.

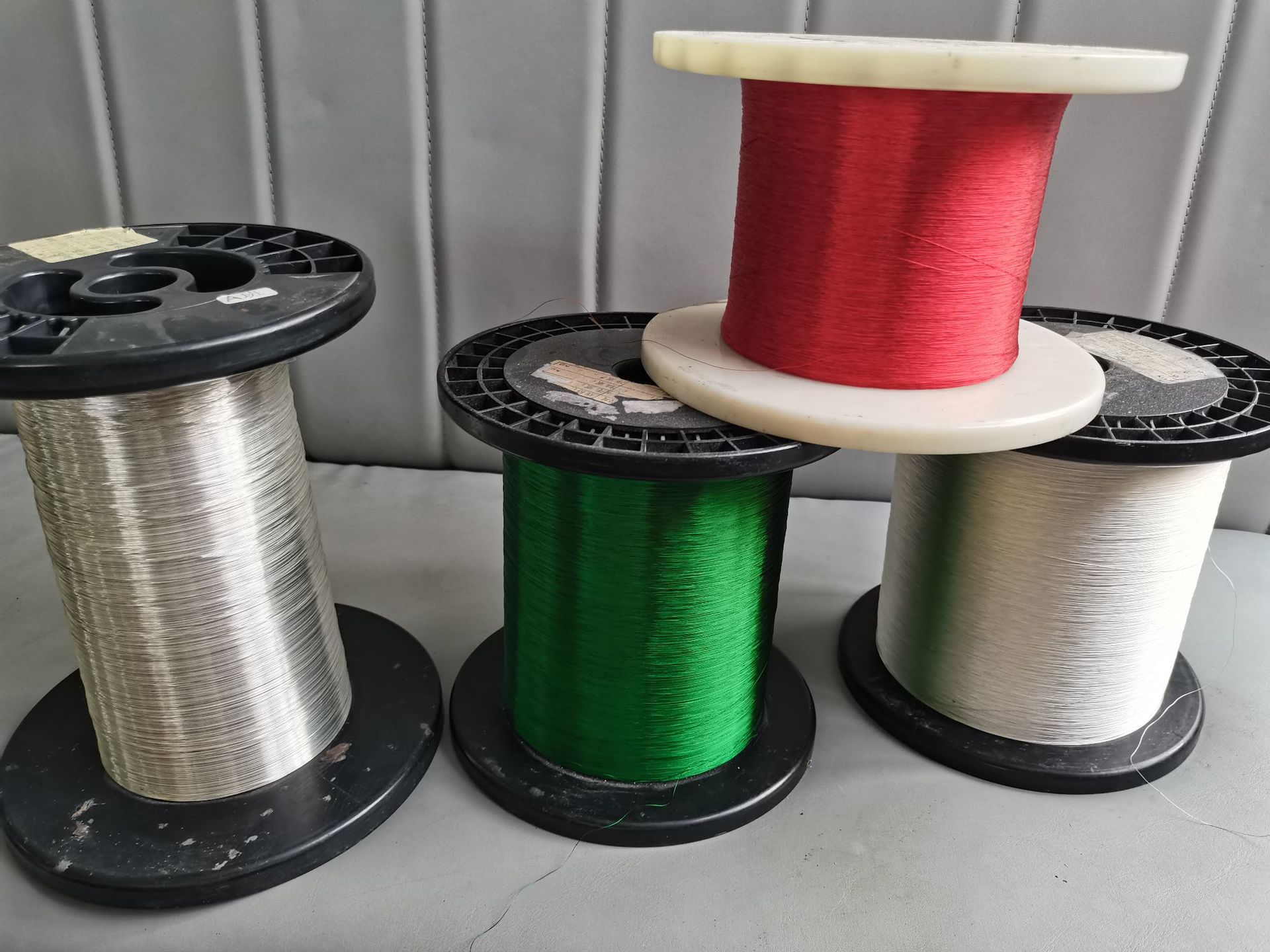

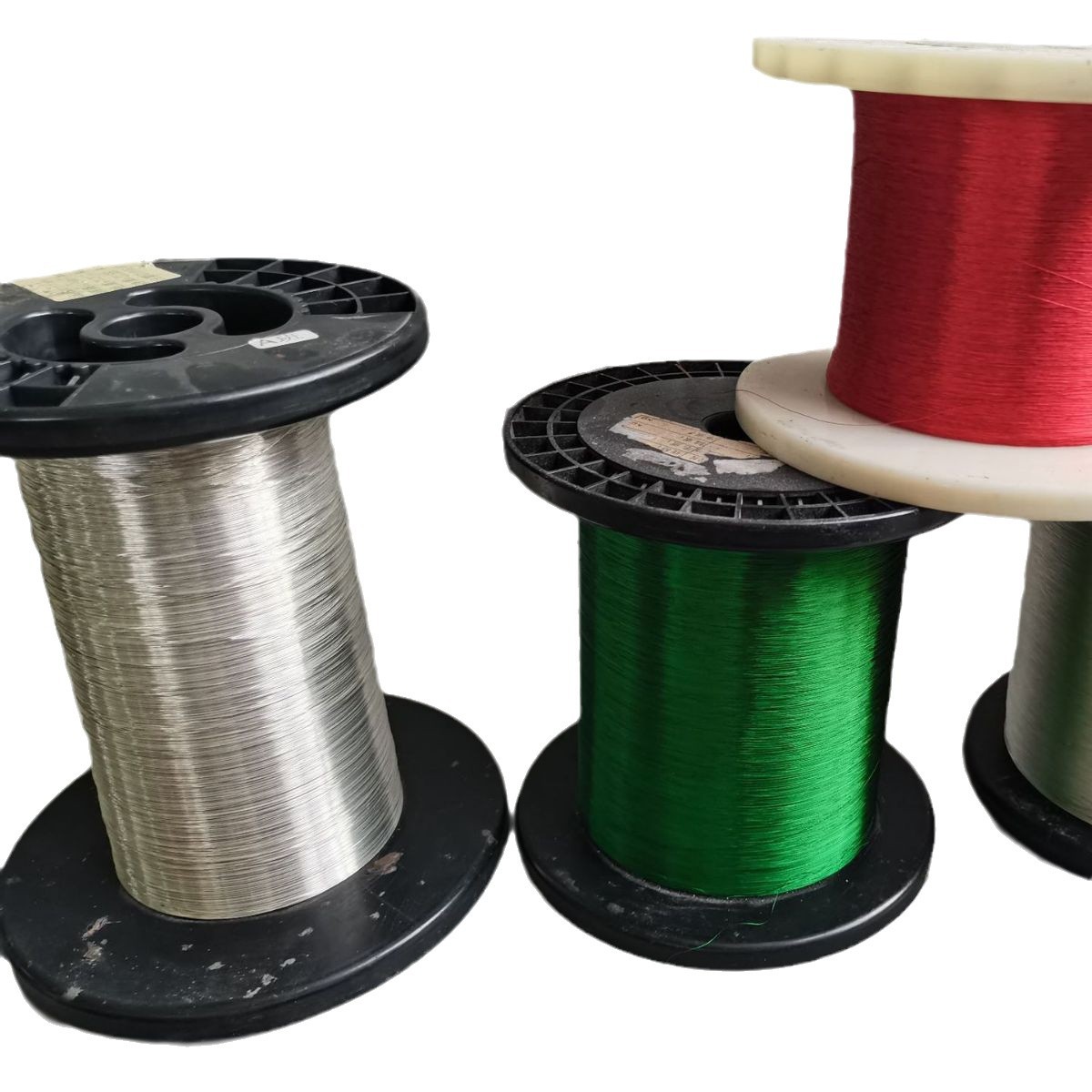

Single strand, single piece: Silver color, 0.4 size, as shown on the left side of the figure below.

Wound structure: 7 strands with 0.5 structure, as shown below: Red, green, silver.

4. Various types of enameled wire processing structures:

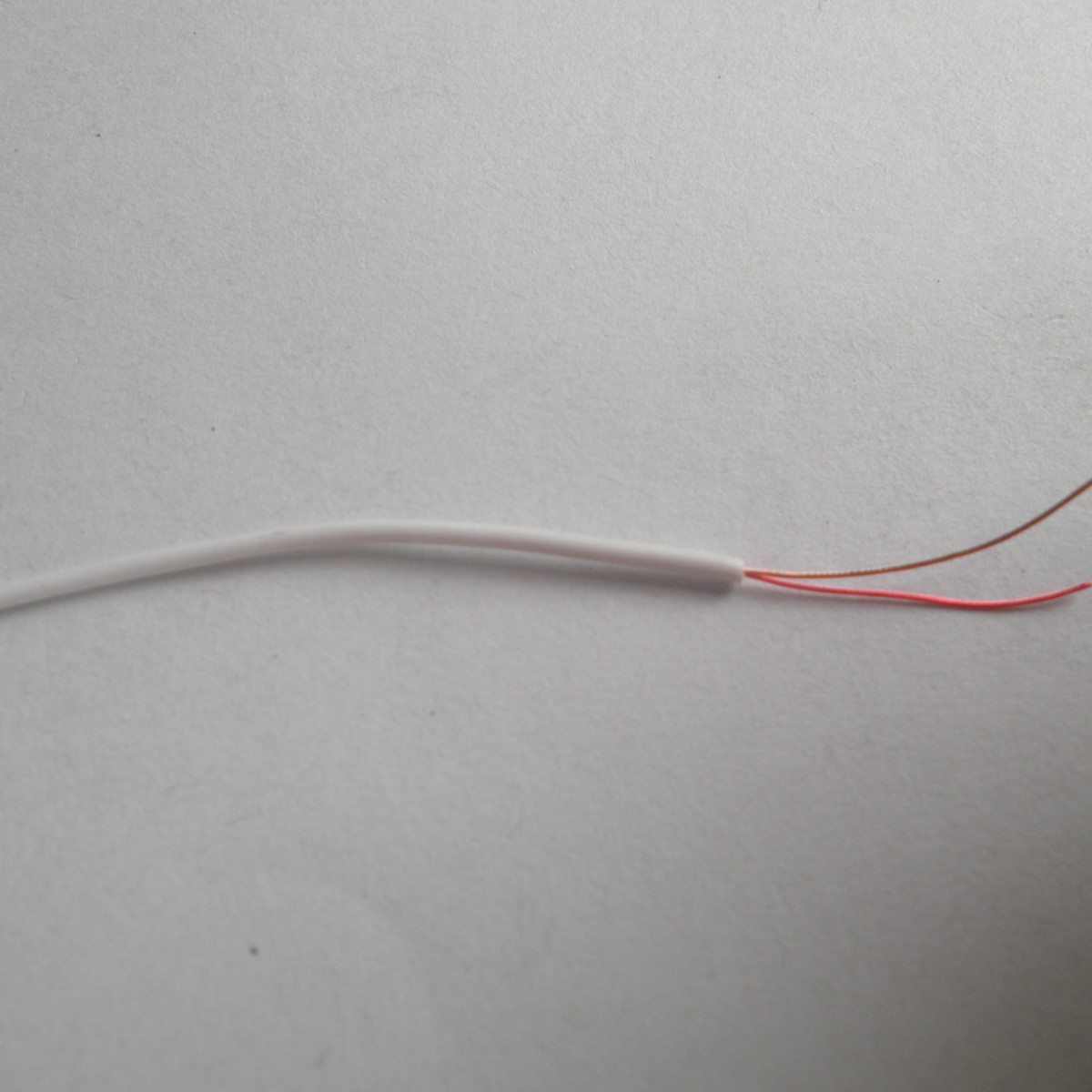

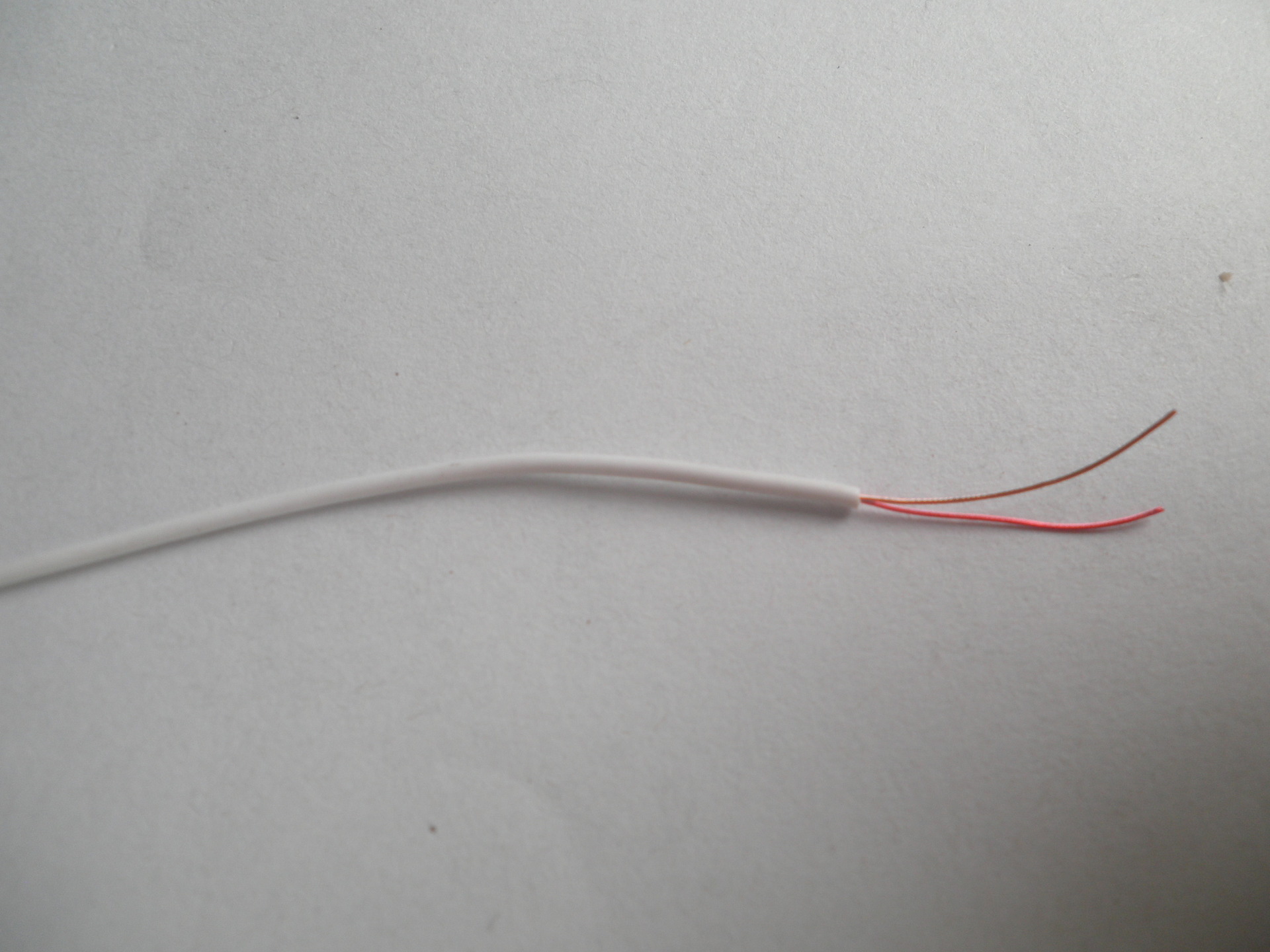

The leather-earphone cable has a multi-strand enameled wire structure as shown in the diagram below, and can be cut to various lengths according to requirements.

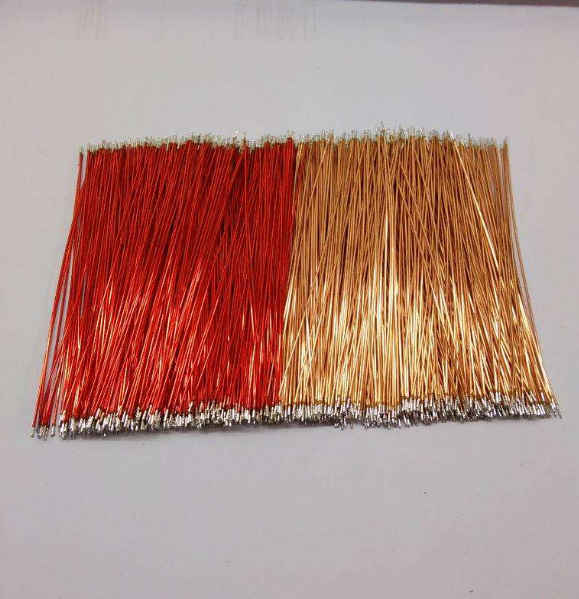

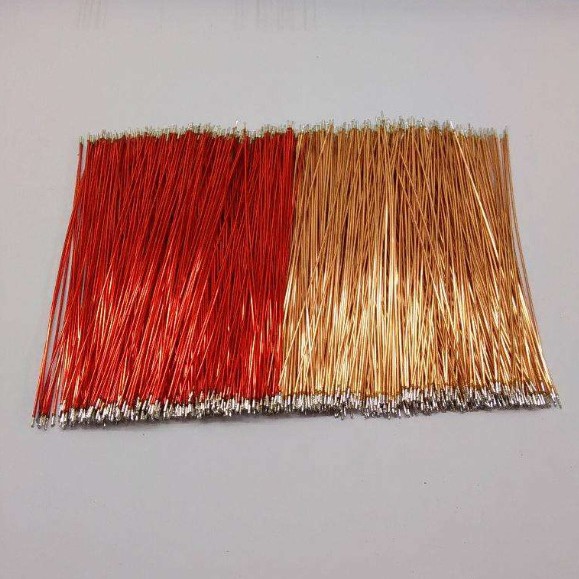

The following image shows the soldering of enameled wire on a double head.

5. Self-adhesive enamel wires, including alcohol self-adhesion, alcohol-soluble self-adhesion, and hot air self-adhesion structures:

The smallest option ranges from 0.07, 0.08, 0.09 to 1.0.

For any other specifications not mentioned, please feel free to contact us online.
