copper enamel wire manufacturers supply occ copper wire, single crystalline copper, direct-solder qa, and high-temperature-resistant motors. 铜漆包线厂家供occ铜线和单晶铜及直焊QA和电机耐高温

Copper enamel wire manufacturers supply enamel wires, enamel copper round wires, straight-welding QA wires, and motor enamel wires

Common specification: 155 grade direct-welding polyurethane insulated copper round wire

Model: QA/155

Specification: Between 0.30–2.00 mm, with approximately 68 different thickness options

Heat resistance level: Class 155

Execution standards: GB/T 6109.1–2008 / IEC 60317–2000

Performance characteristics and applications: The product features direct soldering capability, good coloring properties, heat resistance, and low dielectric loss at high frequencies.

Common specification: 180-grade polyester amino insulated copper round wire

Model: QZY/180

Specification: Between 0.06–3.1.5 MM, with approximately 72 different thickness specifications

Heat resistance level: Class 180

Execution standard: GB/T 6109.5-2008/IEC 60317-8:1997

Performance characteristics and applications: The product features excellent heat resistance, high thermal shock and softening breakdown temperatures. It is suitable for motors, instruments, and dry power transformers with high heat resistance ratings. Particularly effective in manufacturing explosion-proof motors and power tools. Non-riveting type.

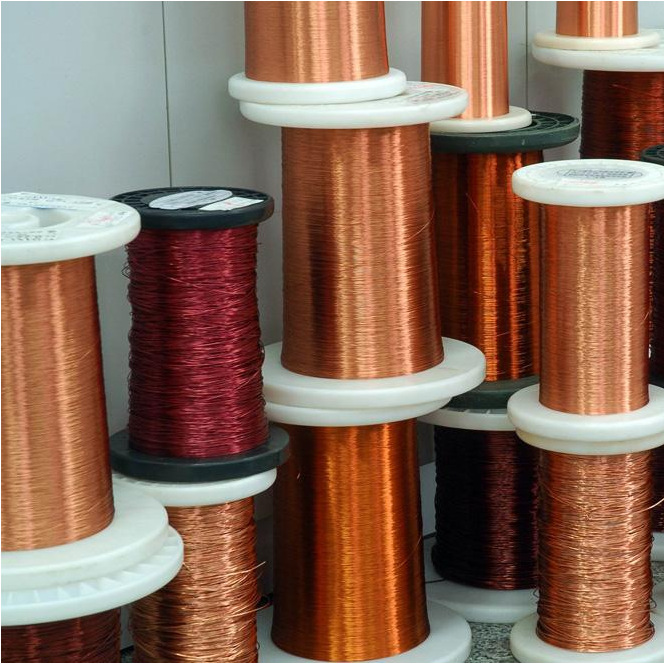

A small amount of single-crystal copper enamel wire (insulated wire) with the following specifications: 0.05 (blue or red), 0.06 (natural color), 0.07 (natural color), and 0.08 (blue).

Other specifications are available for contact online.
