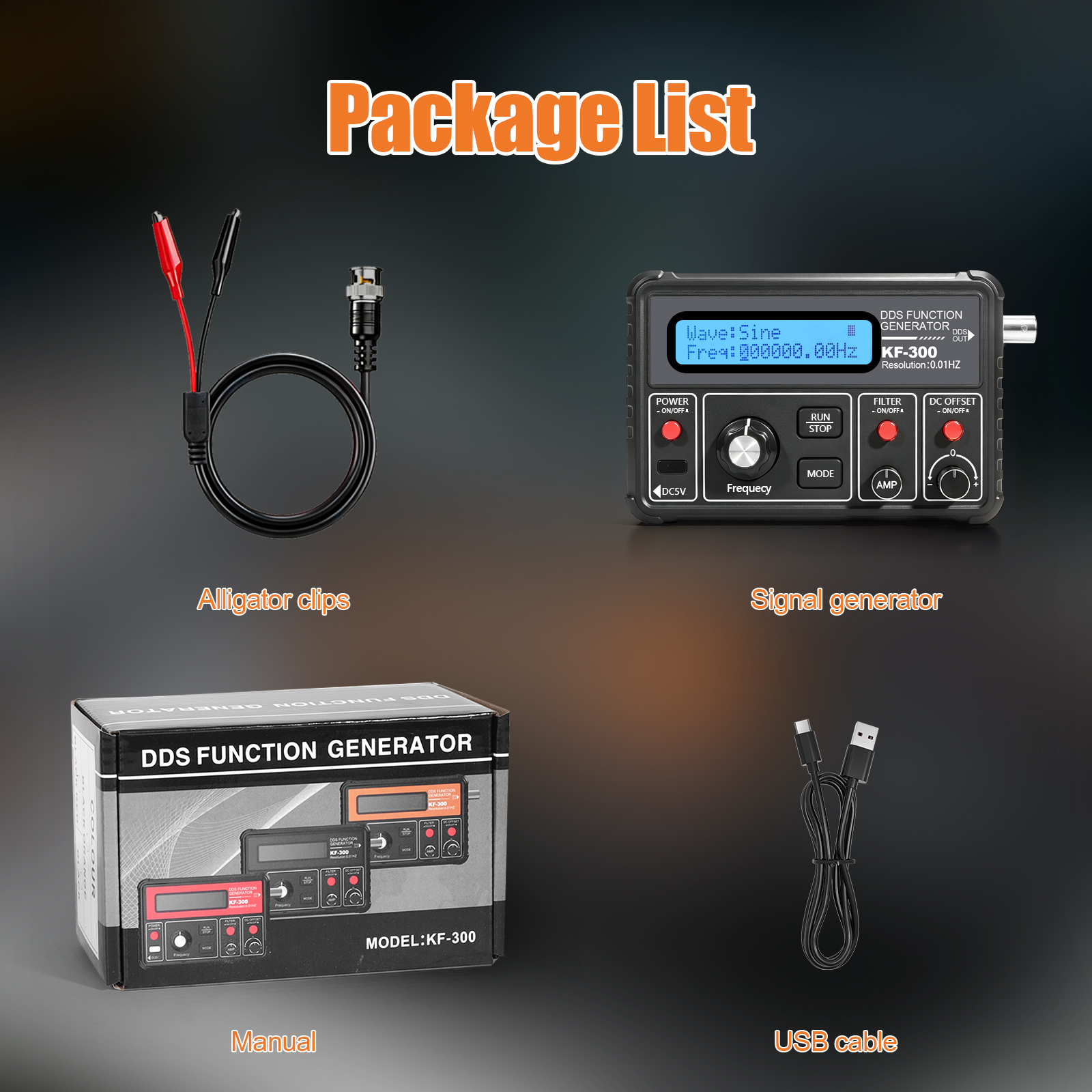

Product List:
Package One
1 host machine *1
1 USB power cable*1
BNC clip wire *1

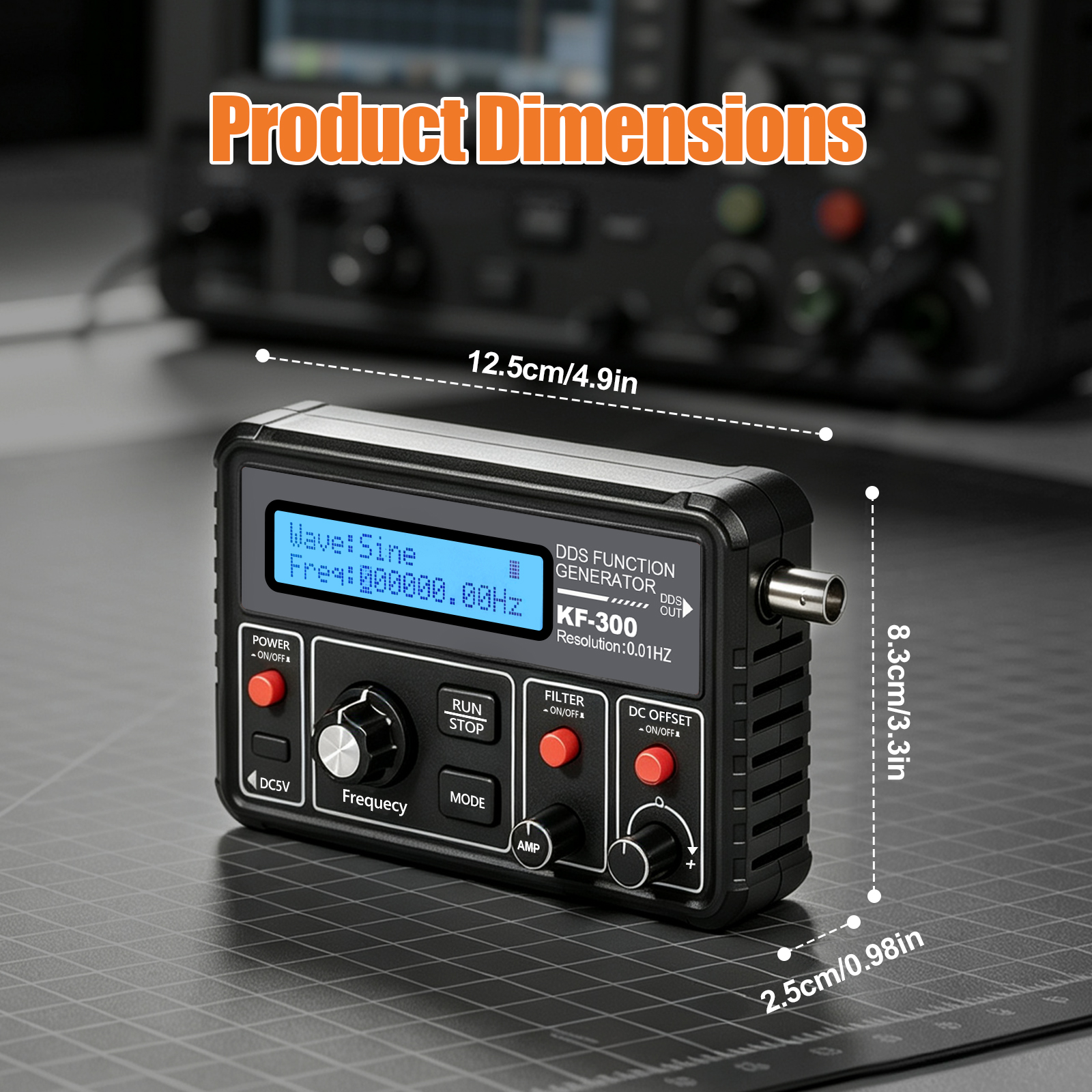

Product packaging dimensions: 15.8 * 9.5 * 7.5 cm
Product packaging weight: 268g
Packaging details: 40.5*37*29 cm / 36 pieces
Gross weight: 10kg
-----------------------------------
Package Two
1 host machine *1
1 USB power cable*1
BNC clip wire *1
1 x Dual-end BNC cable
Schumann Wave Module Board *1
Product packaging dimensions: 15.8 * 9.5 * 7.5 cm
Product packaging weight: 358g
Packaging details: 40.5*37*29 cm / 36 pieces
Gross weight: 13 kg

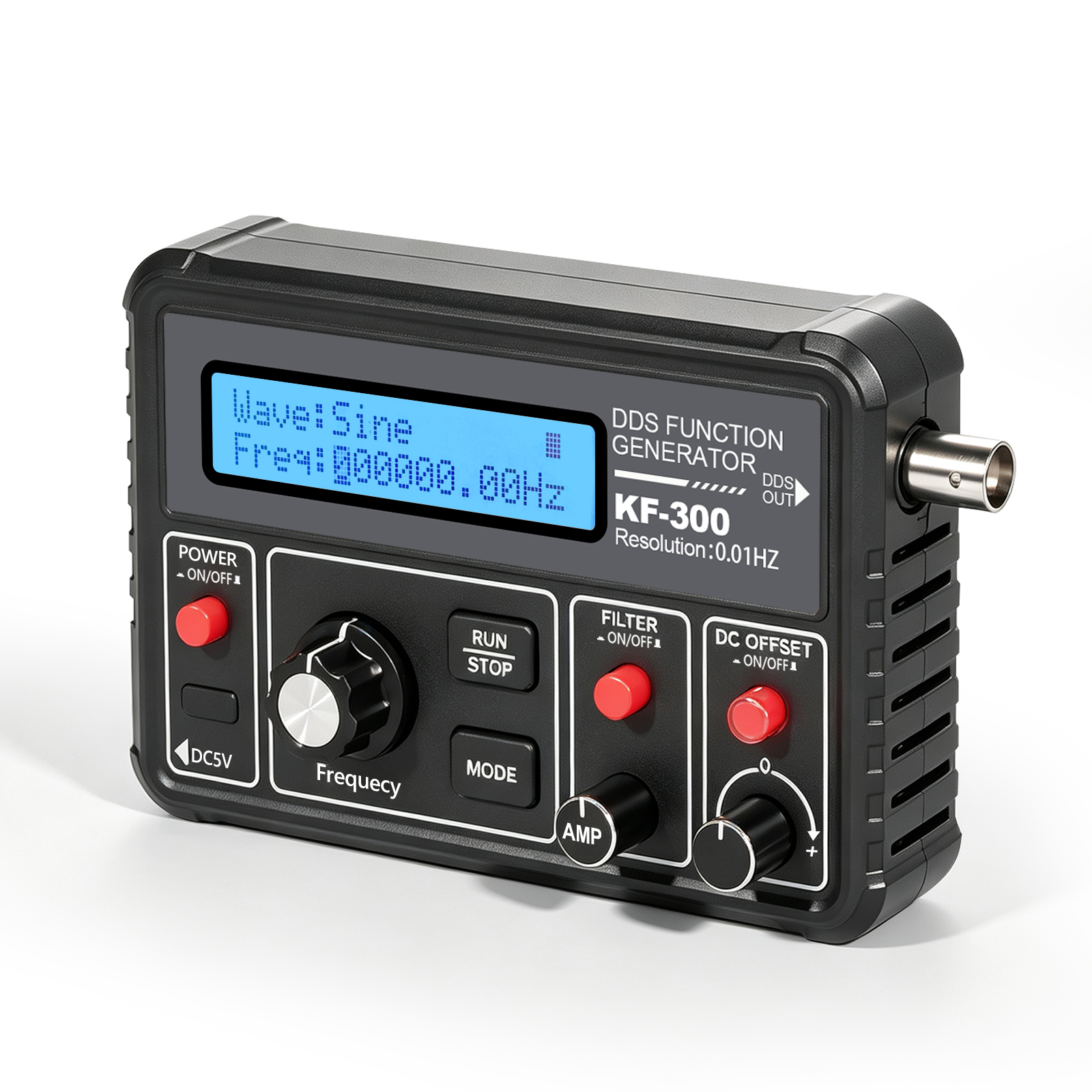

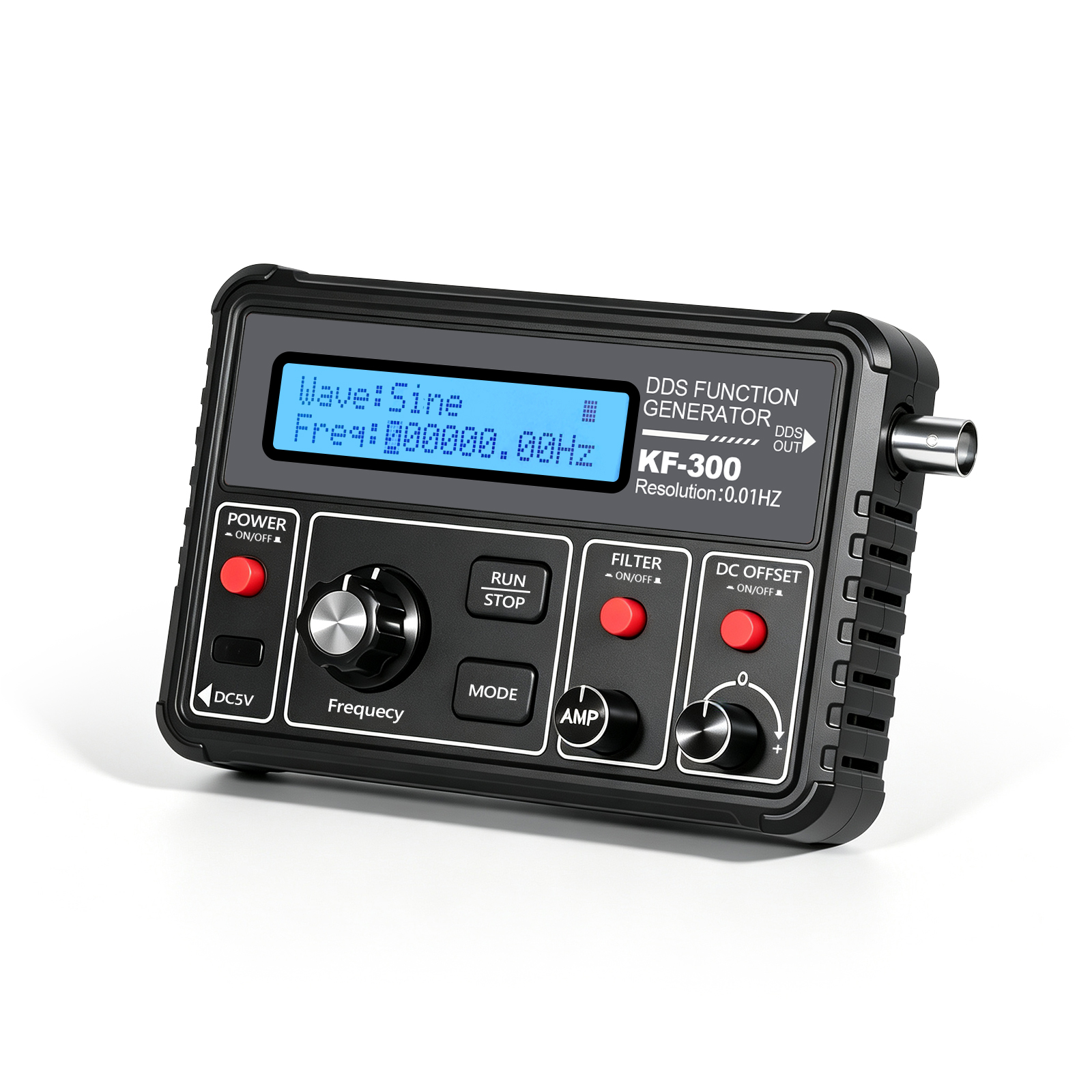

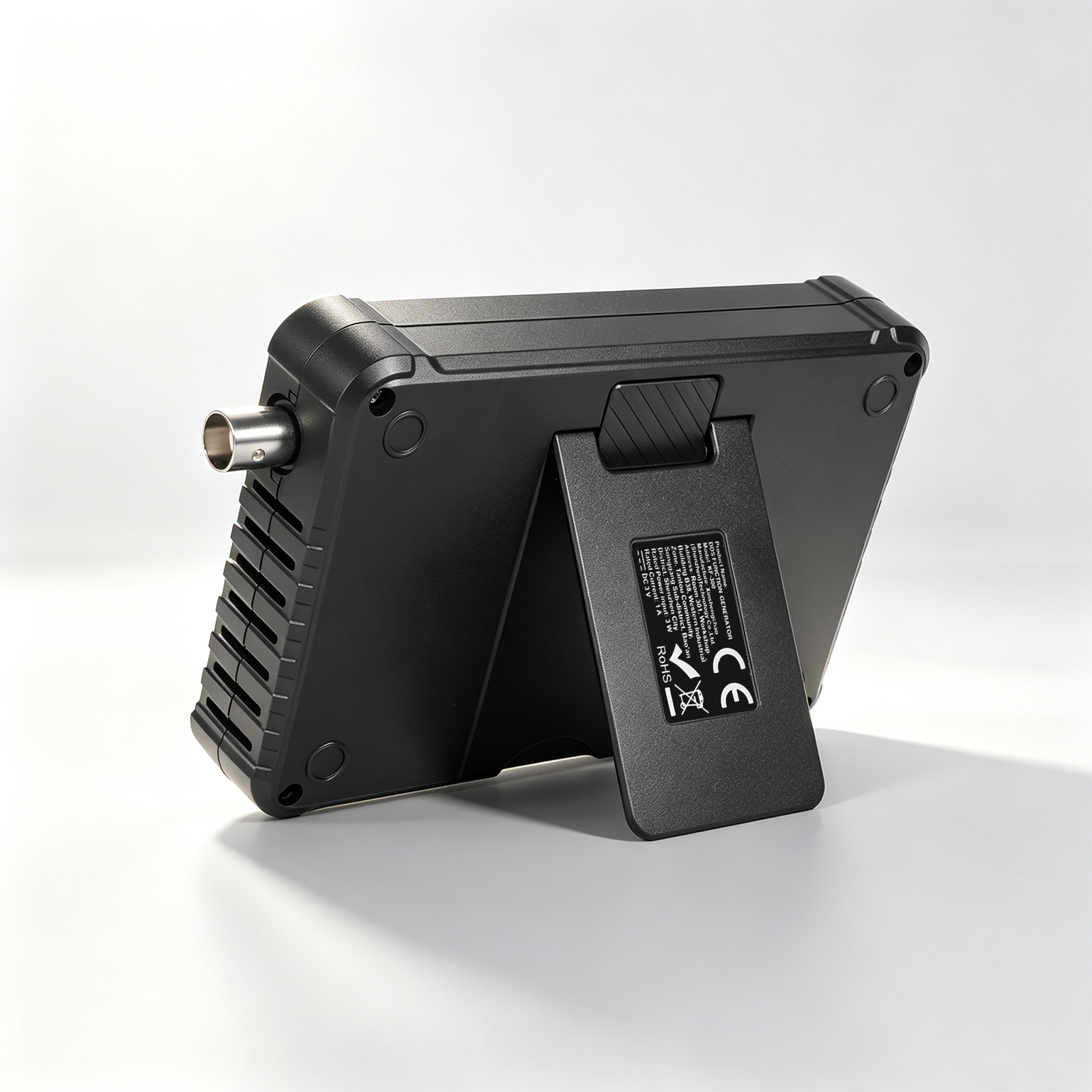

KF-300 DDS Signal Generator
Product Features:

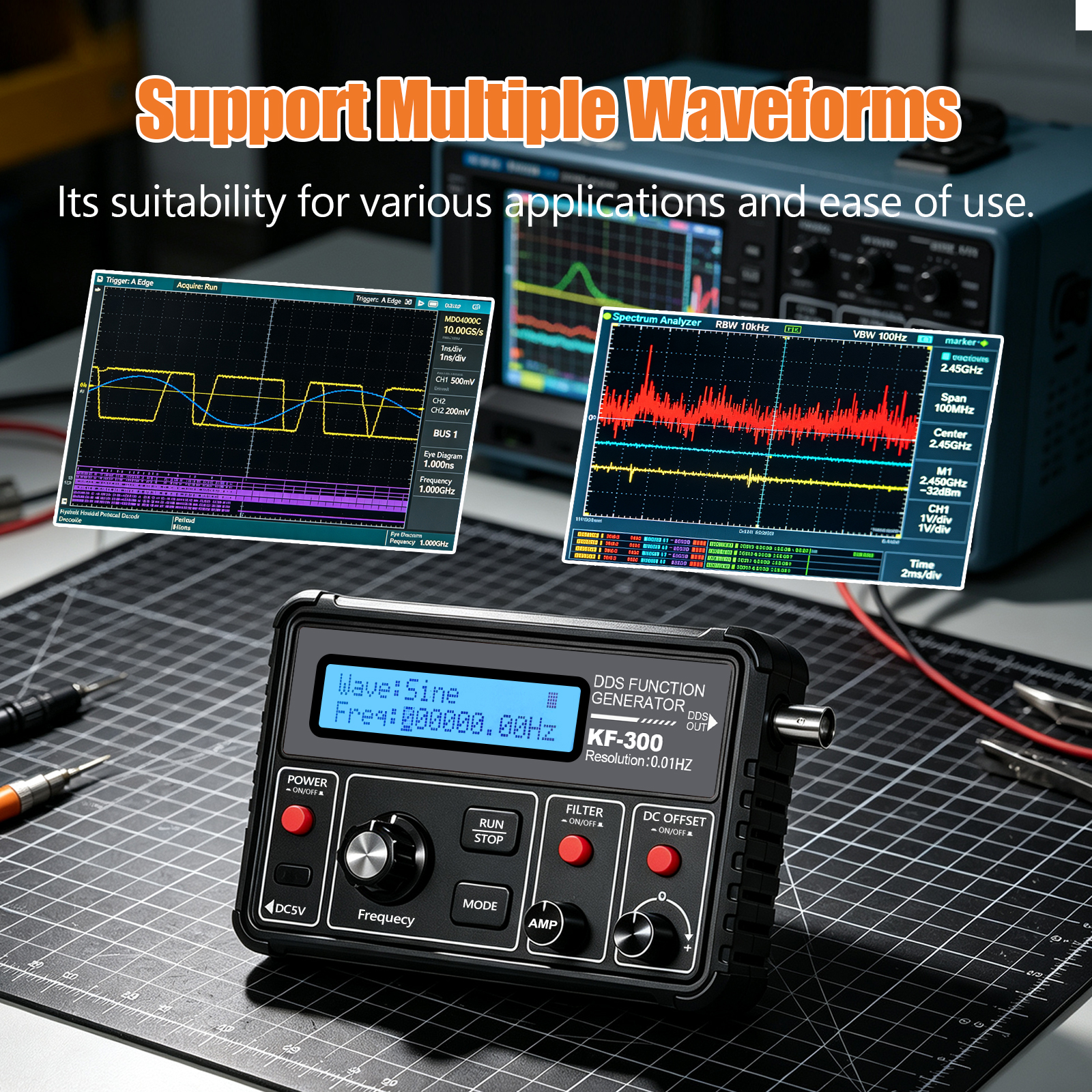

1. This product supports 15 types of waveform output, such as sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave, half wave, full wave, Schumann wave, noise waveform, etc.
2. It features comprehensive functions and is easy to operate. When used with an oscilloscope, it can be utilized for electronic circuit testing and debugging, as well as for testing and measuring the frequency characteristics and pulse response of audio amplifiers.
3. Easy to use, includes a save function, allowing all settings parameters to be saved.

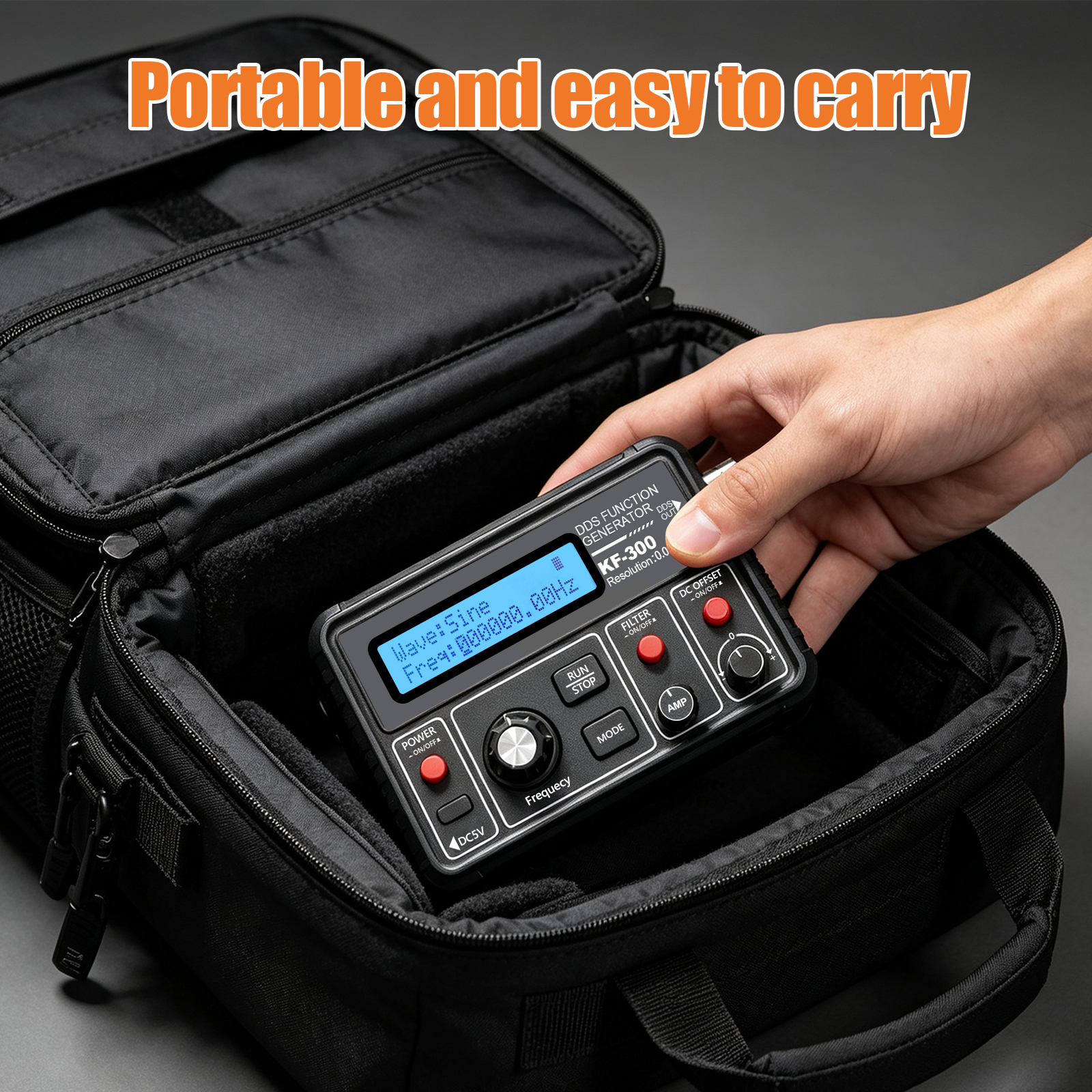

4. It is small in size and very easy to carry.
5. It has a wide range of applications; DDS offers excellent accuracy and frequency stability, making it highly suitable for calibrating the scan time factor in oscilloscopes.
1. Main technical parameters:
1. Output waveforms: 15 types including sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave, ECG waveform, exponential rise, exponential fall, Lorentz pulse, Gaussian pulse, sine pulse, half-wave, full-wave, Schumann wave, noise waveform, etc.
2. Power supply: DC4-9V; DC power input type: TYPEC
3. Current: Approximately 180MA at a voltage of 5V
4. Frequency range: sine wave from 0.01Hz to 750kHz (as the frequency increases further, the output amplitude will decrease); other waveforms from 0.01Hz to 150.0kHz (but there is no limit on the upper range of adjustable frequencies; if distortion and jitter requirements are not high, the frequency can be increased further).
5. Resolution: 0.01Hz
6. Sinusoidal distortion: <1% below 1kHz, <0.5% above 1kHz
7. Output amplitude: maximum ±10V (P-P)
8. Output impedance: 50Ω
9. DC offset: up to 10V, with a shutdown function
10. All setting parameters can be saved.
1. There are filters that can be turned on and off, allowing it to adapt well to sine and pulse waveforms output.
II. Product Features:
Compact in size, fully functional, easy to operate, and portable. It can be powered by a power adapter or a 3.7V lithium battery. When used with an oscilloscope, it is suitable for testing and debugging electronic circuits, as well as measuring the frequency characteristics and pulse response of audio amplifiers. Due to its excellent accuracy and frequency stability, DDS is also ideal for calibrating the scan time factor of the oscilloscope. This square wave output is useful for adjusting the attenuation and pulse characteristics of the oscilloscope probe.

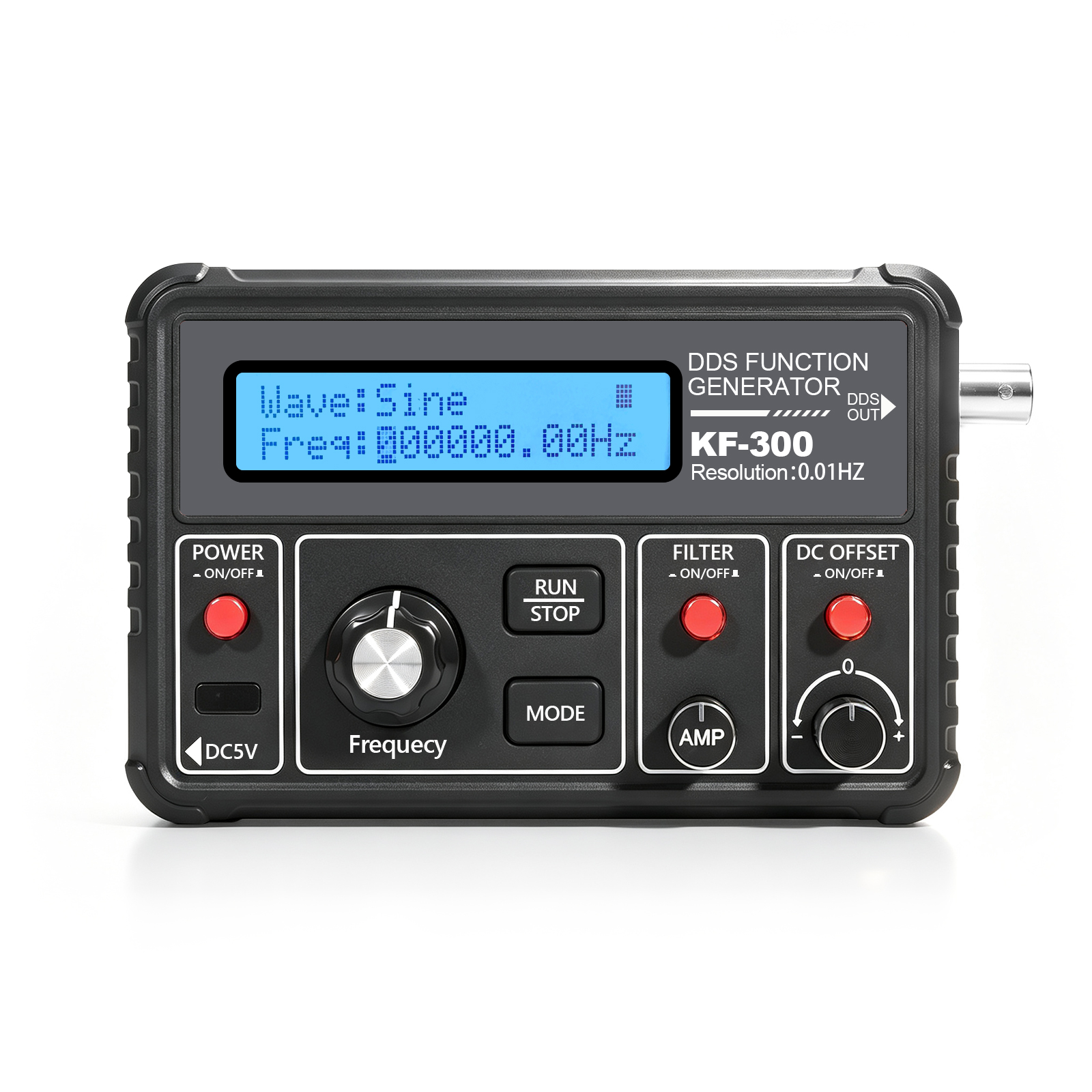

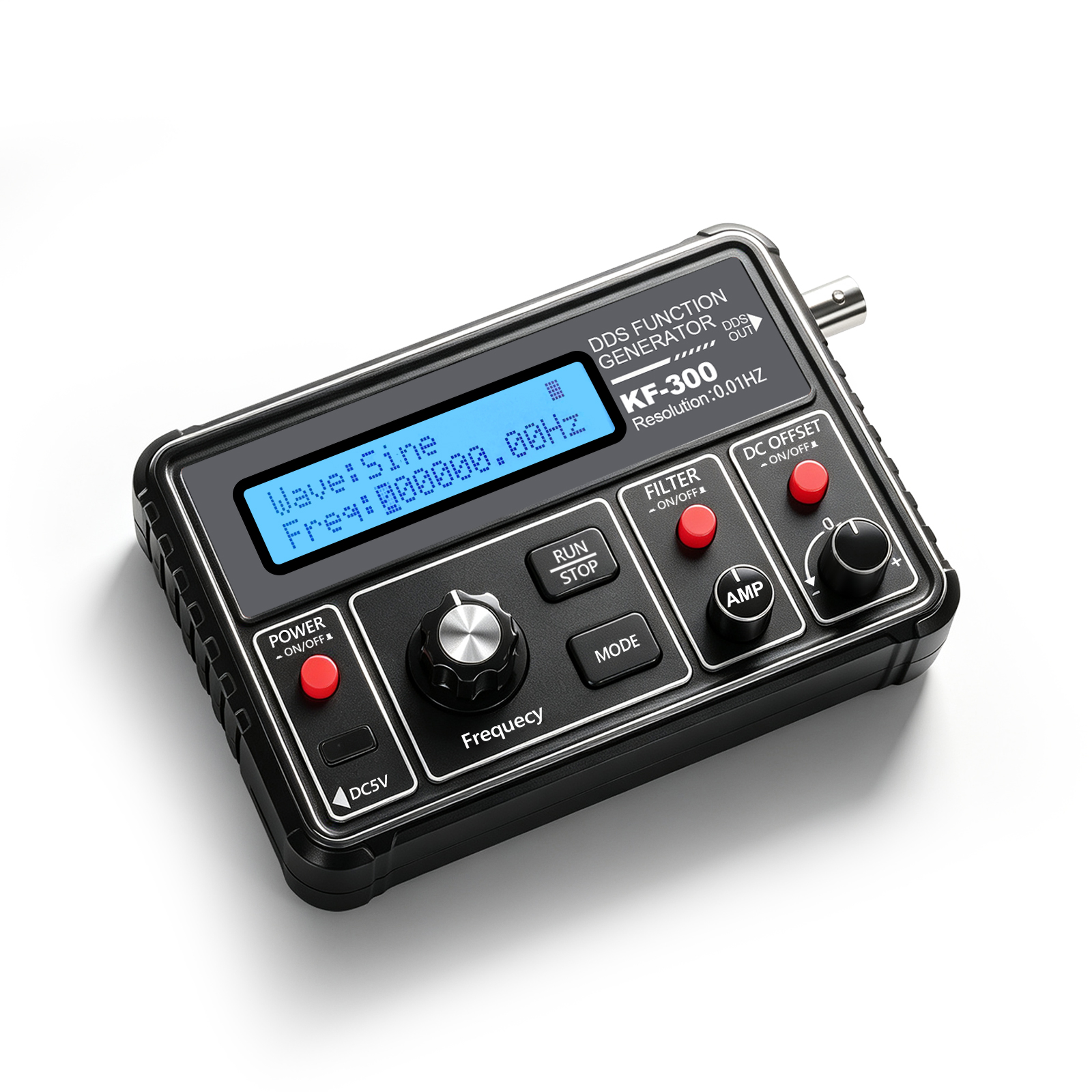

III. Key Descriptions
When the instrument is in operation and the cursor is not blinking (press RUN/STOP), other keys are ineffective; if you need to adjust parameters, please first press RUN/STOP and wait for the cursor to blink before using other buttons for settings.
MODE: The mode key is used to switch the output waveform.
Frequency: Press to move the cursor, rotate to adjust the frequency. Hold down to rotate for left or right movement of the cursor. Hold down MODE and turn the knob for quick waveform adjustment.
RUN/STOP: Enable or disable waveform output. Long press the frequency value to set it to zero.
When the cursor does not blink, the waveform will be displayed; other keys are ineffective.
DC OFF SET: DC Bias Switch
Press ON: The yellow knob can be adjusted to adjust the DC component of the signal.
OFF mode activated: The DC component of the signal is 0.
FILTER: Filter switch. When the signal is close to a 300K or larger sine wave, press this button, and the waveform will become smoother. However, the signal amplitude will also decrease.
AMP: Used to adjust the signal amplitude (increasing in clockwise direction)
IV. Usage Steps:

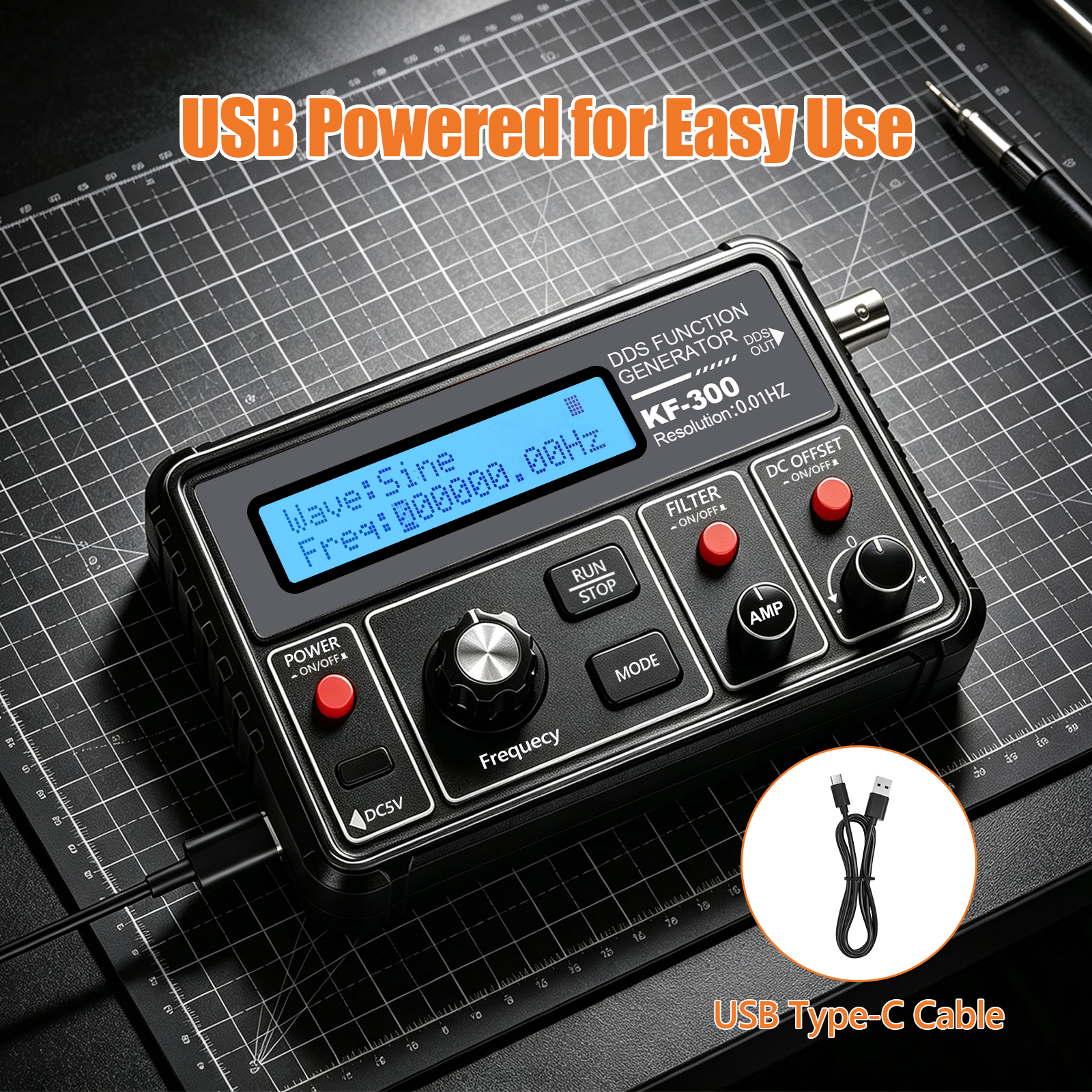

1. Remove the accompanying USB to TYPE cable and insert it into the power input port (the power source can be a computer USB port, a phone charger, or a power bank; it is recommended to use a power source certified by 3C, as poor quality power may prevent the signal generator from functioning properly). Connect the BNC clip cable, the red clip cable to the oscilloscope probe, and the black clip cable to the oscilloscope GND clip.
2. Press the power switch, then press the MODE key to select the waveform to output:
SlN: Sine wave pattern
Square: Square waveform
Triangle: Triangular waveform
Sawtooth: Forward sawtooth wave
Resawtooth: Anti-aliasing waveform
ECG: Electrocardiogram
EXP-rise: Index increase
Lorenz: Lorenz pulses
Gaussian: Gaussian pulse
Sinc: Sinc pulse
Half-wave: Half-wave
Full-wave: Full wave
Schumann: Schumann's Compositions
Noise: Noise waves
EXP-decay: Exponential decline
bnc clip line
bnc line + clip line + bnc line with two connectors
