Description

Weight:XXD3O A V2:4.8gPackaging Dimensions:145*110*12 mm

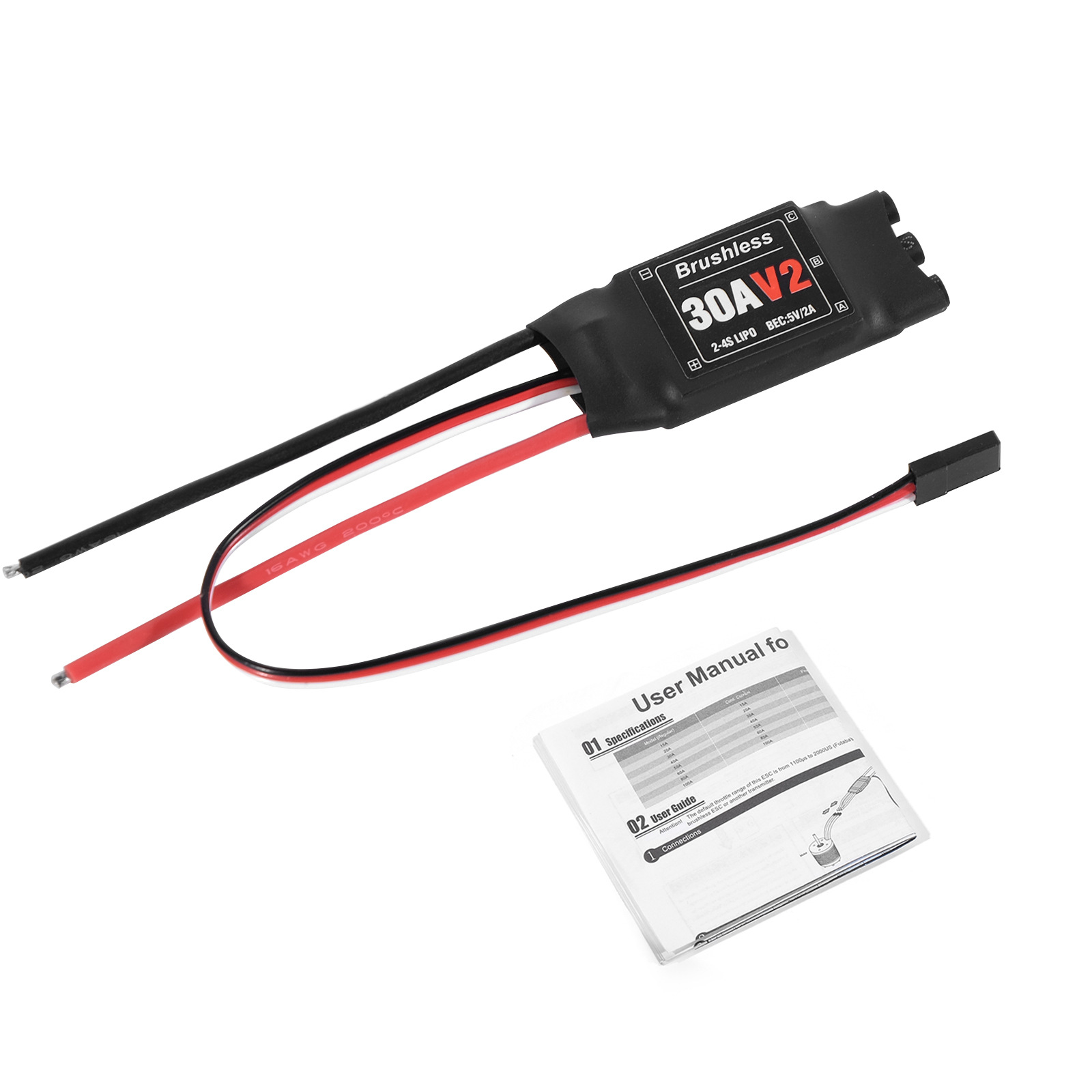

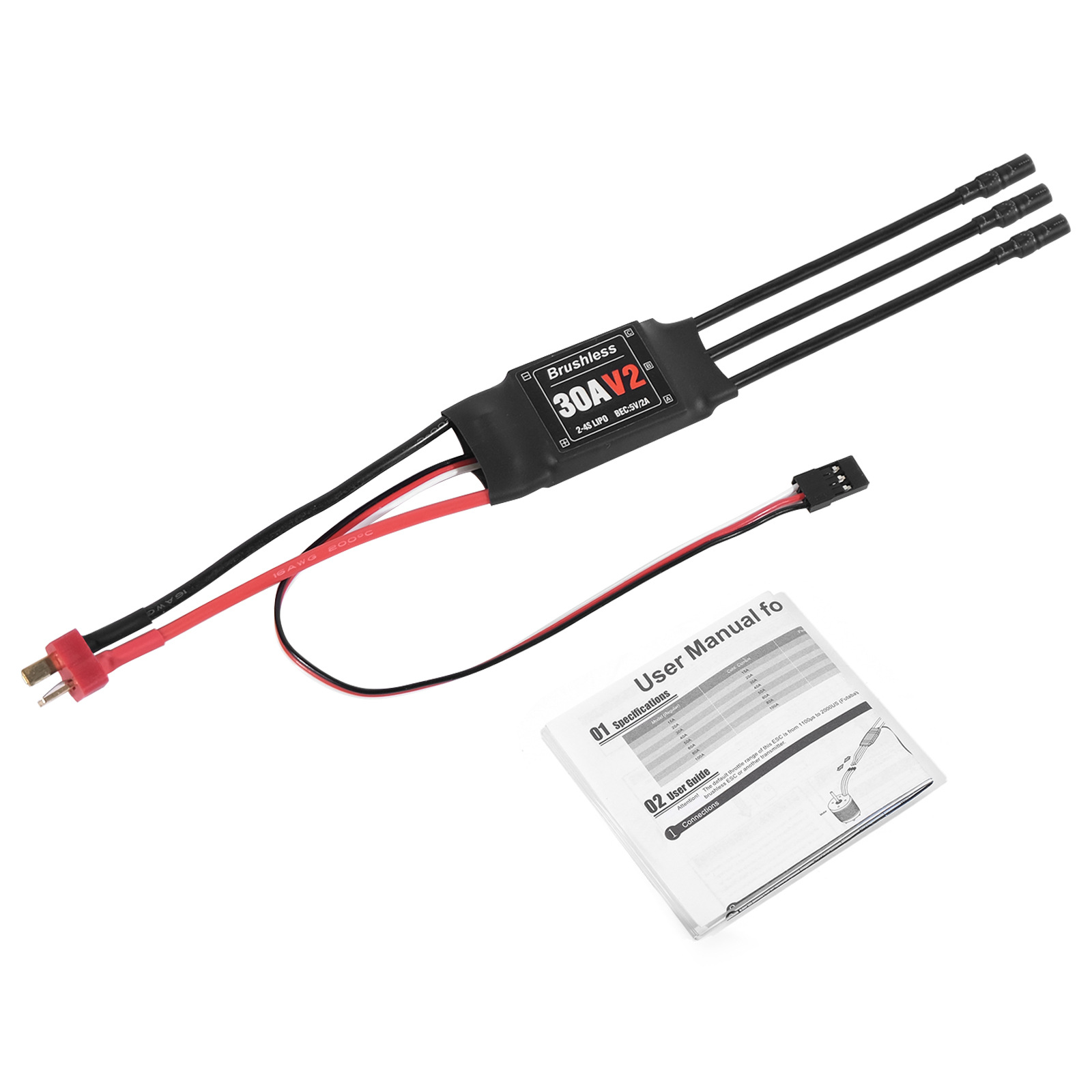

PE bag packaging + instruction manual

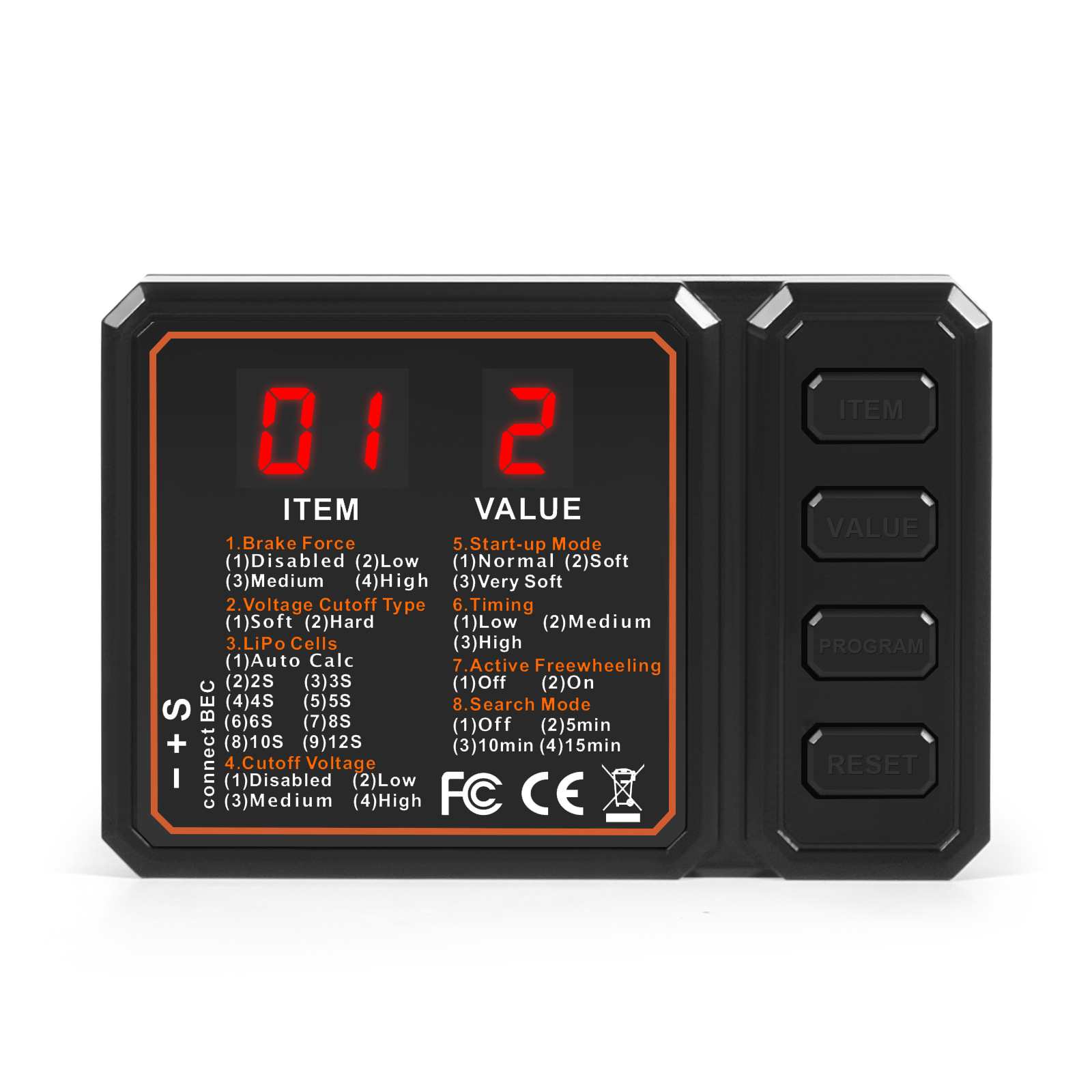

Programming card: 35g, 83*55*14mm, packaged in PE bag

The programming card must be sold in collaboration with the controller; it can only be used with our controller.

Name Voltage Support- Continuous Current- Maximum Current- BEC Output Programming Support Programming Modes
XXD3O A V2 : 2-4S LiPo 35A 50A 5V2A Yes Remote control programming - programming card programming
Attention! The default throttle range of this ESC is from 1100µs to 2000 US (Futaba’s standard); users need to calibrate the throttle range when they start using it.
brushless ESC or another transmitter.
Note: The values marked with * in the following format are the factory default settings.
1. Braking Force
The brake function will be activated when you move the throttle stick to the bottom position. In this mode, the brake amount equals the brake force you have preset.
2. Voltage Cutoff Type
2.1 Soft Cutoff
After selecting this option, the ESC will gradually reduce the output to 60% of the full power within 3 seconds after the low-voltage cutoff protection is activated.
2.2 Hard Cutoff
After selecting this option, the ESC will immediately stop the output when the low-voltage cutoff protection is activated.
3. LiPo Cells
If "Auto Calc." is selected, the ESC will automatically calculate the number of LiPo cells connected according to the “3.7V/Cell” rule, or you can manually set this parameter.
Note: 1.5A, 2.0A can only select the following parameters: automatic calculation, 2S, 3S.
4. Cutoff Voltage
If triggered, the low-voltage protection function is disabled. Additionally, the protection voltage value for the low-voltage protection function in the low/medium/three modes is approximately 2.8V/section and 3.0V/section.
and 3.4V/ section. This value represents the voltage of a single battery, multiplied by the number of lithium batteries automatically detected by the electronic regulator, or the number of lithium batteries set manually.
Battery protection voltage value. (For example, if the low-voltage protection threshold for 3 lithium batteries is medium, the protection voltage of the batteries is 3 × 3.0 = 9.0 V)
5. Start-up Mode
This is used to adjust the throttle response time of the ESC acceleration from 0% to 100%. Normal/Soft/Very Soft correspond to approximately 200ms/500ms/800ms respectively.
6. Timing
The drive motor timing value can be adjusted. The values for low, medium, and high are respectively: 5°, 15°, and 25°.
7. Active Freewheeling (DEO)
This option can be adjusted between “Enabled” and “Disabled”, and it is enabled by default. When enabled, it provides better throttle linearity or a smoother throttle response.
8. Search Mode

After selecting this option, pressing ESC will trigger the motor chirping prompt when the throttle is kept at 0%, and it will continue for the set duration.

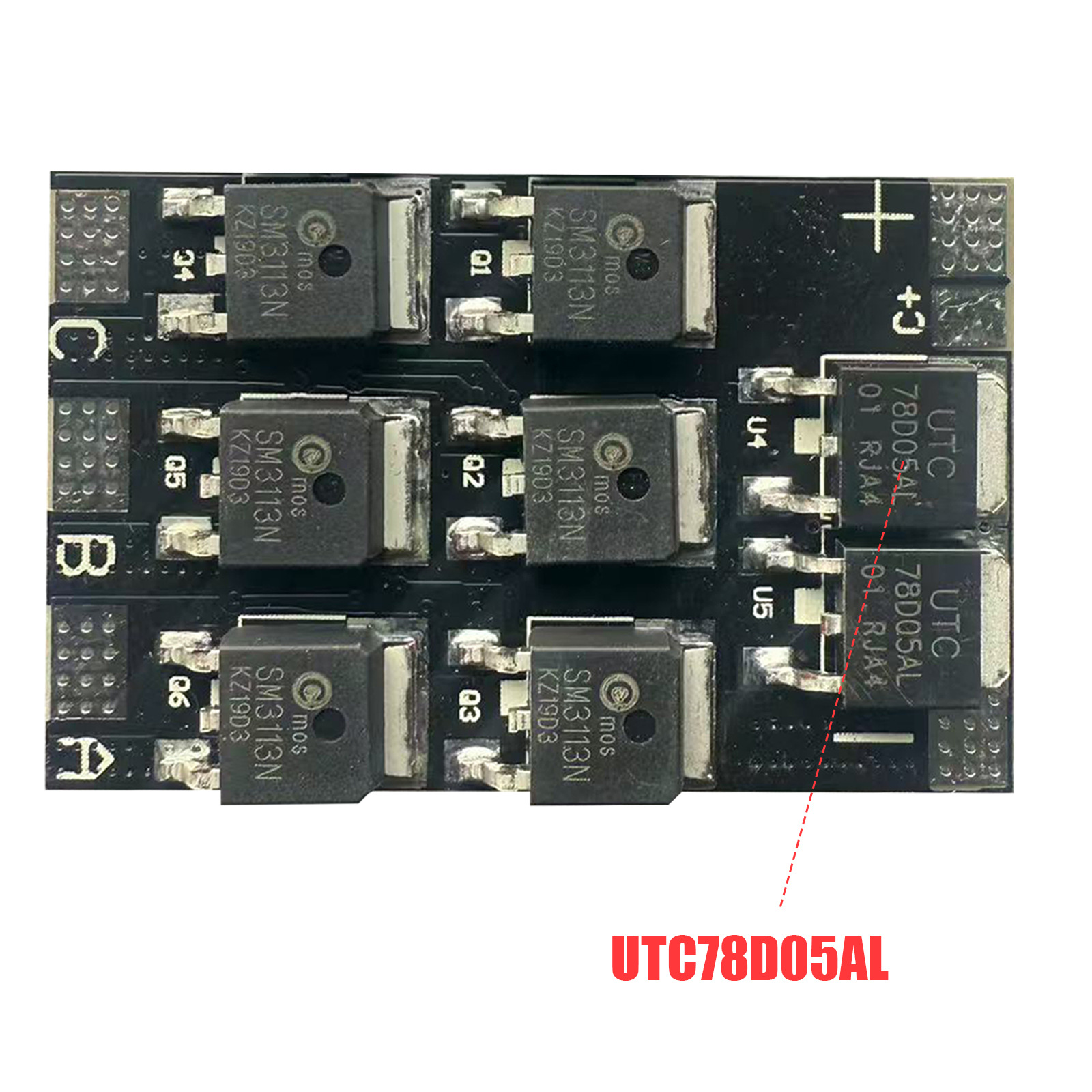

主图2

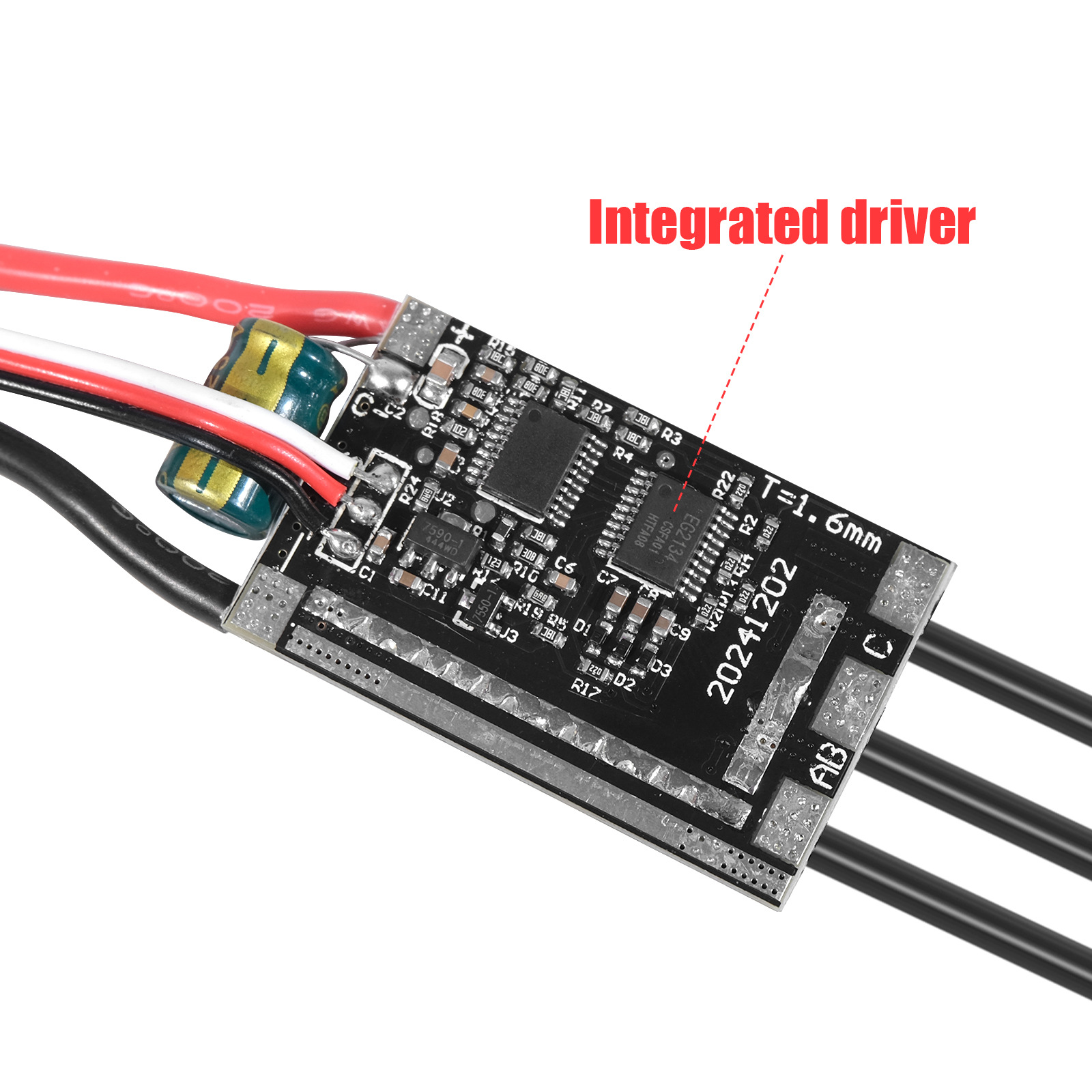

主图1

Update time：20260929133113

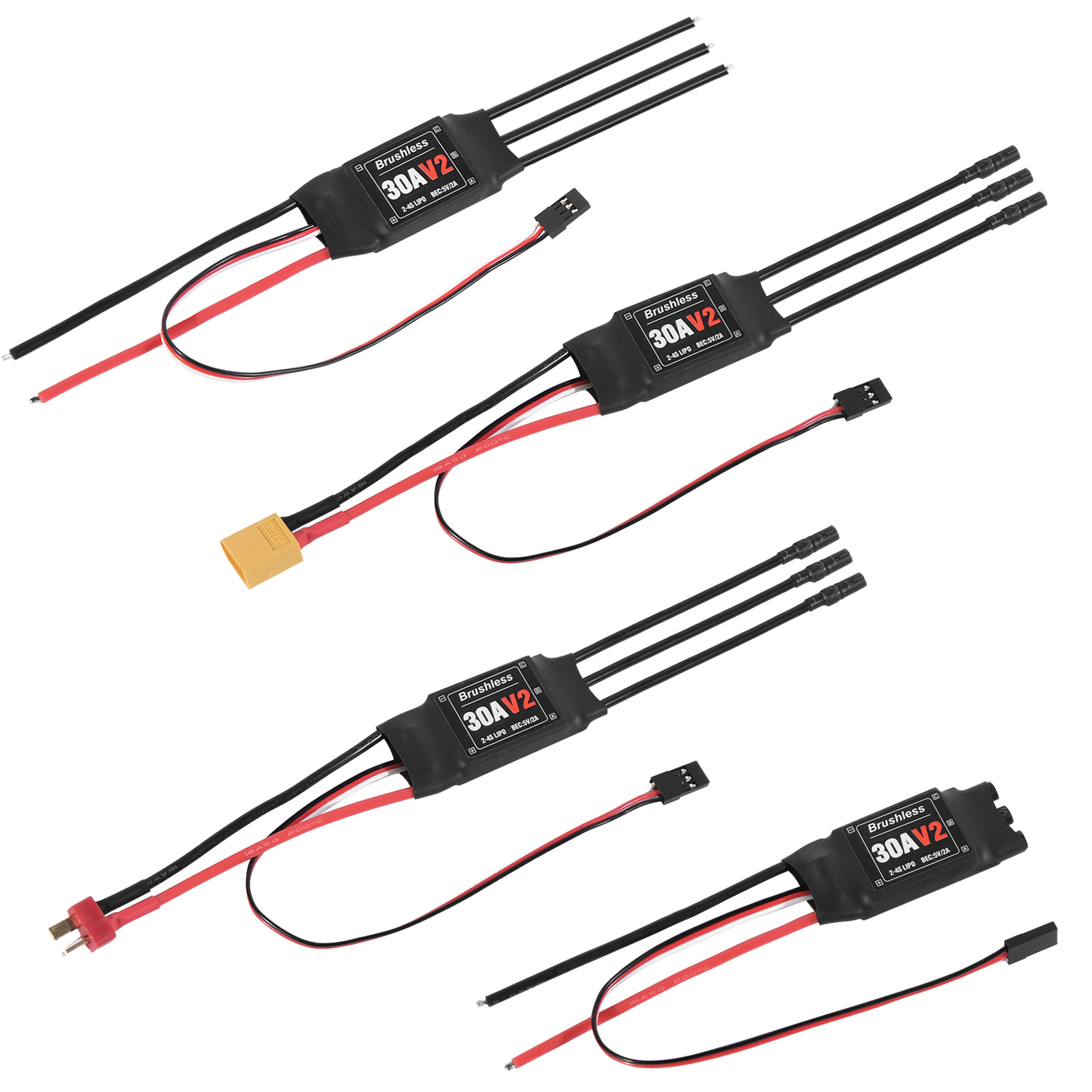

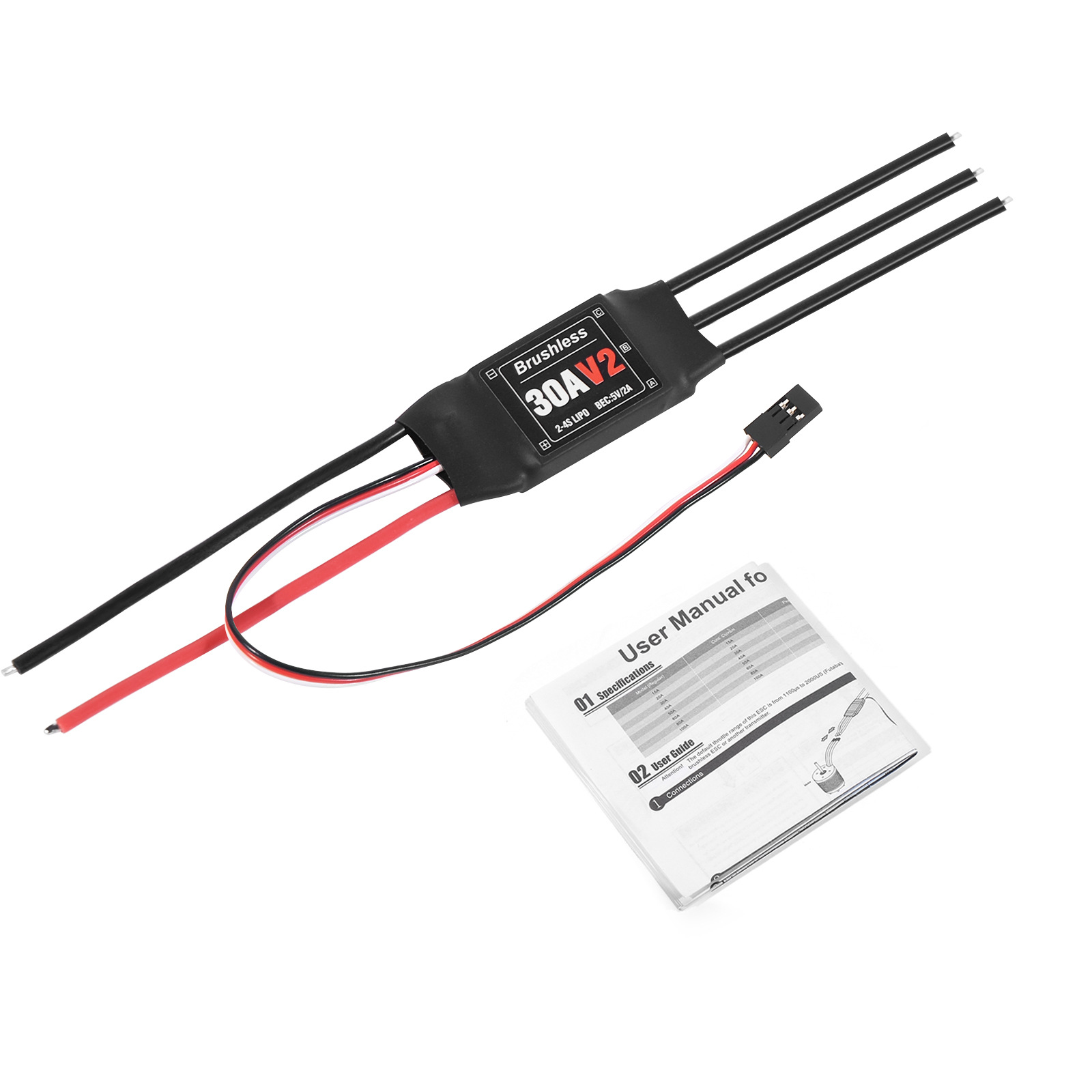

xxd30a v2 without plug XXD30A V2 无插头	CN¥ 25.0
xxd30a v2 gold fork XXD30A V2 金叉	CN¥ 25.0

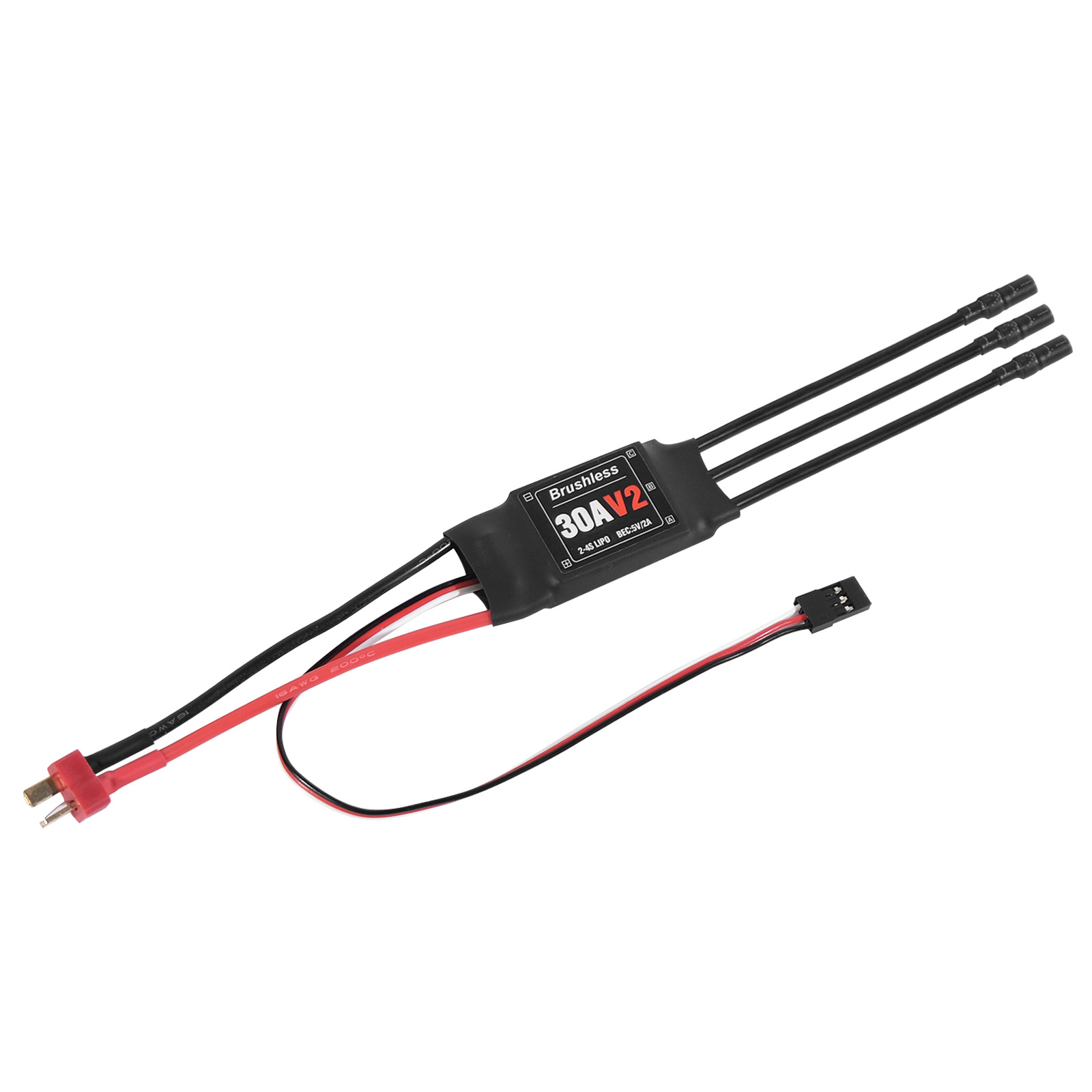

xxd30a v2 t plug XXD30A V2 T插头	CN¥ 25.0

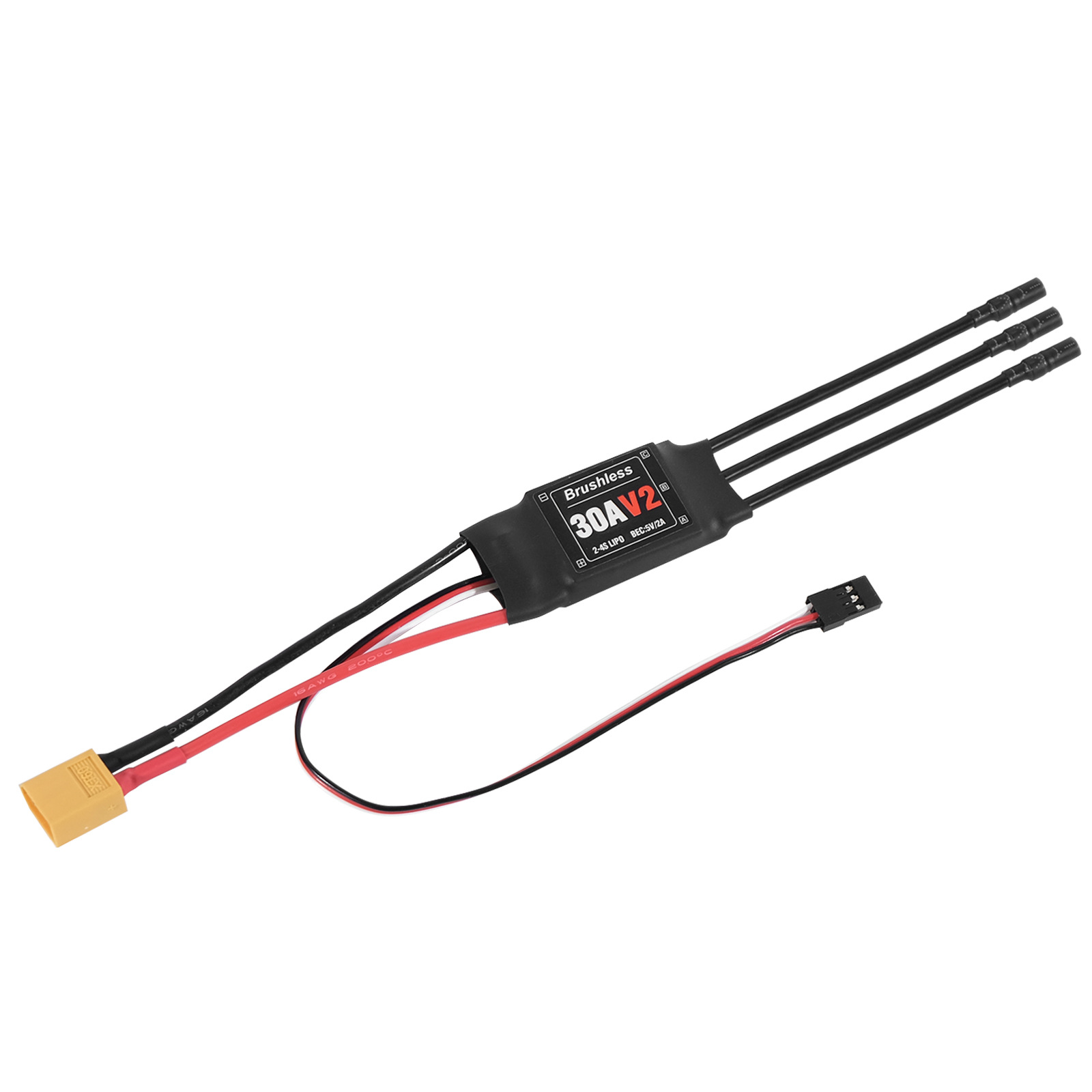

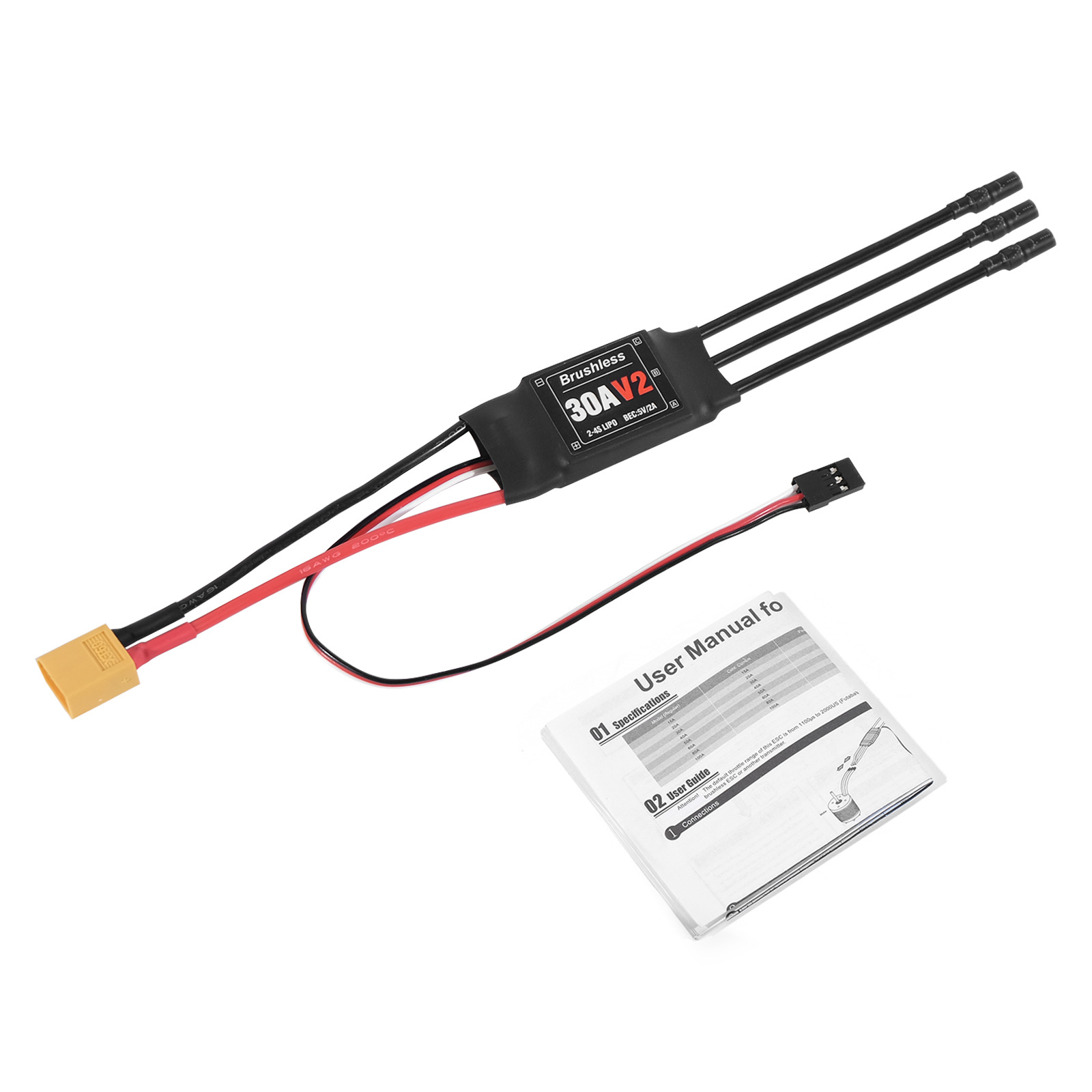

xxd30a v2 xt60 plug XXD30A V2 XT60插头	CN¥ 25.0
model aircraft programming card 航模编程卡	CN¥ 25.0
